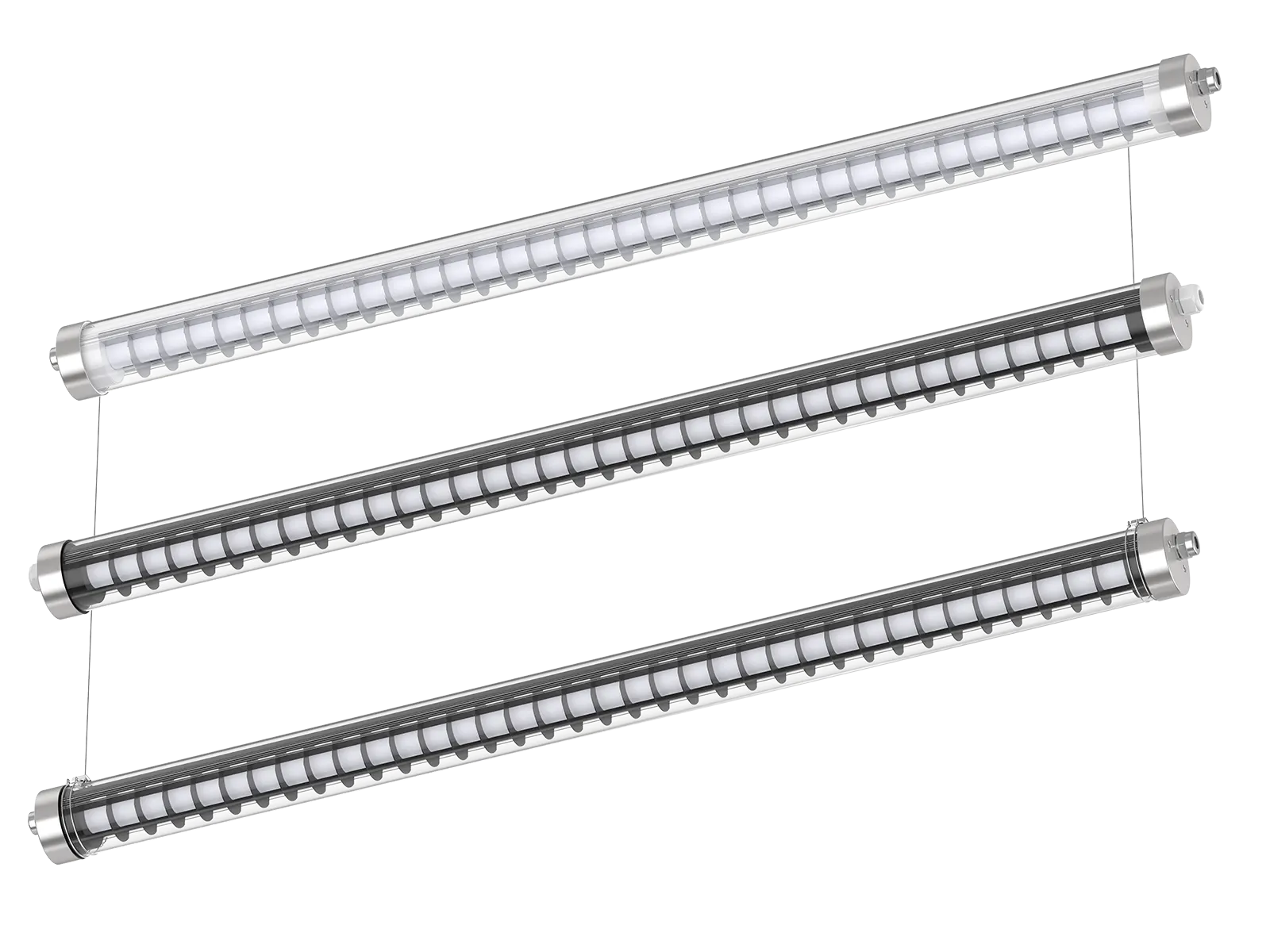

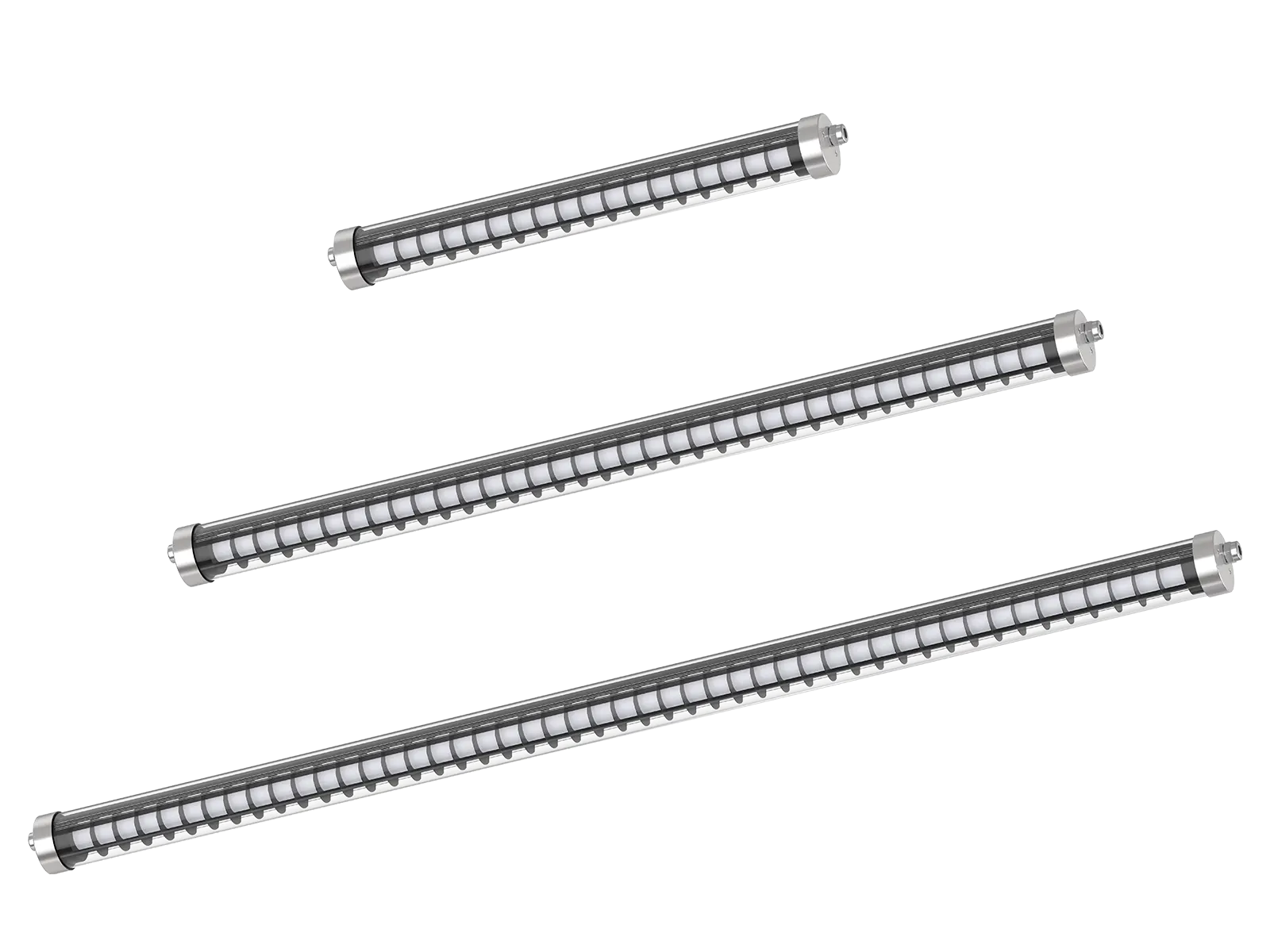

The TRP15C batten light features a high-transmittance transparent PC lampshade with internal vertical louver blades that effectively block unwanted light. It softly illuminates every corner of spaces requiring high brightness while minimizing harsh glare, creating a comfortable diffused light effect. The light includes a 316 brushed stainless steel end cap and a waterproof quick-press terminal for easy wiring and connectivity. Equipped with unique snap-on mounting bracket, the installation angles can be adjusted, enabling changes in light direction. It is an ideal alternative to traditional fluorescent tubes, with a clean, easy-to-maintain round tube shape suitable for both indoor and outdoor applications.
Application: Suitable for studios, offices, gas stations, parking lots, enterprises, schools, warehouses, retail stores, and public facilities in hospitals.
| Code | TRP15C-600-20W | TRP15C-1200-36W | TRP15C-1500-48W | ||
|---|---|---|---|---|---|
| Dimension(mm) | Ø75*628 | Ø75*1168 | Ø75*1528 | ||
| Watt(W) | 20W | 36W | 48W | ||
| Rated Input Voltage | AC220-240V | ||||
| Input Voltage | AC198-264V | ||||
| Light Source | SMD | ||||
| SDCM | < 6 | ||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K | ||||
| CCT Selection DIP Switch | - | ||||
| Luminous Flux (lm) ±5% | 1-CCT | Non-DIM | 1650-1850 | 3350-3550 | 4200-4550 |
| CRI80 | DALI/0-10V | 1650-1850 | 3350-3550 | 4200-4550 | |
| CRI | CRI80 | ||||
| Beam Angle(°) | 70*140° | ||||
| LED Driver | Driver built-in | ||||
| Dimming Option | DALI/ 0-10V | ||||
| Electrical Class | Class I | ||||
| Ingress Protection(IP Rating) | IP65 | ||||
| Impact Resistance(IK Rating) | IK06 | ||||
| Product Finishing | Silver RAL9006/Golden RAL260-M/Black RAL9005 | ||||
| Optics Material | PC | ||||
| Housing Material | AL6063+SUS316 | ||||
| Lifetime(hr) | 50,000h | ||||
| Glow wire test(°C) | 850°C | ||||
| Operating Temp.(°C) | -20°C~40°C | ||||
| Storage Temp.(°C) | -20°C~65°C | ||||
| Installation | Ceiling surface mount /Wall mount | ||||
