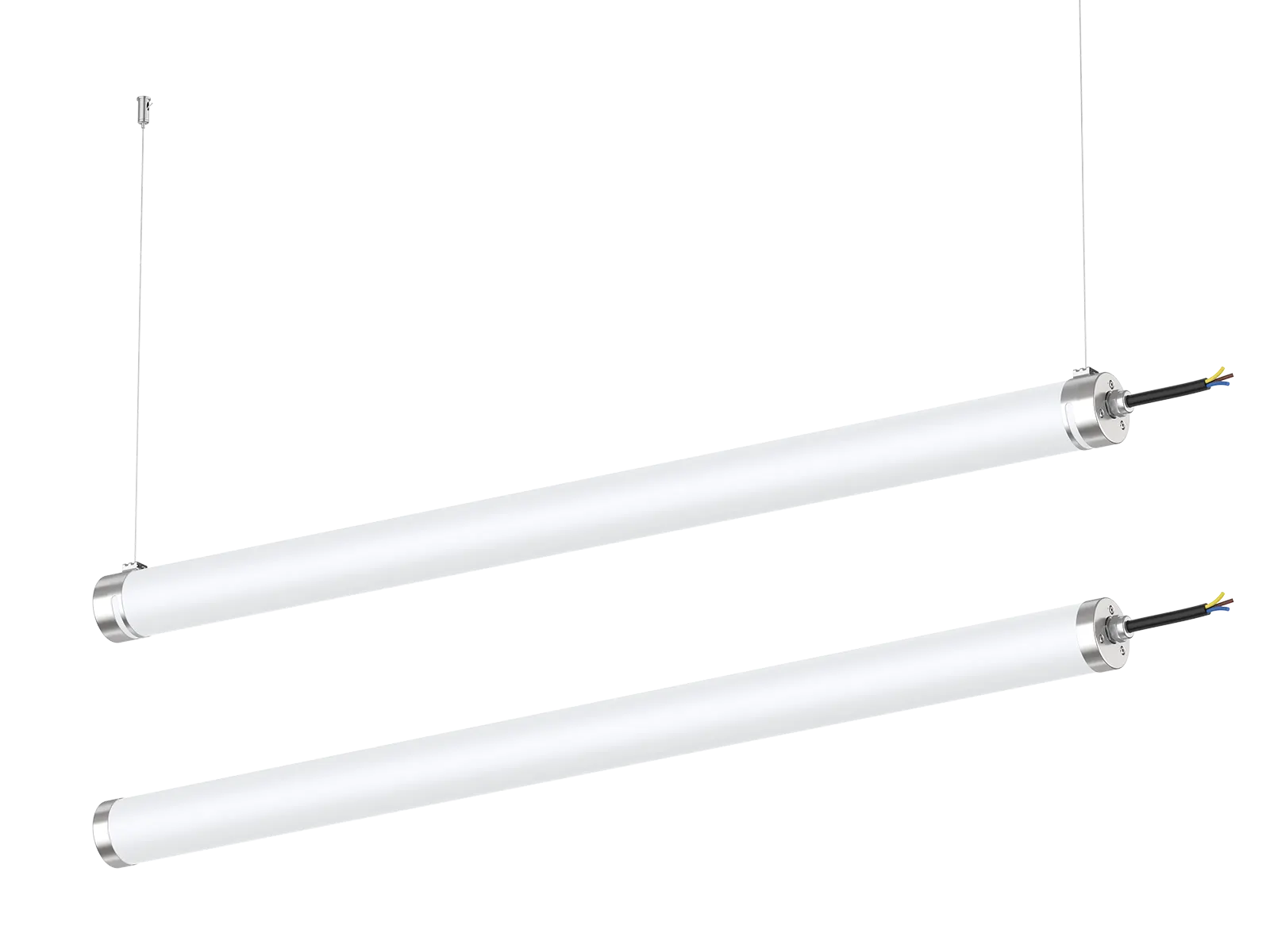

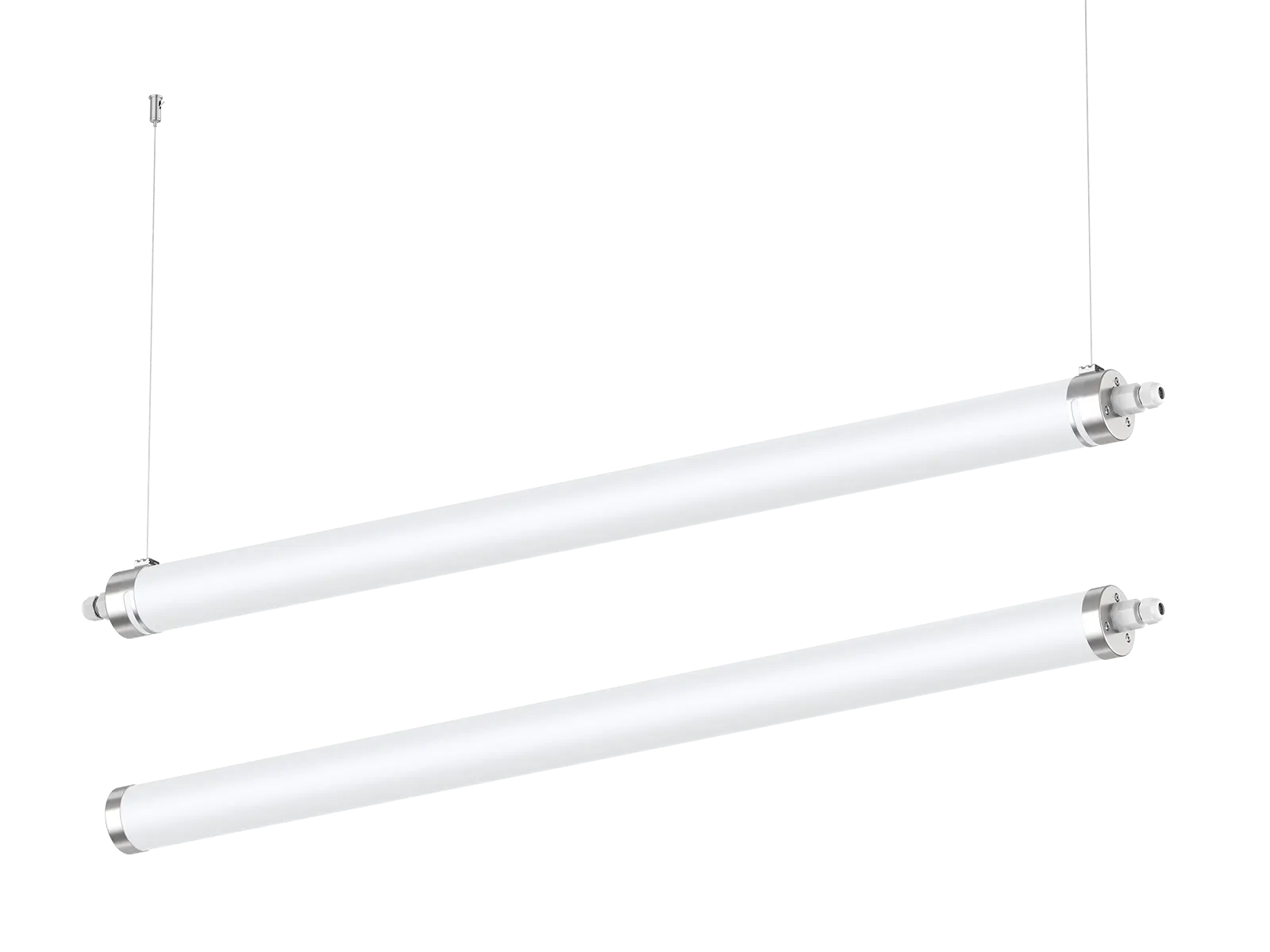

This Tubular IP69K LED Tri-proof Light offers a comprehensive range of protective features, including waterproof, resistance of dust, corrosion and UV. It adopted PMMA diffuser with high transmittance, 120degree beam angle offers soft and uniform light output. To further enhance the durability and meet more applications, the fixture equipped with 316L stainless steel end caps. two connectors and 3 kinds of install bracket options: stainless steel connector and plastic connector, quick-fit bracket/ anti-theft clamp/anti-vibration bracket. With an IP69K rating, it offers the highest level of protection, making it suitable for applications where high-pressure water jets and elevated temperatures are involved in intense wash-down process.
Applications: Due to the high protection level, the lamp is widely used in farms, pastures, stables, livestock houses, meat industry plant and mushroom room lighting etc.
| Code | TRP15A-600-20W | TRP15A-1200-36W | TRP15A-1500-48W | ||
|---|---|---|---|---|---|
| Dimension(mm) | Ø72*600 | Ø72*1200 | Ø72*1500 | ||
| Watt(W) | 20W | 36W | 48W | ||
| Rated Input Voltage | AC220-240V | ||||
| Input Voltage | AC198-264V | ||||
| Light Source | SMD | ||||
| SDCM | < 6 | ||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K | ||||
| CCT Selection DIP Switch | No | ||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 3000-3350 | 5500-6100 | 7900-8865 |
| DIM | 3100-3400 | 5600-6500 | 7800-8700 | ||
| CRI | 80 | ||||
| Beam Angle(°) | 120° | ||||
| UGR | - | ||||
| LED Driver | Driver built-in | ||||
| Dimming Option | DALI/ 0-10V | ||||
| Sensor | Microwave Sensor | ||||
| Emergency Kits | - | Yes | |||
| Electrical Class | Class I | ||||
| Ingress Protection(IP Rating) | IP66 | ||||
| Impact Resistance(IK Rating) | IK06 | ||||
| Product Finishing | White RAL9016 | ||||
| Optics Material | PMMA | ||||
| Housing Material | AL6063+SUS316 | ||||
| Lifetime(hr) | 50,000h | ||||
| Glow wire test(°C) | 650°C | ||||
| Operating Temp(°C) | -20°C~40°C | ||||
| Storage Temp(°C) | -20°C~65°C | ||||
| Installation | Surface mount / Pendant | ||||
