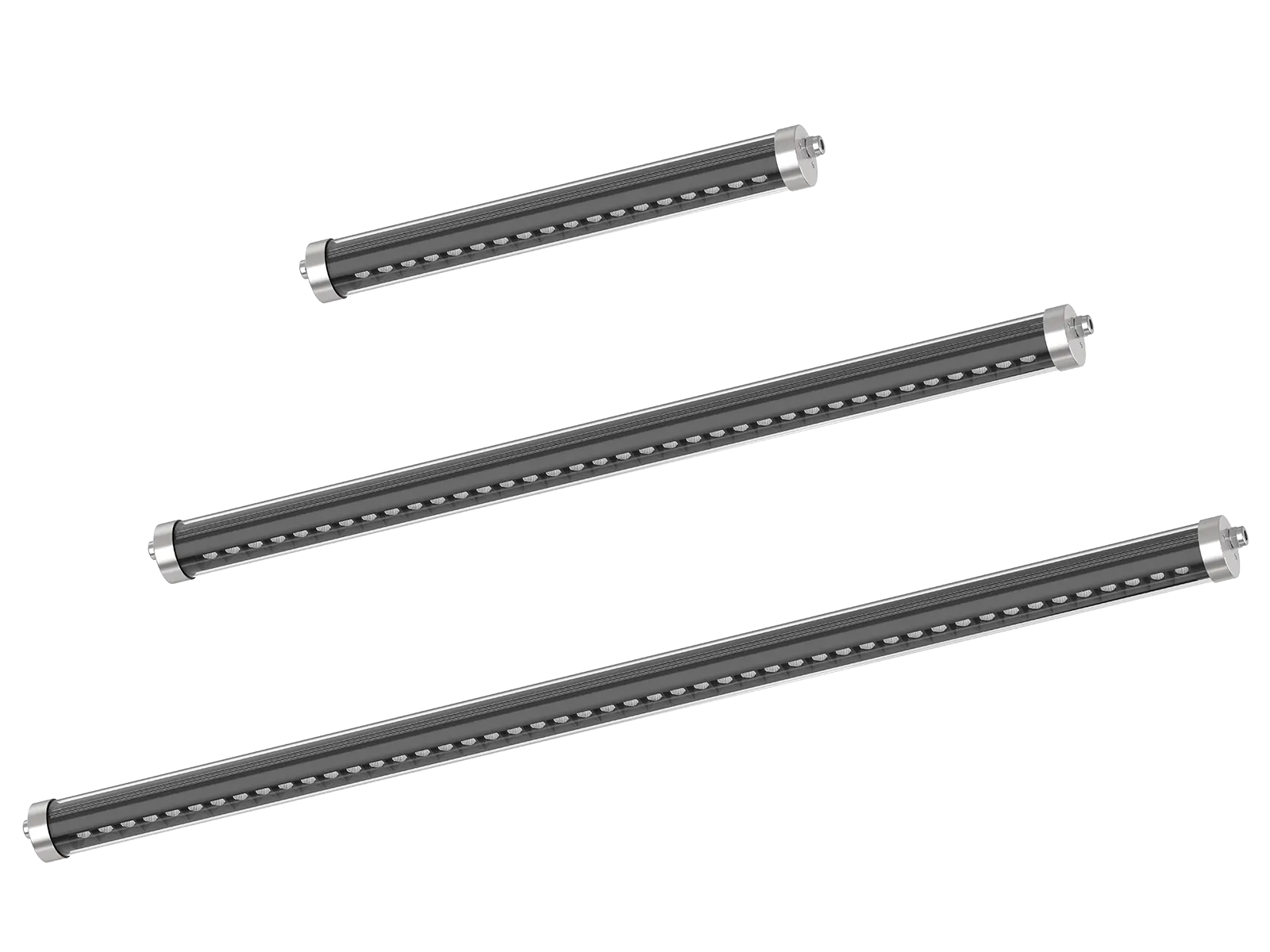

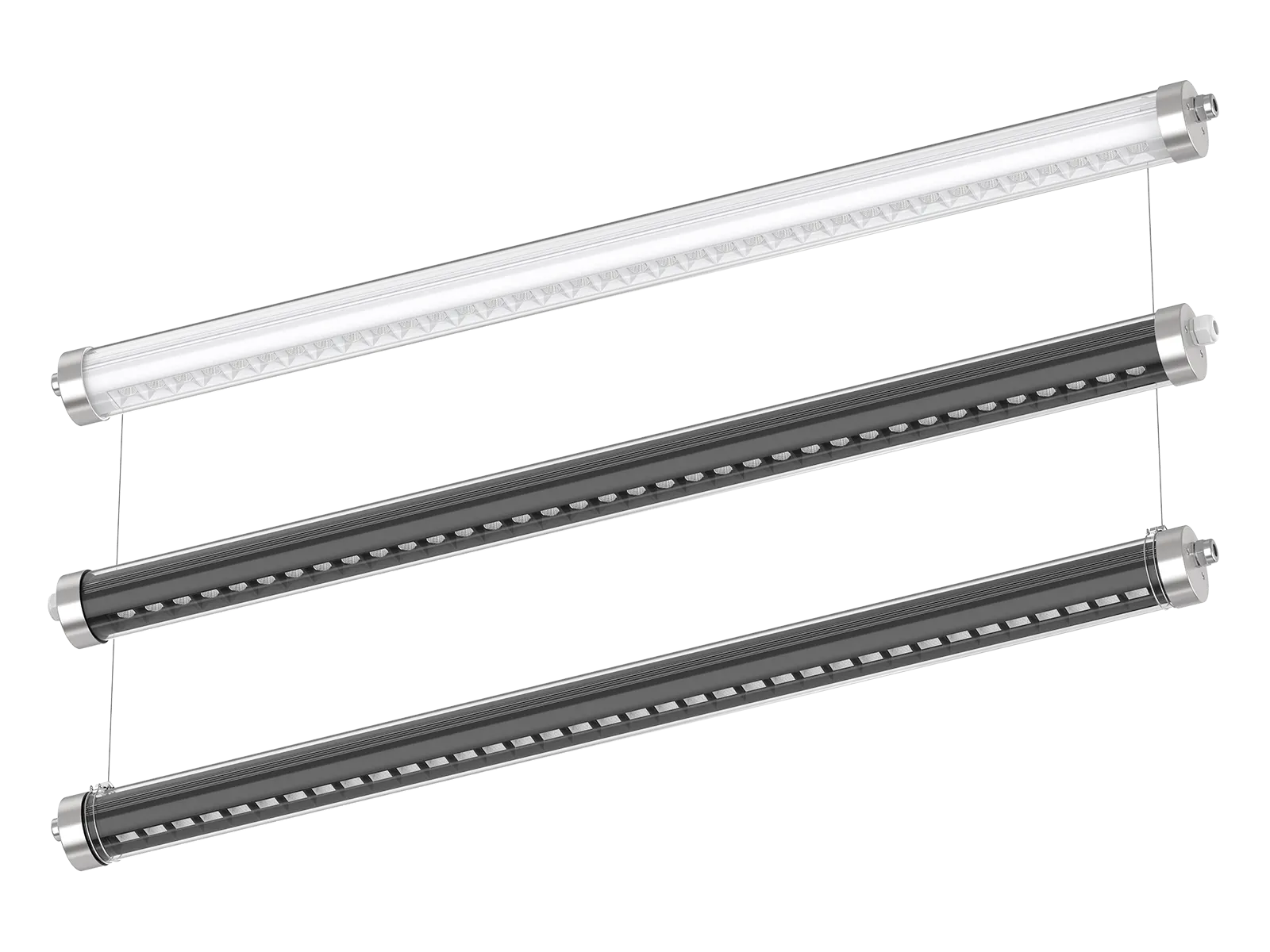

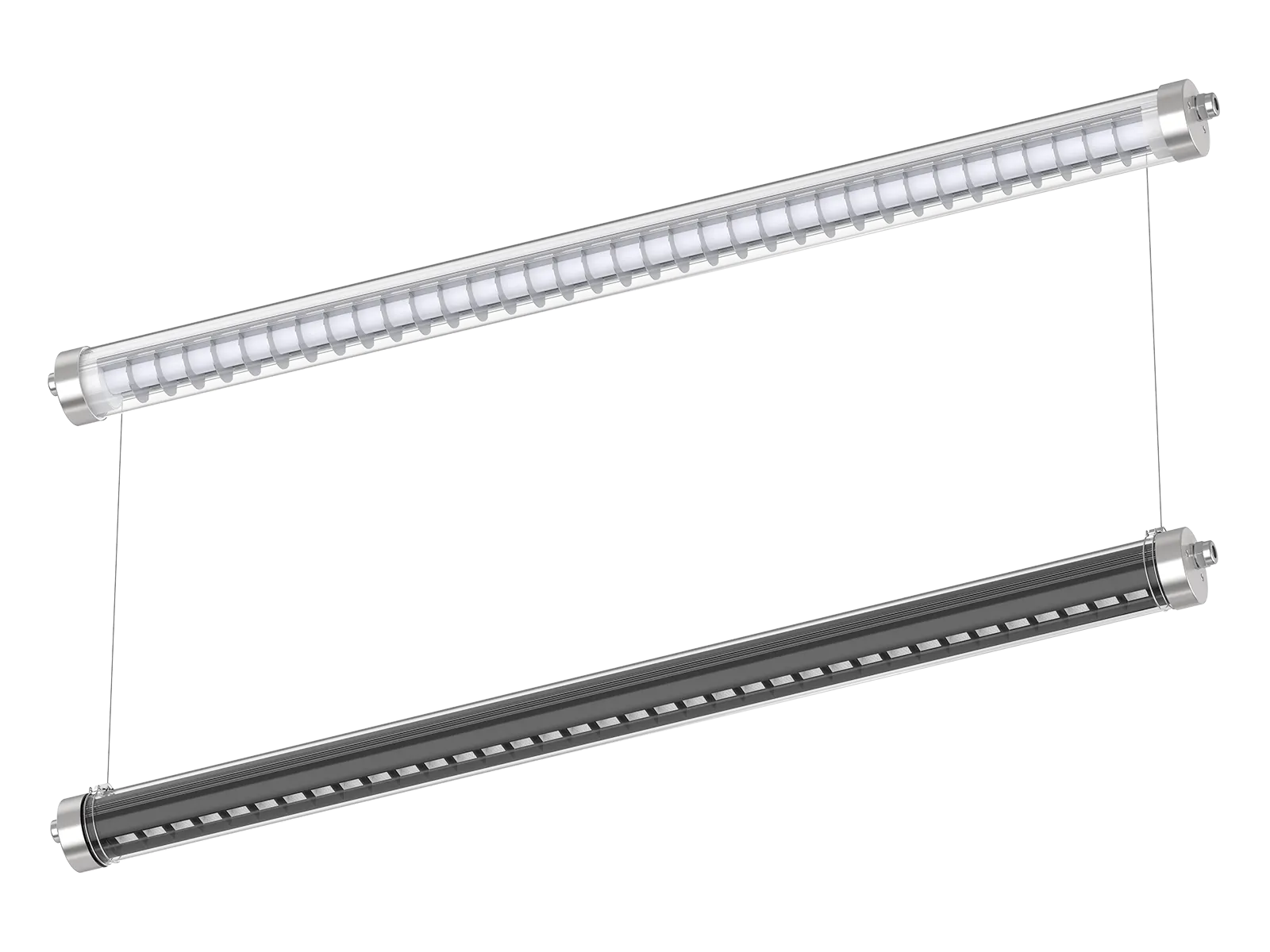

The TRP15B batten light features a high-transmittance transparent PC lampshade with a built-in reflector, offering multiple beam angle options. It includes a 316 brushed stainless steel end cap and a waterproof quick-press terminal for easy wiring and connectivity. Equipped with unique snap-on mounting bracket, the installation angles can be adjusted, enabling changes in light direction. It is a perfect alternative to traditional fluorescent tubes, with a clean and easy-to-maintain round tube shape, suitable for both indoor and outdoor applications.
Application: Suitable for studios, offices, production workshops, libraries, and theaters.
| Code | TRP15B-600-20W | TRP15B-1200-36W | TRP15B-1500-48W | ||
|---|---|---|---|---|---|
| Dimension(mm) | Ø75*628 | Ø75*1168 | Ø75*1528 | ||
| Watt(W) | 20W | 36W | 48W | ||
| Rated Input Voltage | AC220-240V | ||||
| Input Voltage | AC198-264V | ||||
| Light Source | SMD | ||||
| SDCM | < 6 | ||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K | ||||
| CCT Selection DIP Switch | - | ||||
| 1-CCT | Non-DIM | 2000-2200 | 3650-3950 | 4200-4700 | |
| Luminous Flux (lm) ±5% | 24°/36°/45° | DALI | 2000-2200 | 3650-3950 | 4200-4700 |
| CRI80 | 1-CCT | Non-DIM | 1820-1980 | 3280-3630 | 4200-4700 |
| 40*60° | DALI | 1820-1980 | 3280-3630 | 4200-4700 | |
| CRI | CRI80 | ||||
| Beam Angle(°) | 24°/36°/45°/40*60° | ||||
| UGR | ≤14@24°/36°/45°, ≤19@40*60° | ||||
| LED Driver | Driver built-in | ||||
| Dimming Option | DALI/ 0-10V | ||||
| Electrical Class | Class I | ||||
| Ingress Protection(IP Rating) | IP65 | ||||
| Impact Resistance(IK Rating) | IK06 | ||||
| Product Finishing | White RAL9016/Black RAL9005 | ||||
| Optics Material | PC | ||||
| Housing Material | AL6063+SUS316 | ||||
| Lifetime(hr) | 50,000h | ||||
| Glow wire test(°C) | 850°C | ||||
| Operating Temp.(°C) | -20°C~40°C | ||||
| Storage Temp.(°C) | -20°C~65°C | ||||
| Installation | Ceiling surface mount /Wall mount | ||||
