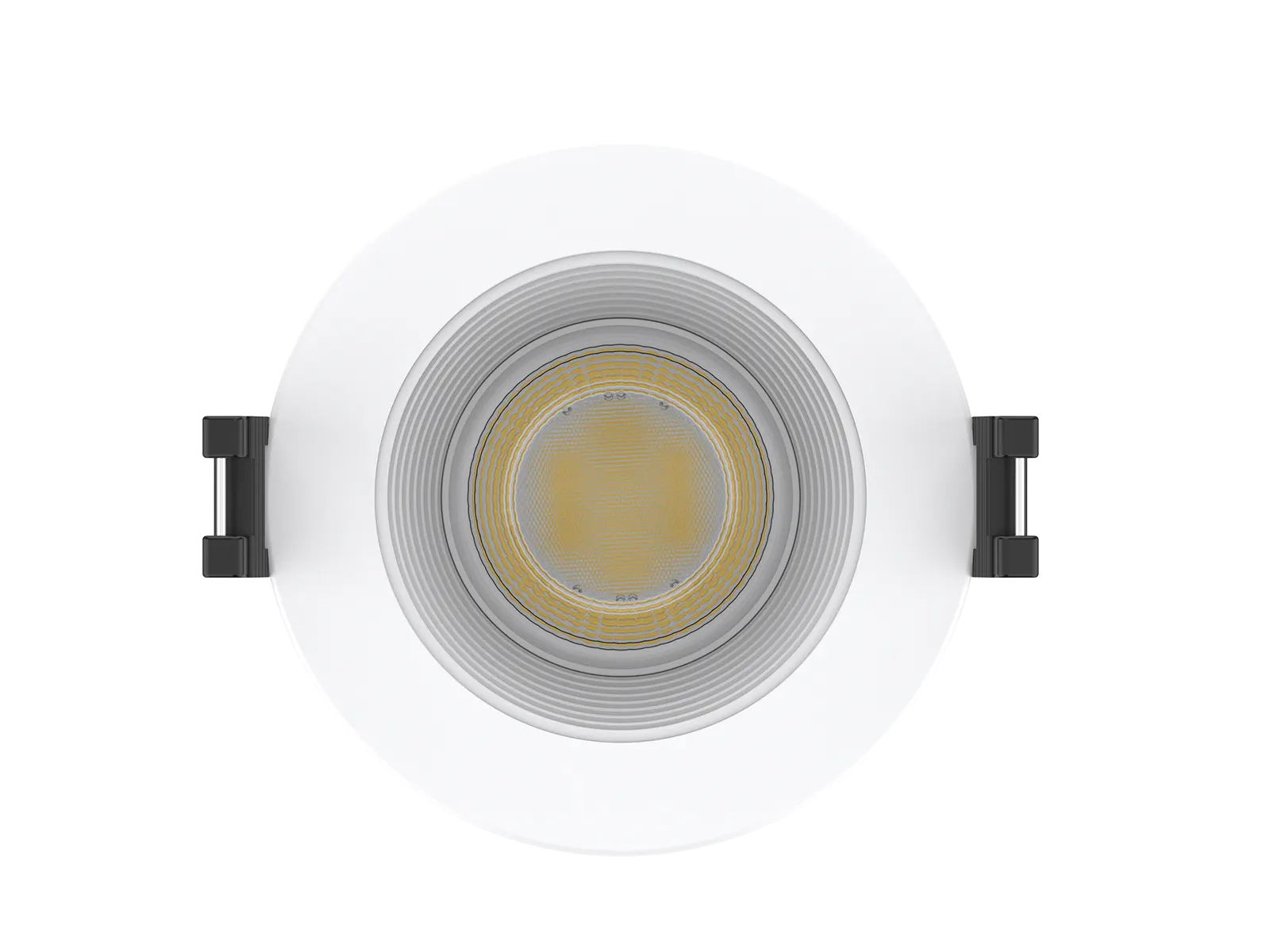

DL486D adopts a deep-recessed structure, providing superior anti-glare performance and softer, more comfortable lighting. The entire series retains a reliable fire-rated construction that meets fire safety standards, while offering enhanced heat dissipation and durability. Suitable for residential, hospitality, office, and various project applications, it achieves a dual upgrade in both lighting efficiency and safety protection.
Applications: It is designed for general lighting applications in supermarket, shop, hotel, home etc.
| Code | DL486D-2.5-5W-D2 | ||
|---|---|---|---|
| Dimension(mm) | Ø85*65 | ||
| Cutout(mm) | Ø68 | ||
| Watt(W) | 5W-3W | ||
| Rated Input Voltage | AC220-240V | ||
| Input Voltage | AC198-264V | ||
| LED Module Input | - | ||
| Light Source | SMD | ||
| SDCM | <6 | ||
| CCT(K) | 4-CCT: 2700K+3000K + 4000K + 6500K | ||
| CCT Selection | YES | ||
| Luminous Flux (lm) ±5% | 4-CCT | Anti-glare baffle White 5W: 580-650 | |
| CRI90 | DIM | Anti-glare baffle White 3W: 360-400 | |
| Anti-glare baffle Black 5W: 530-580 | |||
| Anti-glare baffle Black 3W: 320-350 | |||
| CRI | 90 | ||
| Beam Angle(°) | 60° | ||
| UGR | - | ||
| LED Driver | Built-in, Flicker Free | ||
| Dimming Option | Triac | ||
| Sensor | NO | ||
| Emergency Kits | NO | ||
| Electrical Class | Class II | ||
| Ingress Protection(IP Rating) | IP65(Below Ceiling), IP20(Inside Ceiling) | ||
| Impact Resistance(IK Rating) | IK04 | ||
| Product Finishing | Black RAL9005 | ||
| Optics Material | PC | ||
| Housing Material | Aluminium /SPCC | ||
| Lifetime(hr) | 50,000h | ||
| Glow wire test(°C) | 750°C | ||
| Operating Temp.(°C) | -20°C~45°C (25°C IC-Rated) | ||
| Storage Temp.(°C) | -20°C~65°C | ||
| Installation | Recessed | ||
