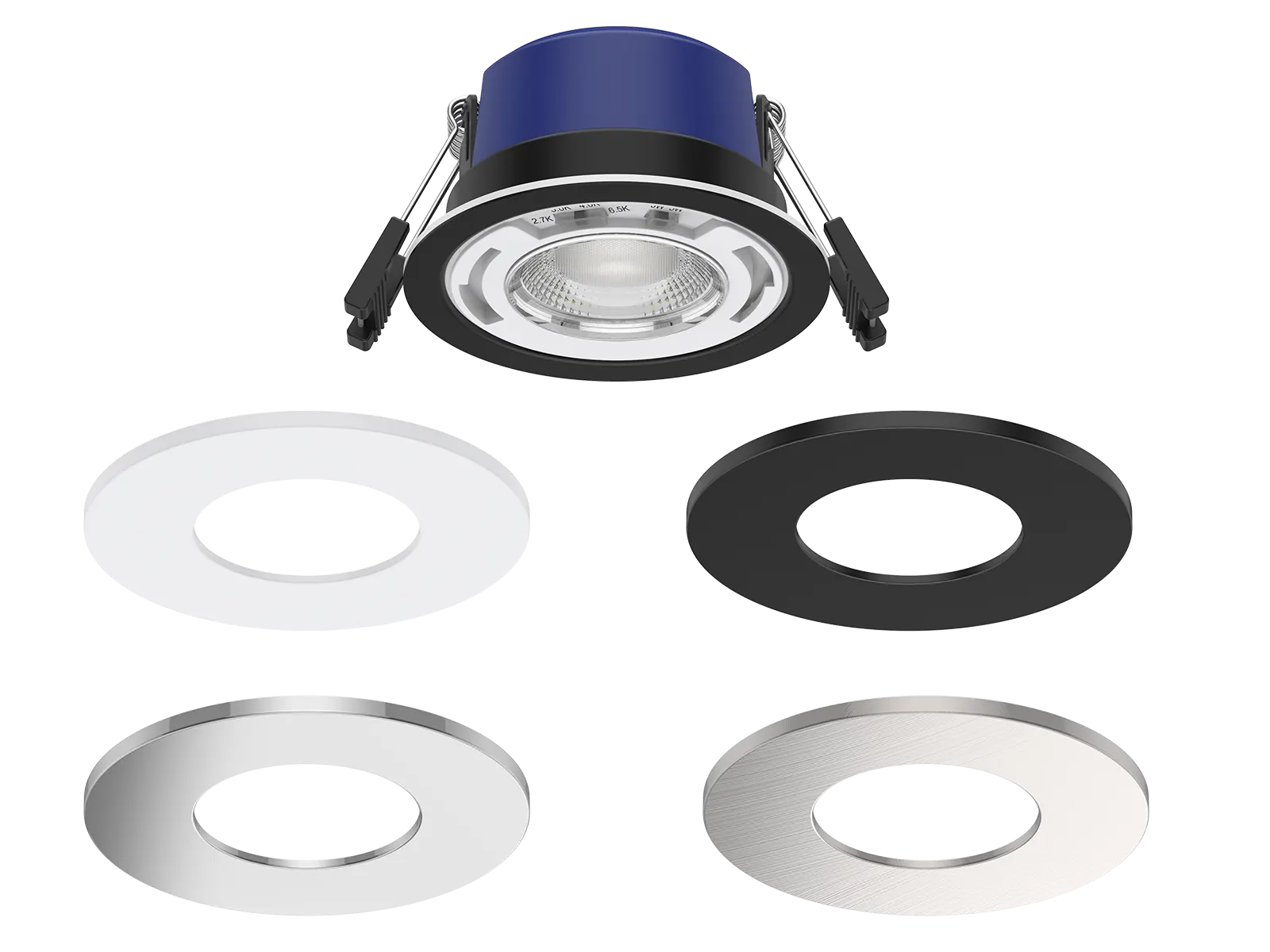

DL486B is a high-efficacy fire-rated downlight designed to enhance overall luminous performance, delivering higher brightness with lower energy consumption. It also features an upgraded driver with improved efficiency, reducing conversion losses while ensuring more stable and energy-saving operation.

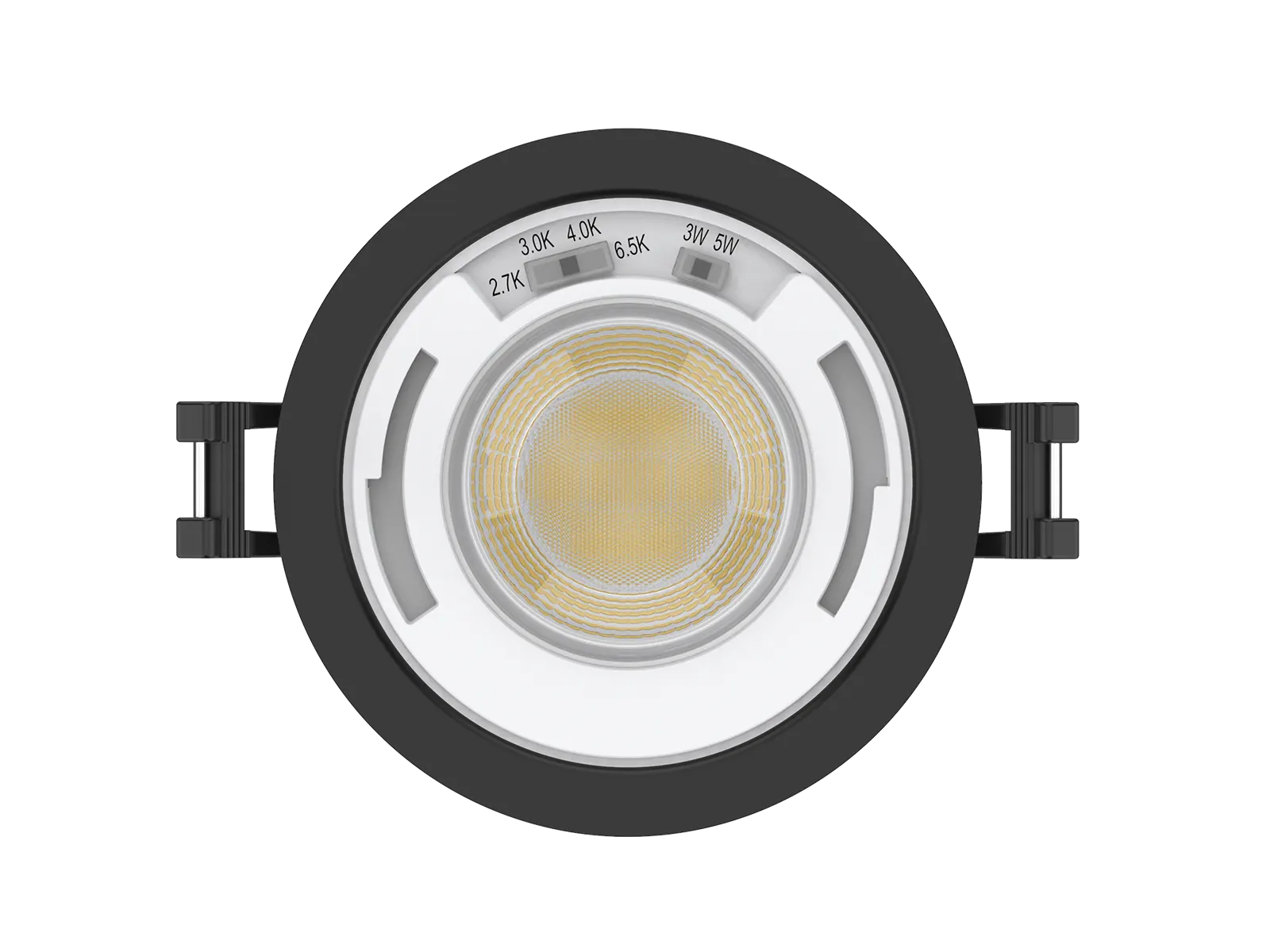

Applications: It is designed for general lighting applications in supermarket, shop, hotel, home etc. CCT Selection DIP Switch Wattage Switchable
| Code | DL486B-2.5-5W-D2 | ||
|---|---|---|---|
| Dimension(mm) | Ø85*45 | ||
| Cutout(mm) | Ø68 | ||
| Watt(W) | 5W-3W | ||
| Rated Input Voltage | AC220-240V | ||
| Input Voltage | AC198-264V | ||
| LED Module Input | - | ||
| Light Source | SMD | ||
| SDCM | <6 | ||
| CCT(K) | 4-CCT: 2700K+3000K + 4000K + 6500K | ||
| CCT Selection | YES | ||
| Luminous Flux (lm) ±5% | 4-CCT | 5W: 630-710 | |
| CRI90 | DIM | 3W: 390-430 | |
| CRI | 90 | ||
| Beam Angle(°) | 60° | ||
| UGR | - | ||
| LED Driver | Built-in, Flicker Free | ||

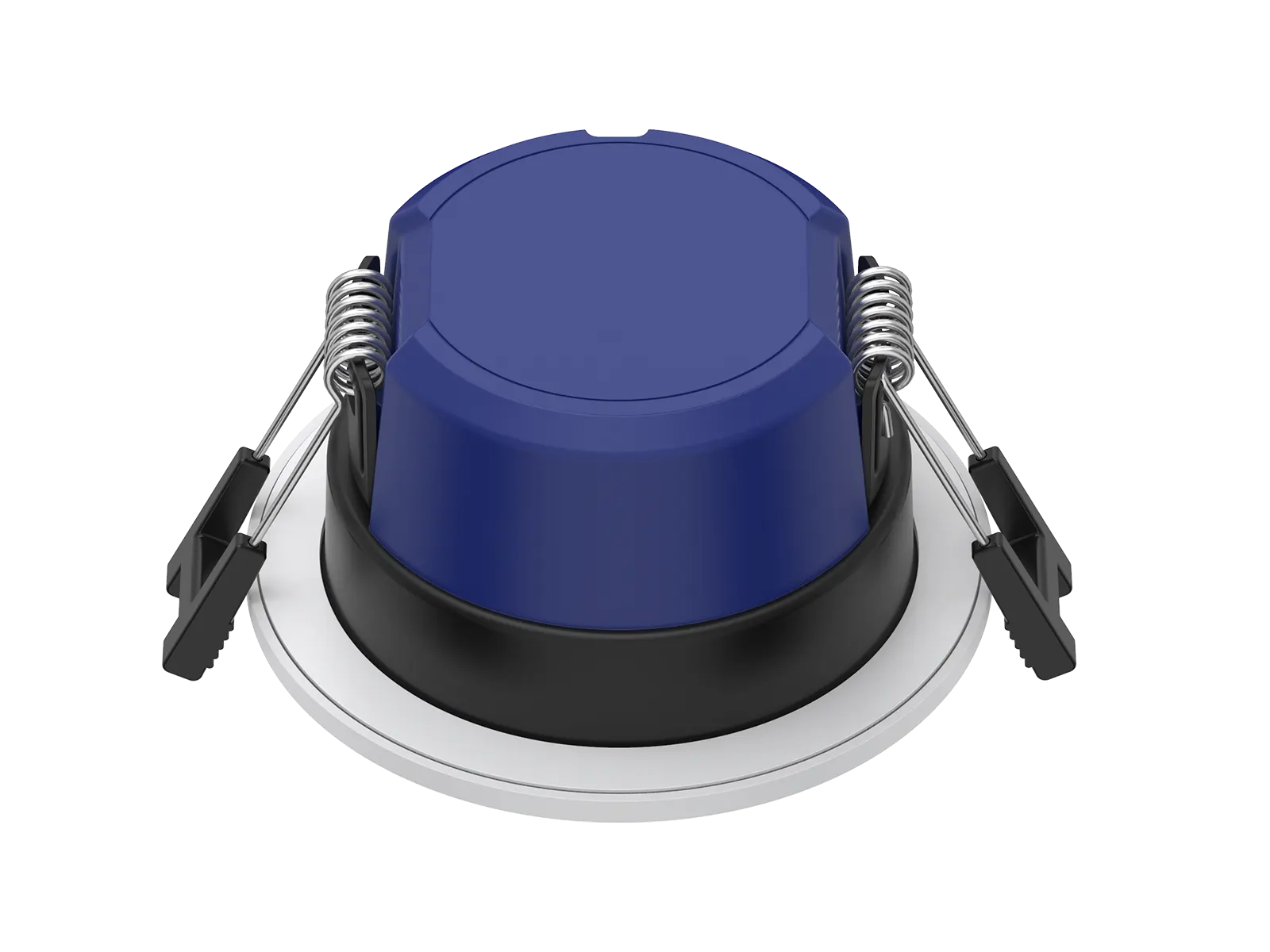

| Dimming Option | Triac | ||
| Sensor | NO | ||
| Emergency Kits | NO | ||
| Electrical Class | Class II | ||
| Ingress Protection(IP Rating) | IP65(Below Ceiling), IP20(Inside Ceiling) | ||
| Impact Resistance(IK Rating) | IK04 | ||
| Product Finishing | Black RAL9005 | ||
| Optics Material | PC | ||
| Housing Material | Aluminium /SPCC | ||
| Lifetime(hr) | 50,000h | ||
| Glow wire test(°C) | 750°C | ||
| Operating Temp.(°C) | -20°C~45°C (25°C IC-Rated) | ||
| Storage Temp.(°C) | -20°C~65°C | ||
| Installation | Recessed | ||
