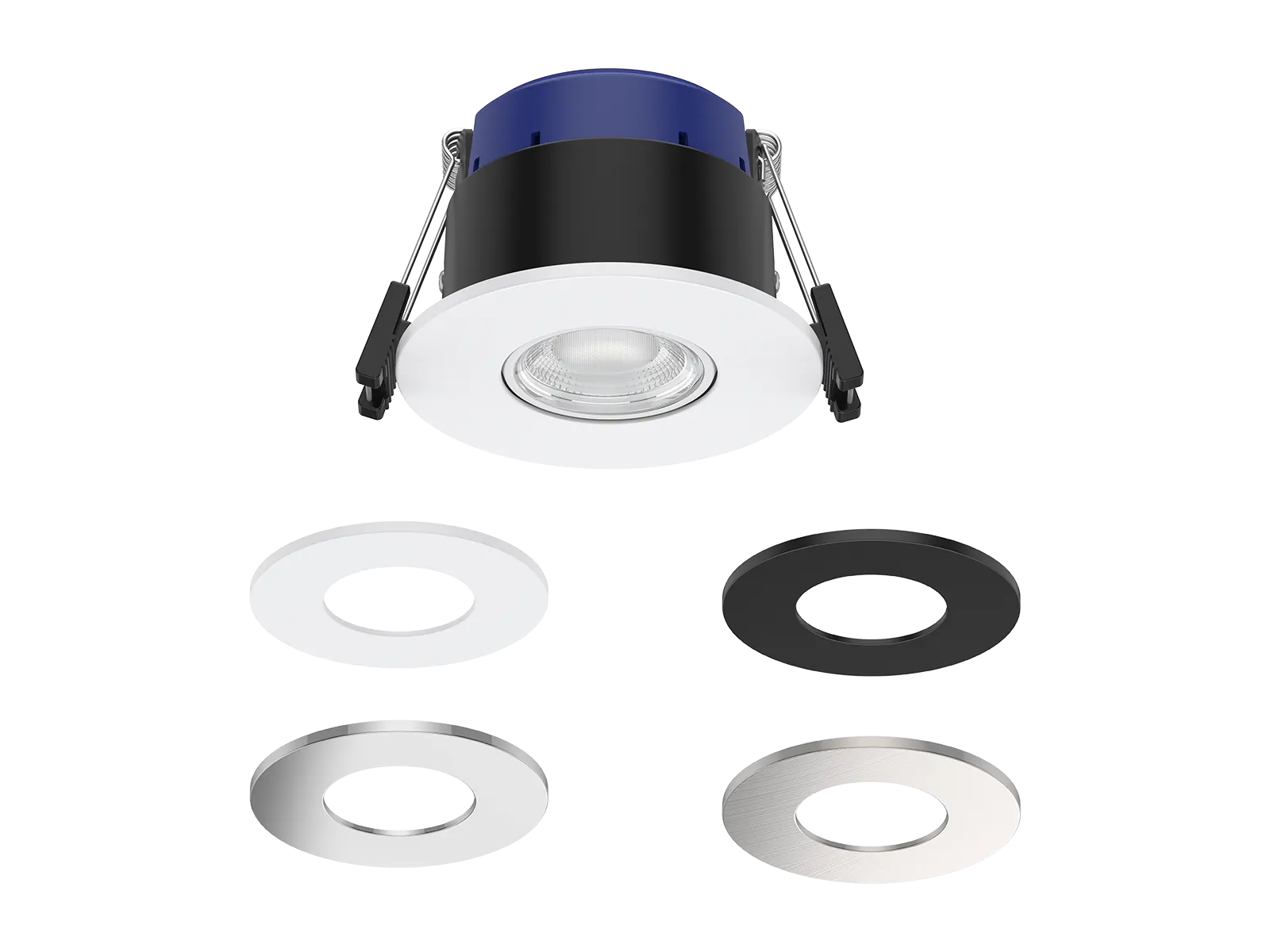

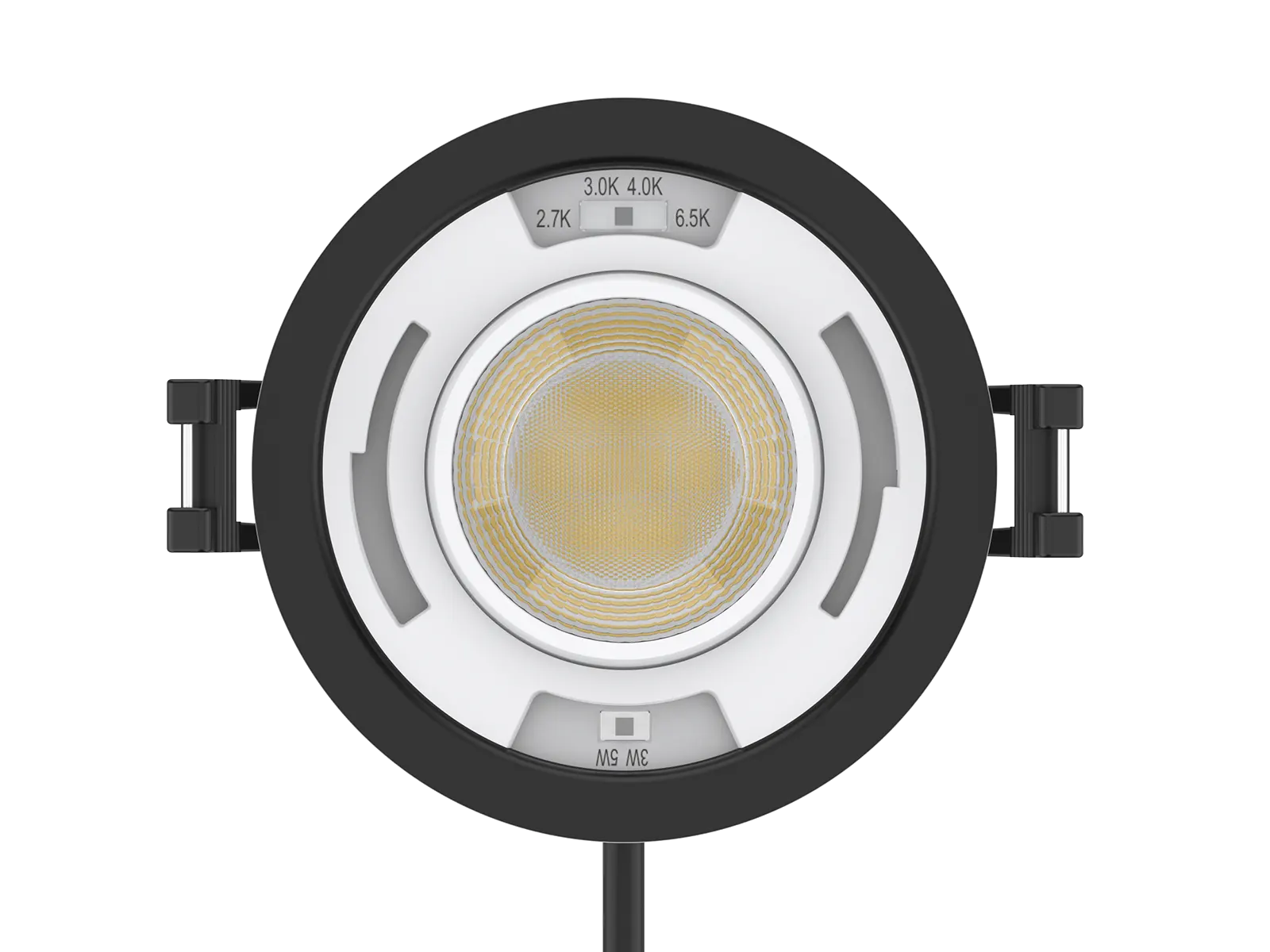

This fire-rated downlight supports front CCT switching and power adjustment, also allows 360° horizontal rotation and 25° tilt for flexible lighting direction. Featuring IP65 protection on the front side and IP20 on the rear side, it adopts a high-efficacy light source for stable and efficient illumination. Equipped with male and female quick connectors, the installation is fast and convenient, while also supporting loop-in / loop-out wiring. Four different bezels are available for interchangeable appearance options. With excellent fire-rated safety performance, it is ideal for premium residential and large-scale commercial projects.
Applications: It is designed for general lighting applications in supermarket, shop, hotel, home etc.
| Code | DL486C-2.5-5W-D2 | ||
|---|---|---|---|
| Dimension(mm) | Ø85*55 | ||
| Cutout(mm) | Ø68 | ||
| Watt(W) | 5W / 3W | ||
| Rated Input Voltage | AC220-240V | ||
| Input Voltage | AC198-264V | ||
| LED Module Input | - | ||
| Light Source | SMD | ||
| SDCM | <6 | ||
| CCT(K) | 4-CCT: 2700K+3000K + 4000K + 6500K | ||
| CCT Selection | YES | ||
| Luminous Flux | 4-CCT | DIM | 5W: 640-700 |
| (lm) ±5% CRI90 | 3W: 390-430 | ||
| CRI | 90 | ||
| Beam Angle(°) | 60° | ||
| UGR | - | ||
| LED Driver | Built-out, Flicker Free | ||
| Dimming Option | Triac | ||
| Sensor | NO | ||
| Emergency Kits | NO | ||
| Electrical Class | Class II | ||
| Ingress Protection(IP Rating) | IP65(Below Ceiling), IP20(Inside Ceiling) | ||
| Impact Resistance(IK Rating) | IK04 | ||
| Product Finishing | Black RAL9005 | ||
| Optics Material | PC | ||
| Housing Material | SPCC | ||
| Lifetime(hr) | 50,000h | ||
| Glow wire test(°C) | 750°C | ||
| Operating Temp.(°C) | -20°C~45°C(25°C IC Rated) | ||
| Storage Temp.(°C) | -20°C~65°C | ||
| Installation | Recessed | ||
