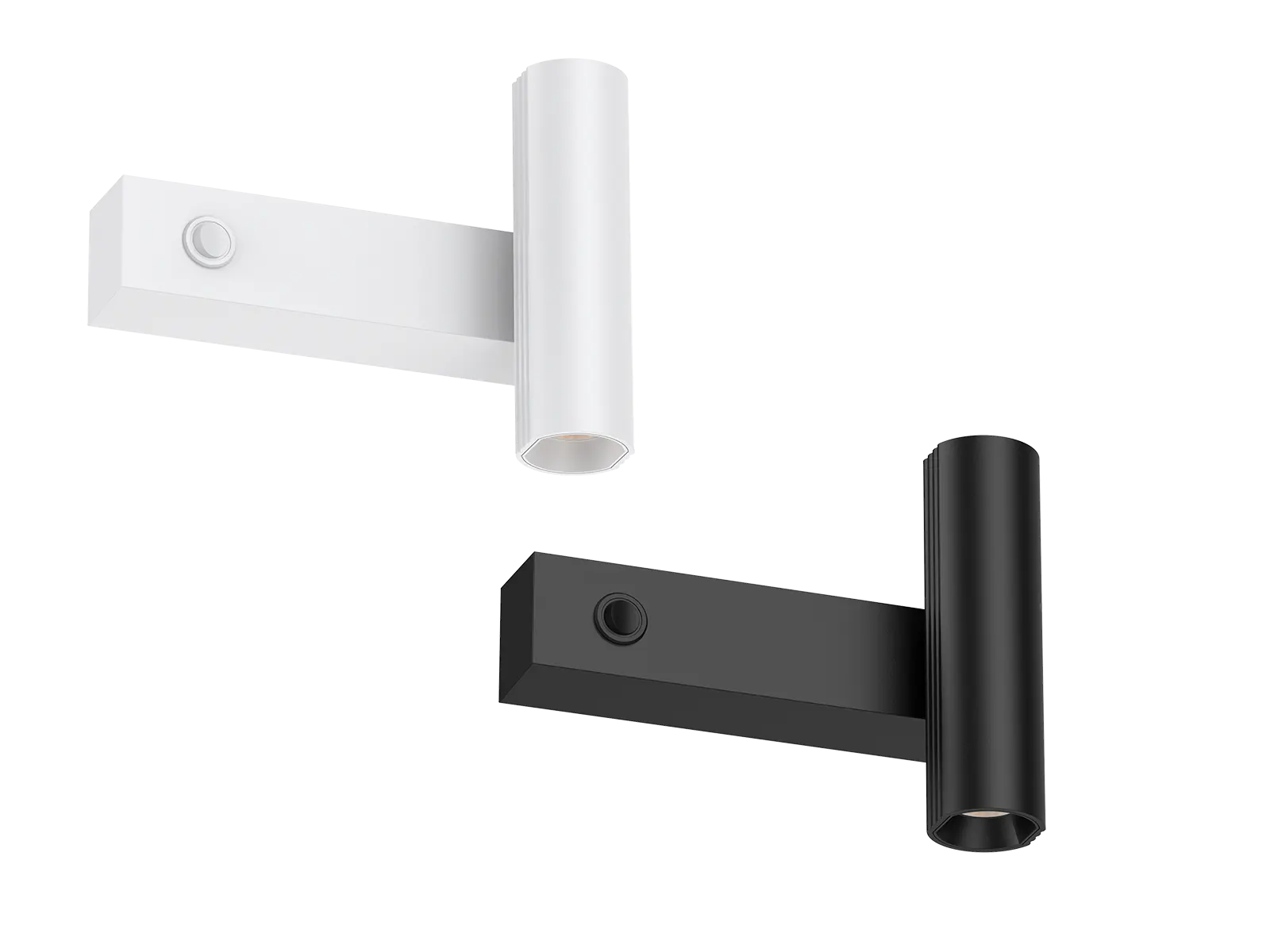

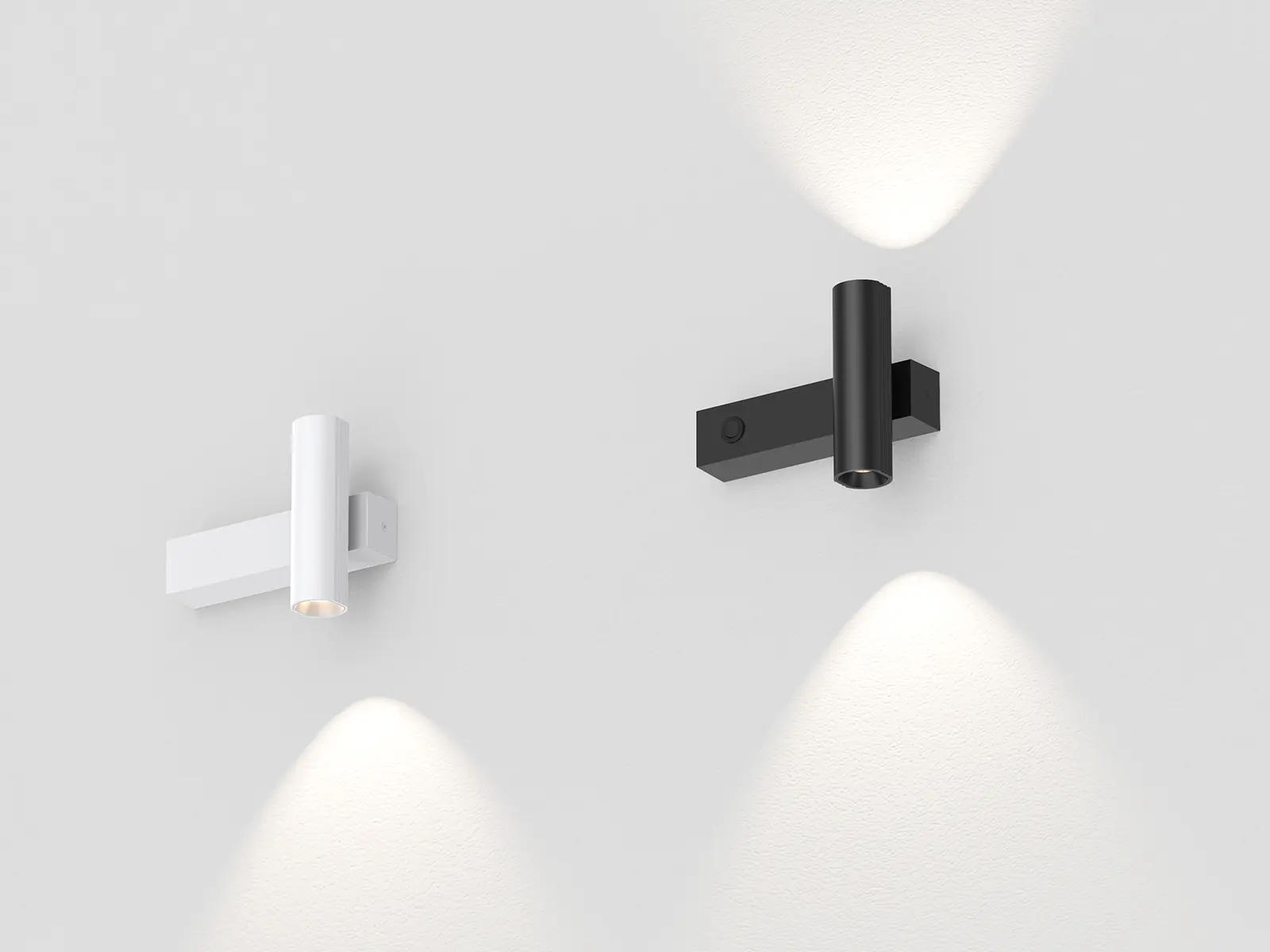

This bedlight made from die-cast aluminium with rectangular base. It adopted optic lens and bridgelux COB light source with CRI90, so it can offer much soft and natural lighting. The fixture features sleek, compact designs that not only meet functional requirements but also enhance the aesthetic appeal of any space. It has AC switch version, direct& indirect lighting, direct lighting version options.
Applications: It is designed for private lighting applications in hotel, home, hospital, library etc.
| Code | WL455A-6W | WL455A-8W | WL455B-6W | WL455B-8W | ||
|---|---|---|---|---|---|---|
| Dimension(mm) | 156*37*68 | |||||
| Watt(W) | 6W | 2×4W | 6W | 2×4W | ||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198-264V | |||||
| LED Module Input | 36V | |||||
| Light Source | COB | |||||
| SDCM | SDCM<5 | |||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K | |||||
| CCT Selection DIP Switch | NO | |||||
| Luminous Flux (lm) ±5% CRI90 | 1-CCT | Non-DIM | 480-550 | 680-740 | 480-540 | 680-740 |
| DIM | 460-510 | 610-680 | 460-510 | 610-680 | ||
| CRI | 90 | |||||
| Beam Angle (°) | 30°/40° | |||||
| UGR | <22 | |||||
| LED Driver | Driver built-in | |||||
| Dimming Option | Triac | |||||
| Sensor | NO | |||||
| Emergency Kits | NO | |||||
| Electrical Class | Class I | |||||
| Ingress Protection(IP Rating) | IP20 | |||||
| Product Finishing | White RAL9016 / Black RAL9005 | |||||
| Optics Material | Lens / PMMA | |||||
| Housing Material | Die-Casting Aluminium | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 650°C | |||||
| Operating Temp(°C) | -20°C~40°C | |||||
| Storage Temp(°C) | -20°C~65°C | |||||
| Installation | Wall mount | |||||
