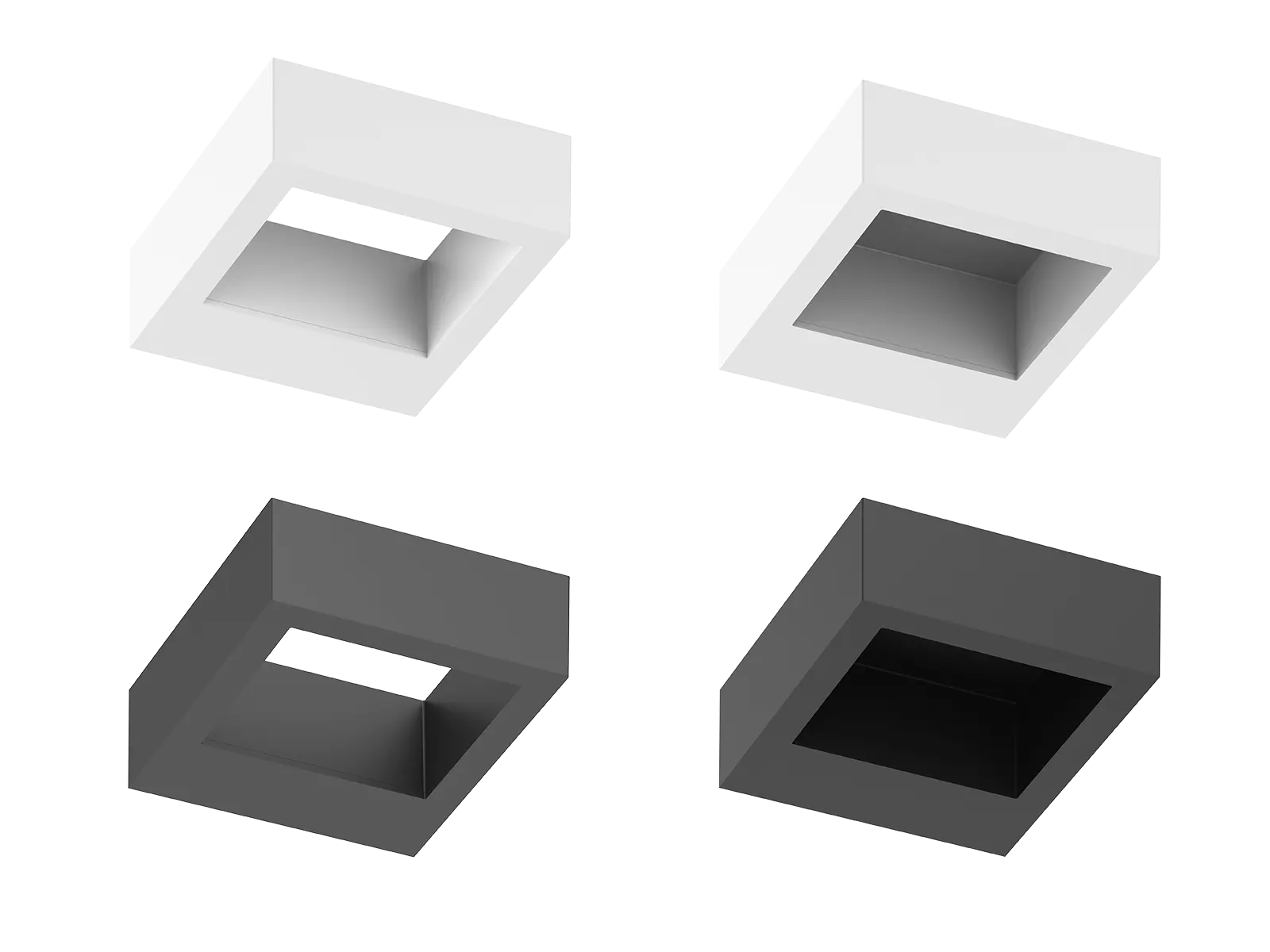

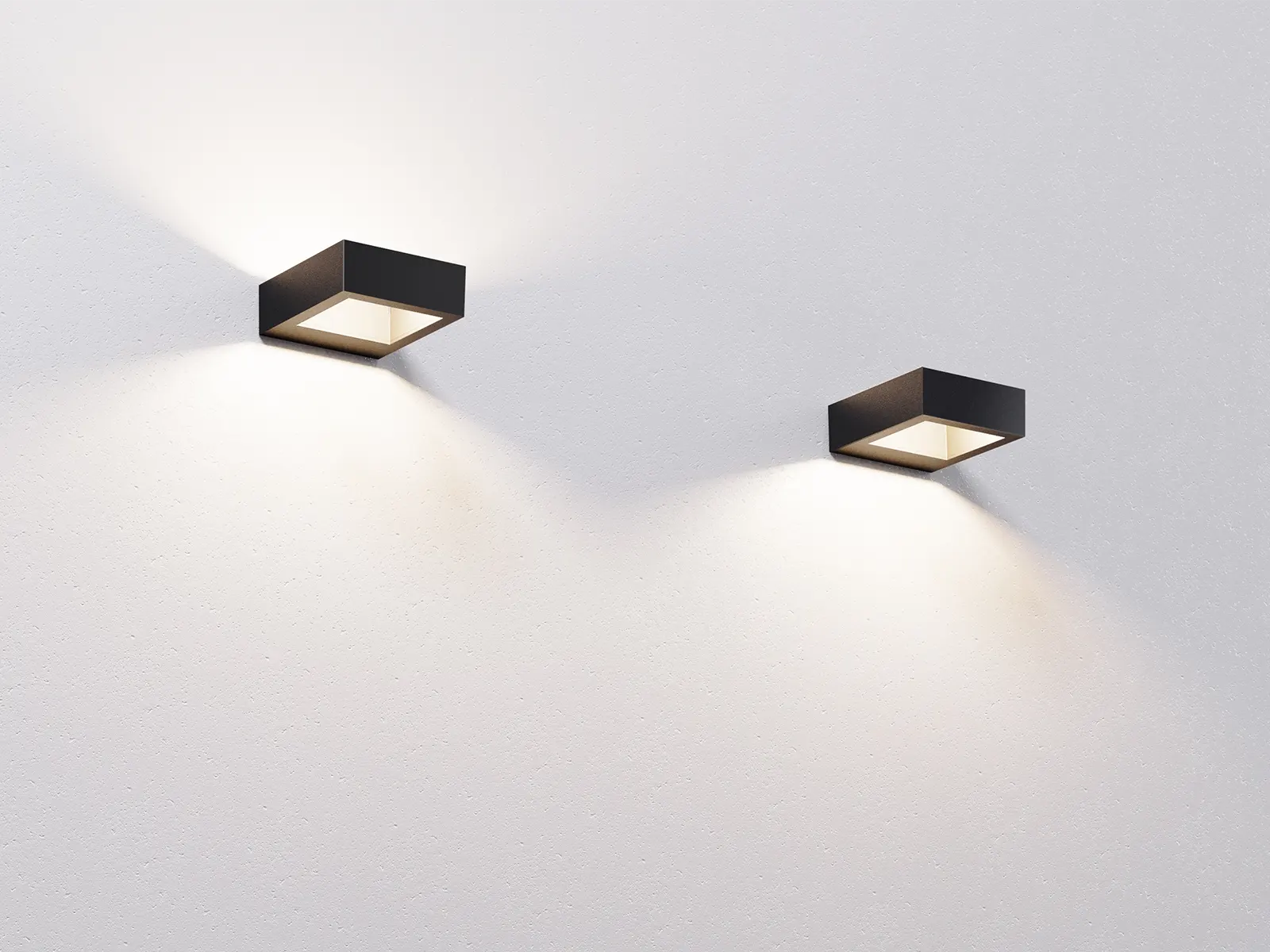

WL203 is a IP65 IK08 minimalist square-designed wall light, has two type: WL203A is upward and downward lighting, WL203B is only downward lighting. The lamp body is made of aluminum alloy ADC12, and the optics adopt Lens and SMD chips for soft light, which has 50° polarized light. Surface color: Black RAL9005, white RAL9016,Grey RAL7015.
Applications: It‘’s widely used in indoor and outdoor scene lighting area, such as hotel, yard, green landscape, Garden, corridor, exterior wall, business street, garden, park etc.
| Code | WL203A-8W | WL203B-8W | ||
|---|---|---|---|---|
| Dimension(mm) | L140*W160*H52 | L140*W160*H52 | ||
| Watt(W) | 8W | |||
| Rated Input Voltage | AC220-240V | |||
| Input Voltage | AC198-264V | |||
| LED Module Input | - | |||
| Light Source | SMD | |||
| SDCM | SDCM<6 | |||
| CCT(K) | 1CCT: 3000K/4000K / 2CCT: 3000K+4000K | |||
| CCT Selection | By DIP Switch | |||
| Luminous Flux (lm) ±5% | 1-CCT | DIM | Black: 540-570, White: 760-790 | Black: 330-360, White: 590-620 |
| CRI80 | 2-CCT | DIM | Black: 540-570, White: 760-790 | Black: 330-360, White: 590-620 |
| CRI | CRI80 | |||
| Beam Angle(°) | Asymmetric 50° | |||
| UGR | - | |||
| LED Driver | Built-in, Flicker Free | |||
| Dimming Option | Triac | |||
| Sensor | NO | |||
| Emergency Kits | NO | |||
| Electrical Class | Class I | |||
| Ingress Protection(IP Rating) | IP65 | |||
| Impact Resistance(IK Rating) | IK08 | |||
| Product Finishing | Black RAL9005, White RAL9016, Gray RAL7015 | |||
| Optics Material | PC | |||
| Housing Material | Die-Casting Aluminium | |||
| Lifetime(hr) | 5,0000h | |||
| Glow wire test(°C) | 750°C | |||
| Operating Temp.(°C) | -20°C~45°C | |||
| Storage Temp.(°C) | -20°C~65°C | |||
| Installation | Wall Mount | |||
