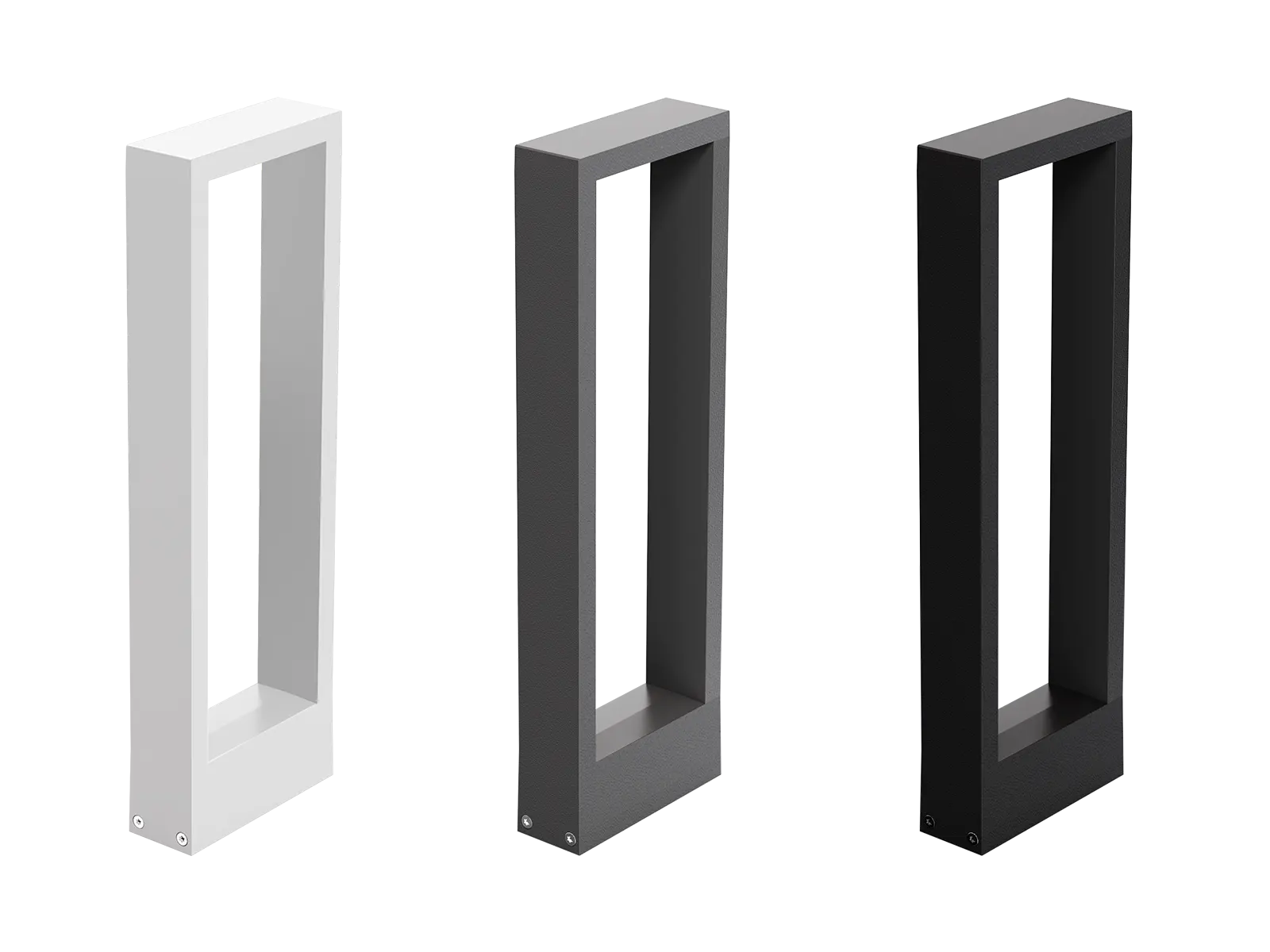

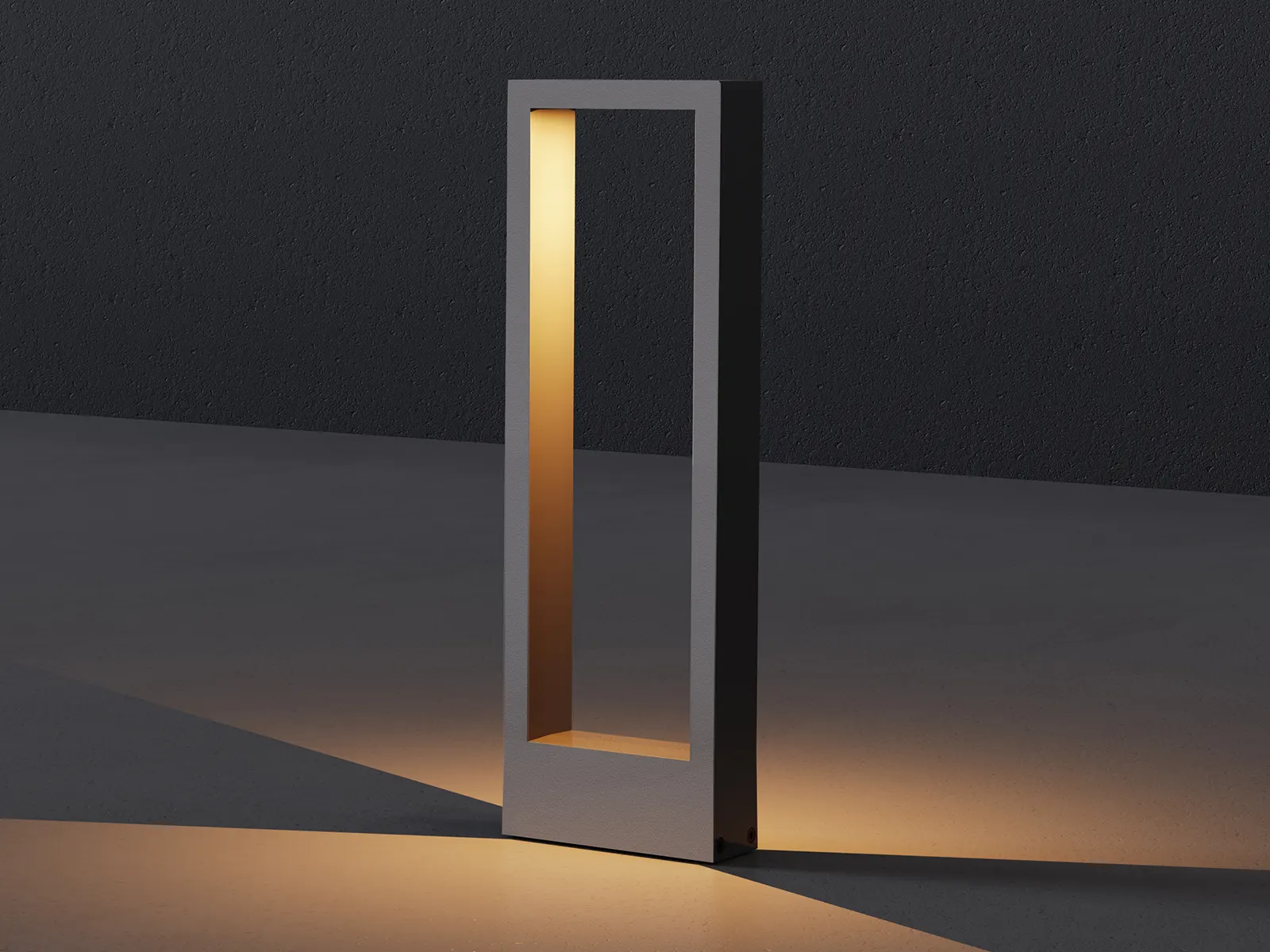

NL203 is a IP65 IK08 minimalist square-designed LED garden light, and 100% down lighting,The lamp body is made of aluminum alloy ADC12 and the optics adopt Lens and SMD chips for soft light, which has 50° polarized light on both sides.The standard heights are: 300mm, 500mm, and 1000m,the height can also be customized according to requirement,Surface color: Black RAL9005, white RAL9016,Grey RAL7015.
Applications: It is suitable for general lighting applications in homes, hotels, shops, and gardens, and widely used in areas such as courtyards, corridors, and walkways etc.
| Code | NL203-300-8W | NL203-500-8W | NL203-1000-8W | ||
|---|---|---|---|---|---|
| Dimension(mm) | L160*W55*H300 | L160*W55*H500 | L160*W55*H1000 | ||
| Watt(W) | 8W | ||||
| Rated Input Voltage | AC220-240V | ||||
| Input Voltage | AC198-264V | ||||
| LED Module Input | - | ||||
| Light Source | SMD | ||||
| SDCM | SDCM<6 | ||||
| CCT(K) | 1CCT:3000K/4000K / 2CCT: 3000K+4000K | ||||
| CCT Selection | By DIP Switch | ||||
| 1-CCT | DIM | 590-640 | 590-640 | 590-640 | |
| Luminous Flux (lm) ±5% | DALI | 620-675 | 620-675 | 620-675 | |
| CRI80 | 2-CCT | DIM | 590-640 | 590-640 | 590-640 |
| DALI | 620-675 | 620-675 | 620-675 | ||
| CRI | CRI80 | ||||
| Beam Angle(°) | 2*160° | ||||
| UGR | - | ||||
| LED Driver | Built-in, Flicker Free | ||||
| Dimming Option | Triac/DALI | ||||
| Sensor | NO | ||||
| Emergency Kits | NO | ||||
| Electrical Class | Class I | ||||
| Ingress Protection(IP Rating) | IP65 | ||||
| Impact Resistance(IK Rating) | IK08 | ||||
| Product Finishing | Black RAL9005, White RAL9016, Gray RAL7015 | ||||
| Optics Material | PC | ||||
| Housing Material | Die-Casting Aluminium | ||||
| Lifetime(hr) | 50,000h | ||||
| Glow wire test(°C) | 750°C | ||||
| Operating Temp.(°C) | -20°C~45°C | ||||
| Storage Temp.(°C) | -20°C~65°C | ||||
| Installation | Ground mount | ||||
