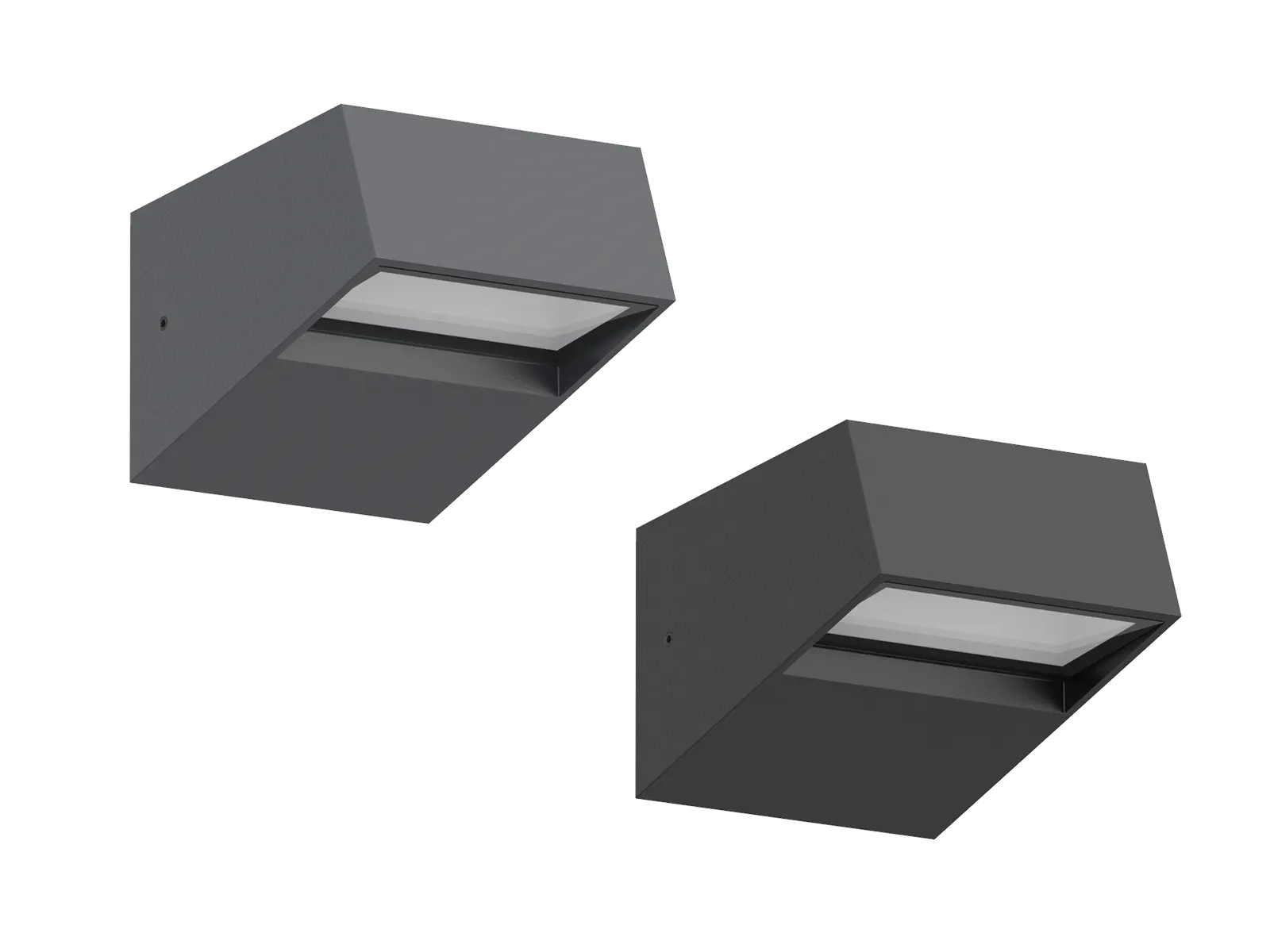

WL196 is a IP65 LED wall lamp with a simple line design and a small compact overall structure, perfectly integrated into various courtyards, hotels and resorts, Materials adopts high-strength aviation aluminum alloy and Anti-UV PC diffuser and high transmittance tempered glass, has excellent waterproof, dust-proof and corrosion resistance. Black RAL9005 and Grey RAL7015 surface color can blend in perfectly with the natural environment. With power switchable and CCT changeable for ON/OFF, traic dimmable, DALI dimmable version.
Applications: It's widely used in indoor and outdoor scene lighting area, such as courtyard,villa, hotel,Park,yard, corridors, Resort etc.
| Code | ART-WL196-10W | ||
|---|---|---|---|
| Dimension(mm) | 117.5*88.5*100 | ||
| Cutout(mm) | - | ||
| Watt(W) | 10W Max.(8W optional) | ||
| Rated Input Voltage | AC220~240V | ||
| Input Voltage | AC198~264V | ||
| LED Module Input | - | ||
| Light Source | SMD2835 | ||
| SDCM | <6 | ||
| CCT(K) | 2-CCT: 3000K+4000K | ||
| CCT Selection DIP Switch | Yes | ||
| Non-DIM | 10W: 870-930 | ||
| Luminous Flux (lm) ±5% | 2-CCT | 8W: 680-720 | |
| CRI80 | DIM | 10W: 870-930 | |
| 8W: 680-720 | |||
| DALI | 10W: 880-950 | ||
| 8W: 650-730 | |||
| CRI | CRI80 | ||
| Beam Angle(°) | 90° | ||
| UGR | - | ||
| LED Driver | Built-in, Flicker Free | ||
| Dimming Option | Triac / DALI | ||
| Sensor | - | ||
| Emergency Kits | - | ||
| Electrical Class | Class I | ||
| Ingress Protection(IP Rating) | IP65 | ||
| Impact Resistance(IK Rating) | IK06 | ||
| Product Finishing | Black RAL9005/Grey RAL7015 | ||
| Optics Material | Glass+PC | ||
| Housing Material | Die-Casting Aluminium | ||
| Lifetime(hr) | 50,000h | ||
| Glow wire test(°C) | 850°C | ||
| Operating Temp.(°C) | -20°C~45°C | ||
| Storage Temp.(°C) | -20°C~65°C | ||
| Installation | Wall mounted | ||
