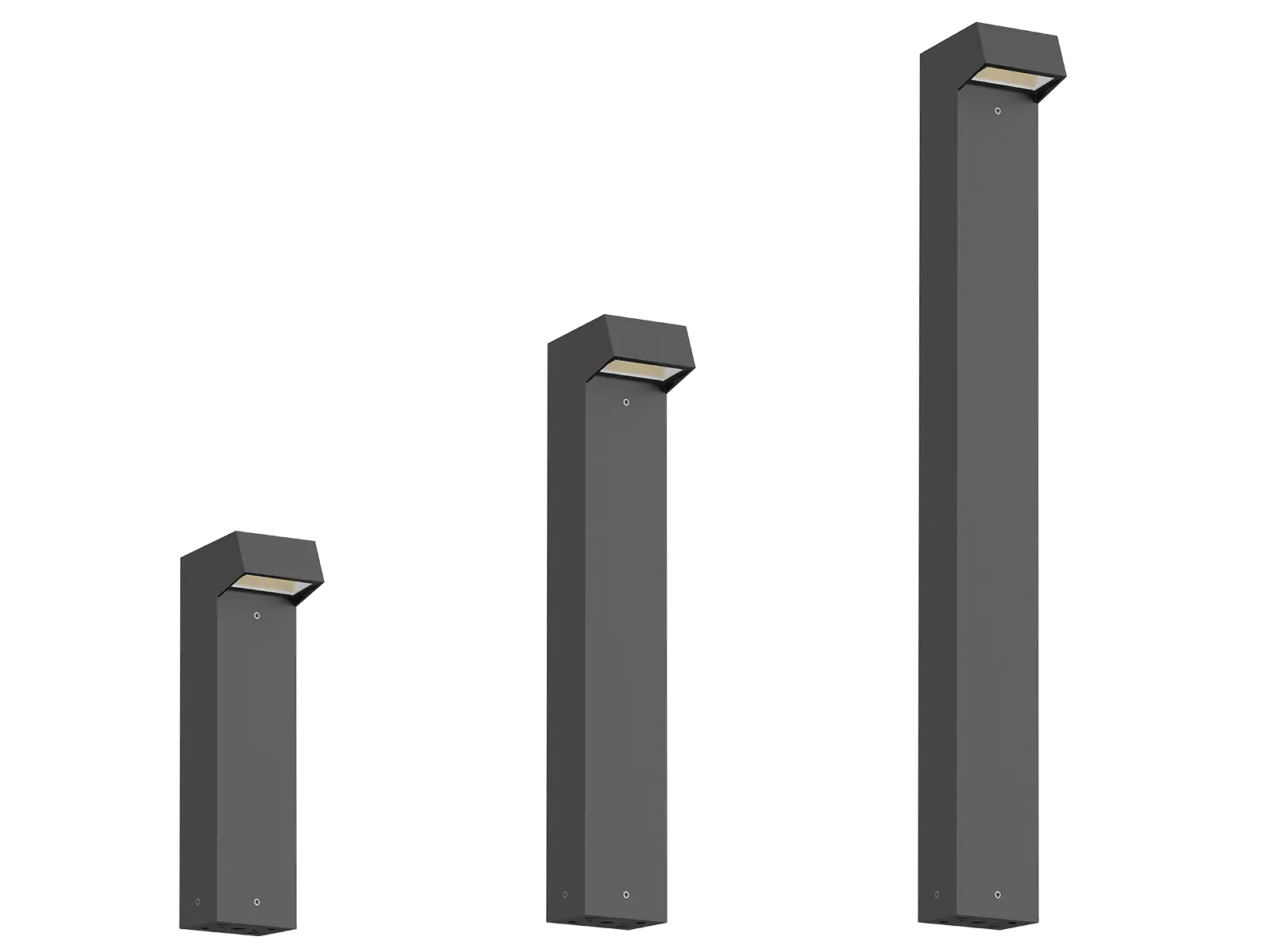

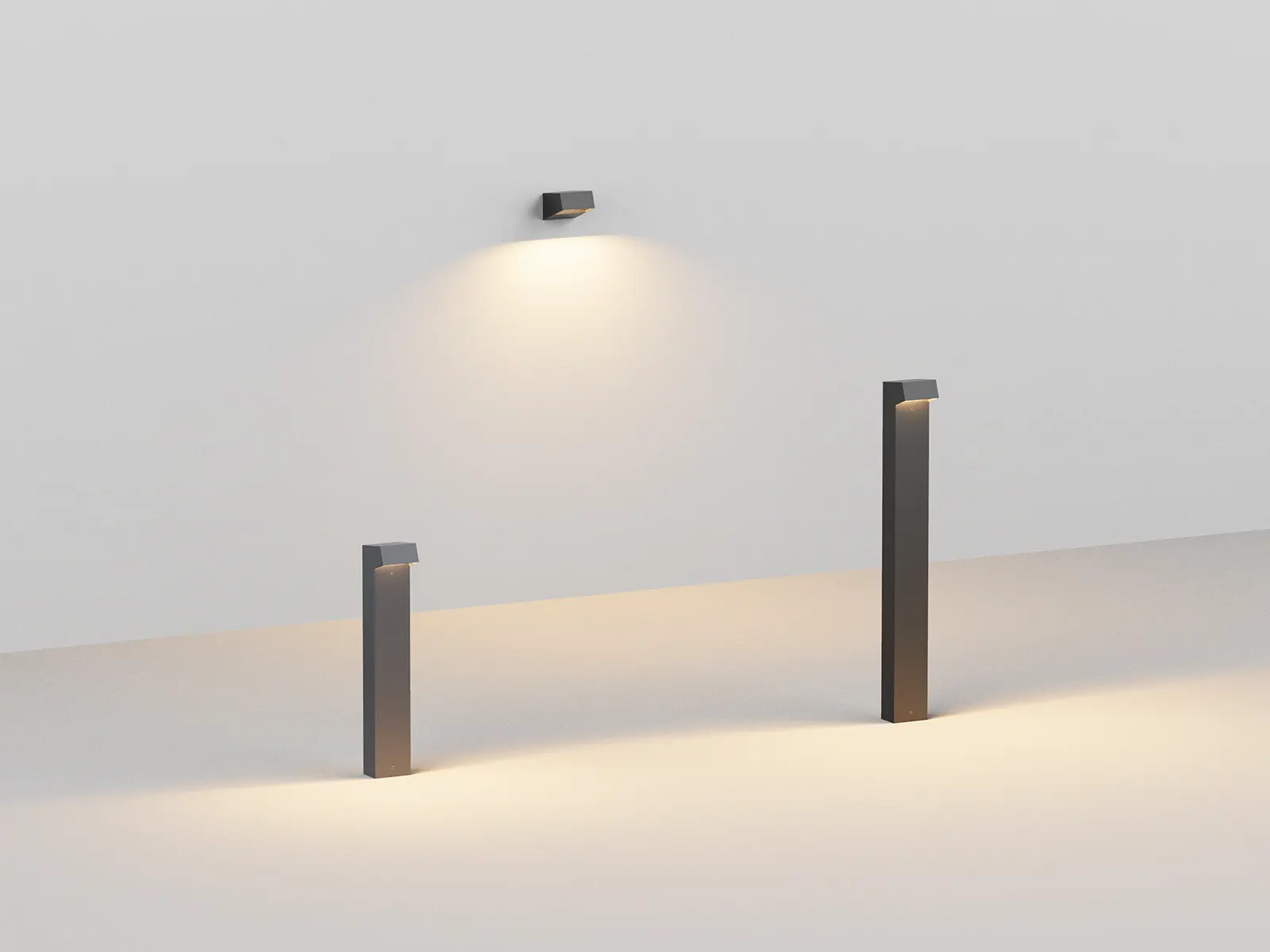

NL196 is a IP65 LED garden lamp with a simple line design and a small compact overall structure, perfectly integrated into various courtyards, hotels and resorts, Unique 40-degree polarization design to avoid to look at the dazzling light directly. Materials adopts high-strength aviation aluminum alloy and Anti-UV PC diffuser and high transmittance tempered glass, has excellent waterproof, dust-proof and corrosion resistance. Black RAL9005 and Grey RAL7015 surface color can blend in perfectly with the natural environment. With power switchable and CCT changeable for ON/OFF, traic dimmable, DALI dimmable version.
Applications: It's widely used in outdoor scene lighting area,such as private courtyard, garden path lighting in villas, hotels, resorts, parks, lawns, and square walkways in public spaces etc.
| Code | ART-NL196-400-10W | ART-NL196-600-10W | ART-NL196-900-10W | ||
|---|---|---|---|---|---|
| Dimension(mm) | 117.5*400*100 | 117.5*600*100 | 117.5*900*100 | ||
| Cutout(mm) | - | ||||
| Watt(W) | 10W Max.(8W optional) | ||||
| Rated Input Voltage | AC220~240V | ||||
| Input Voltage | AC198~264V | ||||
| LED Module Input | - | ||||
| Light Source | SMD2835 | ||||
| SDCM | <5 | ||||
| CCT(K) | 2-CCT: 3000K+4000K | ||||
| CCT Selection DIP Switch | Yes | ||||
| Non-DIM | 10W: 760-800 | ||||
| Luminous Flux (lm) ±5% | 2-CCT | 8W: 590-620 | |||
| CRI80 | DIM | 10W: 760-800 | |||
| 8W: 590-620 | |||||
| DALI | 10W: 810-910 | ||||
| 8W: 620-700 | |||||
| CRI | CRI 80 | ||||
| Beam Angle(°) | 180° | ||||
| UGR | - | ||||
| LED Driver | Built-in, Flicker Free | ||||
| Dimming Option | Triac / DALI | ||||
| Sensor | - | ||||
| Emergency Kits | - | ||||
| Electrical Class | Class I | ||||
| Ingress Protection(IP Rating) | IP65 | ||||
| Impact Resistance(IK Rating) | IK06 | ||||
| Product Finishing | Black RAL9005 / Grey RAL7015 | ||||
| Optics Material | Glass+PC | ||||
| Housing Material | Die-Casting Aluminium | ||||
| Lifetime(hr) | 50,000h | ||||
| Glow wire test(°C) | 850°C | ||||
| Operating Temp.(°C) | -20°C~45°C | ||||
| Storage Temp.(°C) | -20°C~65°C | ||||
| Installation | Ground mounted | ||||
