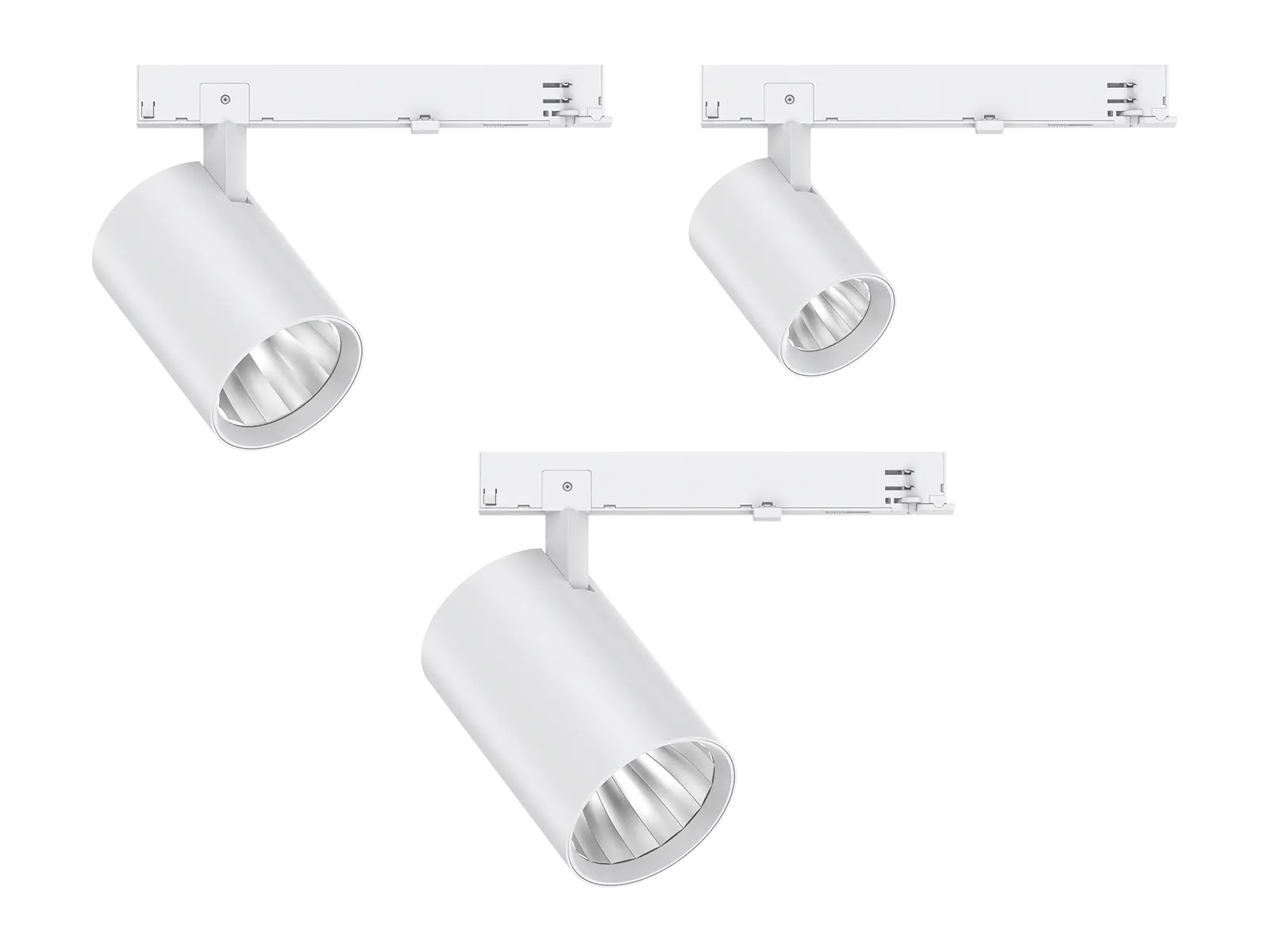

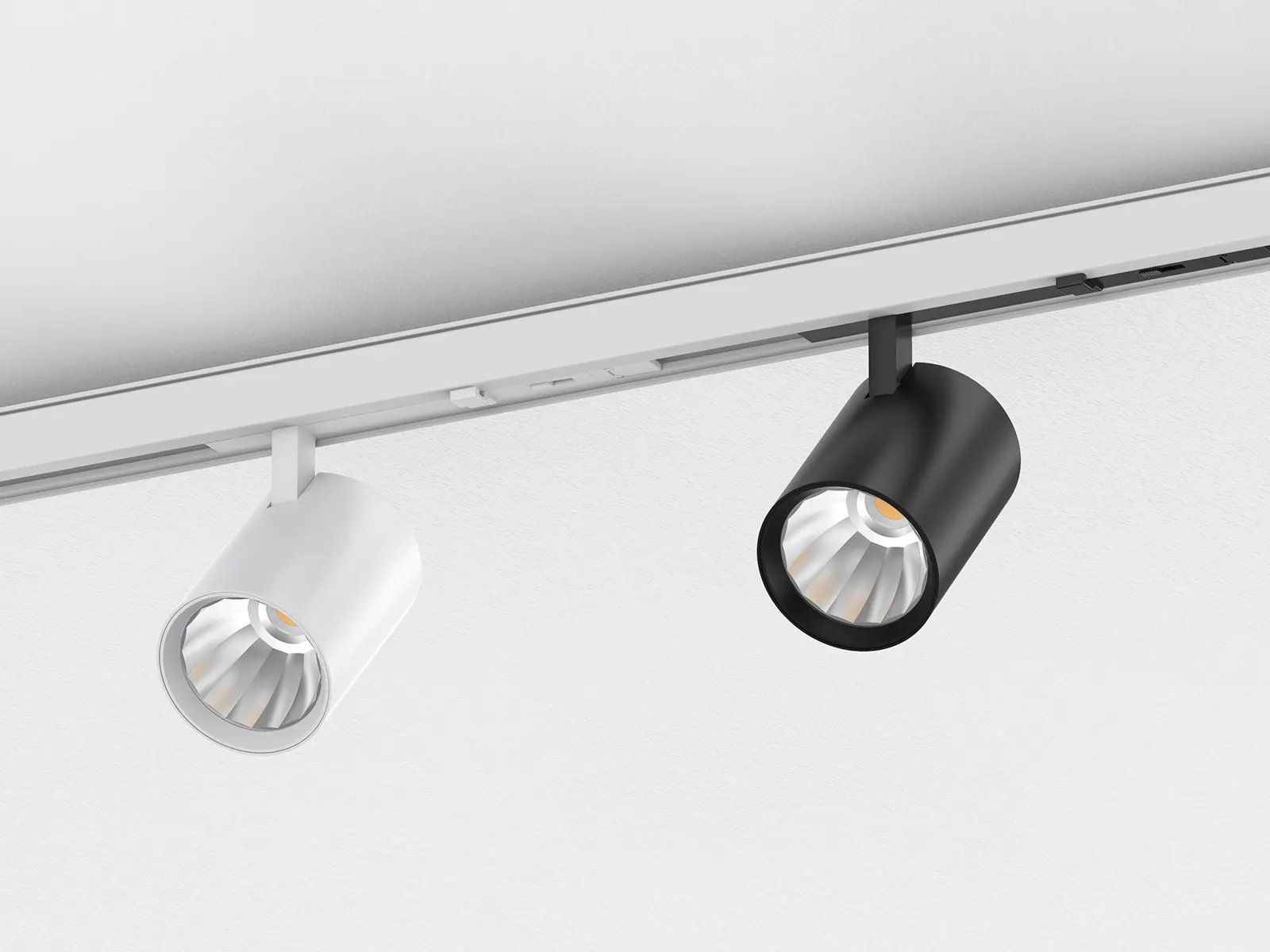

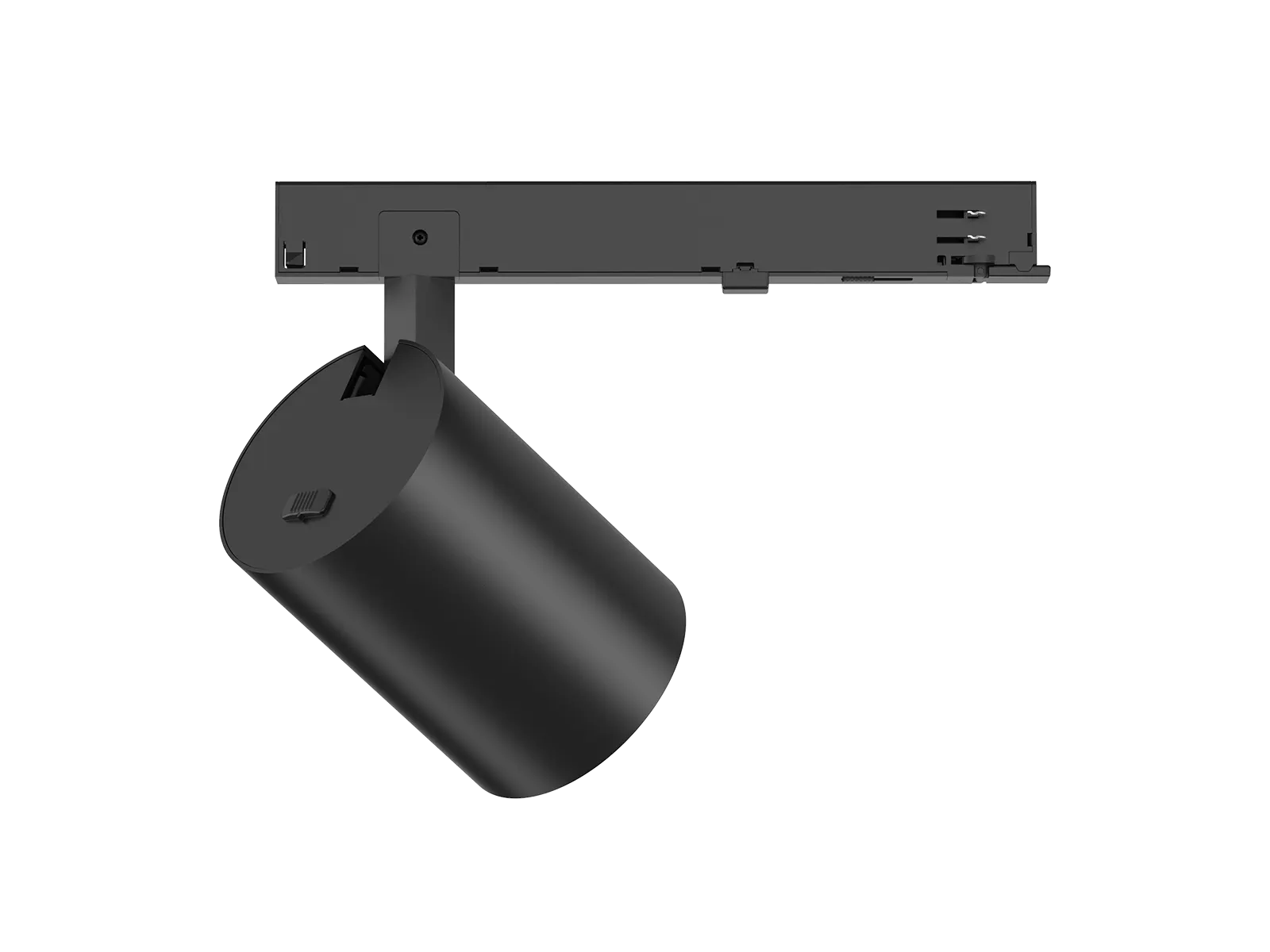

The led track light with stumpy appearance adopts high efficiency Led COB chip and faceted reflector to create a diversified and dramatic atmosphere. AL6063 aluminium housing offers great thermal management to ensure long lifespan. Its adaptor is built-in look after installation. Adjustable lighting orientation with 350° in horizontal direction and 90° in vertical direction will bring a flexible lighting direction.
Applications: Widely used for hotel, shop, shopping mall, exhibition, museum and so on.
| Code | TL164B-64-16W | TL164B-83-22W | TL164B-83-32W | TL164B-92-36W | ||
|---|---|---|---|---|---|---|
| Dimension(mm) | Ø64*130*222 | Ø83*158*222 | Ø92*184*222 | |||
| Cutout(mm) | - | |||||
| Watt(W) | 16W | 22W | 32W | 36W | ||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198-264V | |||||
| LED Module Input | DC33-38V | |||||
| Light Source | COB | |||||
| SDCM | <3 | |||||
| CCT(K) | 1CCT: 3000K/4000K || 2CCT: 3000K+4000K | |||||
| CCT Selection DIP Switch | YES | |||||
| 1-CCT | Non-DIM | 1950-2100 | 3000-3100 | 4300-4400 | 4850-5200 | |
| Luminous Flux (lm) ±5% | DALI | 1900-2050 | 2800-3050 | 3700-4050 | 4800-5100 | |
| CRI90 | 2-CCT | Non-DIM | 950-1250 | 2150-2200 | 2700-2950 | 3320-3500 |
| DALI | 1250-1350 | 2150-2350 | 2800-2950 | 3550-3650 | ||
| CRI | CRI90 | |||||
| Beam Angle (°) | 24°/36°/60° | 24°/36°/60° | 36°/45°/60° | |||
| UGR | <22 | - | ||||
| LED Driver | Built-out, Flicker Free | |||||
| Dimming Option | DALI | |||||
| Sensor | - | |||||
| Emergency Kits | - | |||||
| Electrical Class | Class II | |||||
| Ingress Protection(IP Rating) | IP20 | |||||
| Impact Resistance(IK Rating) | IK02 | |||||
| Product Finishing | White RAL9016/BLACK RAL9005 | |||||
| Optics Material | Aluminium | |||||
| Housing Material | Aluminium 6063 | |||||
| Lifetime (hr) | 50,000h | |||||
| Glow wire test (°C) | 750°C | |||||
| Operating Temp.(°C) | -20°C~35°C | |||||
| Storage Temp.(°C) | -20°C~65°C | |||||
| Installation | Track | |||||
