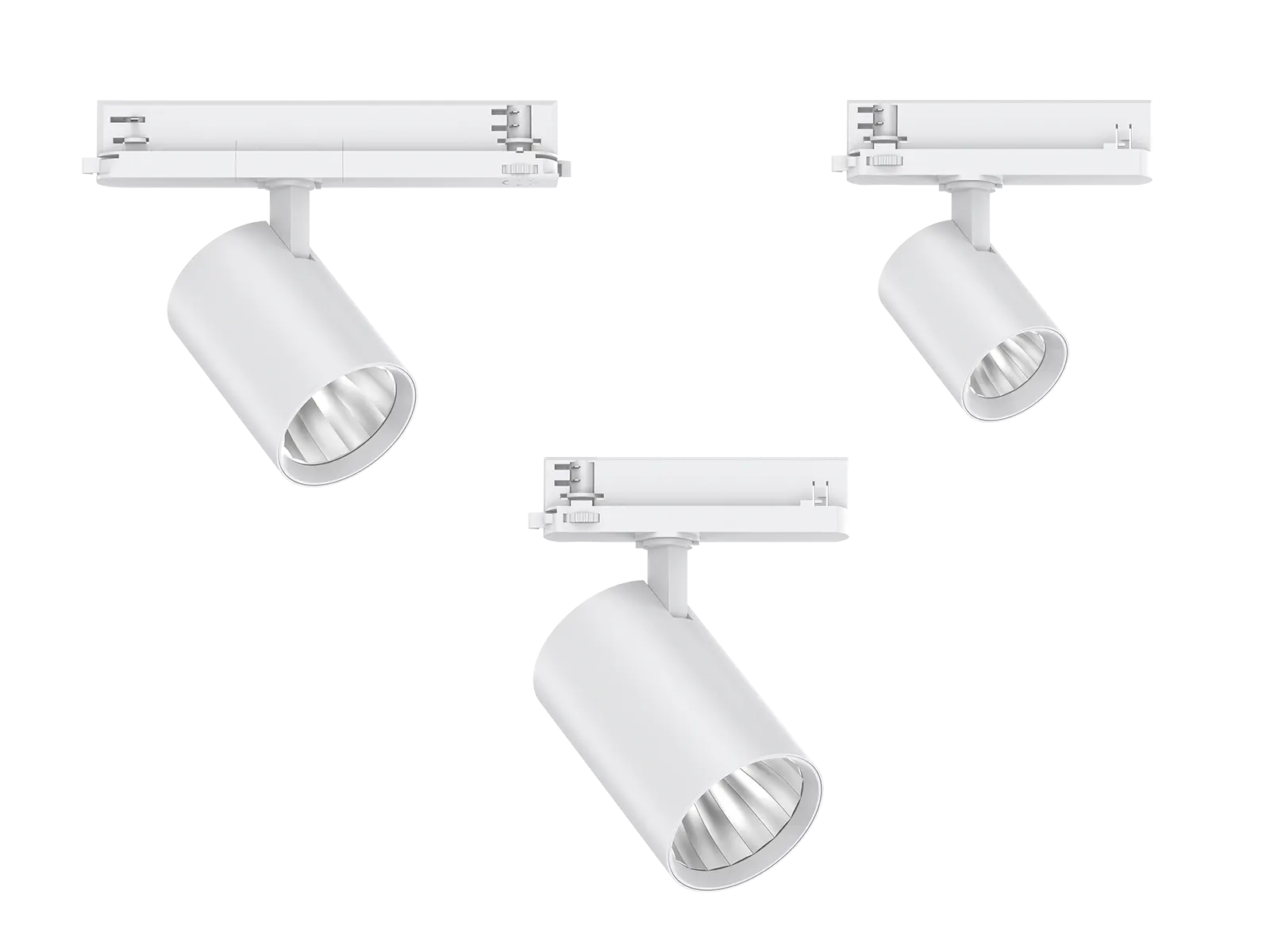

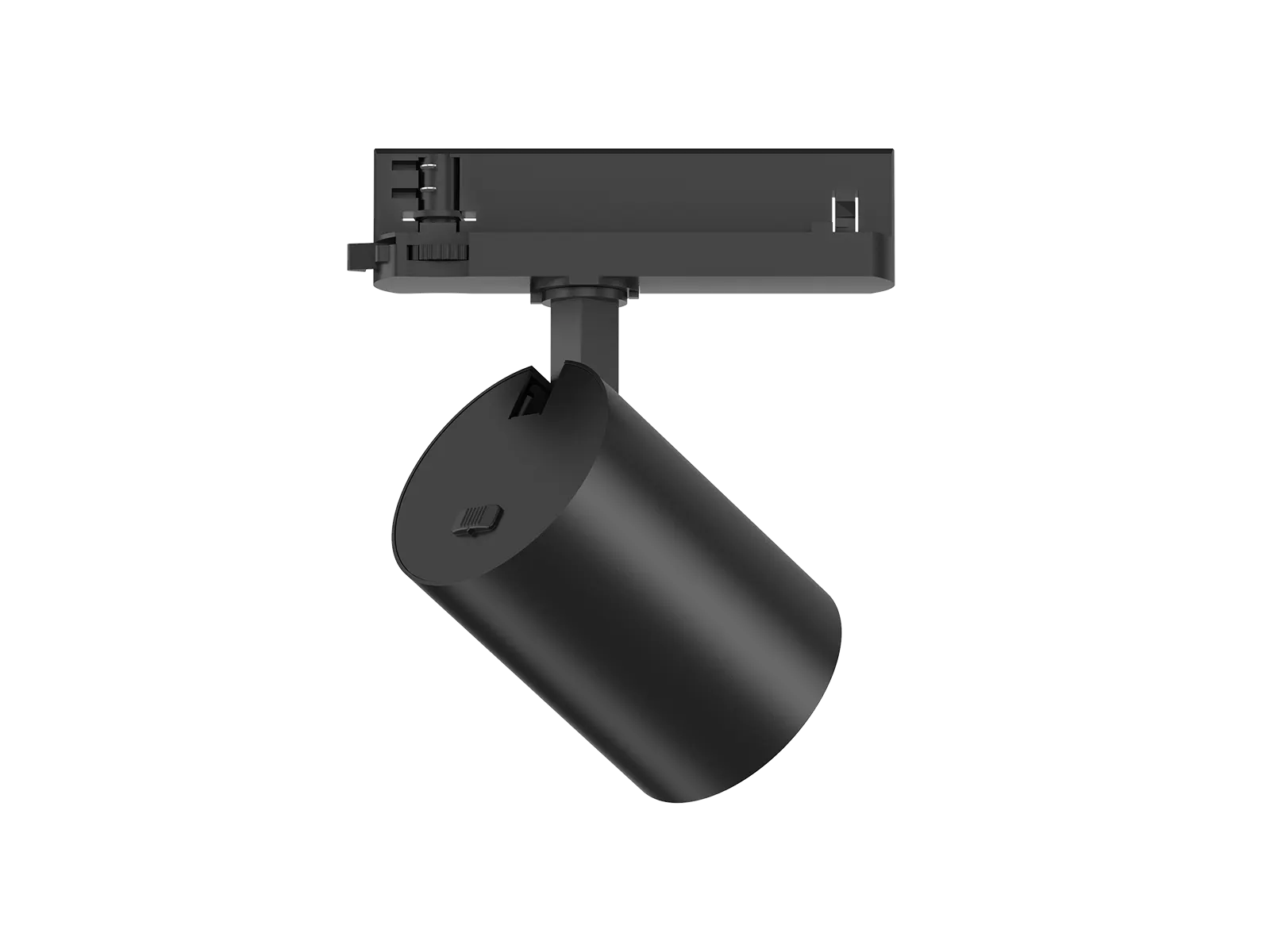

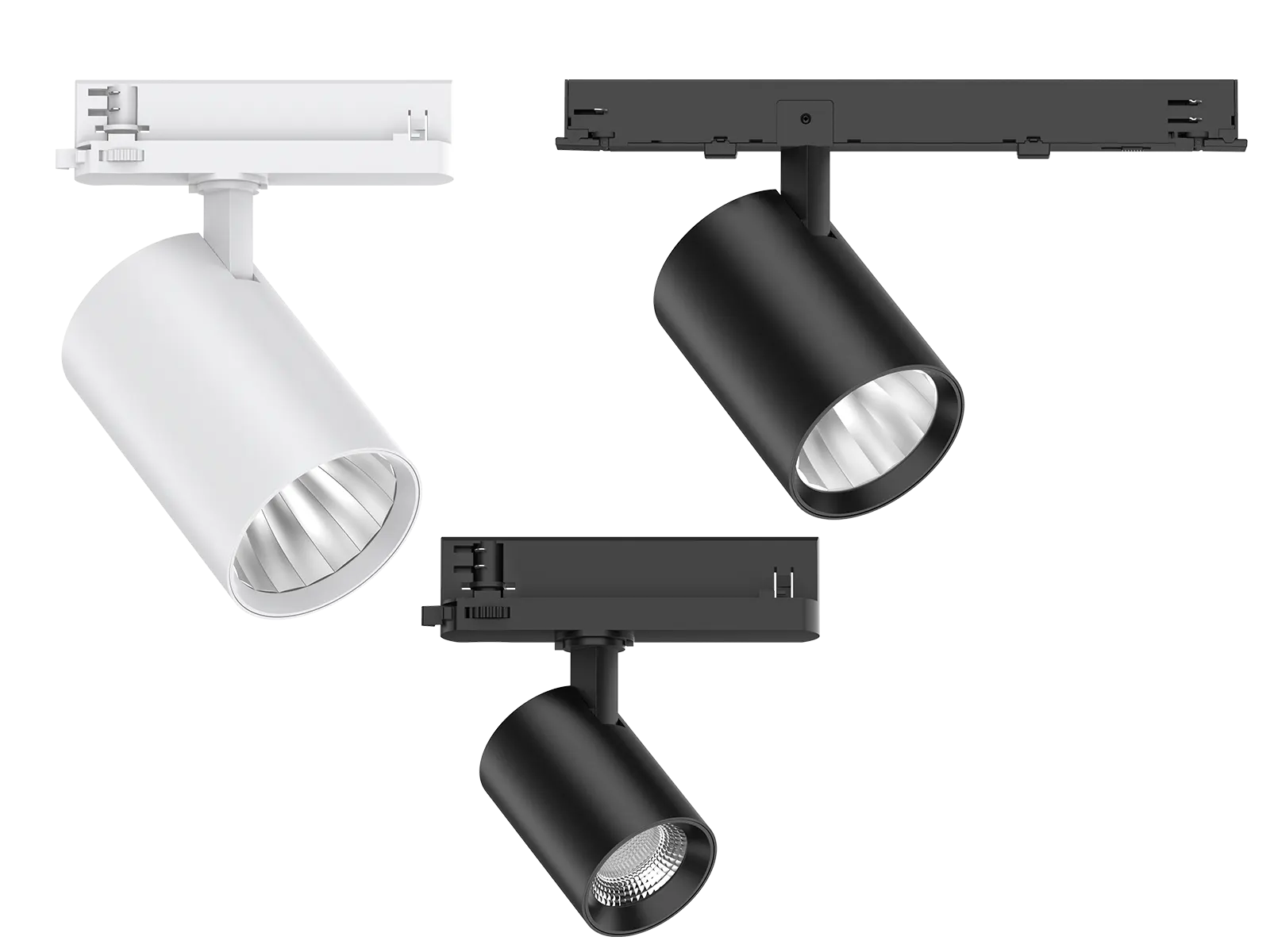

The COB led track light is designed with Aluminium housing and integrated track adapted led driver. The whole series is CCT interchangeable for option and CRI90 which is wattage selectable for non-dim version. Premium version TL164A achieve to 170lm/W max while standard version TL164B is 155lm/W max. Track mount makes it convenient for installation.
Applications: It is widely used in hotel, supermarket, store, show window, exhibition hall, shops and so on.
TL164A Premium
| Code | TL164A-64-15W | TL164A-83-25W | TL164A-83-32W | TL164A-92-38W | ||
|---|---|---|---|---|---|---|
| Dimension(mm) | Ø64*147*158 | Ø83*174*158 | Ø92*200*158 | |||
| Watt(W) | Non-DIM | 15W@max | 25W@max | 32W@max | 38W@max | |
| (optional: 14W/12W/10W) | (optional: 22W/20W/18W) | (optional: 30W/28W/25W) | (optional: 36W/34W/32W) | |||
| DIM | 15W | 25W | 32W | 38W | ||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198-264V | |||||
| LED Module Input | DC33-38V | |||||
| Light Source | COB | |||||
| SDCM | <3 | |||||
| CCT(K) | 1CCT: 3000K/4000K 3CCT: 3000K+4000K+5700K | |||||
| CCT Selection DIP Switch | YES | |||||
| 15W: 2040-2100 | 25W: 3500-3710 | 32W: 4540-4850 | 38W: 6100-6500 | |||
| 1-CCT | Non-DIM | 14W: 1730-1870 | 22W: 3420-3570 | 30W: 4250-4530 | 36W: 5760-5950 | |
| 12W: 1440-1490 | 20W: 3130-3380 | 28W: 3960-4190 | 34W: 5660-5840 | |||
| Luminous Flux (lm) ±5% | 10W: 1300-1350 | 18W: 2660-2800 | 25W: 3710-3950 | 32W: 5230-5480 | ||
| CRI90 | Triac | 1850-1900 | 3500-3700 | 4100-4460 | 5900-6180 | |
| DALI | 2040-2100 | 3480-3680 | 4470-4850 | 5880-6160 | ||
| 15W: 1430-1600 | 25W: 2440-2680 | 32W: 3200-3500 | 38W: 4000-4450 | |||
| 3-CCT | Non-DIM | 14W: 1290-1420 | 22W: 2300-2500 | 30W: 3000-3300 | 36W: 3780-4200 | |
| 12W: 1130-1240 | 20W: 2100-2300 | 28W: 2800-3100 | 34W: 3500-4000 | |||
| 10W: 950-1050 | 18W: 1900-2080 | 25W: 2440-2680 | 32W: 3400-3900 | |||
| Triac | 1290-1440 | 2550-2750 | 3350-3550 | 4100-4500 | ||
| DALI | 1330-1500 | 2600-2800 | 3400-3600 | 4200-4600 | ||
| CRI | 90 | |||||
| Beam Angle (°) | 24°/36°/60° | 24°/36°/60° | 36°/45°/60° | |||
| UGR | <22 | - | ||||
| LED Driver | Built-out, Flicker Free | |||||
| Dimming Option | Triac/DALI | |||||
| Sensor | - | |||||
| Emergency Kits | - | |||||
| Electrical Class | Class II | |||||
| Ingress Protection(IP Rating) | IP20 | |||||
| Impact Resistance(IK Rating) | IK02 | |||||
| Product Finishing | White RAL9016/BLACK RAL9005 | |||||
| Optics Material | Aluminium | |||||
| Housing Material | Aluminium | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 750°C | |||||
| Operating Temp.(°C) | -20°C ~ 35°C | |||||
| Storage Temp.(°C) | -20°C ~ 65°C | |||||
| Installation | Track | |||||
TL164C Standard
| Code | TL164C-64-15W | TL164C-83-25W | TL164C-83-32W | TL164C-92-38W | ||
|---|---|---|---|---|---|---|
| Dimension(mm) | Ø64*147*158 | Ø83*174*158 | Ø92*200*158 | |||
| Watt(W) | Non-DIM | 15W@max | 25W@max | 32W@max | 38W@max | |
| (optional: 14W/12W/10W) | (optional: 22W/20W/18W) | (optional: 30W/28W/25W) | (optional: 36W/34W/32W) | |||
| DIM | 15W | 25W | 32W | 38W | ||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198-264V | |||||
| LED Module Input | DC33-38V | |||||
| Light Source | COB | |||||
| SDCM | <3 | |||||
| CCT(K) | 1CCT: 3000K/4000K 3CCT: 3000K+4000K+5700K | |||||
| CCT Selection DIP Switch | YES | |||||
| 15W: 1820-1900 | 25W: 3220-3370 | 32W: 4110-4300 | 38W: 5550-5800 | |||
| 1-CCT | Non-DIM | 14W: 1580-1700 | 22W: 2950-3000 | 30W: 3900-4050 | 36W: 5150-5410 | |
| 12W: 1380-1430 | 20W: 2680-2750 | 28W: 3600-3750 | 34W: 4800-5200 | |||
| Luminous Flux (lm) ±5% | 10W: 1170-1220 | 18W: 2440-2550 | 25W: 3370-3590 | 32W: 4810-4950 | ||
| CRI90 | Triac | 1650-1790 | 3220-3370 | 3780-3960 | 5280-5510 | |
| DALI | 1840-1900 | 3200-3350 | 4110-4300 | 5260-5490 | ||
| 15W: 1320-1480 | 25W: 2250-2500 | 32W: 3100-3300 | 38W: 3800-4200 | |||
| 3-CCT | Non-DIM | 14W: 1170-1290 | 22W: 2130-2230 | 30W: 2700-3000 | 36W: 3650-4000 | |
| 12W: 1020-1120 | 20W: 1980-2160 | 28W: 2600-2800 | 34W: 3450-3900 | |||
| 10W: 870-970 | 18W: 1760-1930 | 25W: 2500-2700 | 32W: 3400-3800 | |||
| Triac | 1180-1340 | 2100-2400 | 2720-3030 | 3560-3990 | ||
| DALI | 1220-1370 | 2130-2420 | 2710-3060 | 3710-4150 | ||
| CRI | 90 | |||||
| Beam Angle (°) | 24°/36°/60° | 24°/36°/60° | 24°/36°/60° | |||
| UGR | <22 | - | ||||
| LED Driver | Built-out, Flicker Free | |||||
| Dimming Option | Triac/DALI | |||||
| Sensor | - | |||||
| Emergency Kits | - | |||||
| Electrical Class | Class II | |||||
| Ingress Protection(IP Rating) | IP20 | |||||
| Impact Resistance(IK Rating) | IK02 | |||||
| Product Finishing | White RAL9016/BLACK RAL9005 | |||||
| Optics Material | Aluminium | |||||
| Housing Material | Aluminium | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 750°C | |||||
| Operating Temp.(°C) | -20°C ~ 35°C | |||||
| Storage Temp.(°C) | -20°C ~ 65°C | |||||
| Installation | Track | |||||
