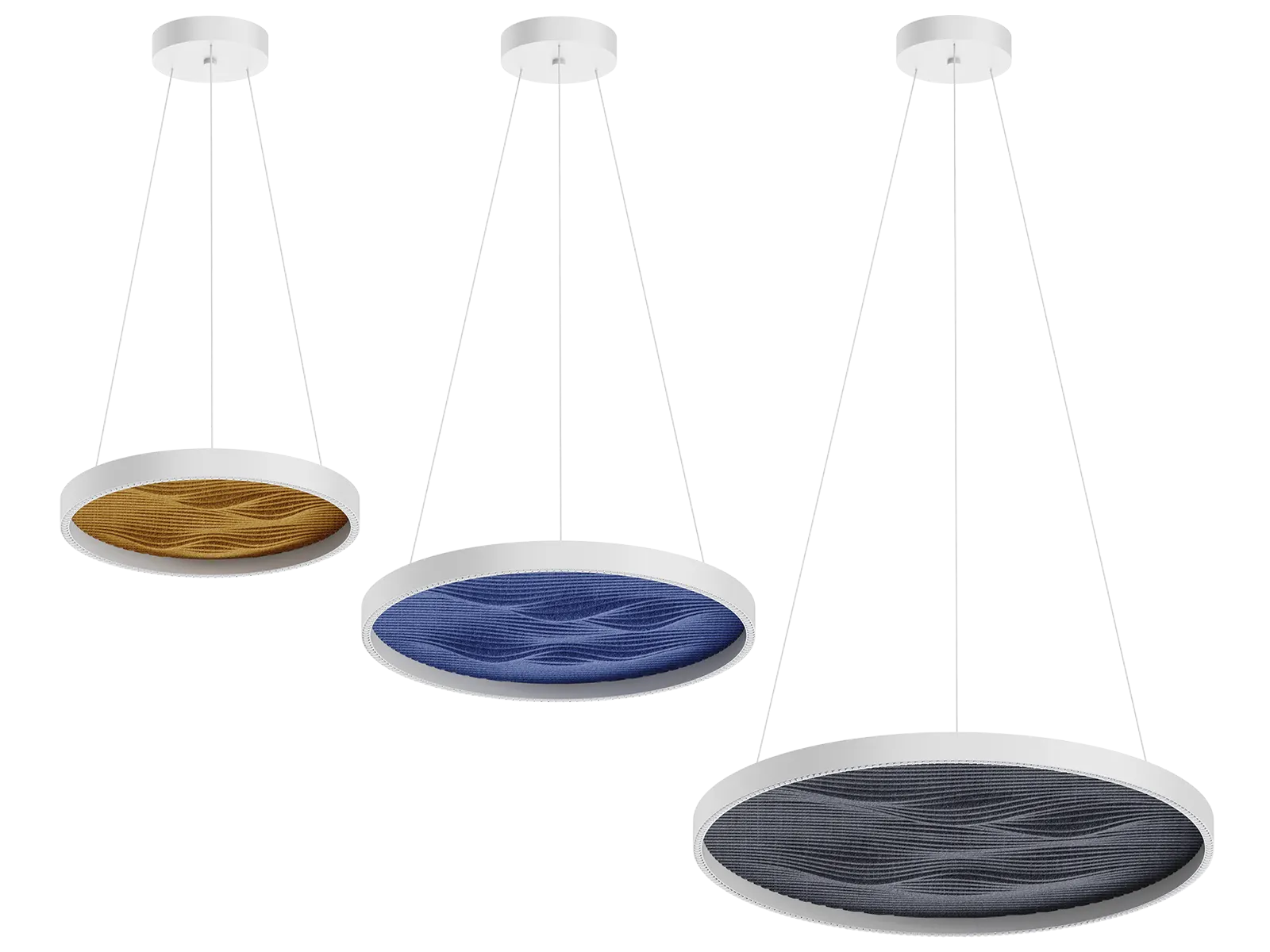

The PD49 is a multifunctional product that integrates lighting with acoustics,designed to address spatial noise issues at source, and maintains an ultra-minimalist, seamless aesthetic while achieving visual and auditory dual comfort, the structure of the acoustic polyester fibre effectively diffuses and absorbs excessive sound waves, resulting in clearer and richer acoustics throughout the space. It significantly enhances speech privacy while seamlessly integrating acoustic performance with modern lighting fixtures, featuring acoustic Polyester fibre for effective noise reduction, it is particularly suitable for spaces such as open-plan offices and conference rooms,thereby enhancing both spatial quality and quality of life.
Applications: It is widely used in restaurant, dining room,living room,open-plan offices, meeting room, study room ,bedroom etc.
| Code | PD49-500-30W | PD49-600-40W | PD49-800-50W | |||||
|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø508.5*52*H1500 | Ø668.5*52*H1500 | Ø883.5*52*H1500 | |||||
| Watt(W) | 30W | 40W | 50W | |||||
| Rated Input Voltage | AC220-240V | |||||||
| Input Voltage | AC198-264V | |||||||
| LED Module Input | - | |||||||
| Light Source | SMD | |||||||
| SDCM | SDCM<6 | |||||||
| CCT(K) | 1-CCT: 1800K/3000K/4000K | |||||||
| CCT Selection | - | |||||||
| CCT | 1800K | 3000K/4000K | 1800K | 3000K/4000K | 1800K | 3000K/4000K | ||
| Luminous Flux (lm) ±5% | 1-CCT | Non-DIM | 2000-2100 | 3250-3400 | 2650-2800 | 4300-4500 | 3350-3500 | 5400-5650 |
| CRI90 | DIM | 1950-2050 | 3200-3300 | 2600-2700 | 4200-4300 | 3300-3400 | 5300-5500 | |
| DALI | 2000-2100 | 3200-3400 | 2650-2800 | 4300-4500 | 3350-3500 | 5400-5650 | ||
| CRI | 90 | |||||||
| Beam Angle(°) | 36° | |||||||
| UGR | <19 | |||||||
| LED Driver | Built-in, Flicker Free | |||||||
| Dimming Option | Triac, DALI2.0(DALI with push-dim) | |||||||
| Sensor | NO | |||||||
| Emergency Kits | NO | |||||||
| Electrical Class | Class I | |||||||
| Ingress Protection(IP Rating) | IP20 | |||||||
| Impact Resistance(IK Rating) | IK04 | |||||||
| Product Finishing | White RAL9016 , Black RAL9005, Silver RAL9006 | |||||||
| Optics Material | Lens / PC | |||||||
| Housing Material | Aluminium | |||||||
| Lifetime(hr) | 50,000h | |||||||
| Glow wire test(°C) | 750°C | |||||||
| Operating Temp.(°C) | -20°C~40°C | |||||||
| Storage Temp.(°C) | -20°C~65°C | |||||||
| Installation | Pendant | |||||||
