The PD49 is a multifunctional product that integrates lighting with acoustics,designed to address spatial noise issues at source, and maintains an ultra-minimalist, seamless aesthetic while achieving visual and auditory dual comfort, the structure of the acoustic polyester fibre effectively diffuses and absorbs excessive sound waves, resulting in clearer and richer acoustics throughout the space. It significantly enhances speech privacy while seamlessly integrating acoustic performance with modern lighting fixtures, featuring acoustic Polyester fibre for effective noise reduction, it is particularly suitable for spaces such as open-plan offices and conference rooms,thereby enhancing both spatial quality and quality of life.

  • With screwless surface design.
  • High efficiency and high CRI90, up to 110lm/w
  • Featuring a high-quality optical design, soft light, Anti-glare UGR19

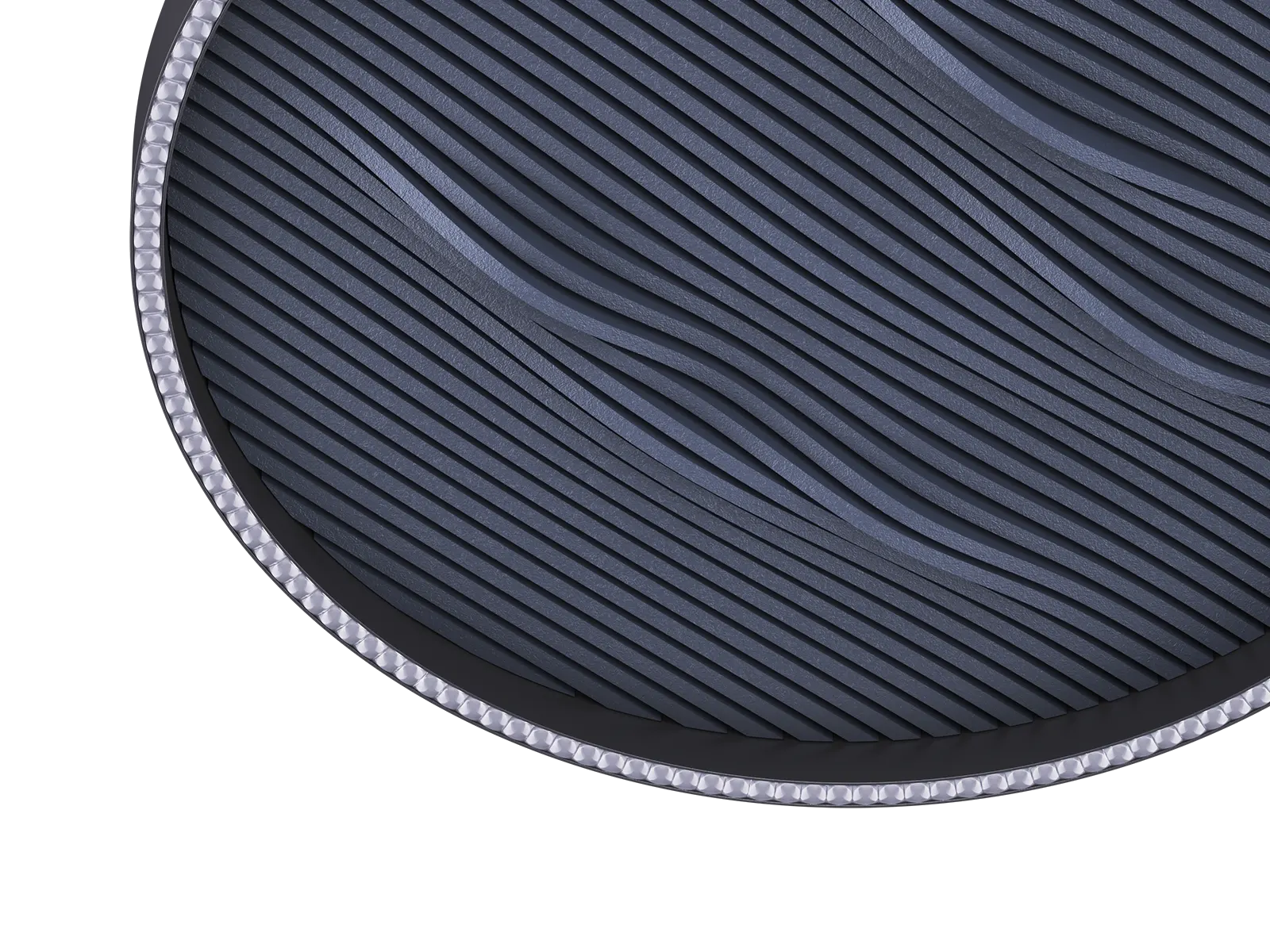

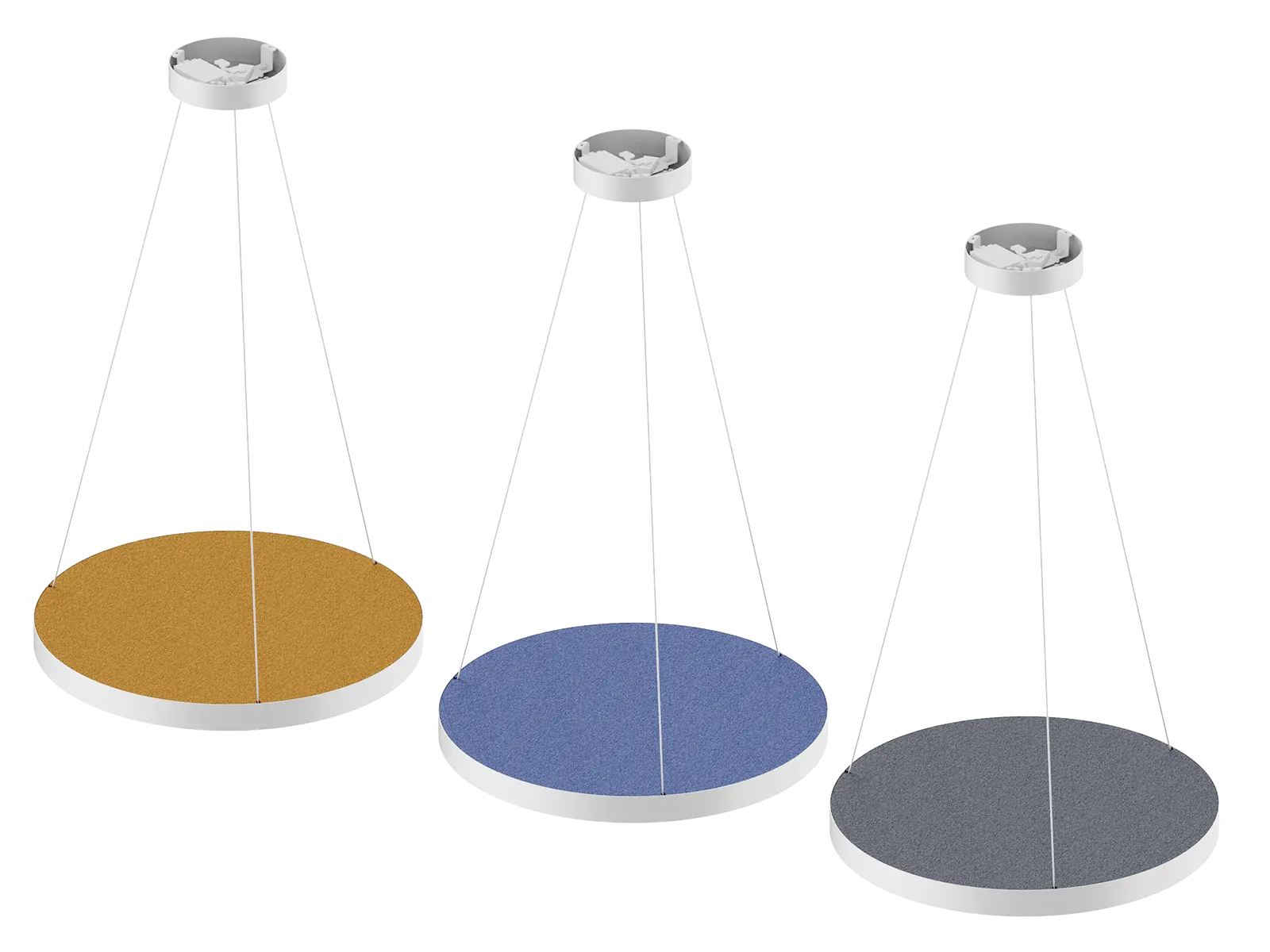

  • Acoustic polyester fibre diffuses and absorbs excessive sound waves to reduce noise, has a variety of flat and wave-pattern acoustic polyester fibre options, and with different colors.
  • Hidden cable length adjustment, with a flat front surface free of protrusions.
  • Different size optional: Ø508.5/668.5/883.5mm
  • Function: ON/OFF, Traic dim, DALI dimmable available, DALI with push-dim function.
  • Entry cable way: backside entry of the ceiling plate.
  • Installation way: Pendant

Applications: It is widely used in restaurant, dining room,living room,open-plan offices, meeting room, study room ,bedroom etc.

Code PD49-500-30W PD49-600-40W PD49-800-50W
Dimension(mm) Ø508.5*52*H1500 Ø668.5*52*H1500 Ø883.5*52*H1500
Watt(W) 30W 40W 50W
Rated Input Voltage AC220-240V
Input Voltage AC198-264V
LED Module Input -
Light Source SMD
SDCM SDCM<6
CCT(K) 1-CCT: 1800K/3000K/4000K
CCT Selection -
CCT 1800K 3000K/4000K 1800K 3000K/4000K 1800K 3000K/4000K
Luminous Flux (lm) ±5% 1-CCT Non-DIM 2000-2100 3250-3400 2650-2800 4300-4500 3350-3500 5400-5650
CRI90 DIM 1950-2050 3200-3300 2600-2700 4200-4300 3300-3400 5300-5500
DALI 2000-2100 3200-3400 2650-2800 4300-4500 3350-3500 5400-5650
CRI 90
Beam Angle(°) 36°
UGR <19
LED Driver Built-in, Flicker Free
Dimming Option Triac, DALI2.0(DALI with push-dim)
Sensor NO
Emergency Kits NO
Electrical Class Class I
Ingress Protection(IP Rating) IP20
Impact Resistance(IK Rating) IK04
Product Finishing White RAL9016 , Black RAL9005, Silver RAL9006
Optics Material Lens / PC
Housing Material Aluminium
Lifetime(hr) 50,000h
Glow wire test(°C) 750°C
Operating Temp.(°C) -20°C~40°C
Storage Temp.(°C) -20°C~65°C
Installation Pendant
