This is a DC48V pendant luminaire range. It's modular, elegant and simple, reflecting European style while taking inspiration from the Asian lotus flower. The products offer efficient, adjustable lighting for any setting. With LOTUS, experience the blend of form and function in a modern and straightforward design that illuminates your space sustainably and stylishly. The track profile can accommodate different forms of luminaires and modules, light modules can be interchanged tool free to create new design.

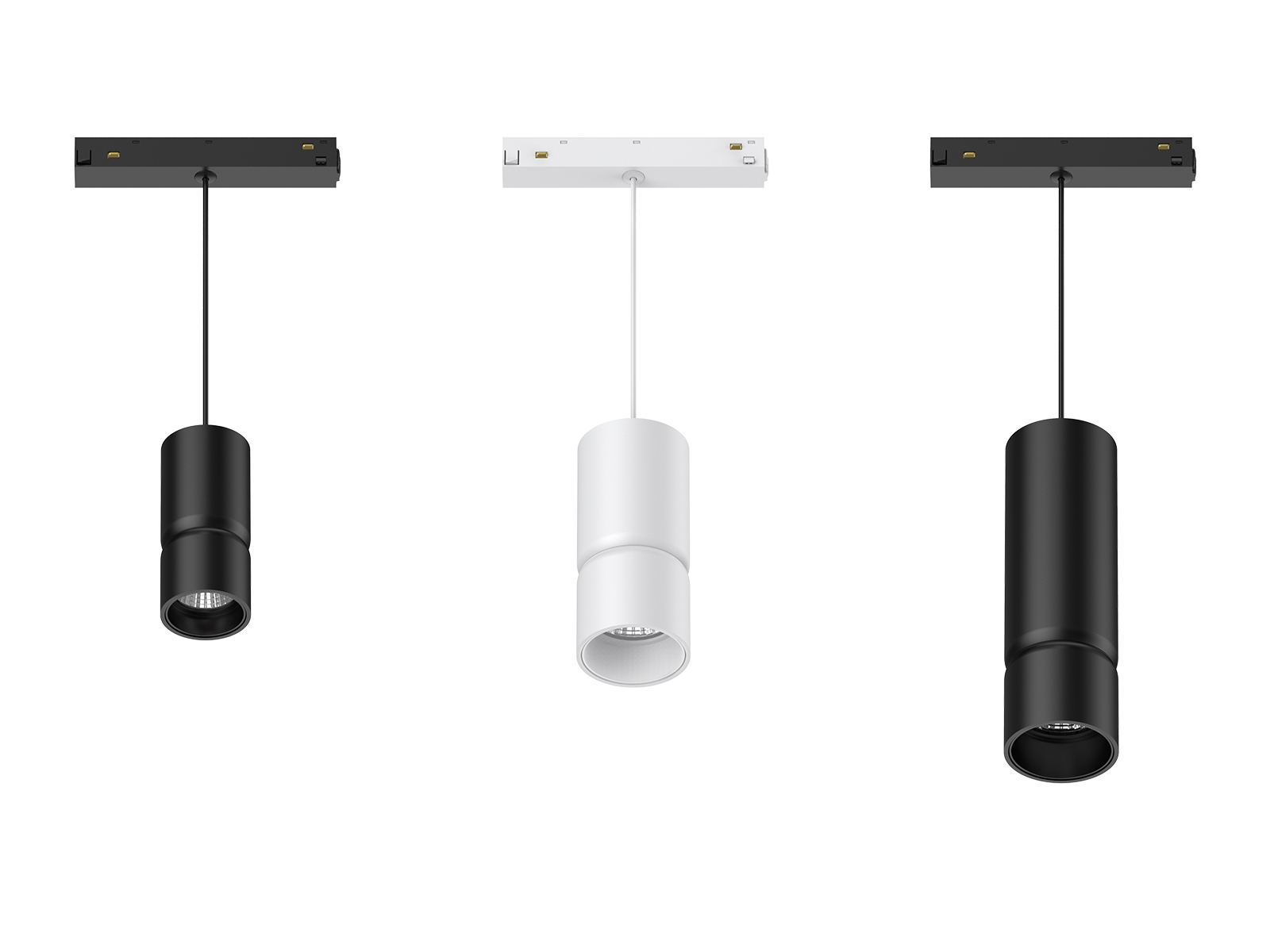

DC-PD142 pendant light has two size options: Ø40/Ø50, the track adapter can be fully embedded into the track bar which makes it compact.
DC-PD142-5046 pendant light has grid bottle shape and transparent glass bottle shape option.
DC-PD142-50117 pendant light has multiple trim color to choose, black finish trim with gold/brown/white inner, white finish trim with white inner.
Application Areas：It's ideal for high-end commercial or residential projects. Particularly suitable in retail stores, art galleries, showroom, show windows, supermarket, home etc.
| Code | DC-PD142-4054-7W | DC-PD142-5067-9W | DC-PD142-50117- 11W | DC-PD142-50117- 11W-(BOWL) | DC-PD142-5046- 7W(Cage) | DC-PD142-5046- 7W(Glass) | ||
|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø40*88 | Ø50*110 | Ø50*160 | Ø154*167 | Ø82*176 | Ø80*172 | ||
| Watt(W) | 7W@max (optional:4.5W/6W) | 9W@max (optional: 5.5W/7W) | 11W@max (optional:6.5W/9W) | 11W@max (optional:6.5W/9W) | 7W@max (optional:4.5W/6W) | 7W@max (optional:4.5W/6W) | ||
| Rated Input Voltage(V) | DC48V | |||||||
| Input Voltage(V) | DC48V | |||||||
| Light Source | COB | SMD | ||||||
| SDCM | <6 | |||||||
| CCT(K) | 1-CCT: 2700/ 3000K/ 4000K | |||||||
| CCT Selection DIP Switch | NO | |||||||
| Luminous Flux (lm) ±5% | 1-CCT | Non-DIM | 7W: 620-690 6W: 540-610 4.5W: 400-470 | 9W: 760-820 7W: 590-650 5.5W: 460-520 | 11W: 870-920 9W: 720-760 6.5W: 520-550 | 11W: 660-710 9W: 540-590 6.5W: 390-450 | 7W: 280-310 6W: 240-270 4.5W: 180-200 | 7W: 300-360 6W: 270-330 4.5W: 200-260 |
| DIM | ||||||||
| CRI | 90 | |||||||
| Beam Angle (°) | 36° / 45° / 60° | 24° / 36° / 50° | 100° | 70° | 300° | |||
| LED Driver | Driver built-in | |||||||
| Dimming Option | 0-10V/ DALI | |||||||
| Sensor | NO | |||||||
| Emergency Kits | NO | |||||||
| Electrical Class | Class Ⅲ | |||||||
| Ingress Protection(IP Rating) | IP20 | |||||||
| Product Finishing | White RAL 9016 / Black RAL9005 | |||||||
| Optics Material | Reflector/AL1090 | Diffuser/Glass | Diffuser/PC | Diffuser/Glass | ||||
| Housing Material | Aluminium | |||||||
| Lifetime (hr) | 50,000h | |||||||
| Glow wire test (°C) | 750°C | |||||||
| Operating Temp.(°C) | -20°C~40°C | |||||||
| Storage Temp.(°C) | -20°C~65°C | |||||||
| Installation | Pendant | |||||||
