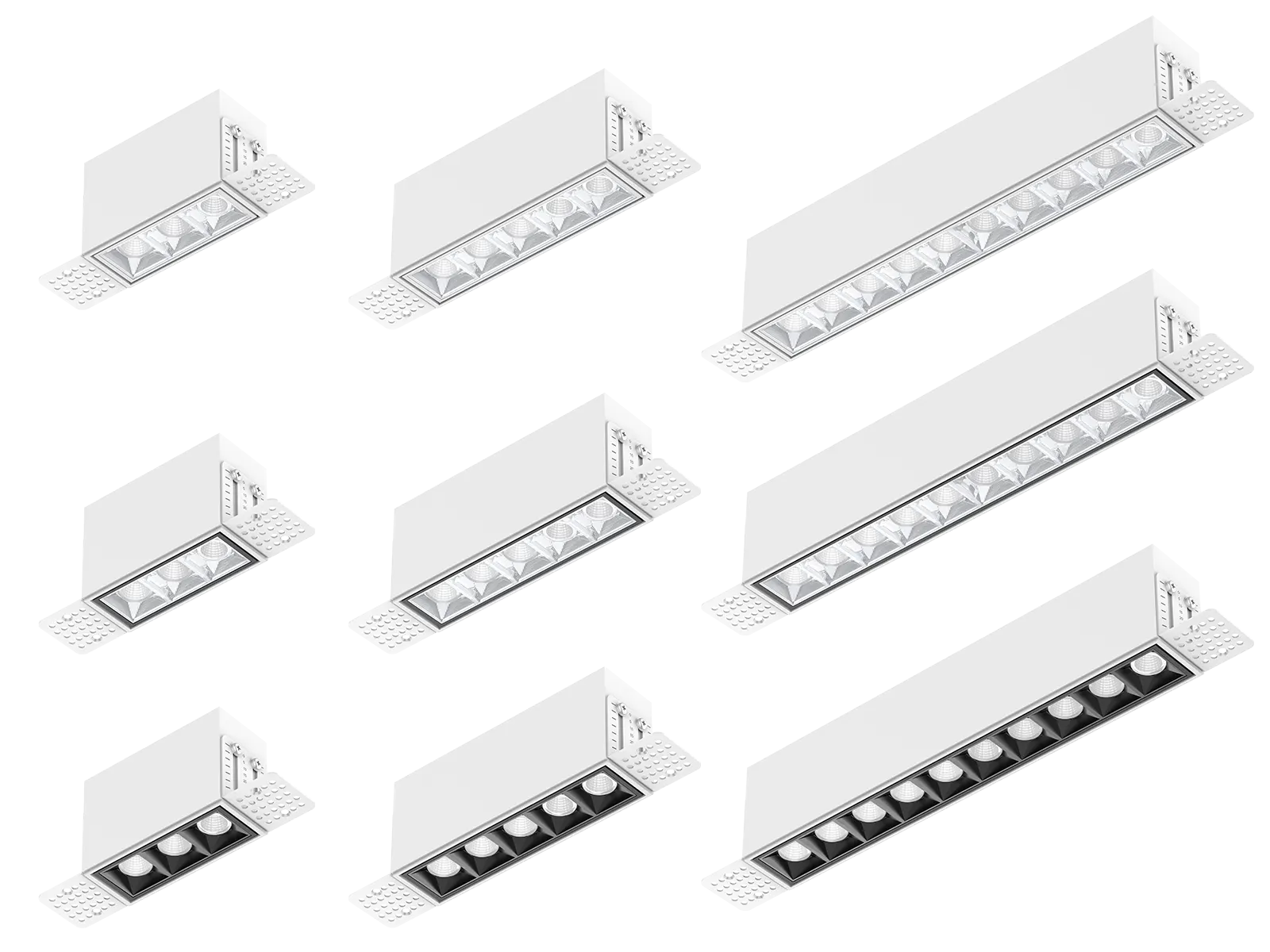

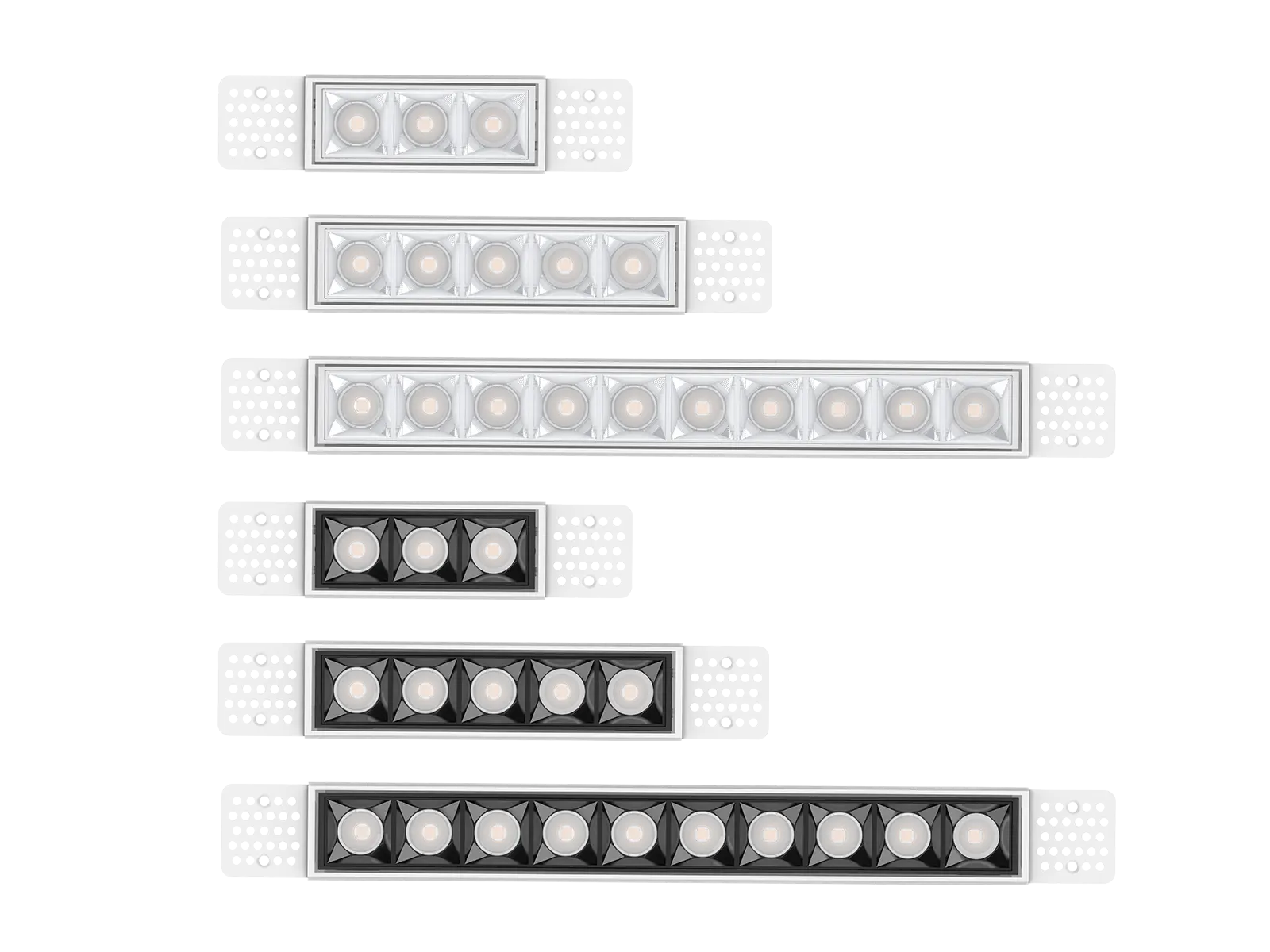

The DL452D series is a trimless design, allowing the luminaire to blend seamlessly into the wall and become one with the architecture. This design highlights a clean and pure architectural aesthetic, minimizing the visual presence of the fixture while still delivering comfortable, high-quality illumination and an excellent user experience. Also it is a modular design with removable modules for quick and easy maintenance or upgrades, helping to reduce carbon emissions.
Applications: It is designed for general lighting applications in residential areas, such as living rooms, kitchens, bedrooms, and bathrooms.
| Code | DL452D-181-6W | DL452D-241-10W | DL452D-391-20W | ||
|---|---|---|---|---|---|
| Dimension(mm) | L181*W43*H70 | L241*W43*H70 | L391*W43*H70 | ||
| Cutout(mm) | L115*W45 | L175*W45 | L325*W45 | ||
| Watt(W) | 6W | 10W | 20W | ||
| Rated Input Voltage | AC220-240V | ||||
| Input Voltage | AC198-264V | ||||
| LED Module Input | DC33-38V | ||||
| Light Source | SMD | ||||
| SDCM | <6 | ||||
| CCT(K) | 1-CCT: 2700K / 3000K / 4000K / 5000K | ||||
| CCT Selection | - | ||||
| Luminous Flux (lm) ±5% | 1-CCT | Non-DIM | 500-550 | 880-920 | 1800-1880 |
| CRI 90 | DIM | 480-520 | 860-900 | 1780-1880 | |
| CRI | 90 | ||||
| Beam Angle(°) | 30°/45° | ||||
| UGR | <19 | ||||
| LED Driver | Built-out, Flicker Free | ||||
| Dimming Option | Triac | ||||
| Sensor | - | ||||
| Emergency Kits | - | ||||
| Electrical Class | Class II | ||||
| Ingress Protection(IP Rating) | IP20 | ||||
| Impact Resistance(IK Rating) | IK03 | ||||
| Product Finishing | White RAL9016/Black RAL9005 | ||||
| Optics Material | PC | ||||
| Housing Material | Die-Casting Aluminum | ||||
| Lifetime(hr) | 50,000h | ||||
| Glow wire test(°C) | 750°C | ||||
| Operating Temp.(°C) | -20°C~45°C | ||||
| Storage Temp.(°C) | -20°C~65°C | ||||
| Installation | Recessed | ||||
