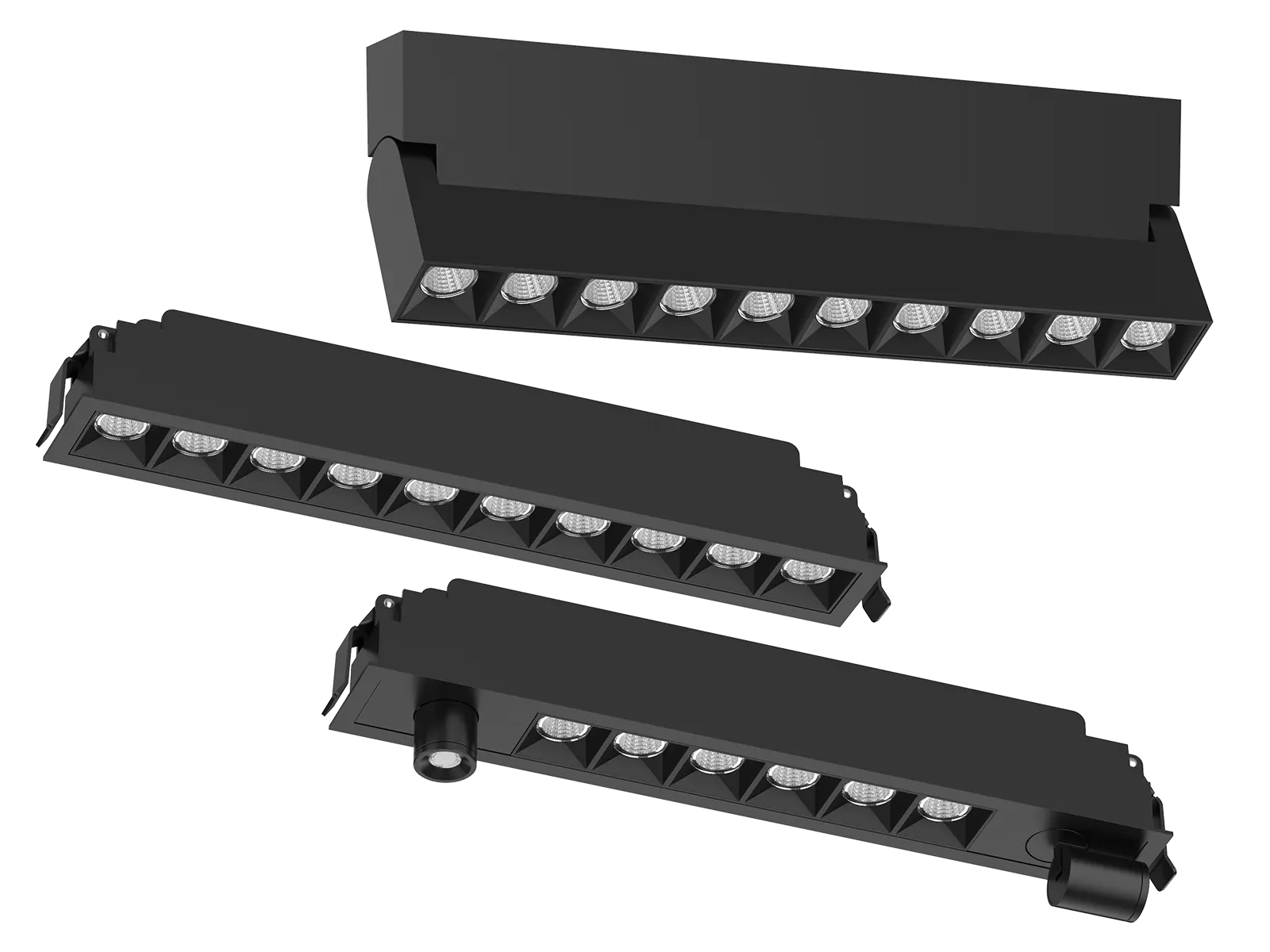

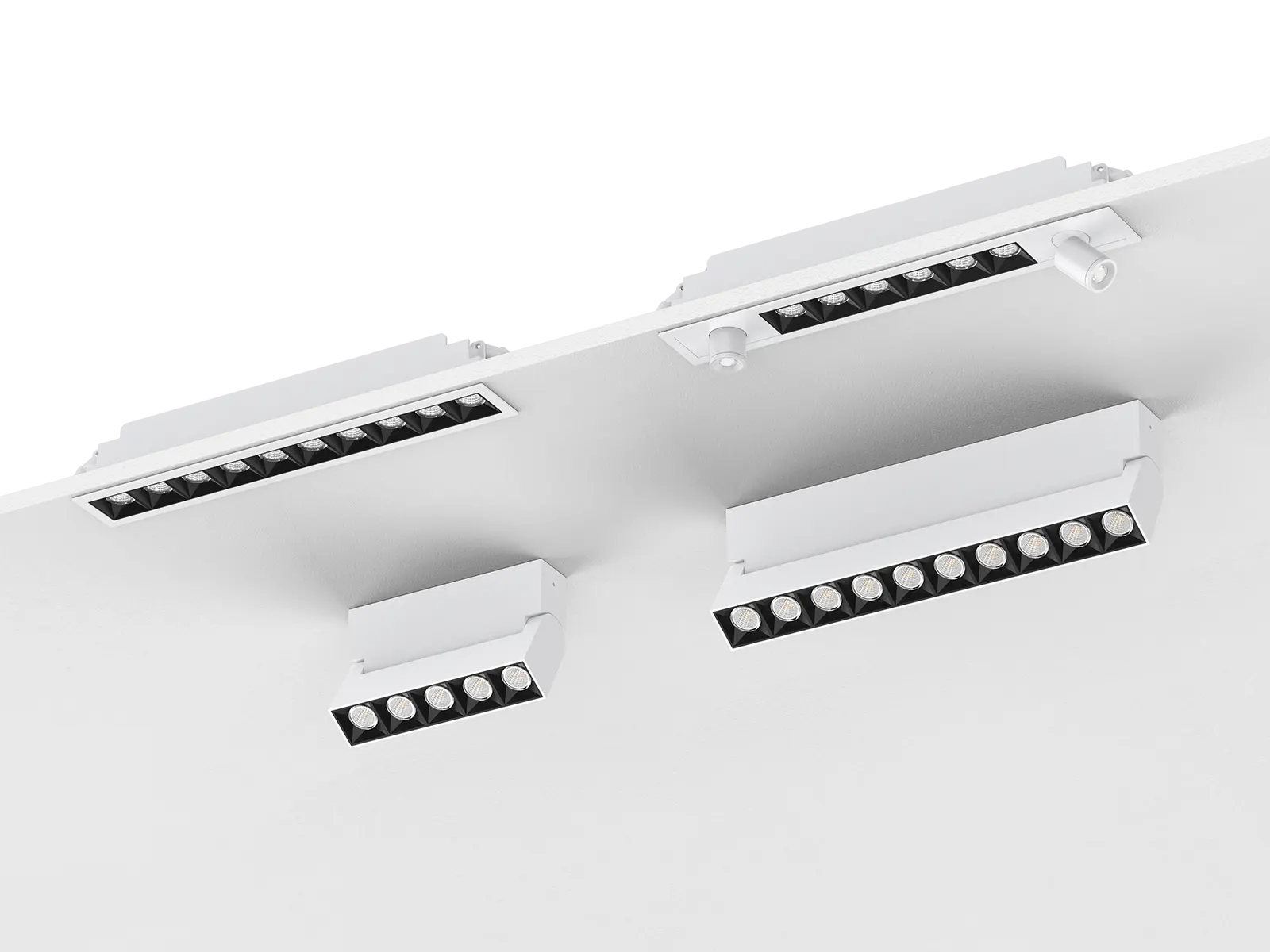

This is a linear downlight that uses an SMD light source with high color rendering. The modular lens and multi-louver reflector design achieve anti-glare effect with UGR < 19, ensuring optimal lighting with uniform light distribution. he housing is made of die-cast ADC12 material, it offers excellent thermal management and long lifespan. Model A is surface-mounted with a vertical rotation of 70°, while models B and C are for recessed installation. Model C features a small spotlight with 355°horizontal rotation and 90°vertical adjustment, meeting different customer needs. With its elegant and minimalist design, it is an ideal choice for modern interior design.
Applications: It is designed for general lighting applications in residential areas, such as living rooms, kitchens, bedrooms, and bathrooms.
| Code | DL452A-154-10W | DL452A-303-20W | DL452B-315-20W | DL452C-315-16W | ||
|---|---|---|---|---|---|---|
| Dimension(mm) | L154*W34*H100 | L303*W34*H100 | L315*W45*H51 | L315*W45*H71 | ||
| Watt(W) | 10W | 20W | 20W | 16W | ||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198-264V | |||||
| LED Module Input | DC33-38V | |||||
| Light Source | SMD | |||||
| SDCM | <6 | |||||
| CCT(K) | 1-CCT: 3000K / 4000K / 5000K / 5700K | |||||
| CCT Selection DIP Switch | NO | |||||
| Luminous Flux (lm) ±5% | 1-CCT | Non-DIM | 880-920 | 1820-1900 | 1820-1900 | 1360-1430 |
| CRI90 | DIM | 860-950 | 1780-1850 | 1780-1850 | 1320-1500 | |
| CRI | 90 | |||||
| Beam Angle(°) | 30°/45° | |||||
| UGR | <13 | |||||
| LED Driver | Built-out, Flicker Free | |||||
| Dimming Option | Triac | |||||
| Electrical Class | Class II | |||||
| Ingress Protection(IP Rating) | IP20 | |||||
| Impact Resistance(IK Rating) | IK03 | |||||

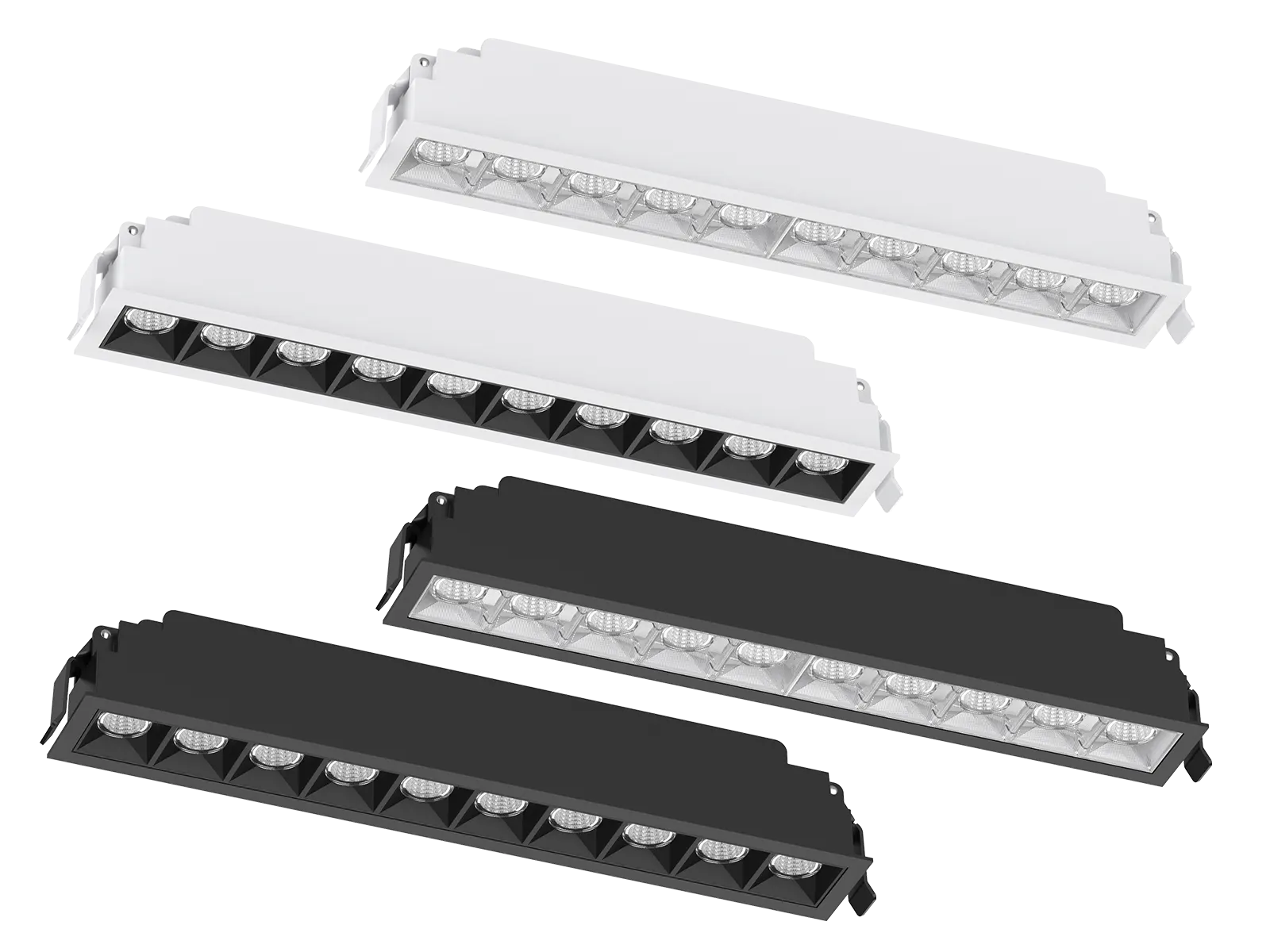

| Product Finishing | White RAL9016/Black RAL9005 | |||||
| Optics Material | PC | |||||
| Housing Material | Die-Casting Aluminium | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 750°C | |||||
| Operating Temp(°C) | -20°C~45°C | |||||
| Storage Temp(°C) | -20°C~65°C | |||||
| Installation | Recessed | |||||
