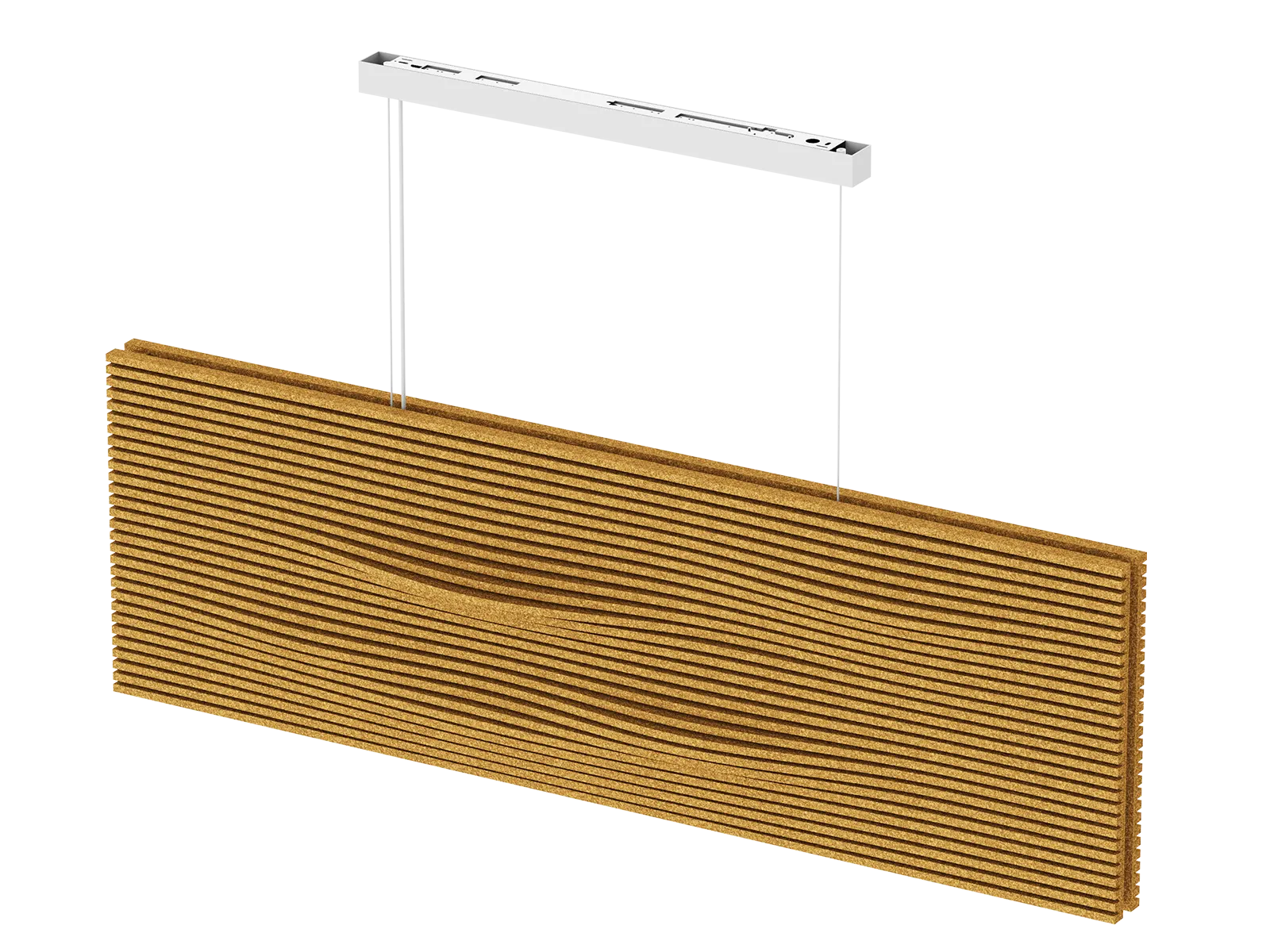

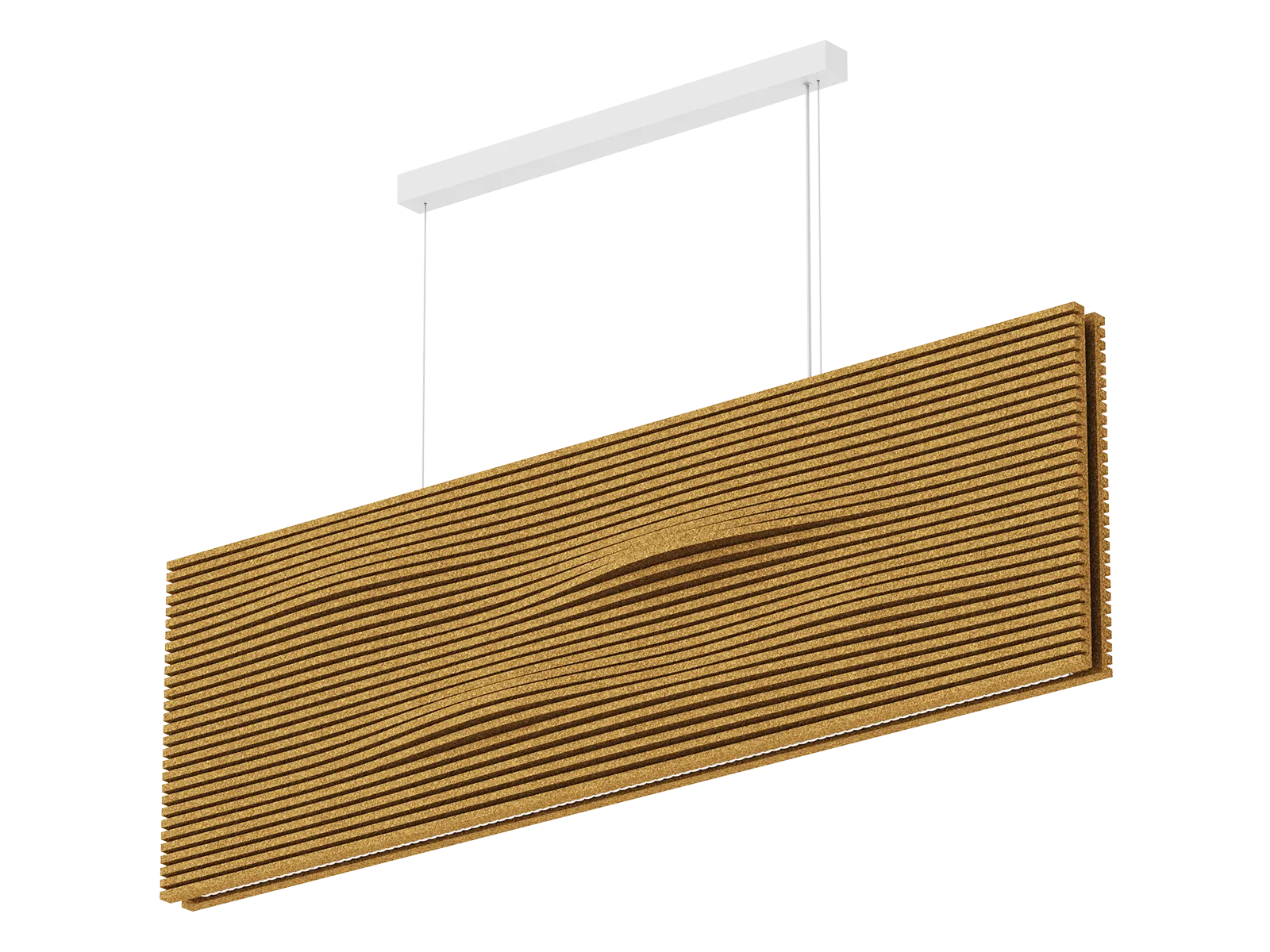

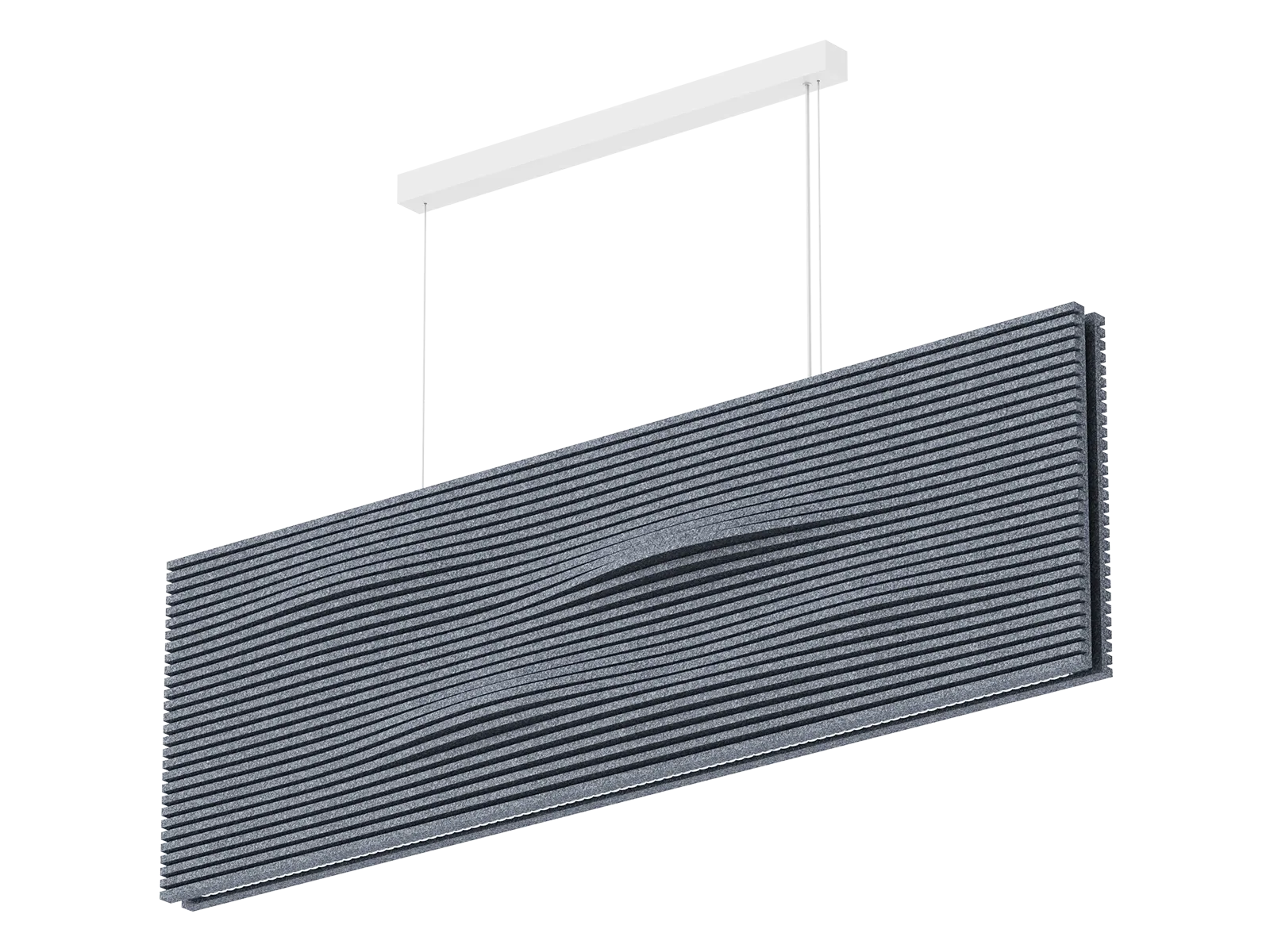

This is a functional product that integrates lighting and acoustics, designed to address noise issues at the source while maintaining a minimalist and cohesive aesthetic. It delivers both visual and acoustic comfort, enhancing overall space quality and user efficiency. It effectively reduces conversational noise and is especially suitable for openplan offices, meeting rooms, and similar environments where improved speech privacy is needed. The acoustic panel structure absorbs and diffuses excess sound, making the overall acoustic environment clearer and fuller. It enables a seamless integration of acoustic performance with modern lighting design.
Applications: It is widely used in hotels, showrooms, office lighting, gyms, and similar spaces.
| Code | DB250B-1200-40W | ||
|---|---|---|---|
| Dimension(mm) | 1250*152.7*400 | ||
| Watt(W) | 40W | ||
| Rated Input Voltage | AC200-240V | ||
| Input Voltage | AC198-264V | ||
| LED Module Input | - | ||
| Light Source | SMD | ||
| SDCM | SDCM<6 | ||
| CCT(K) | 1-CCT: 3000K/4000K | ||
| CCT Selection | - | ||
| Luminous Flux (lm) ±5% | Non-DIM | 40W: 4400-4500 | |
| CRI90 | 1-CCT | DIM | 40W: 4400-4500 |
| DALI | 40W: 4400-4500 | ||
| CRI | 90 | ||
| Beam Angle(°) | 36° | ||
| UGR | UGR<19 | ||
| LED Driver | Built-in, Flicker free | ||
| Dimming Option | Triac, DALI2.0(DALI with push-dim) | ||
| Sensor | NO | ||
| Emergency Kits | NO | ||
| Electrical Class | Class I | ||
| Ingress Protection(IP Rating) | IP20 | ||
| Impact Resistance(IK Rating) | IK04 | ||
| Product Finishing | White RAL9016, Black RAL9005 | ||
| Optics Material | Lens / PC | ||
| Housing Material | Aluminium | ||
| Lifetime(hr) | 50,000h | ||
| Glow wire test(°C) | 750°C | ||
| Operating Temp.(°C) | -20°C~40°C | ||
| Storage Temp.(°C) | -20°C~65°C | ||
| Installation | Pendant | ||
