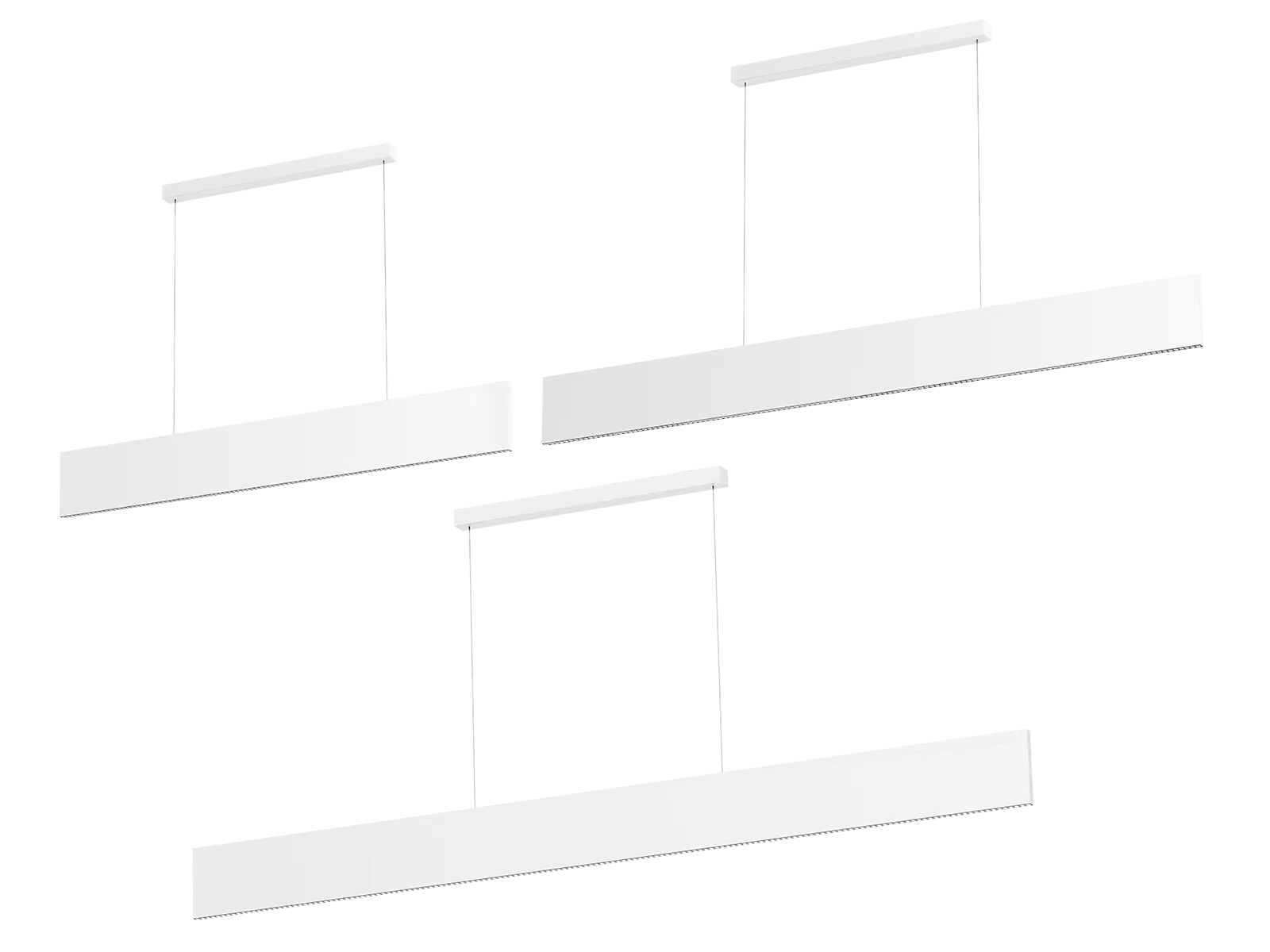

This is an ultra slim linear pendant luminaire with a full metal aluminum frame that delivers a refined, high quality appearance. The premium extruded aluminum housing ensures excellent thermal management, while the flicker free, high efficiency driver provides better energy performance and a longer service life.
Applications: It is widely used in hotels, showrooms, office lighting, gyms, and similar spaces.
| Code | DB250-1200-40W | DB250-1500-50W | DB250-1800-60W | ||
|---|---|---|---|---|---|
| Dimension(mm) | 1181*17*152 | 1516*17*152 | 1852*17*152 | ||
| Watt(W) | 40W | 50W | 60W | ||
| Rated Input Voltage | AC200-240V | ||||
| Input Voltage | AC198-264V | ||||
| LED Module Input | - | ||||
| Light Source | SMD | ||||
| SDCM | SDCM<6 | ||||
| CCT(K) | 1-CCT: 3000K/4000K | ||||
| CCT Selection | - | ||||
| Luminous Flux (lm) ±5% | Non-DIM | 40W: 4400-4500 | 50W: 5400-5600 | 60W: 6400-6600 | |
| CRI90 | 1-CCT | DIM | 40W: 4400-4500 | 50W: 5400-5600 | 60W: 6400-6600 |
| DALI | 40W: 4400-4500 | 50W: 5400-5600 | 60W: 6400-6600 | ||
| CRI | 90 | ||||
| Beam Angle(°) | 36° | ||||

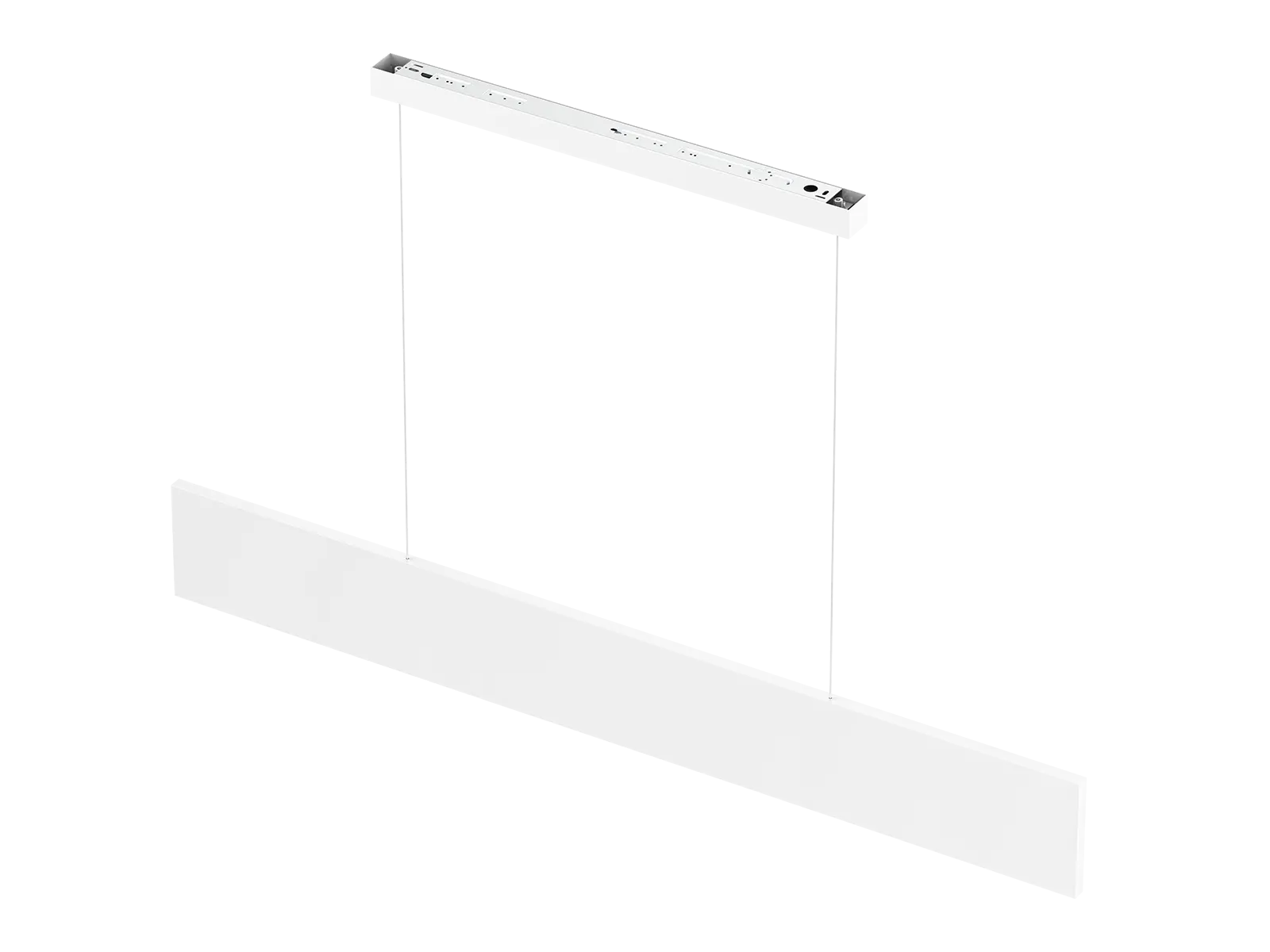

| UGR | UGR<19 | ||||
| LED Driver | Built-in, Flicker free | ||||
| Dimming Option | Triac, DALI2.0(DALI with push-dim) | ||||
| Sensor | NO | ||||
| Emergency Kits | NO | ||||
| Electrical Class | Class I | ||||
| Ingress Protection(IP Rating) | IP20 | ||||
| Impact Resistance(IK Rating) | IK04 | ||||
| Product Finishing | White RAL9016, Black RAL9005 | ||||
| Optics Material | Lens / PC | ||||
| Housing Material | Aluminium | ||||
| Lifetime(hr) | 50,000h | ||||
| Glow wire test(°C) | 750°C | ||||
| Operating Temp.(°C) | -20°C~40°C | ||||
| Storage Temp.(°C) | -20°C~65°C | ||||
| Installation | Pendant | ||||
