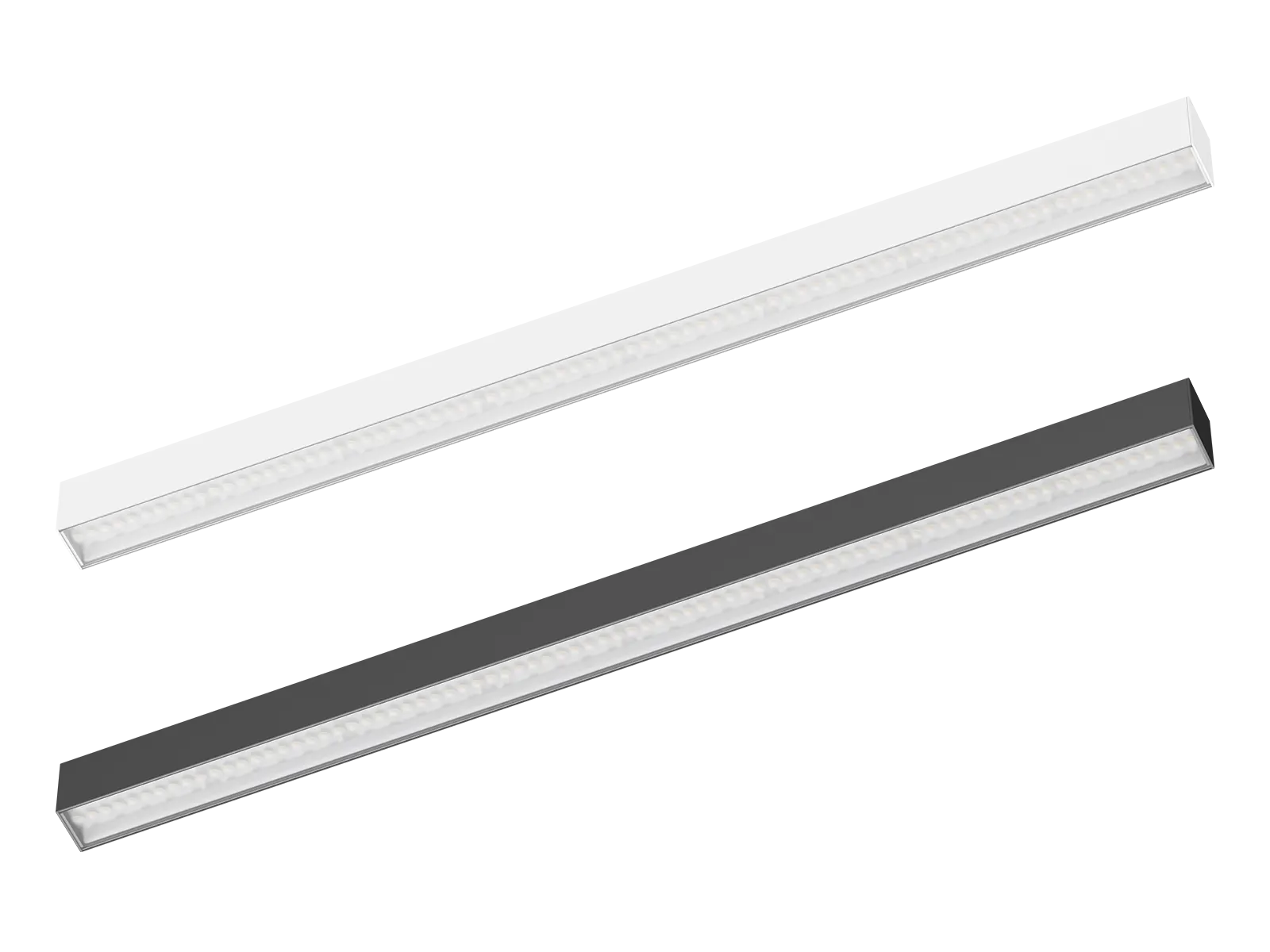

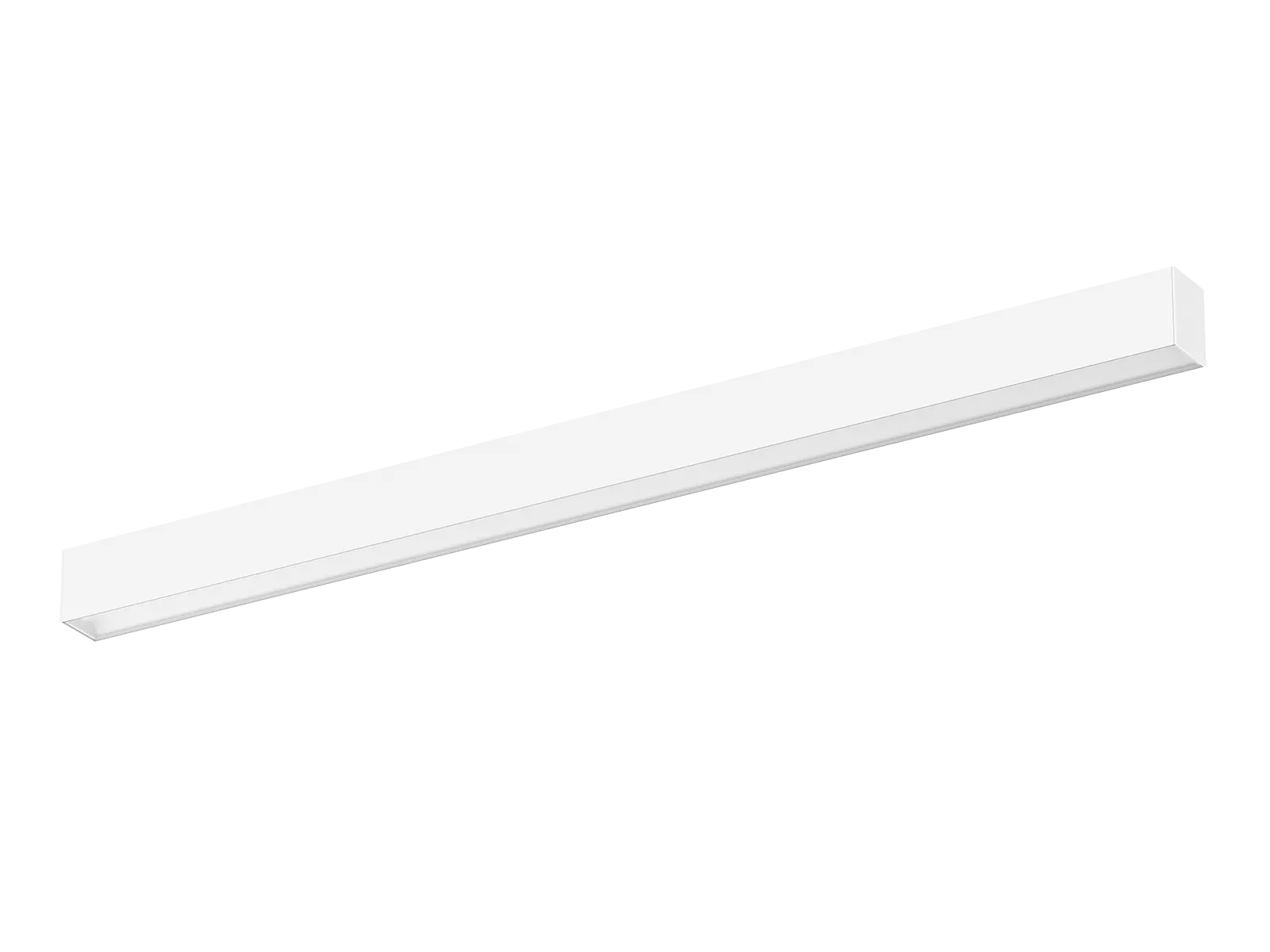

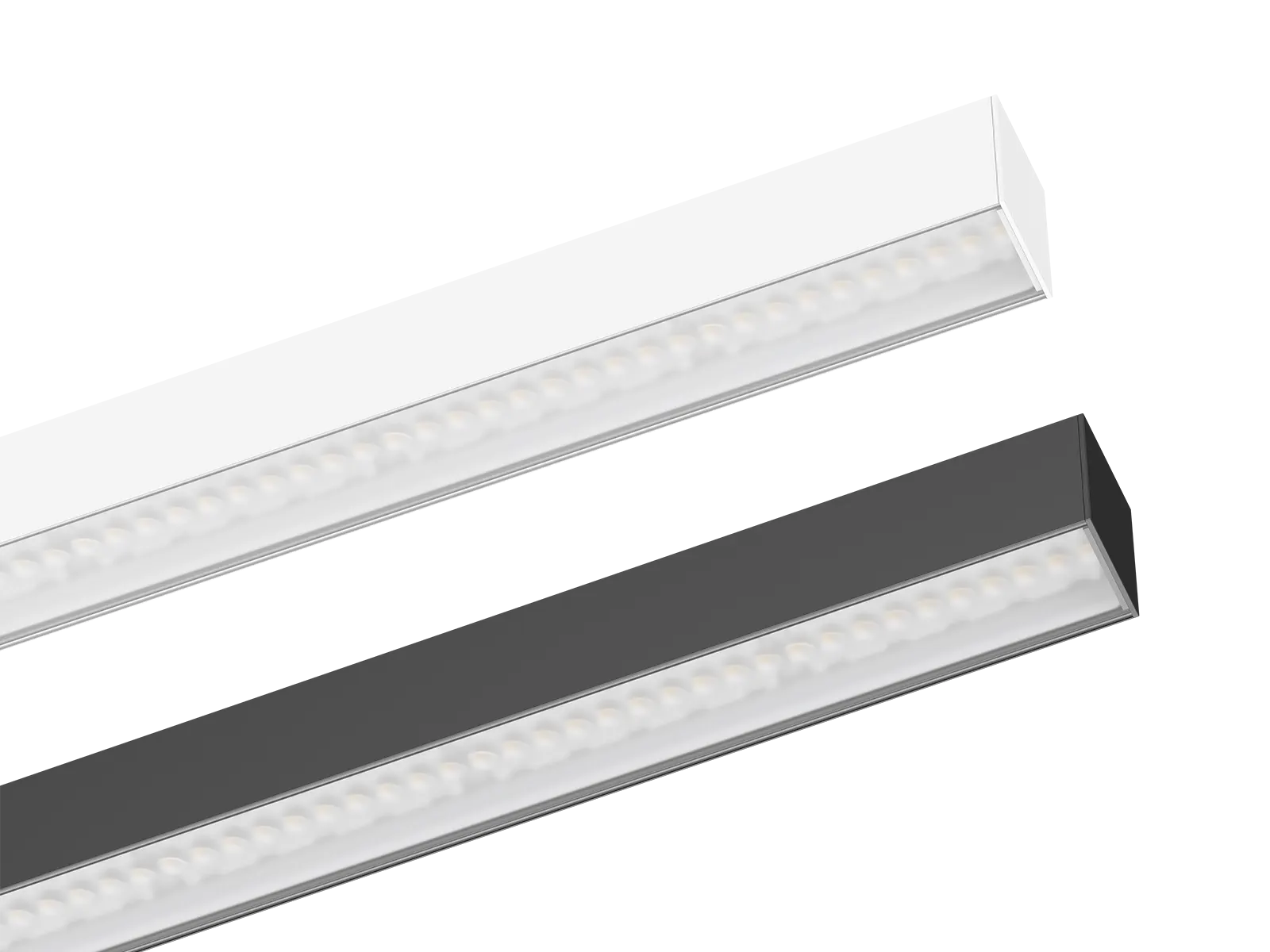

This is a cleverly designed, multifunctional modular linear lighting fixture. The lamp body is made from high-quality aviation aluminum alloy, which not only offers excellent strength and corrosion resistance but also effectively dissipates heat, ensuring stable operation over long periods. Using the optical lens and diffuser structure, the luminaire can achieve UGR < 19 with direct lighting. The indirect lighting strip module can be DIY. It is available in 4 different lengths—600mm, 1200mm, 1500mm, and 2400mm—to meet various lighting requirements for different spaces. Additionally, it supports multiple installation methods, including ceiling surface mount, pendant mount, wall mount and track mount, catering to a wide range of complex installation environments.
Applications: It is widely used in shopping mall, office, car park, station etc.
| Code | DB221E -600-16W-A4 | DB221E-600-22W-A4 | DB221E-1200-32W-A4 | DB221E-1200-44W-A4 | DB221E-1500-38W-A4 | DB221E-1500-53W-A4 | DB221E-2400-64W-A4 | DB221E-2400-88W-A4 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | 605*57*76 | 1205*57*76 | 1505*57*76 | 2405*57*76 | ||||||
| Cutout(mm) | - | - | ||||||||
| Direct | 16W@Max | 16W@Max | 32W@Max | 32W@Max | 38W@Max | 38W@Max | 64W@Max | 64W@Max | ||
| Watt(W) | (optional:13W/12W/9W) | (optional:13W/12W/9W) | (optional:25W/22W/16W) | (optional:25W/22W/16W) | (optional:32W/28W/19W) | (optional:32W/28W/19W) | (optional:50W/44W/32W) | (optional:50W/44W/32W) | ||
| Indirect | - | 6W@Max | - | 12W@Max | - | 15W@Max | - | 24W@Max | ||
| (optional:5W/4W/2W) | (optional:10W/8W/5W) | (optional:13W/10W/7W) | (optional:20W/16W/10W) | |||||||
| Rated Input Voltage | AC 220-240V | |||||||||
| Input Voltage | AC198-264V | |||||||||
| LED Module Input | - | |||||||||
| Light Source | SMD | |||||||||
| SDCM | <6 | |||||||||
| CCT(K) | 2-CCT: 3000K + 4000K | |||||||||
| CCT Selection DIP Switch | YES | |||||||||
| 16W: 2100-2300 | 22W: 2900-3100 | 32W: 4500-4800 | 44W: 5950-6300 | 38W: 5350-5650 | 53W: 7100-7550 | 64W: 9000-9600 | 88W: 11900-12600 | |||
| Non-DIM | 13W: 1700-1800 | 18W: 2400-2500 | 25W: 3550-3700 | 35W: 4820-5120 | 32W: 4700-4850 | 45W: 6400-6750 | 50W: 7100-7400 | 70W: 9700-10300 | ||
| Luminous Flux (lm) ±5% | 2-CCT | 12W: 1550-1650 | 16W: 2100-2250 | 22W: 3050-3250 | 30W: 4200-4400 | 28W: 4100-4300 | 38W: 5400-5750 | 44W: 6100-6500 | 60W: 8400-8800 | |
| CRI80 | 9W: 1100-1250 | 11W: 1550-1700 | 16W: 2350-2500 | 21W: 3150-3350 | 19W: 2700-2900 | 26W: 3600-3900 | 32W: 4700-5000 | 42W: 6300-6700 | ||
| 32W: 4500-4800 | 44W: 5950-6300 | 38W: 5350-5650 | 53W: 7100-7550 | 64W: 9000-9600 | 88W: 11900-12600 | |||||
| DALI | - | - | 25W: 3550-3700 | 35W: 4820-5120 | 32W: 4700-4850 | 45W: 6400-6750 | 50W: 7100-7400 | 70W: 9700-10300 | ||
| 22W: 3050-3250 | 30W: 4200-4400 | 28W: 4100-4300 | 38W: 5400-5750 | 44W: 6100-6500 | 60W: 8400-8800 | |||||
| 16W: 2350-2500 | 21W: 3150-3350 | 19W: 2700-2900 | 26W: 3600-3900 | 32W: 4700-5000 | 42W: 6300-6700 | |||||
| CRI | 80 | 80 | ||||||||
| Beam Angle(°) | Direct 65° | Indirect 110°, Direct 65° | Direct 65° | Indirect 110°, Direct 65° | Direct 65° | Indirect 110°, Direct 65° | Direct 65° | Indirect 110°, Direct 65° | ||
| UGR | UGR<19 | |||||||||
| LED Driver | Driver built-in, Flicker Free | |||||||||
| Dimming Option | - | DALl-2+pushDlM | DALl-2+pushDlM | |||||||
| Sensor | - | - | ||||||||
| Emergency Kits | - | YES | YES | - | ||||||
| Electrical Class | Class I | |||||||||
| Ingress Protection(IP Rating) | IP20 | |||||||||
| Impact Resistance(IK Rating) | IK03 | |||||||||
| Product Finishing | White RAL9016, Black RAL9005 | |||||||||
| Optics Material | Lens/PC, Diffuser/PC | |||||||||
| Housing Material | Aluminium | |||||||||
| Lifetime(hr) | 50,000h | |||||||||
| Glow wire test(°C) | 750°C | |||||||||
| Operating Temp(°C) | -20°C~45°C | |||||||||
| Storage Temp(°C) | -20°C~65°C | |||||||||
| Installation | Surface mount / Pendant / Wall mount / Track | |||||||||
