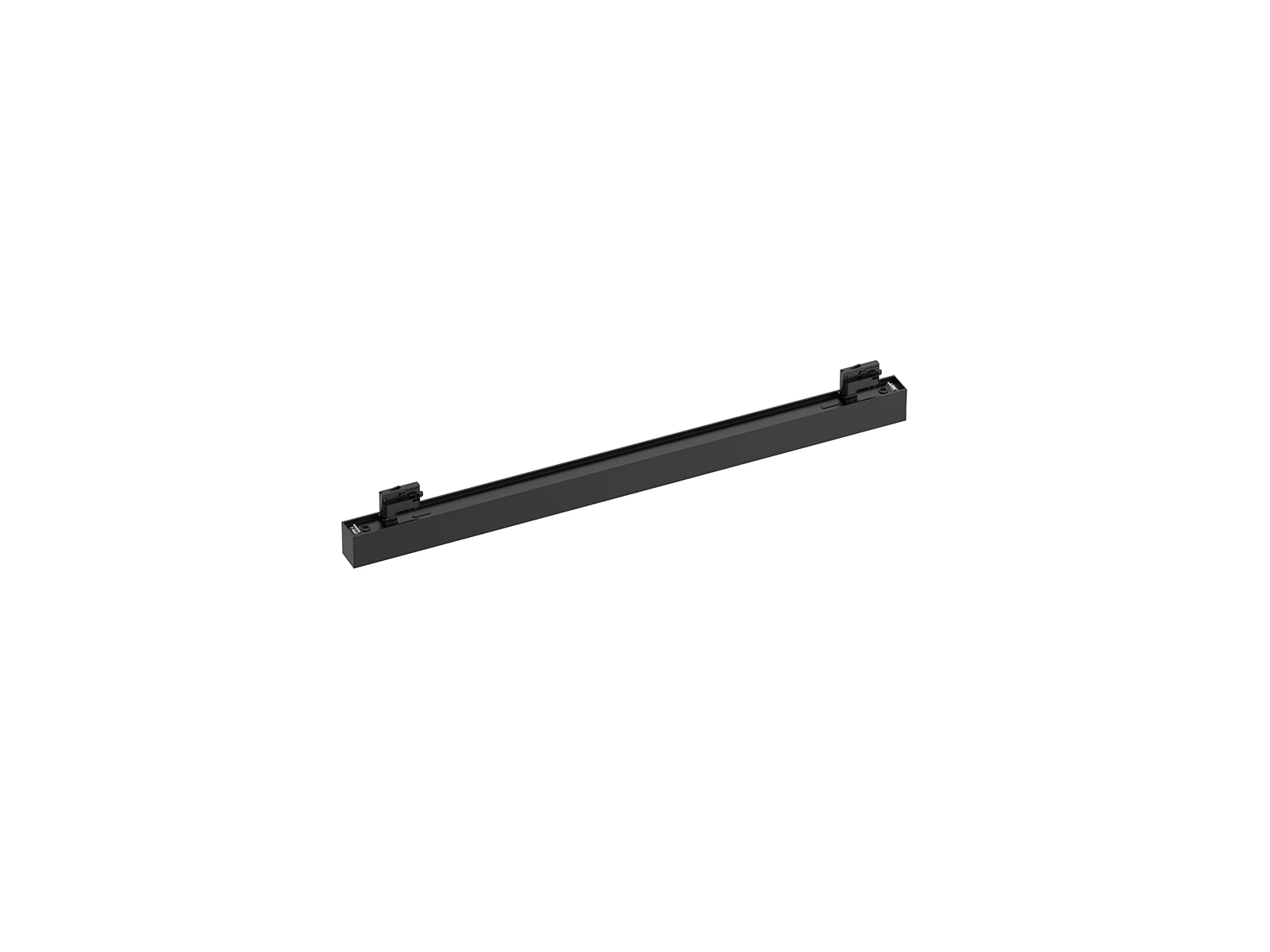

DB221 Modular Design LED Linear Light

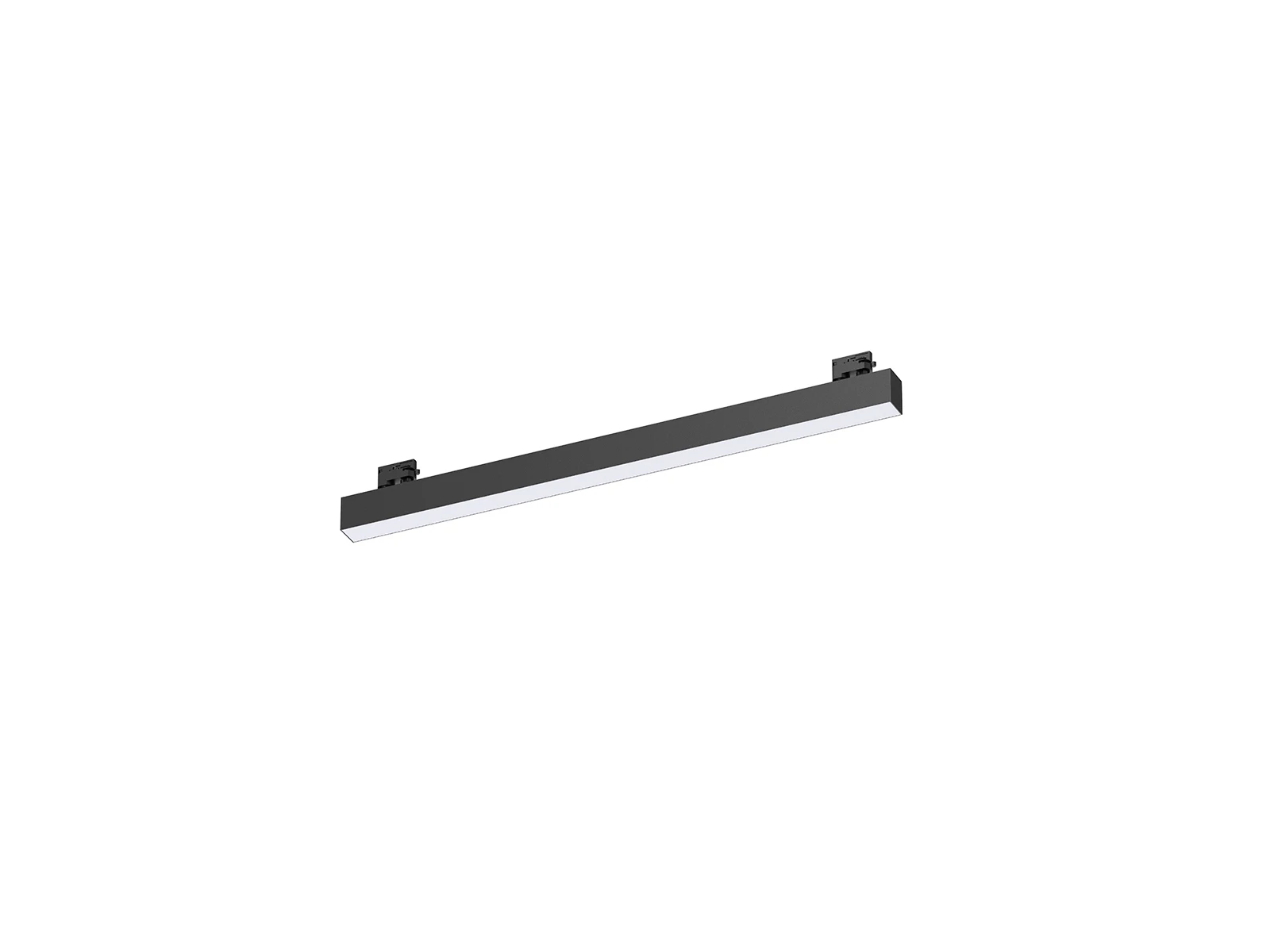

DB221 Series DALI Dim LED Linear Light

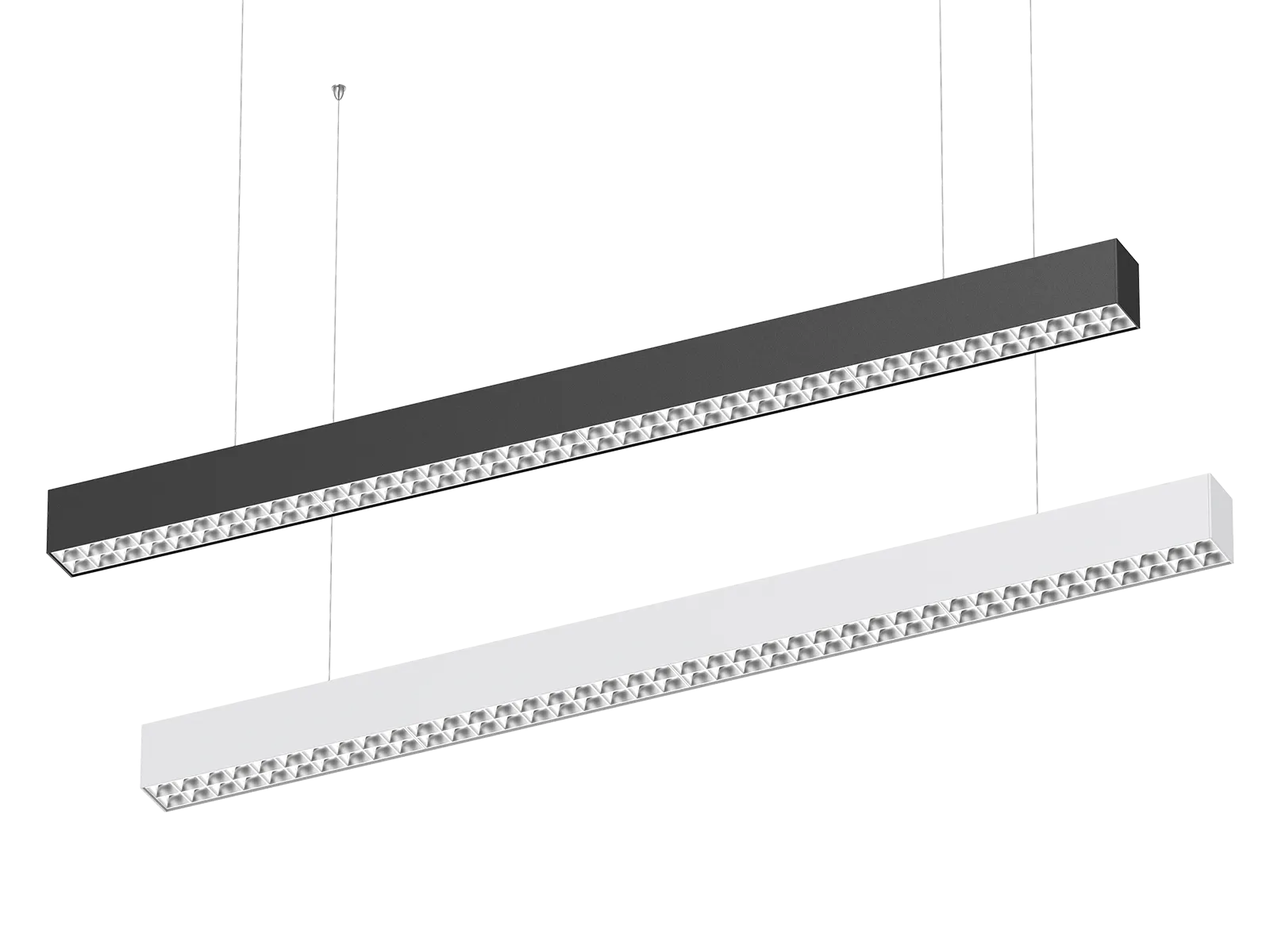

DB221C 1

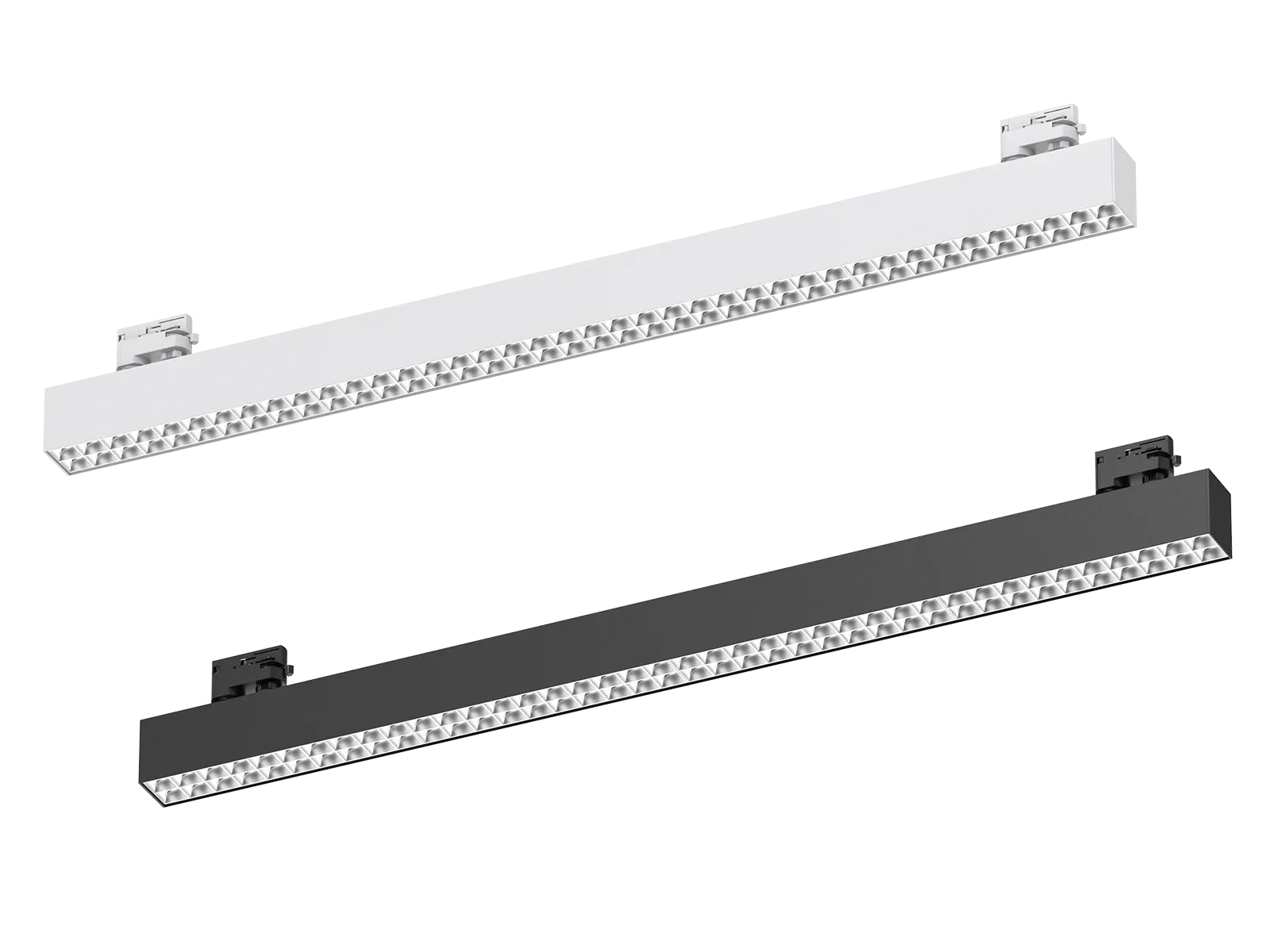

DB221C 3
DB221 Modular Design LED Linear Light
DB221 Series DALI Dim LED Linear Light
DB221C 1
DB221C 3

DB221 Modular Design LED Linear Light

DB221 is a multifunctional modular replaceable linear luminaire. The housing is constructed from high-grade aviation-grade aluminum, delivering exceptional structural strength, superior corrosion resistance, and outstanding thermal conductivity—ensuring long-term operational stability and significantly reducing post-installation maintenance costs. The optical system offers four tailored solutions: two downward-lighting configurations—high-transmittance PC diffuser or UGR anti-glare diffusion film and clear prismatic cover; and two upward-lighting configurations— high-transmittance PC diffuser, and bat wing-distribution clear extruded PMMA lens. These options enable precise adaptation to varying photometric and illuminance requirements across diverse applications. The luminaire is available in four standard lengths—600, 1200, 1500, and 2400mm—and supports five mounting methods: ceiling surface mount, pendant, wall-mounted, track and recessed, ensuring compatibility with a wide range of complex installation scenarios.

  • Modular design allowing seamless splicing of multiple units
  • lumen efficiency options: 120lm/W, 140lm/W
  • Adjustable CCT and wattage
  • Flicker-free operation with built-in driver
  • Functional variants: Emergency, sensor available
  • Dimming method: DALI /1-10V

Applications: Widely used for classrooms, workshops, warehouses, and exhibition halls.

Specification Files IES & LDT Files
Specifications
Related Products



Code DB221A-600-16W-A4 DB221A-600-22W-A4 DB221A-1200-32W-A4 DB221A-1200-44W-A4 DB221A-1500-38W-A4 DB221A-1500-53W-A4 DB221A-2400-64W-A4 DB221A-2400-88W-A4
Dimension(mm) 605*57*76 1205*57*76 1505*57*76 2405*57*76
Direct 16W@Max 16W@Max 32W@Max 32W@Max 38W@Max 38W@Max 64W@Max 64W@Max
Watt(W) (optional:13W/12W/9W) (optional:13W/12W/9W) (optional:25W/22W/16W) (optional:25W/22W/16W) (optional:32W/28W/19W) (optional:32W/28W/19W) (optional:50W/44W/32W) (optional:50W/44W/32W)
Indirect - 6W@Max - 12W@Max - 15W@Max - 24W@Max
(optional:5W/4W/2W) (optional:10W/8W/5W) (optional:13W/10W/7W) (optional:20W/16W/10W)
Rated Input Voltage AC 220-240V AC220-240V
Input Voltage AC198-264V AC198-264V
Light Source SMD SMD
SDCM <6 <6
CCT(K) 1-CCT: 3000K/4000K/5000K/5700K || 2-CCT: 3000K + 4000K 1-CCT: 3000K/4000K/5000K/5700K || 2-CCT: 3000K + 4000K
CCT Selection DIP Switch By DIP Switch By DIP Switch
16W: 1650-1800 22W: 2500-2700 32W: 3550-3850 44W: 5150-5350 38W: 4350-4650 53W: 6250-6550 64W: 7000-7600 88W: 10200-10600
Non-DIM 13W: 1350-1450 18W: 2150-2350 25W: 2850-3000 35W: 4100-4250 32W: 3650-3900 45W: 5150-5450 50W: 5650-5900 70W: 8100-8400
1-CCT 12W: 1250-1350 16W: 1950-2050 22W: 2550-2650 30W: 3550-3650 28W: 3100-3400 38W: 4350-4650 44W: 5100-5300 60W: 7000-7300
9W: 920-1000 11W: 1350-1450 16W: 1800-2000 21W: 2450-2600 19W: 2250-2400 26W: 3050-3300 32W: 3200-3800 42W: 4800-5100
32W: 3500-3800 44W: 5100-5300 38W: 4300-4600 53W: 6200-6500 64W: 6900-7500 88W: 10000-10400
Luminous Flux (lm) ±5% DALI - - 25W: 2800-2950 35W: 4050-4250 32W: 3600-3850 45W: 5100-5400 50W: 5600-5850 70W: 8000-8300
CRI80 22W: 2500-2600 30W: 3550-3650 28W: 3050-3350 38W: 4300-4600 44W: 5000-5200 60W: 7900-7100
16W: 1750-1950 21W: 2450-2600 19W: 2200-2350 26W: 3000-3250 32W: 3150-3700 42W: 4700-5100
16W: 1650-1750 22W: 2500-2700 32W: 3550-3850 44W: 5150-5350 38W: 4350-4650 53W: 6250-6550 64W: 7000-7600 88W: 10200-10600
Non-DIM 13W: 1350-1450 18W: 2150-2350 25W: 2850-3000 35W: 4100-4250 32W: 3650-3900 45W: 5150-5450 50W: 5650-5900 70W: 8100-8400
2-CCT 12W: 1250-1350 16W: 1950-2050 22W: 2550-2650 30W: 3550-3650 28W: 3100-3400 38W: 4350-4650 44W: 5100-5300 60W: 7000-7300
9W: 920-1000 11W: 1350-1450 16W: 1800-2000 21W: 2450-2600 19W: 2250-2400 26W: 3050-3300 32W: 3200-3800 42W: 4800-5100
32W: 3500-3800 44W: 5100-5300 38W: 4300-4600 53W: 6200-6500 64W: 6900-7500 88W: 10000-10400
DALI - - 25W: 2800-2950 35W: 4050-4250 32W: 3600-3850 45W: 5100-5400 50W: 5600-5850 70W: 8000-8300
22W: 2500-2600 30W: 3550-3650 28W: 3050-3350 38W: 4300-4600 44W: 5000-5200 60W: 7900-7100
16W: 1750-1950 21W: 2450-2600 19W: 2200-2350 26W: 3000-3250 32W: 3150-3700 42W: 4700-5100
CRI 80 80
Beam Angle(°) Direct 105° Indirect 110°, Direct 105° Direct 105° Indirect 110°, Direct 105° Direct 105° Indirect 110°, Direct 105° Direct 105° Indirect 110°, Direct 105°
UGR - -
LED Driver Driver built-in, Flicker Free Driver built-in, Flicker Free
Dimming Option - DALl-2+pushDlM / 1-10V DALl-2+pushDlM / 1-10V
Sensor - Microwave sensor / PIR sensor Microwave sensor / PIR sensor
Emergency Kits - YES YES -
Electrical Class Class I Class I
Ingress Protection(IP Rating) IP20 IP20
Impact Resistance(IK Rating) IK03 IK03
Product Finishing White RAL9016, Black RAL9005 White RAL9016, Black RAL9005
Optics Material Diffuser/PC Diffuser/PC
Housing Material Aluminium Aluminium
Lifetime(hr) 50,000h 50,000h
Glow wire test(°C) 750°C 750°C
Operating Temp(°C) -20°C~45°C -20°C~45°C
Storage Temp(°C) -20°C~65°C -20°C~65°C
Installation Ceiling Surface Mount / Pendant / Wall mount / Track / Recessed Ceiling Surface Mount / Pendant / Wall mount / Track / Recessed





Code DB221B-600-16W-A4 DB221B-600-22W-A4 DB221B-1200-32W-A4 DB221B-1200-44W-A4 DB221B-1500-38W-A4 DB221B-1500-53W-A4 DB221B-2400-64W-A4 DB221B-2400-88W-A4
Dimension(mm) 605*57*76 1205*57*76 1505*57*76 2405*57*76
Watt(W) Direct 16W@Max 16W@Max 32W@Max 32W@Max 38W@Max 38W@Max 64W@Max 64W@Max
(optional:13W/12W/9W) (optional:13W/12W/9W) (optional:25W/22W/16W) (optional:25W/22W/16W) (optional:32W/28W/19W) (optional:32W/28W/19W) (optional:50W/44W/32W) (optional:50W/44W/32W)
Indirect - 6W@Max - 12W@Max - 15W@Max - 24W@Max
(optional:5W/4W/2W) (optional:10W/8W/5W) (optional:13W/10W/7W) (optional:20W/16W/10W)
Rated Input Voltage AC 220-240V AC 220-240V
Input Voltage AC198-264V AC198-264V
Light Source SMD SMD
SDCM <6 <6
CCT(K) 1-CCT: 3000K/4000K/5000K/5700K || 2-CCT: 3000K + 4000K 1-CCT: 3000K/4000K/5000K/5700K || 2-CCT: 3000K + 4000K
CCT Selection DIP Switch By DIP Switch By DIP Switch
Non-DIM 16W: 1500-1600 22W: 2400-2650 32W: 3300-3430 44W: 5100-5500 38W: 3800-4000 53W: 6200-6600 64W: 6600-6800 88W: 10000-10800
13W: 1200-1300 18W: 1950-2200 25W: 2550-2700 35W: 4050-4350 32W: 3200-3350 45W: 5250-5600 50W: 5000-5400 70W: 7900-8500
1-CCT 12W: 1100-1200 16W: 1750-1950 22W: 2250-2400 30W: 3500-3750 28W: 2900-3050 38W: 4450-4750 44W: 4500-4700 60W: 7000-7500
9W: 850-950 11W: 1200-1350 16W: 1650-1750 21W: 2500-2700 19W: 1950-2100 26W: 3000-3250 32W: 3300-3500 42W: 5000-5400
Luminous Flux (lm) ±5% DALI 32W: 3300-3400 44W: 5050-5450 38W: 3750-3950 53W: 6100-6500 64W: 6600-6800 88W: 9900-10700
CRI80 - - 25W: 2500-2650 35W: 4000-4300 32W: 3150-3300 45W: 5100-5500 50W: 5000-5300 70W: 7800-7400
22W: 2200-2350 30W: 3450-3700 28W: 2850-3000 38W: 4400-4700 44W: 4400-4700 60W: 6800-7300
16W: 1600-1700 21W: 2450-2600 19W: 1900-2050 26W: 2900-3200 32W: 3200-3400 42W: 4800-5200
Non-DIM 16W: 1500-1600 22W: 2400-2650 32W: 3300-3430 44W: 5100-5500 38W: 3800-4000 53W: 6200-6600 64W: 6600-6800 88W: 10000-10800
13W: 1200-1300 18W: 1950-2200 25W: 2550-2700 35W: 4050-4350 32W: 3200-3350 45W: 5250-5600 50W: 5000-5400 70W: 7900-8500
2-CCT 12W: 1100-1200 16W: 1750-1950 22W: 2250-2400 30W: 3500-3750 28W: 2900-3050 38W: 4450-4750 44W: 4500-4700 60W: 7000-7500
9W: 850-950 11W: 1200-1350 16W: 1650-1750 21W: 2500-2700 19W: 1950-2100 26W: 3000-3250 32W: 3300-3500 42W: 5000-5400
DALI 32W: 3300-3400 44W: 5050-5450 38W: 3750-3950 53W: 6100-6500 64W: 6600-6800 88W: 9900-10700
- - 25W: 2500-2650 35W: 4000-4300 32W: 3150-3300 45W: 5100-5500 50W: 5000-5300 70W: 7800-7400
22W: 2200-2350 30W: 3450-3700 28W: 2850-3000 38W: 4400-4700 44W: 4400-4700 60W: 6800-7300
16W: 1600-1700 21W: 2450-2600 19W: 1900-2050 26W: 2900-3200 32W: 3200-3400 42W: 4800-5200
CRI 80 80
Beam Angle(°) Direct 75° Indirect 110° Direct 75° Indirect 110° Direct 75° Indirect 110° Down 75° Indirect 110°
Direct 75° Direct 75°" Direct 75° Direct 75°
UGR <22 <22@22W/18W <22 <22@44W/35W <22 <22@53W/45W <22 <22@88W/70W
<19@16/W/11W <19@30/W/21W <19@38/W/26W <19@60/W/42W
LED Driver Driver built-in, Flicker Free Driver built-in, Flicker Free
Dimming Option - DALl-2+pushDlM / 1-10V DALl-2+pushDlM / 1-10V
Sensor - Microwave sensor / PIR sensor Microwave sensor / PIR sensor
Emergency Kits - YES YES -
Electrical Class Class I Class I
Ingress Protection(IP Rating) IP20 IP20
Impact Resistance(IK Rating) IK03 IK03
Product Finishing White RAL9016, Black RAL9005 White RAL9016, Black RAL9005
Optics Material Diffuser/PC Diffuser/PC
Housing Material Aluminium Aluminium
Lifetime(hr) 50,000h 50,000h
Glow wire test(°C) 750°C 750°C
Operating Temp(°C) -20°C~45°C -20°C~45°C
Storage Temp(°C) -20°C~65°C -20°C~65°C
Installation Ceiling Surface Mount / Pendant / Wall mount / Track / Recessed Ceiling Surface Mount / Pendant / Wall mount / Track / Recessed





Code DB221C-600-16W-A4 DB221C-600-22W-A4 DB221C-1200-32W-A4 DB221C-1200-44W-A4 DB221C-1500-38W-A4 DB221C-1500-53W-A4 DB221C-2400-64W-A4 DB221C-2400-88W-A4
Dimension(mm) 605*57*76 1205*57*76 1505*57*76 2405*57*76
Watt(W) Direct 16W@Max 16W@Max 32W@Max 32W@Max 38W@Max 38W@Max 64W@Max 64W@Max
(optional:13W/12W/9W) (optional:13W/12W/9W) (optional:25W/22W/16W) (optional:25W/22W/16W) (optional:32W/28W/19W) (optional:32W/28W/19W) (optional:50W/44W/32W) (optional:50W/44W/32W)
Indirect - 6W@Max - 12W@Max - 15W@Max - 24W@Max
(optional:5W/4W/2W) (optional:10W/8W/5W) (optional:13W/10W/7W) (optional:20W/16W/10W)
Rated Input Voltage AC 220-240V AC 220-240V
Input Voltage AC198-264V AC198-264V
Light Source SMD SMD
SDCM <6 <6
CCT(K) 1-CCT: 3000K/4000K/5000K/5700K || 2-CCT: 3000K + 4000K 1-CCT: 3000K/4000K/5000K/5700K || 2-CCT: 3000K + 4000K
CCT Selection DIP Switch By DIP Switch By DIP Switch
16W: 2050-2200 22W: 2800-3000 32W: 4250-4500 44W: 5800-6100 38W: 5050-5300 53W: 7000-7400 64W: 8400-8900 88W: 11400-12000
Non-DIM 13W: 1650-1800 18W: 2300-2500 25W: 3300-3500 35W: 4650-4850 32W: 4250-4450 45W: 5950-6250 50W: 6500-7900 70W: 9200-9600
1-CCT 12W: 1500-1650 16W: 2050-2200 22W: 2900-3100 30W: 4000-4200 28W: 3700-3900 38W: 5050-5300 44W: 5700-6100 60W: 7900-8300
9W: 1150-1250 11W: 1400-1500 16W: 2100-2250 21W: 2800-2950 19W: 2500-2650 26W: 3450-3650 32W: 4100-4400 42W: 5500-5800
Luminous Flux (lm) ±5% 32W: 4200-4450 44W: 5750-6000 38W: 5000-5200 53W: 6900-7300 64W: 8300-8800 88W: 11400-11800
CRI80 DALI - - 25W: 3250-3450 35W: 4550-4800 32W: 4200-4400 45W: 5900-6200 50W: 6400-6800 70W: 9000-9500
22W: 2850-3050 30W: 3950-4050 28W: 3650-3850 38W: 5000-5300 44W: 5600-6000 60W: 7800-8200
16W: 2050-2200 21W: 2750-2950 19W: 2450-2600 26W: 3400-3600 32W: 4000-4300 42W: 5400-6000
16W: 2050-2250 22W: 2800-3000 32W: 4250-4500 44W: 5800-6100 38W: 5050-5300 53W: 7000-7400 64W: 8400-8900 88W: 11400-12000
Non-DIM 13W: 1650-1800 18W: 2300-2500 25W: 3300-3500 35W: 4650-4850 32W: 4250-4450 45W: 5950-6250 50W: 6500-7900 70W: 9200-9600
2-CCT 12W: 1500-1650 16W: 2050-2200 22W: 2900-3100 30W: 4000-4200 28W: 3700-3900 38W: 5050-5300 44W: 5700-6100 60W: 7900-8300
9W: 1150-1250 11W: 1400-1500 16W: 2100-2250 21W: 2800-2950 19W: 2500-2650 26W: 3450-3650 32W: 4100-4400 42W: 5500-5800
32W: 4200-4450 44W: 5750-6000 38W: 5000-5200 53W: 6900-7300 64W: 8300-8800 88W: 11400-11800
DALI - - 25W: 3250-3450 35W: 4550-4800 32W: 4200-4400 45W: 5900-6200 50W: 6400-6800 70W: 9000-9500
22W: 2850-3050 30W: 3950-4050 28W: 3650-3850 38W: 5000-5300 44W: 5600-6000 60W: 7800-8200
16W: 2050-2200 21W: 2750-2950 19W: 2450-2600 26W: 3400-3600 32W: 4000-4300 42W: 5400-6000
CRI 80 80
Beam Angle(°) Direct 60° Indirect 110° Direct 60° Indirect 110° Direct 60° Indirect 110° Direct 60° Indirect 110°
Direct 60° Direct 60° Direct 60° Direct 60°
UGR <16 <16
LED Driver Driver built-in, Flicker Free Driver built-in, Flicker Free
Dimming Option - DALl-2+pushDlM / 1-10V DALl-2+pushDlM / 1-10V
Sensor - Microwave sensor / PIR sensor Microwave sensor / PIR sensor
Emergency Kits - YES YES -
Electrical Class Class I Class I
Ingress Protection(IP Rating) IP20 IP20
Impact Resistance(IK Rating) IK03 IK03
Product Finishing White RAL9016, Black RAL9005 White RAL9016, Black RAL9005
Optics Material Reflector/PC, Lens/PC Reflector/PC, Lens/PC
Housing Material Aluminium Aluminium
Lifetime(hr) 50,000h 50,000h
Glow wire test(°C) 750°C 750°C
Operating Temp(°C) -20°C-45°C -20°C-45°C
Storage Temp(°C) -20°C~65°C -20°C~65°C
Installation Ceiling Surface Mount / Pendant / Recessed / Track Ceiling Surface Mount / Pendant / Recessed / Track
