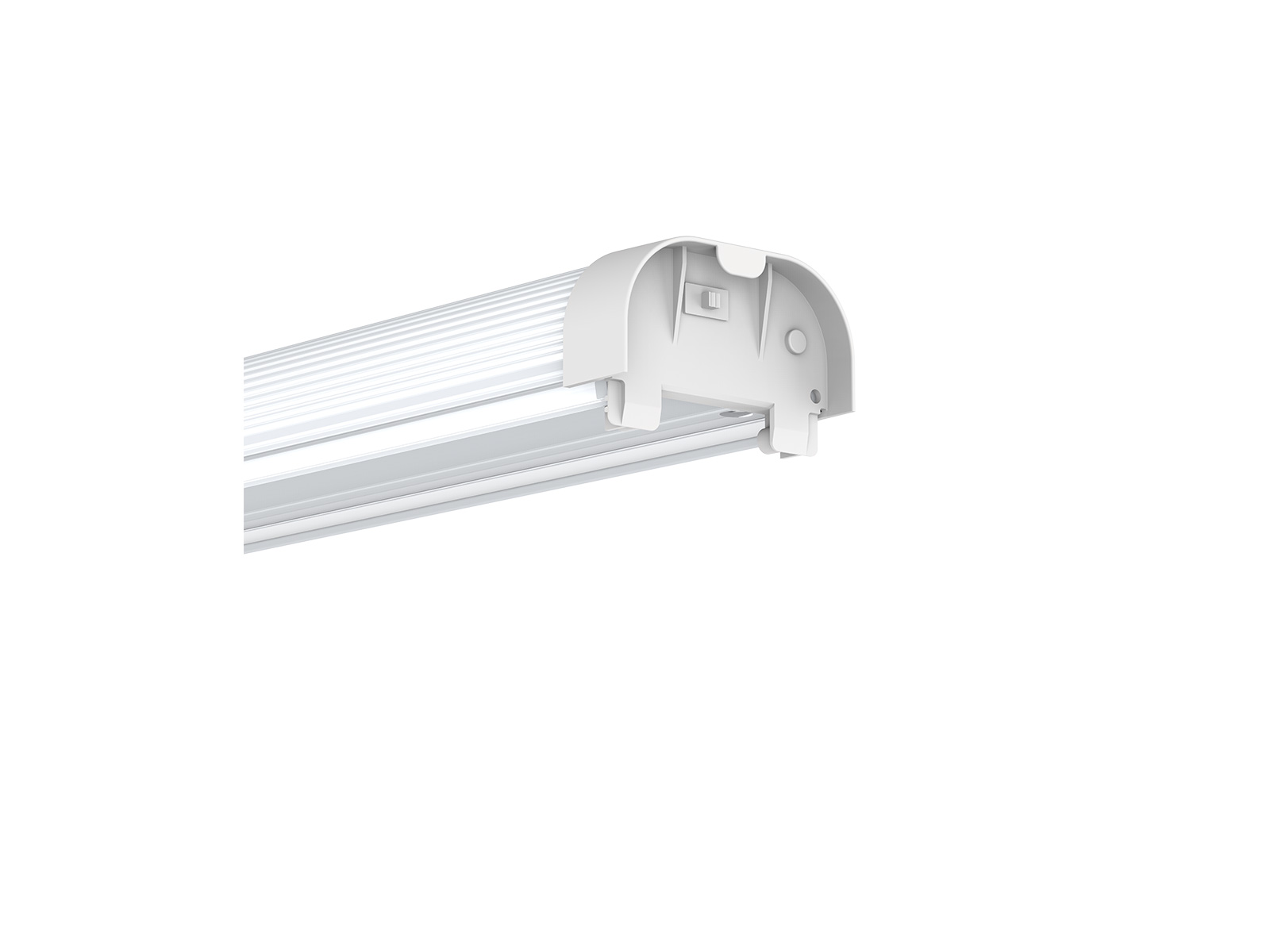

This linear fixture is a splicing design. Adopt high lumen SMD LED light source and high light transmittance PC cover. Easy installation and maintenance with high cost performance, 2 feet and 4 feet size optional.The design of batten realizes simple disassembly with 4 fast buttons.
LED batten light features:
★ Seamless splicing design makes a wider application| Model No. | DB96-600-20W | DB96-1200-20W | DB96-1200-32W | DB96-1200-40W | |||||||||
| Dimension(mm) | 607（23-8/9＂）*70(2-3/4＂）*66(2-3/5＂） | 1215（47-5/6＂）*70(2-3/4＂）*66(2-3/5＂） | |||||||||||
| Cutout (mm) | - | - | - | - | |||||||||
| Watt(W) | 20W | 20W | 32W | 40W | |||||||||
| Rated Input Voltage(V) | 120-277V | ||||||||||||
| Input Voltage(V) | 120V | ||||||||||||
| LED Module Input | - | ||||||||||||
| Light Source | SMD2835 | ||||||||||||
| SDCM | ＜6 | ||||||||||||
| CCT(K) | 1-CCT: 3000K/3500K/4000K/5000K || 3-CCT: 3000K + 4000K + 5000K | ||||||||||||
| CCT Selection DIP Switch 变色温 | YES | ||||||||||||
| Luminous Flux (lm) ±5% | Non-DIM | 1-CCT | |||||||||||
| DIM | 2200-2400/2500-2700 | 2200-2400/2500-2700 | 3520-3840/4000-4320 | 4400-4800/5000-5400 | |||||||||
| Non-DIM | 3-CCT | ||||||||||||
| DIM | 2200-2400/2500-2700 | 2200-2400/2500-2700 | 3520-3840/4000-4320 | 4400-4800/5000-5400 | |||||||||
| CRI | Ra＞80 | ||||||||||||
| Beam Angle (°) | 120 | ||||||||||||
| UGR | - | ||||||||||||
| LED Driver | Driver built-in | ||||||||||||
| Dimming Option | 0-10V | ||||||||||||
| Sensor | - | ||||||||||||
| Emergency Kits | NO | - | |||||||||||
| Electrical Class | With Ground | ||||||||||||
| Ingress Protection(IP Rating) | Damp location | ||||||||||||
| Impact Resistance(IK Rating) | - | ||||||||||||
| Product Finishing | White RAL 9016 | ||||||||||||
| Optics Material | PC | ||||||||||||
| Housing Material | PC/SPCC | ||||||||||||
| Lifetime (hr) | 50000 | ||||||||||||
| Glow wire test (°C) | 850 | ||||||||||||
| Operating Temp.(°C) | -20℃~45℃ | ||||||||||||
| Storage Temp.(°C) | -20℃~65℃ | ||||||||||||
| Installation | Suspended/wall mounted/surface mounted | ||||||||||||
