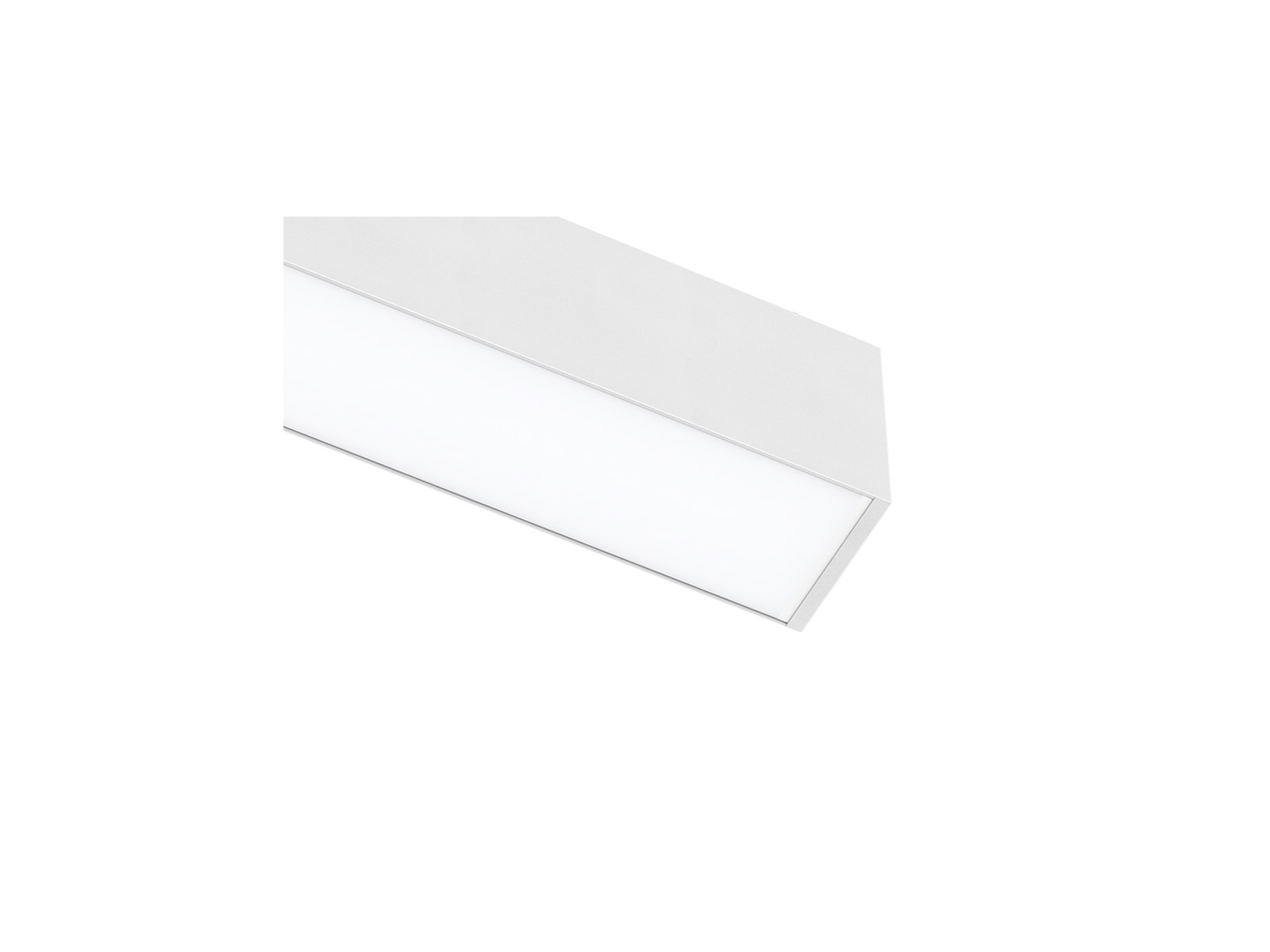

This linear fixture is a seamless splicing design, two lamp cover options: Standard cover and DIY soft cover. Adopt high lumen SMD light source, flicker free and high efficiency driver make a better lumen. Aluminum housing provides an excellent thermal management. Lighting design: Down lighting, up&down lighting, adjustable CCT, 0-10V dim. Mounting design: Suspended/surface mounting options.
LED linear light features:
★ Seamless splicing design, standard cover only for one fixture. DIY soft cover can be cut by users after splicing several fixtures| Model No. | DB77-600-18W | DB77-600-25W | DB77-1200-36W | DB77-1200-50W | ||||||
| Dimension(mm) | 602*57*76 | 1212*57*76 | ||||||||
| Cutout (mm) | — | — | ||||||||
| Watt(W) | 18 | 25 | 36 | 50 | ||||||
| Rated Input Voltage(V) | 120 | |||||||||
| Input Voltage(V) | 120-277 | |||||||||
| LED Module Input | — | |||||||||
| Light Source | SMD | |||||||||
| SDCM | <6 (@3000K 4000K 5000K) | |||||||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K || 3-CCT: 3000K + 4000K + 5000K | |||||||||
| CCT Selection DIP Switch 变色温 | YES | |||||||||
| Luminous Flux (lm) ±5% | Non-DIM | 1-CCT | ||||||||
| DIM | 1650-1950 | 2200-2650 | 3300-3800 | 4650-5200 | ||||||
| Non-DIM | 3-CCT | |||||||||
| DIM | 1650-2000 | 2200-2700 | 3300-3850 | 4650-5250 | ||||||
| CRI | 80 | |||||||||
| Beam Angle (°) | 110° | UP 110°/Down 110° | 110° | UP 110°/Down 110° | ||||||
| UGR | — | |||||||||
| LED Driver | Built-in | |||||||||
| Dimming Option | 0-10V | |||||||||
| Sensor | — | |||||||||
| Emergency Kits | — | |||||||||
| Electrical Class | With Ground | |||||||||
| Ingress Protection(IP Rating) | Damp location | |||||||||
| Impact Resistance(IK Rating) | — | |||||||||
| Product Finishing | White RAL 9016 | |||||||||
| Optics Material | PC | |||||||||
| Housing Material | Aluminium | |||||||||
| Lifetime (hr) | 50,000h | |||||||||
| Glow wire test (°C) | 750℃ (Cover) 850℃ (Lamp Base) | |||||||||
| Operating Temp.(°C) | -20℃ ~45℃ | |||||||||
| Storage Temp.(°C) | -20℃ ~65℃ | |||||||||
| Installation | Surface mount/ Pendant/ Recessed | |||||||||
