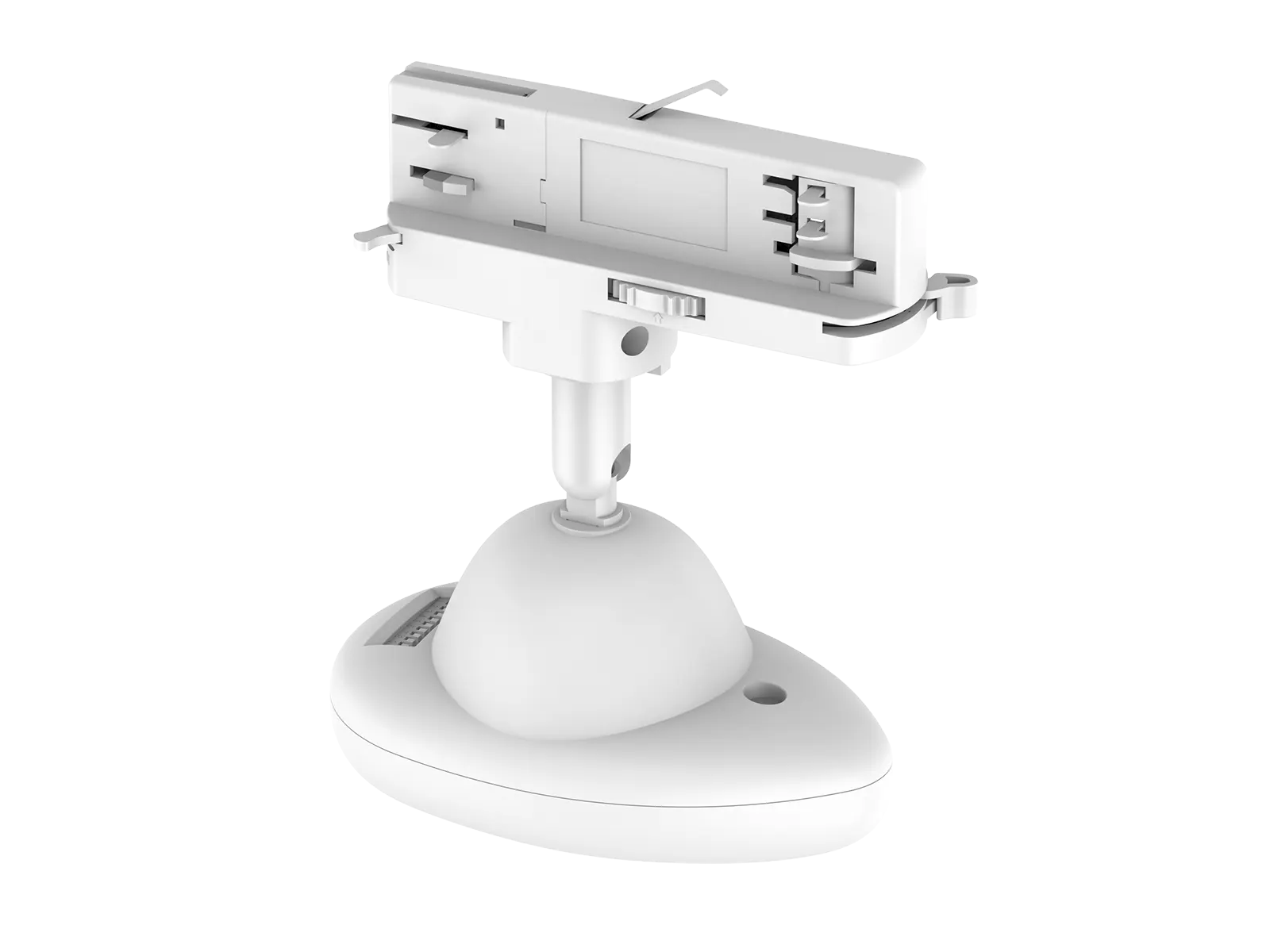

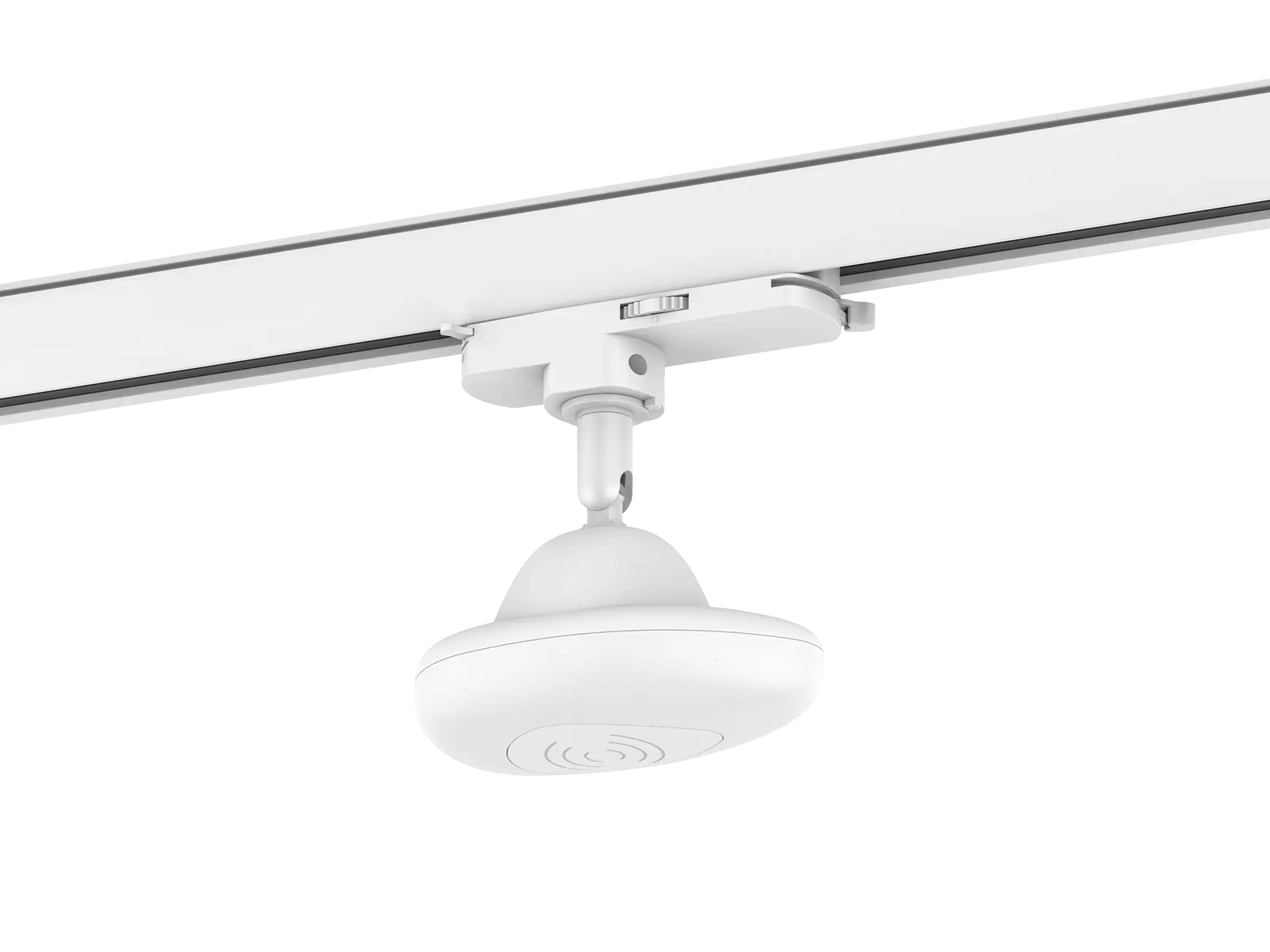

MSD001/MSD001-1 is an intelligent 5.8G master-slave microwave sensor with integrated DALI function which can be wired network through DALI bus, besides, it integrates daylight sensor and daylight harvesting functions, can set parameters by both DIP switch and remote control. This induction module can be used in various DALI intelligent induction lamps such as linear light, track light, batten light etc. It is widely used in shopping mall, supermarket, office, warehouse, parking lot, corridor, courtyard, balcony etc.
Advantages:
| Operating voltage | AC120-277V |
|---|---|
| Power consumption | ≤1.5W |
| Microwave frequency | 5.8GHz±75MHz, ISM wave band |
| Transmission power | 1mW Max |
| Output | DALI1.0 |
| Current of Load | 200mAmax for MSD001 |
| Voltage of Load | 16V for MSD001 |
| Detection angle | 140° |
| Detection Area | 50%/100% (Set by DIP switches) 25%/50%/75%/100% (Set by remote control) |
| Detecting radius(detecting area: 100%) | Ceiling mounting 3m height: 0.3m/S: 4-8m, 1m/S: 2.5-3.5m Wall mounting 2m height: 0.3m/S: 10-15m, 1m/S: 5-10m |
| Hold time | 5S/1min/3min/20min (Set by DIP switches) 5S/30S/1min/3min/5min/10min/20min/30min (Set by remote control) |
| Daylight sensor | 5Lux/15Lux/50Lux/Disable(Set by DIP switches) 5Lux/15Lux/30Lux/50Lux/100Lux/150Lux/Disable (Set by remote control) |
| Daylight harvesting | 200Lux/300Lux/500Lux/Disable |
| Stand-by DIM Level | 20%/50% (Set by DIP switches) 10%/20%/30%/50% (Set by remote control) |
| Stand-by Period | 0S/1min/10min/+∞ (Set by DIP switches) 0S/10S/1min/3min/5min/10min/30min/+∞ (Set by remote control) |
| Dimming Range | 50%,55%,60%……100% (Set by remote control) |
| Microwave ON/OFF function | Set by remote control |
| Installation Height | Ceiling mounted height 2.5-6m,recommended installation height 3m. Wall mounted height 1-3m.recommended installation height 2m. |
| Minimum mounting distance | recommended install distance should be more than 3m |
| DALI port group code | 0-F (“0” is broadcast mode, controlling all lights) |
| Operating temperature(°C) | -20°C~60°C |
