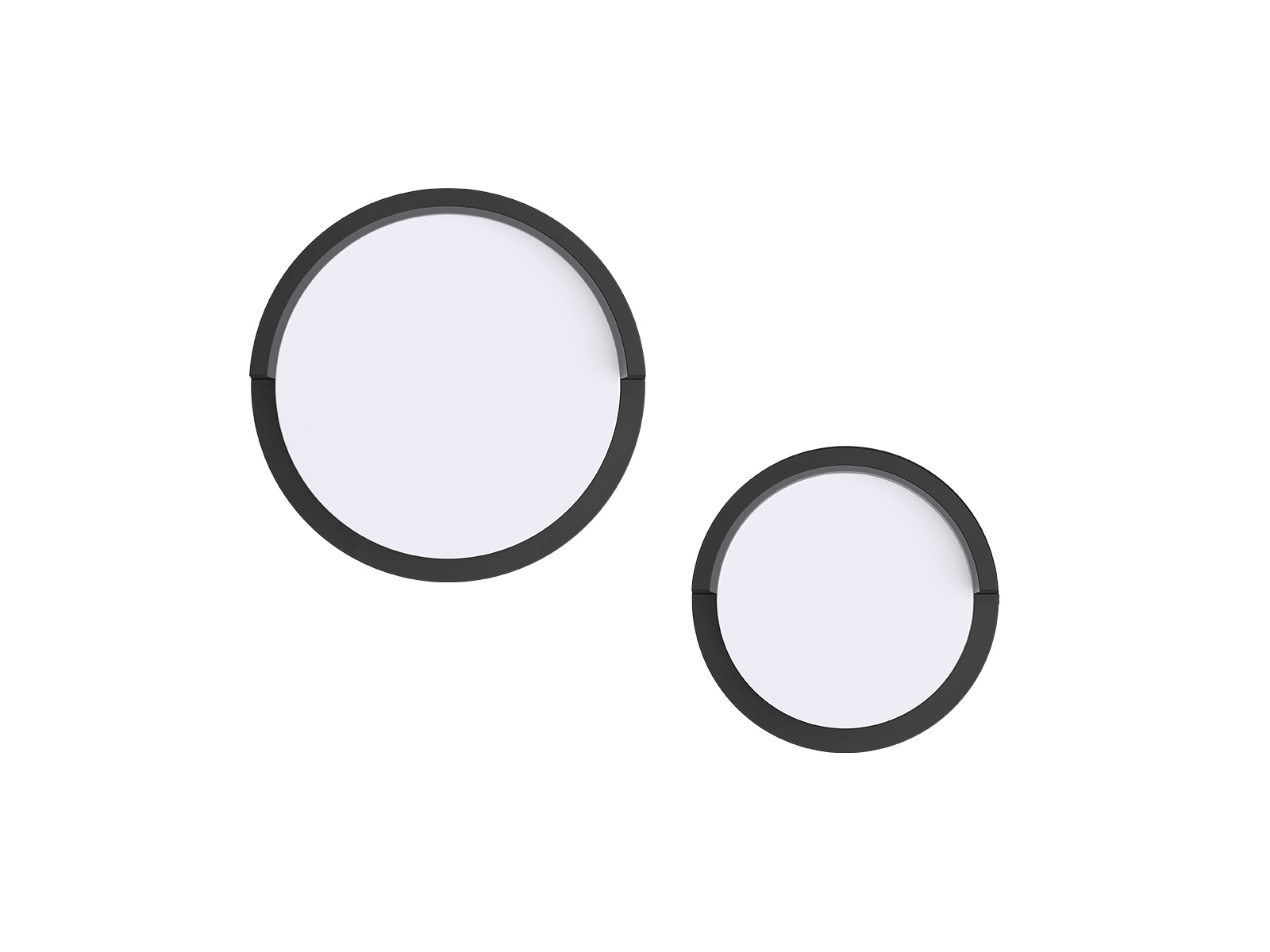

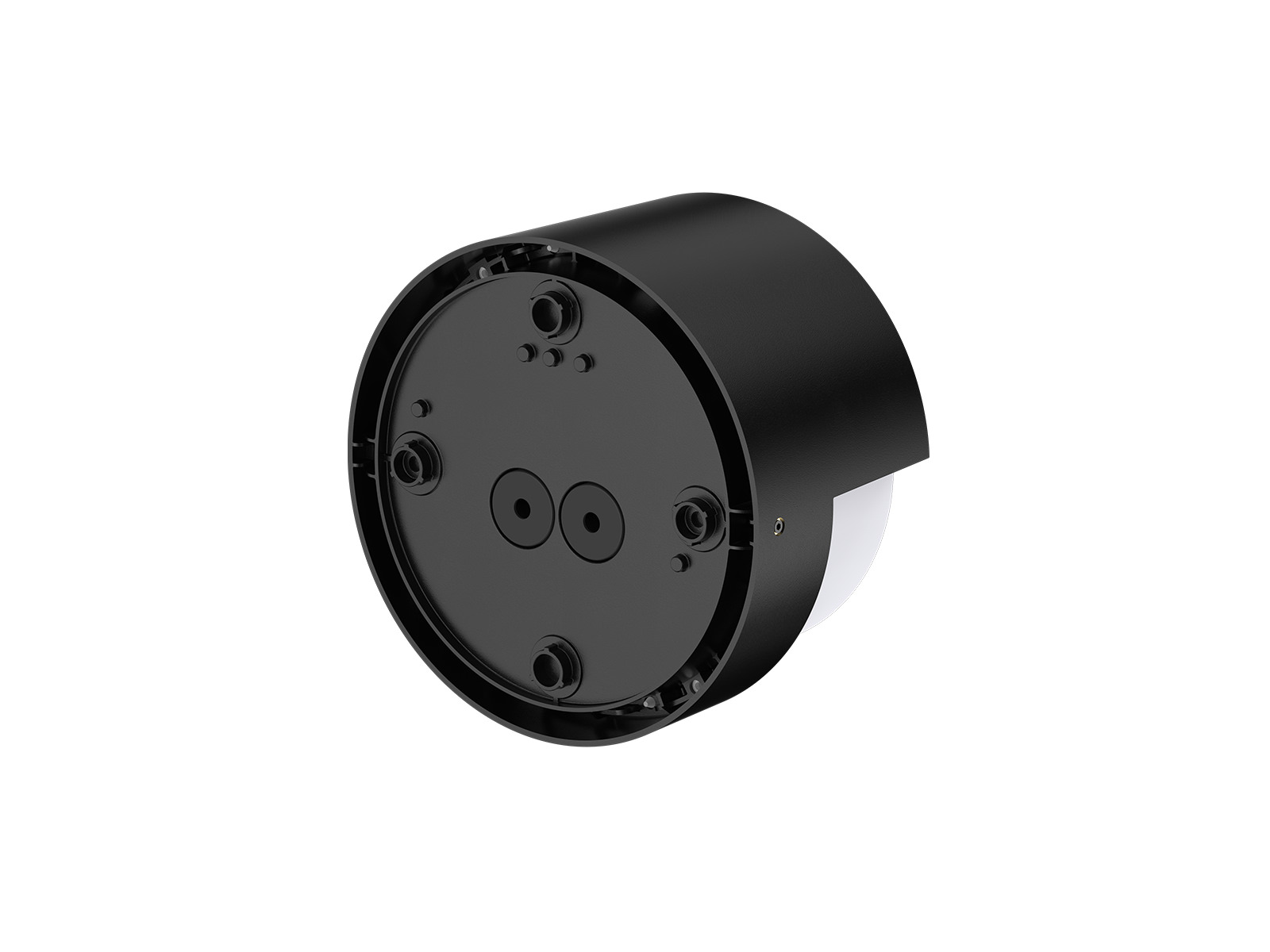

This wall lamp is made of PC 94-V0 anti-UV plastic and the diffuser is 94-V2 corrosion-resistant. It has a nice appearance without any protruding screws, the quick installation offers a convenient maintenance. The semi- cylindrical shielding light design produces a sense of lighting layering, highlighting the beautiful appearance of the lamp. Its high protection level (IP65) also expands the application range which is suitable for a variety of indoor and outdoor lighting applications.
Features
Application Areas:It is designed for both indoor and outdoor lighting applications. It is also widely used for public areas, such as garden, corridors, yard etc.
| Code No. | WL83-5W | WL83-8W | WL83-8W-D | |
|---|---|---|---|---|
| Dimension(mm) | Ø125*95mm | Ø160*95mm | ||
| Watt(W) | 5W | 8W | ||
| Rated Input Voltage(V) | AC220-240V | |||
| Input Voltage(V) | AC230V | |||

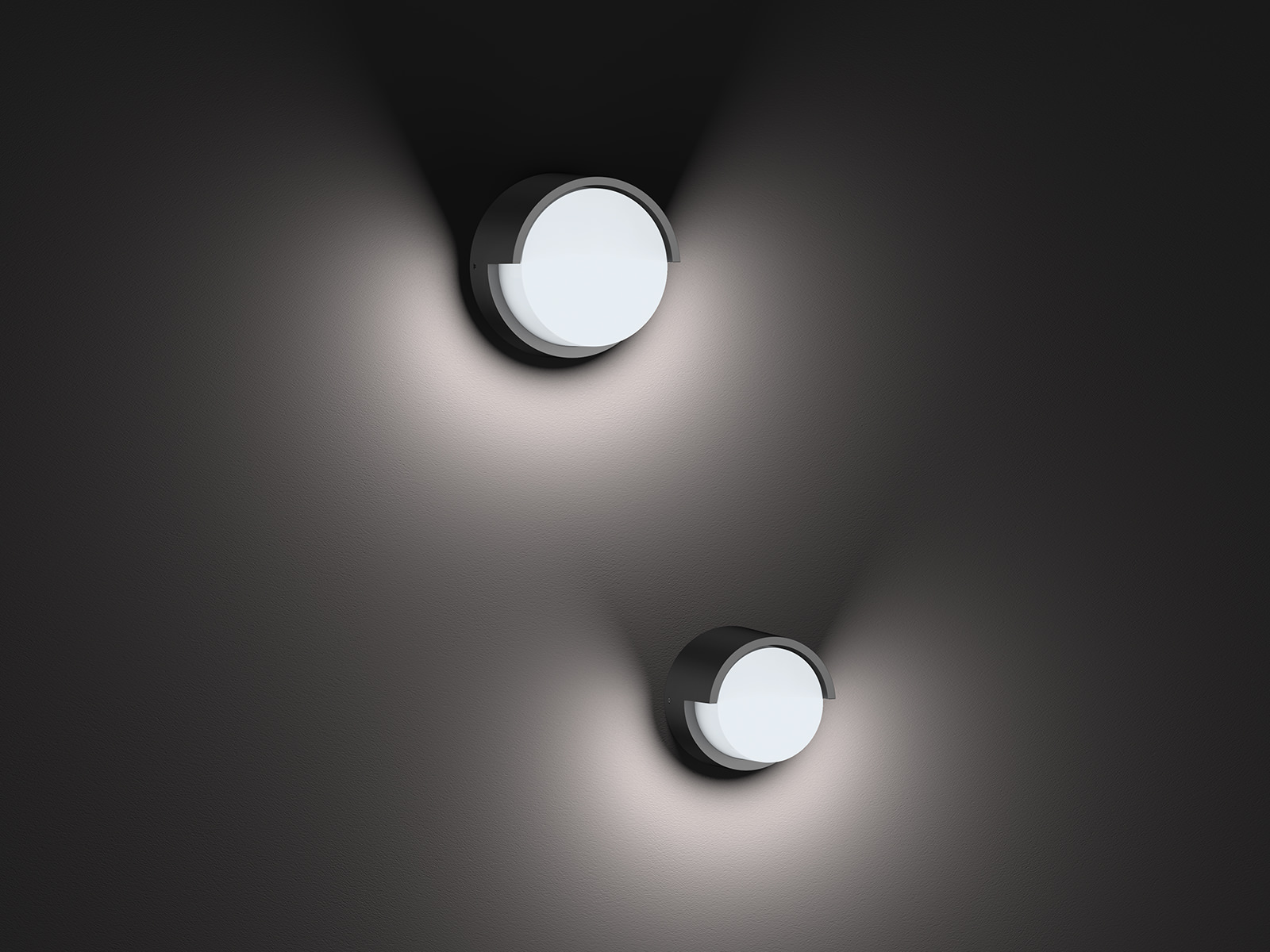

| Light Source | SMD2835 | |||
| SDCM | <6 | |||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K，3-CCT: 3000K+4000K+5700K | |||
| CCT Selection DIP Switch | YES | |||
| Non-DIM 1-CCT Luminous Flux (lm) ±5% | 330-375 | 590-650 | - | |
| DIM 1-CCT Luminous Flux (lm) ±5% | - | - | 600-670 | |
| Non-DIM 3-CCT Luminous Flux (lm) ±5% | 340-390 | 570-610 | - | |
| DIM 3-CCT Luminous Flux (lm) ±5% | - | - | 580-615 | |
| CRI | ≥80 | |||
| Beam Angle (°) | 120° | |||
| LED Driver | Built-in | |||
| Dimming Option | NO | Yes | ||
| Electrical Class | Class II | |||
| Ingress Protection (IP | IP65 | |||
| Rating) | ||||
| Impact Resistance (IK | IK06 | |||
| Rating) | ||||
| Product Finishing(Base) | White RAL 9016/Black RAL 9005 | |||
| Materials of Optics | PC | |||
| Materials of Housing | PC | |||
| Lifetime (hr) | 50,000h | |||
| Glow wire test (℃ ) | 750℃ | |||
| Operating Temp. (℃ ) | -20℃ ~45℃ | |||
| Storage Temp. (℃ ) | -20℃ ~65℃ | |||
| Installation | Wall mount | |||
