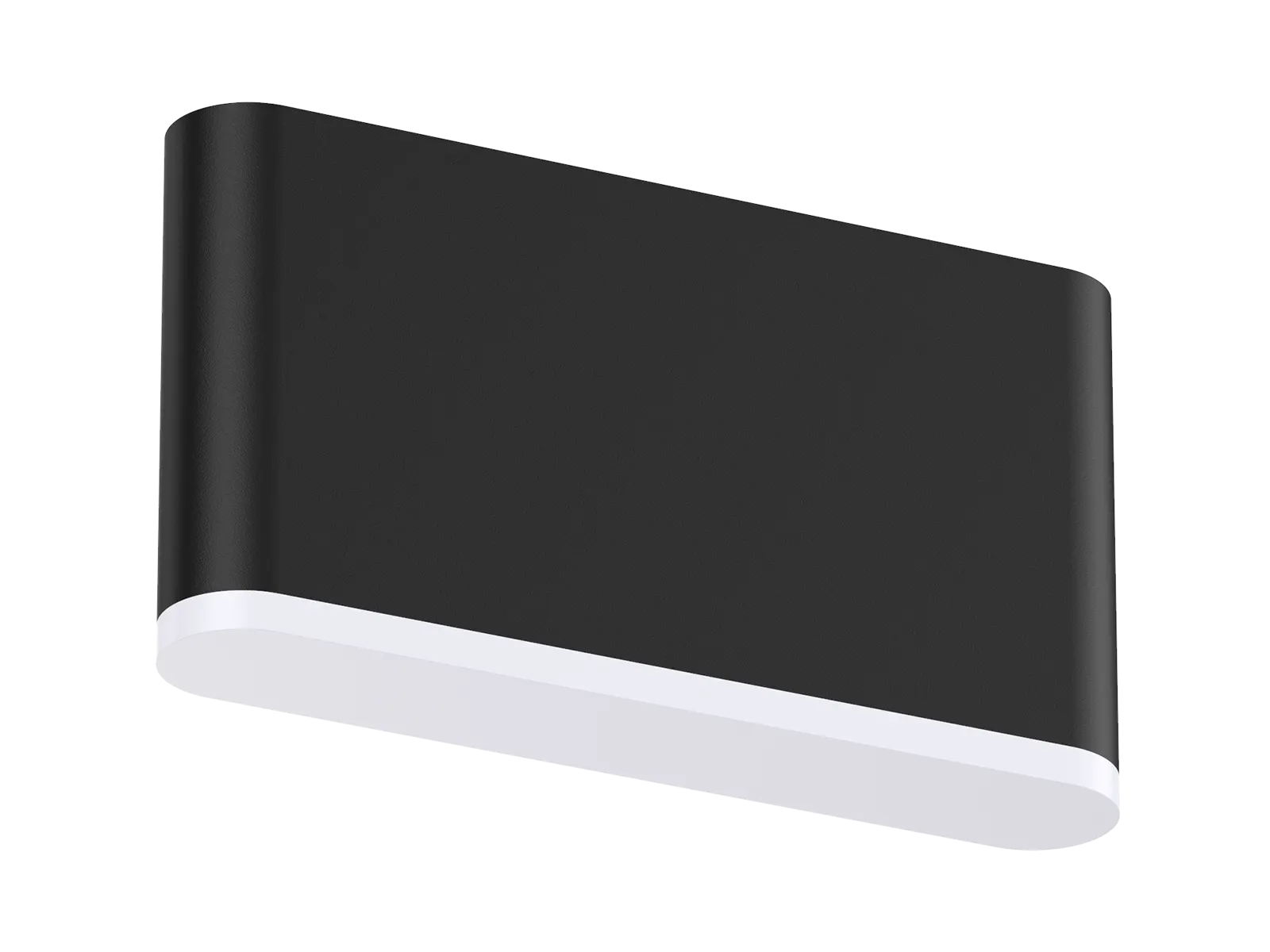

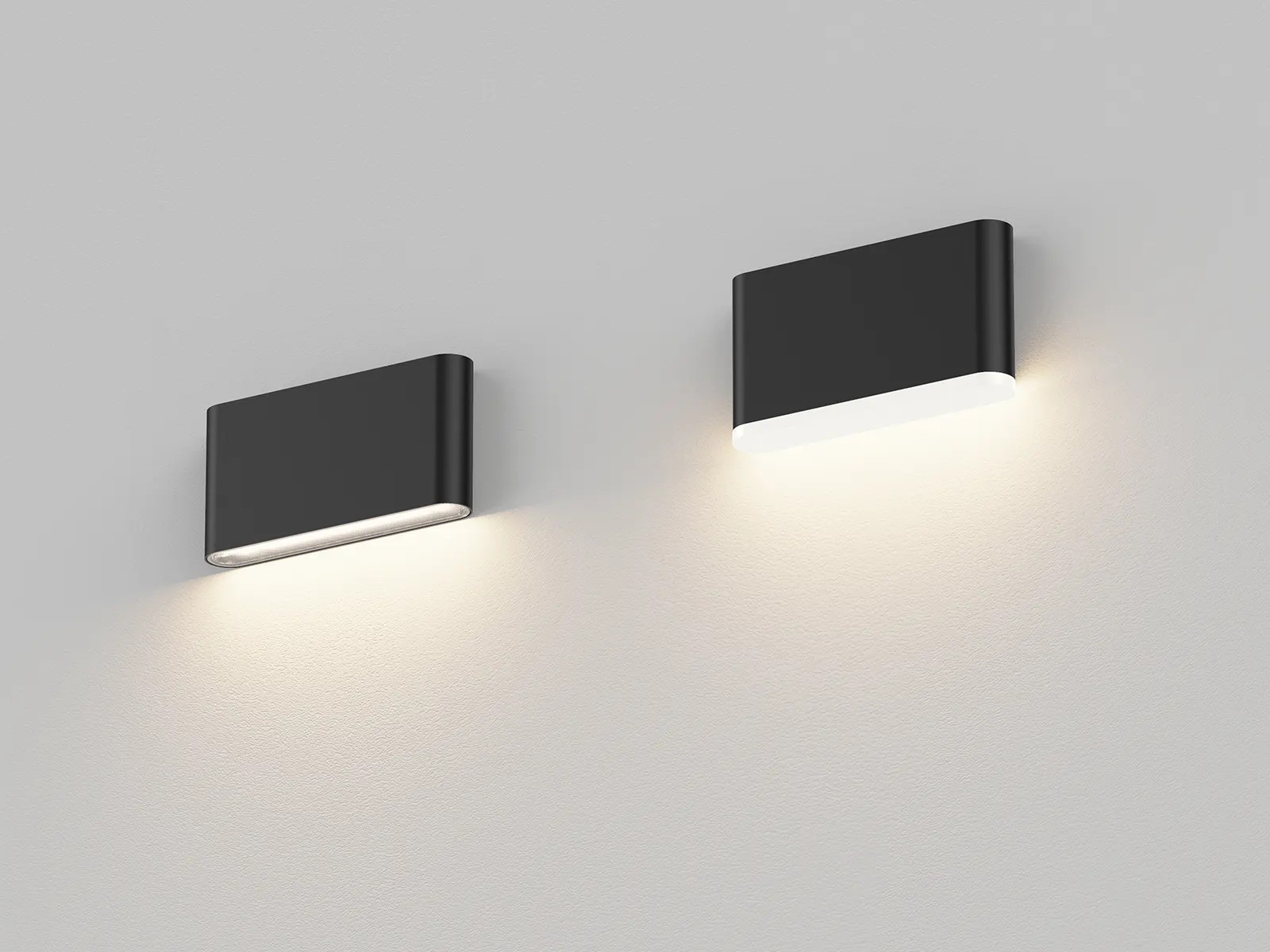

WL75 is an ultra-thin design which looks like a power bank. It adopted SMD light source in both ends , wall- washing design for optic effect, so it can do higher and further lighting. For material part, it adopted ADC12 Aluminium which offers a great heat dissipation. Besides, it is an up and down lighting design which can achieve a better atmosphere. IP65 waterproof will suit to a wider application area.
Applications: It is designed for indoor and outdoor lighting applications hotel, park, and corridors etc.
| Code No. | WL75-2X3W | WL75-6W | WL75-2X5W | WL75-10W | WL75B-2X3W | WL75B-6W | WL75B-2X5W | WL75B-10W | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | 135*90*30.5 | 175*90*30.5 | 135*104*30.5 | 135*97*30.5 | 175*104*30.5 | 175*97*30.5 | ||||
| Watt(W) | 2X3W | 1X6W | 2X5W | 1X10W | 2X3W | 1X6W | 2X5W | 1X10W | ||
| Rated Input Voltage(V) | AC220-240V | |||||||||
| Input Voltage(V) | AC230V | |||||||||
| Light Source | SMD2835 | |||||||||
| SDCM | <6 | |||||||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K | |||||||||
| CCT Selection DIP Switch | YES | |||||||||
| Luminous Flux (lm) ±5% (White color) | Non-DIM | 1-CCT | 530-670 | 650-690 | 940-1050 | 890-970 | 420-500 | 340-360 | 730-820 | 540-610 |
| DIM | - | |||||||||
| Non-DIM | 3-CCT | 540-680 | 660-700 | 950-1060 | 900-980 | 440-530 | 350-370 | 750-840 | 550-620 | |
| DIM | - | |||||||||
| Remark: If with black color, the lumen will decrease around 10% | ||||||||||
| CRI | 80 | |||||||||
| Beam Angle (°) | 29° x77° x8° | 120° | ||||||||
| LED Driver | Built-in | |||||||||
| Dimming Option | NO | |||||||||
| Sensor | NO | |||||||||
| Emergency Kits | NO | |||||||||
| Electrical Class | Class I | |||||||||
| Ingress Protection (IP Rating) | IP65 | |||||||||
| Impact Resistance (IK Rating) | IK08 | |||||||||
| Product Finishing(Base) | White RAL 9016/Black RAL 9005 | |||||||||
| Materials of Optics | PC | |||||||||
| Materials of Housing | Aluminum ADC12 | |||||||||
| Lifetime (hr) | 50000hr | |||||||||
| Glow wire test (℃ ) | 750℃ | |||||||||
| Operating Temp. (℃ ) | -20℃ ~45℃ | |||||||||
| Storage Temp. (℃ ) | -20℃ ~65℃ | |||||||||

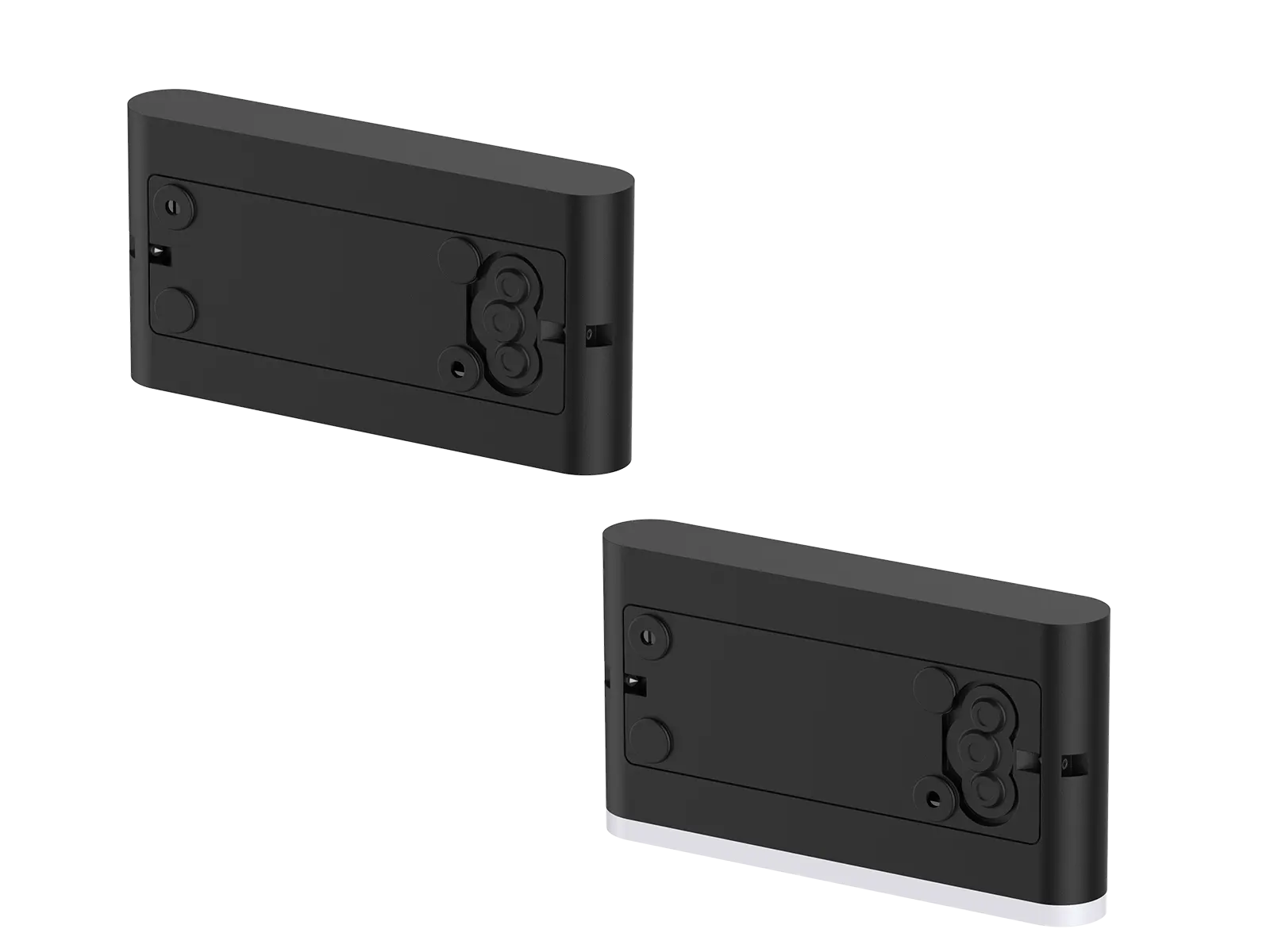

| Installation | Wall mount | |||||||||
