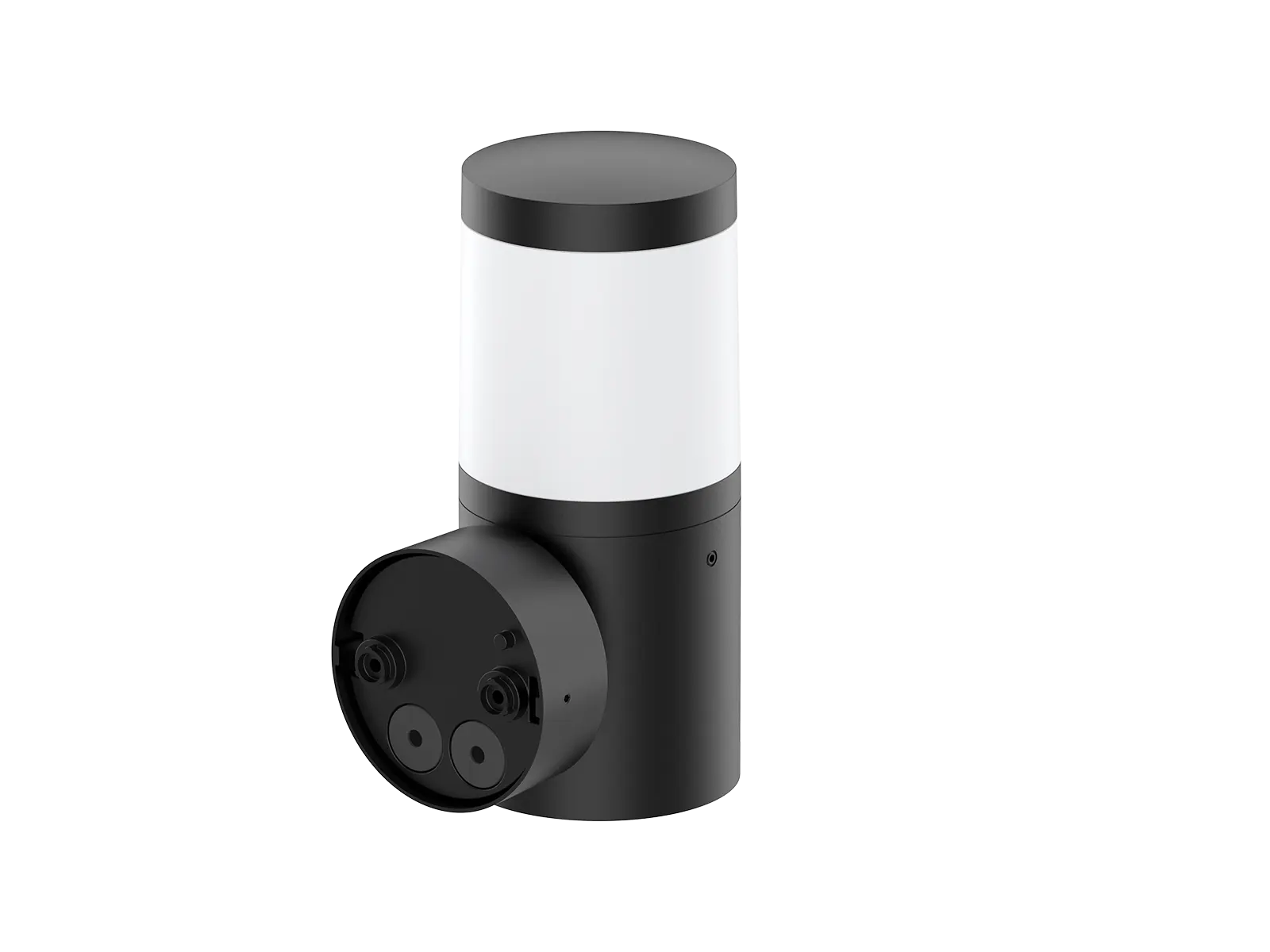

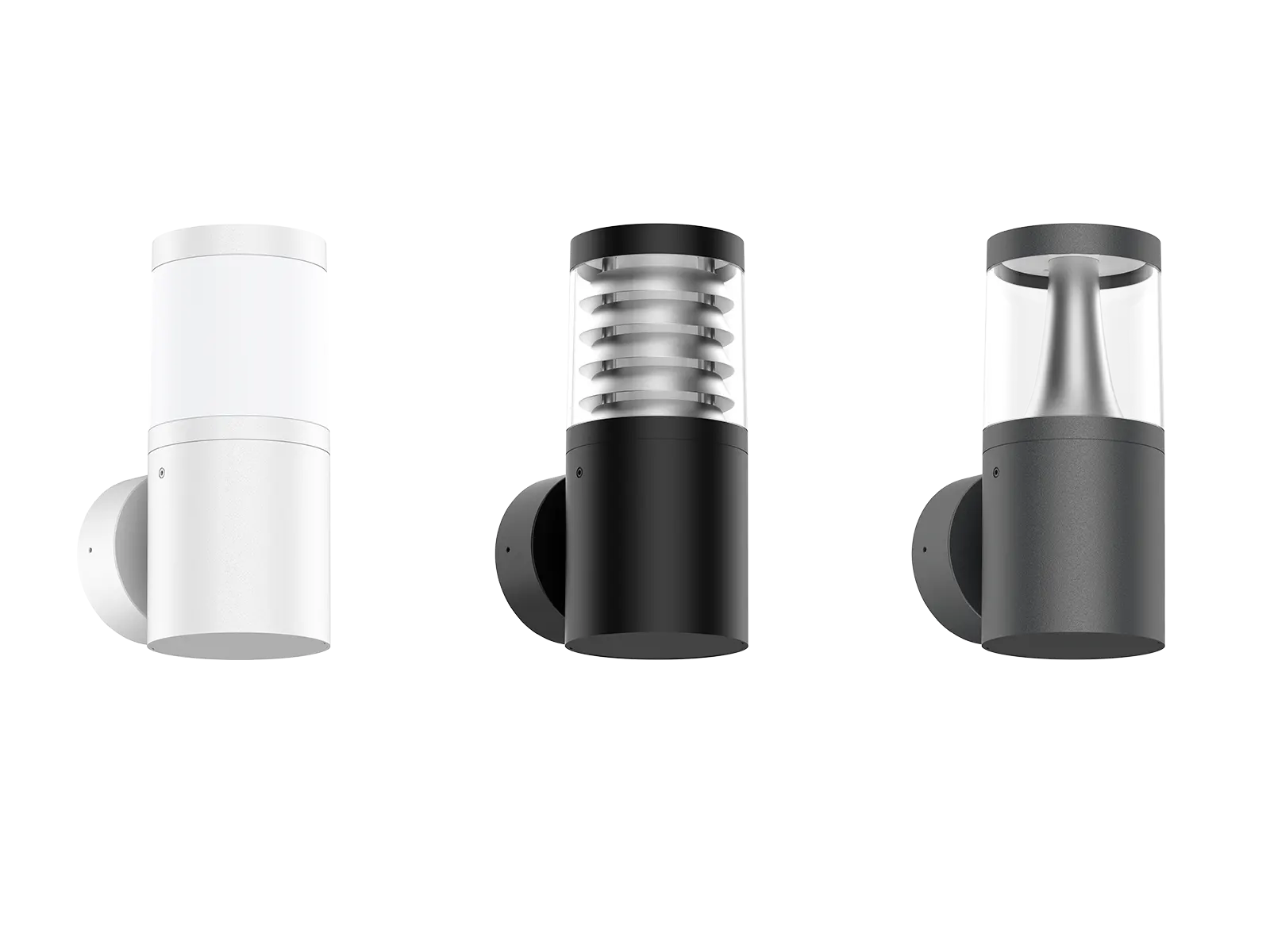

WL214 is IP65 and IK08 LED wall lamp with different optics optional: Type A with PC diffuser, Type B with PC diffuser and AL1070 grille louver,Type C with PC diffuser and AL1070 reflector, Meanwhile, Type A and Type B with light source and without light source: E27 base optional. The metal housing features an outdoor powder coating finish for enhanced corrosion resistance. this luminaire is suitable for outdoor using in both private and public areas where there is a risk of vandalism.The luminaire features a columnar light-emitting surface design with a modular light source, allowing multiple lighting module to be freely interchanged,different light source modules can be used in the luminaire to achieve distinct lighting effects,DIP-switch selectable wattage and DIP-switch color temperature offers greater flexibility in selection.

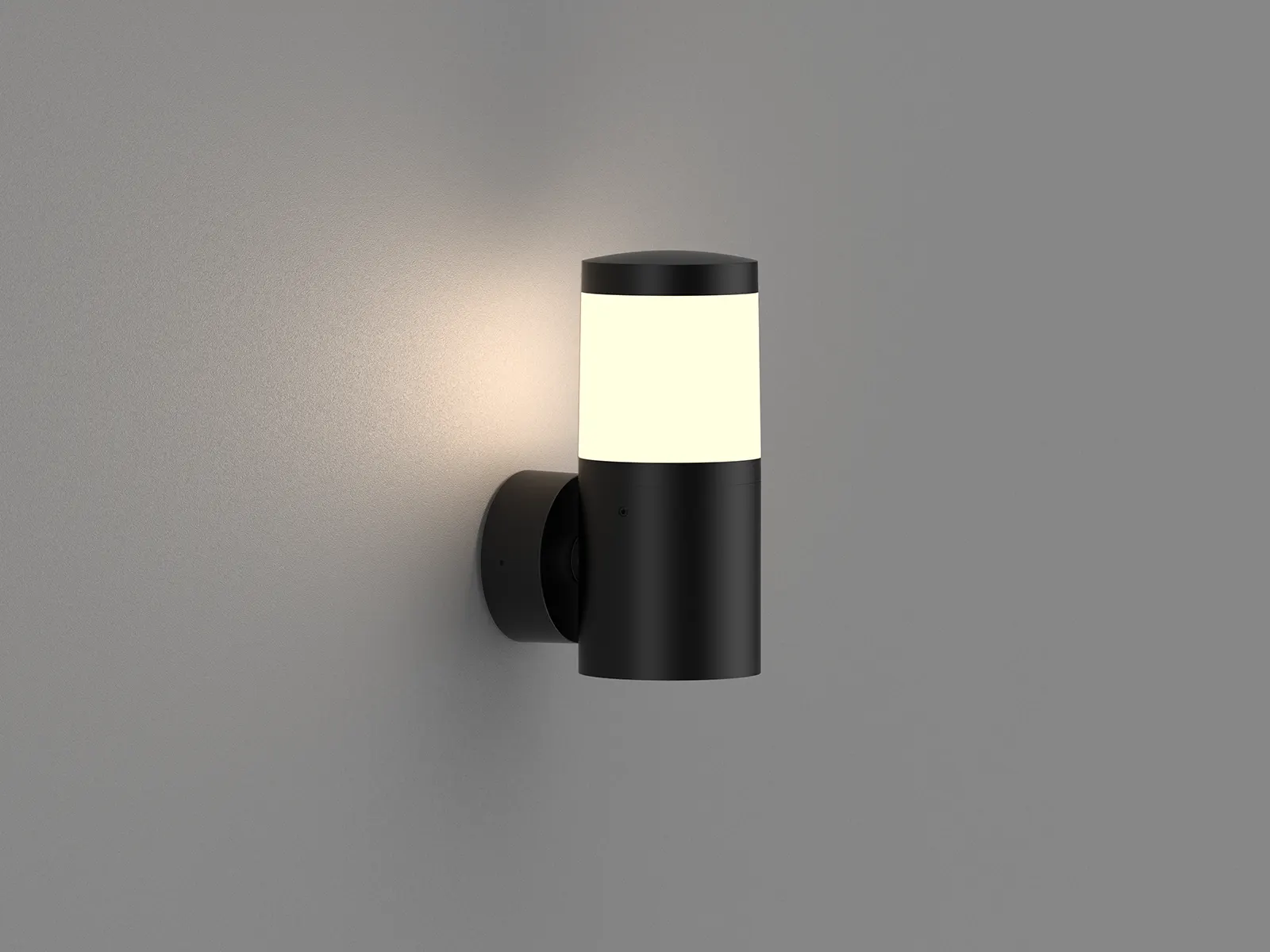

Applications: It's widely used in outdoor or semi-outdoor locations such as perimeter walls, exterior walls, corridors, and similar spaces.
| Code | WL214A-12W | WL214B-12W | WL214C-12W | ||
|---|---|---|---|---|---|
| Dimension(mm) | Ø100*142*230mm | ||||
| Cutout(mm) | - | ||||
| Watt(W) | 12W Max.(10W/8W optional) | ||||
| Rated Input Voltage | AC220-240V | ||||
| Input Voltage | AC198-264V | ||||
| LED Module Input | - | ||||
| Light Source | SMD | ||||
| SDCM | <6 | ||||
| CCT(K) | 1-CCT: 3000K/4000K || 3-CCT: 3000K+3500K+4000K | ||||
| CCT Selection | By DIP Switch | ||||
| 1-CCT | Non-DIM | 12W: 600-650 | 12W: 400-450 | 12W: 650-700 | |
| Luminous Flux (lm) ±5% | 10W: 500-550 | 10W: 300-350 | 10W: 550-600 | ||
| CRI80 | 8W: 400-450 | 8W: 250-300 | 8W: 450-500 | ||
| 3-CCT | Non-DIM | 12W: 600-650 | 12W: 400-450 | 12W: 650-700 | |
| 10W: 500-550 | 10W: 300-350 | 10W: 550-600 | |||
| 8W: 400-450 | 8W: 250-300 | 8W: 450-500 | |||
| CRI | CRI 80 | ||||
| Beam Angle(°) | 240° | 190° | 130° | ||
| UGR | - | ||||
| LED Driver | Built-in, Flicker Free | ||||
| Dimming Option | NO | ||||
| Sensor | NO | ||||
| Emergency Kits | NO | ||||
| Electrical Class | Class I | ||||
| Ingress Protection(IP Rating) | IP65 | ||||
| Impact Resistance(IK Rating) | IK08 | ||||
| Product Finishing | Black RAL9005, White RAL9016, Grey RAL7015 | ||||
| Optics Material | PC | ||||
| Housing Material | Die-Casting Aluminium | ||||
| L80B50 | 102,000h | ||||
| Lifetime(hr) | 50,000h | ||||
| Glow wire test(°C) | 750°C | ||||
| Operating Temp.(°C) | -20°C~45°C | ||||
| Storage Temp.(°C) | -20°C~65°C | ||||
| Installation | Wall mount | ||||
