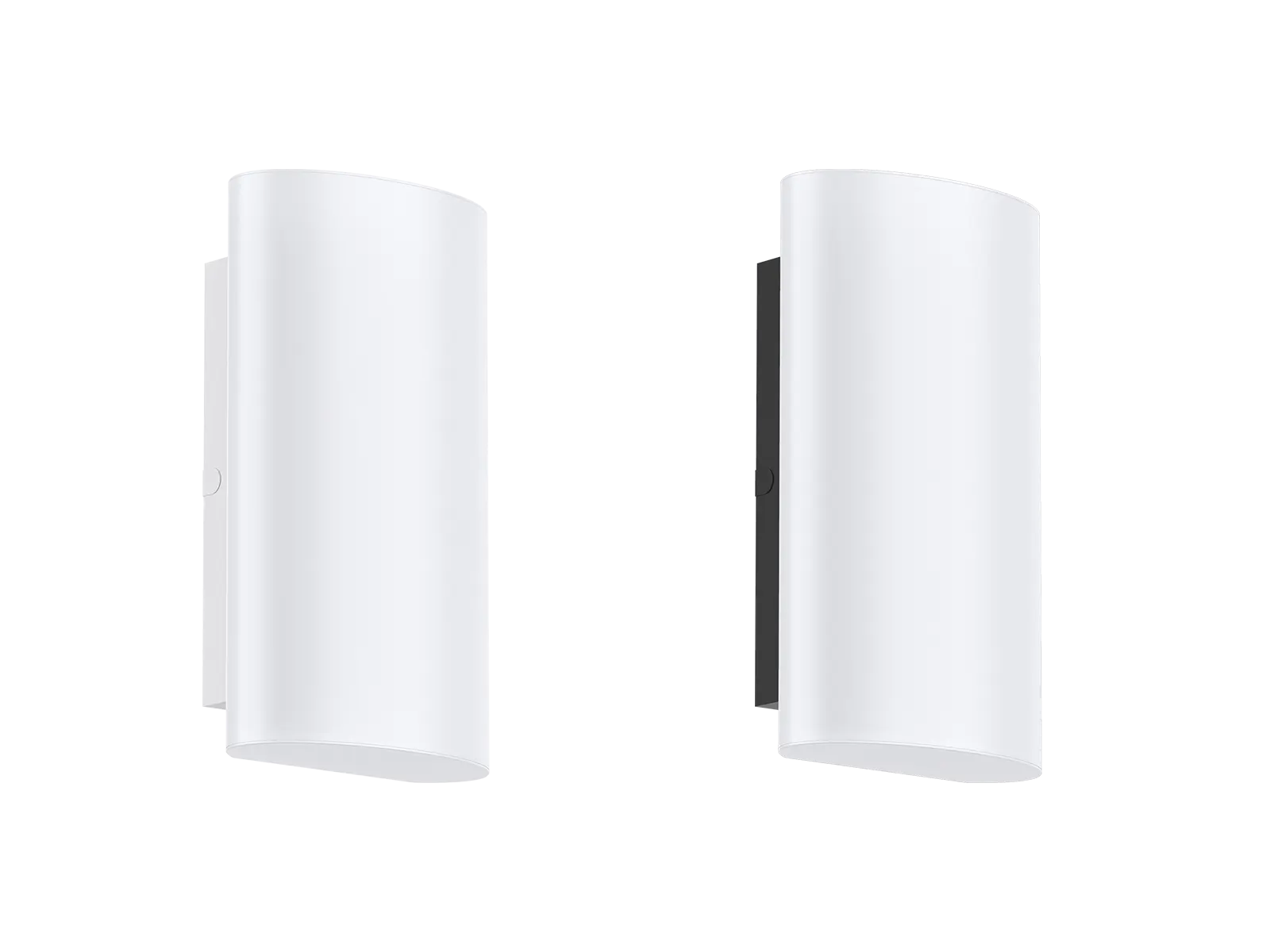

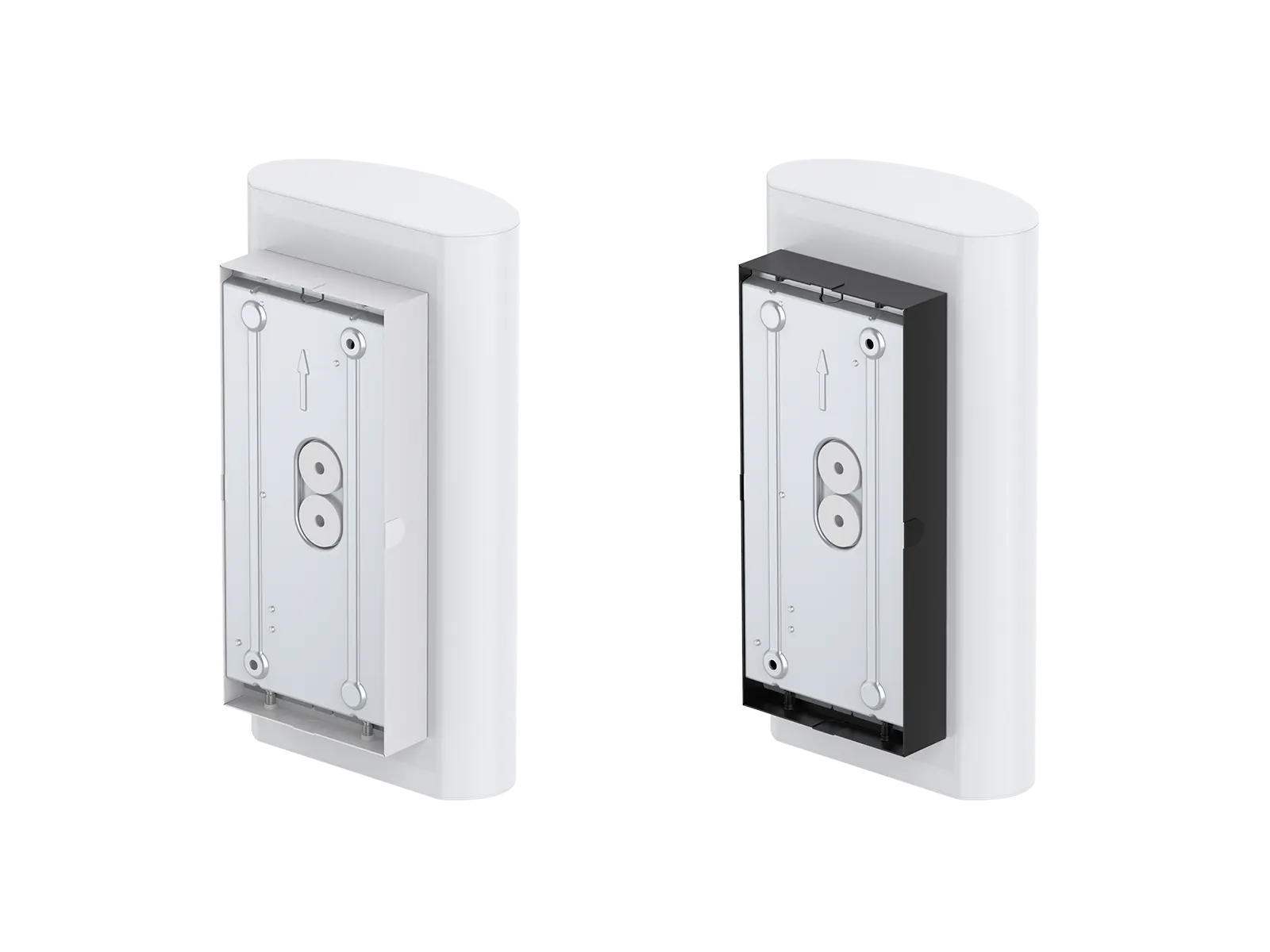

WL205 is a Full-area and frameless illuminated wall light. Optics is with 94-V0 flame-retardant PC material lampshade and 2835 SMD light sources. The lamp body and mounting plate are formed through sheet metal stamping. IP40 and IK06, With color changeable and power adjustable, and allows wire installation from both the four sides of the bottom and the center, can do ON/OFF, triac dimmable, DALI dimmable.
Applications: It's widely used in indoor lighting area, suitable for home, hotel, shop, and general lighting applications; widely used in areas such as bedrooms, indoor corridors, studies, etc.
| Code | WL205-10W | WL205-10W-DA | ||
|---|---|---|---|---|
| Dimension(mm) | L279.7*W150*H98 | |||
| Cutout(mm) | - | |||
| Watt(W) | 10W/8W/6W | 10W | ||
| Rated Input Voltage | AC220-240V | |||
| Input Voltage | AC198-264V | |||
| LED Module Input | - | |||
| Light Source | SMD | |||
| SDCM | <6 | |||
| CCT(K) | 2-CCT: 3000K + 4000K | |||
| CCT Selection | By DIP Switch | |||
| Non-DIM | 6W: 870-930 | - | ||
| Luminous Flux (lm) ±5% | 8W: 1150-1250 | |||
| CRI80 | 2-CCT | 10W: 1450-1600 | ||
| DIM | 6W: 820-900 | - | ||
| 8W: 1150-1250 | ||||
| 10W: 1450-1520 | ||||
| DALI | - | 1450-1600 | ||
| CRI | 80 | |||
| Beam Angle(°) | 120° | |||
| UGR | - | |||
| LED Driver | Built-in, Flicker Free | |||
| Dimming Option | Triac | DALI | ||
| Sensor | - | |||
| Emergency Kits | NO | |||
| Electrical Class | Class I | |||
| Ingress Protection(IP Rating) | IP40 | |||
| Impact Resistance(IK Rating) | IK06 | |||
| Product Finishing | White RAL 9016 / Black RAL 9005 | |||
| Optics Material | PC | |||
| Housing Material | Metal | |||
| Lifetime(hr) | 50,000h | |||
| Glow wire test(°C) | 750°C | |||
| Operating Temp.(°C) | -20°C~45°C | |||
| Storage Temp.(°C) | -20°C~65°C | |||
| Installation | Wall Mount | |||
