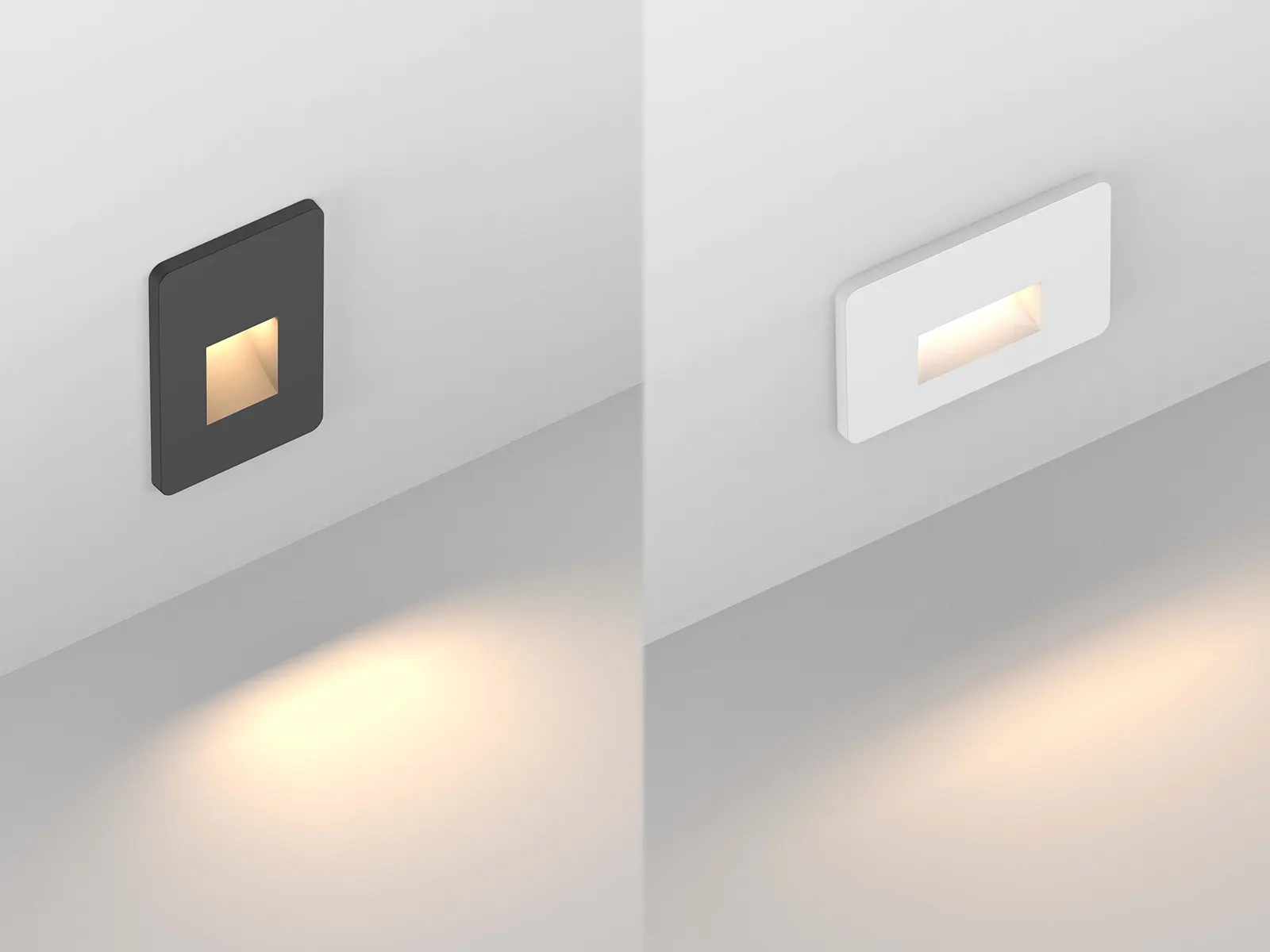

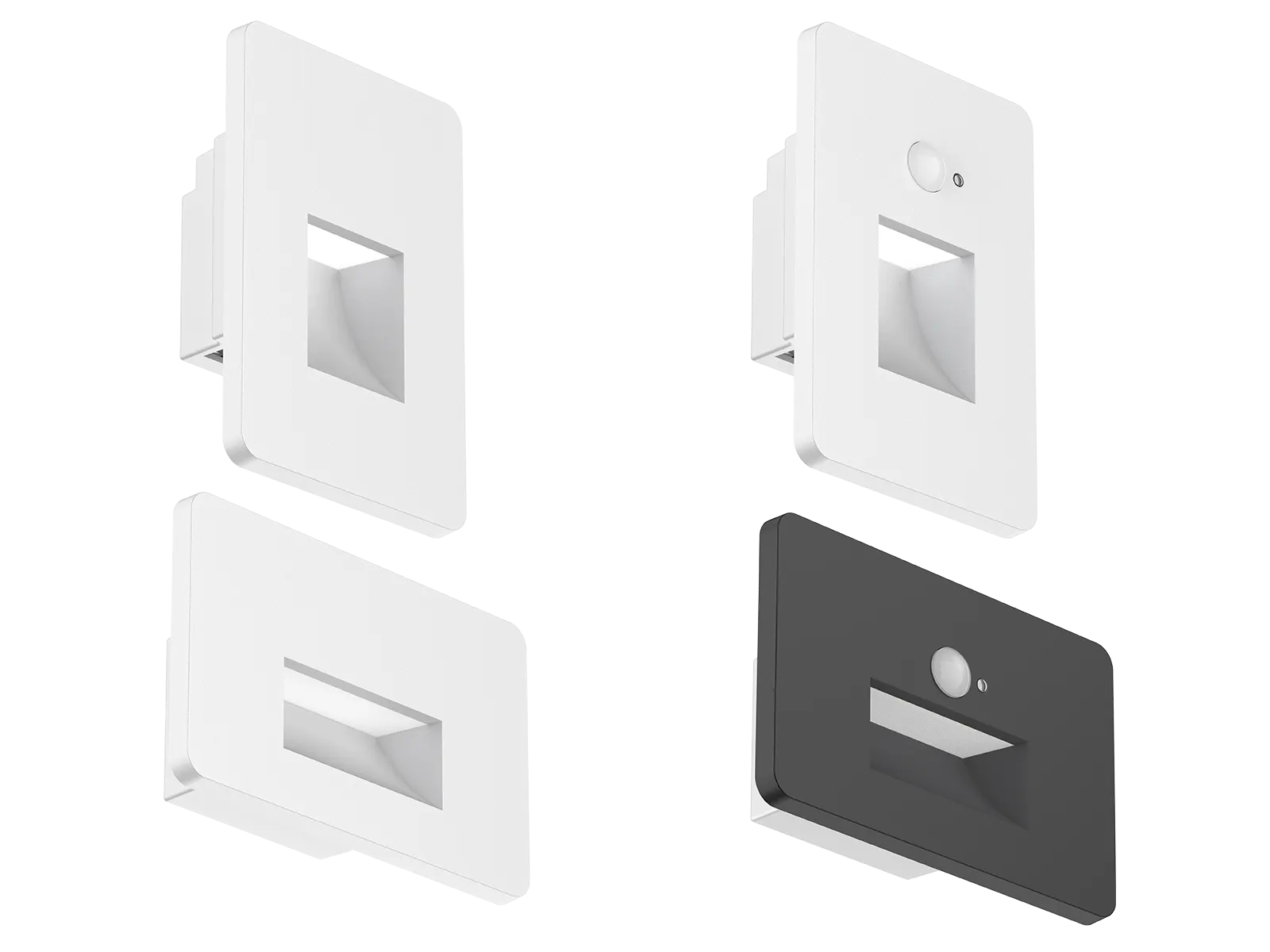

The WL204 is an ultra-thin recessed IP44 step light with energy efficiency as its core highlight, integrating a passive infrared (PIR) motion sensor module and a DIP-switch adjustable color temperature function. Its PIR motion sensor module enables precise intelligent control characterized by "light on when people approach, light off when people leave," effectively avoiding energy waste caused by ineffective illumination. Combined with a high-efficiency optical design, it further reduces power consumption while offering excellent environmental adaptability and flexible user configurability. The WL204 provides users with an intelligent, convenient, and personalized comfortable lighting experience, while achieving energy savings, consumption reduction, and environmental friendliness — delivering both practicality and cost-effectiveness.
Applications: It is widely used in indoor areas such as corridor, staircase,hotel, bar, stairway, bedroom etc where basic illumination of the wall base is required.
| Code | WL204-72-0.8W | WL204-72-0.8W-S1 | WL204-72-2W | WL204-72-2W-S1 | WL204-110-0.8W | WL204-110- | WL204-110-2W | WL204-110-2W-S1 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 0.8W-S1 | ||||||||||
| Dimension(mm) | 72*110mm | 110*72mm | ||||||||
| Cutout(mm) | - | |||||||||
| Watt(W) | 0.8W | 2W | 0.8W | 2W | ||||||
| Rated Input Voltage | AC220-240V | |||||||||
| Input Voltage | AC198~264V | |||||||||
| LED Module Input | - | |||||||||
| Light Source | SMD | |||||||||
| SDCM | SDCM<6 | |||||||||
| CCT(K) | 3-CCT: 3000K+4000K+5700K | |||||||||
| CCT Selection | By DIP Switch | |||||||||
| Luminous Flux (lm) ±10% | White | 23-27 | 23-27 | 80-95 | 80-95 | 26-30 | 21-26 | 95-115 | 82-95 | |
| CRI80 | 3-CCT | Black | 8月10日 | 8月10日 | 37-40 | 37-40 | 10月12日 | 9月11日 | 43-47 | 35-38 |
| CRI | 80 | |||||||||
| Beam Angle(°) | 110°*75° | 105°*60° | 105°*75° | 105°*60° | ||||||
| Asymmetric 50° | Asymmetric 40° | Asymmetric 40° | Asymmetric 40° | |||||||
| UGR | - | |||||||||
| LED Driver | Built-in, Flicker Free | |||||||||
| Dimming Option | - | |||||||||
| Sensor | PIR sensor | |||||||||
| Emergency Kits | - | |||||||||
| Electrical Class | Class II | |||||||||
| Ingress Protection(IP Rating) | IP44(Below Ceiling), IP20(Inside Ceiling) | |||||||||
| Impact Resistance(IK Rating) | IK03 | |||||||||
| Product Finishing | White RAL9016 | |||||||||
| Optics Material | PC | |||||||||
| Housing Material | PC | |||||||||
| Lifetime(hr) | 50,000h | |||||||||
| Glow wire test(°C) | 750°C | |||||||||
| Operating Temp.(°C) | -20°C~45°C | |||||||||
| Storage Temp.(°C) | -20°C~60°C | |||||||||
| Installation | Recessed | |||||||||
