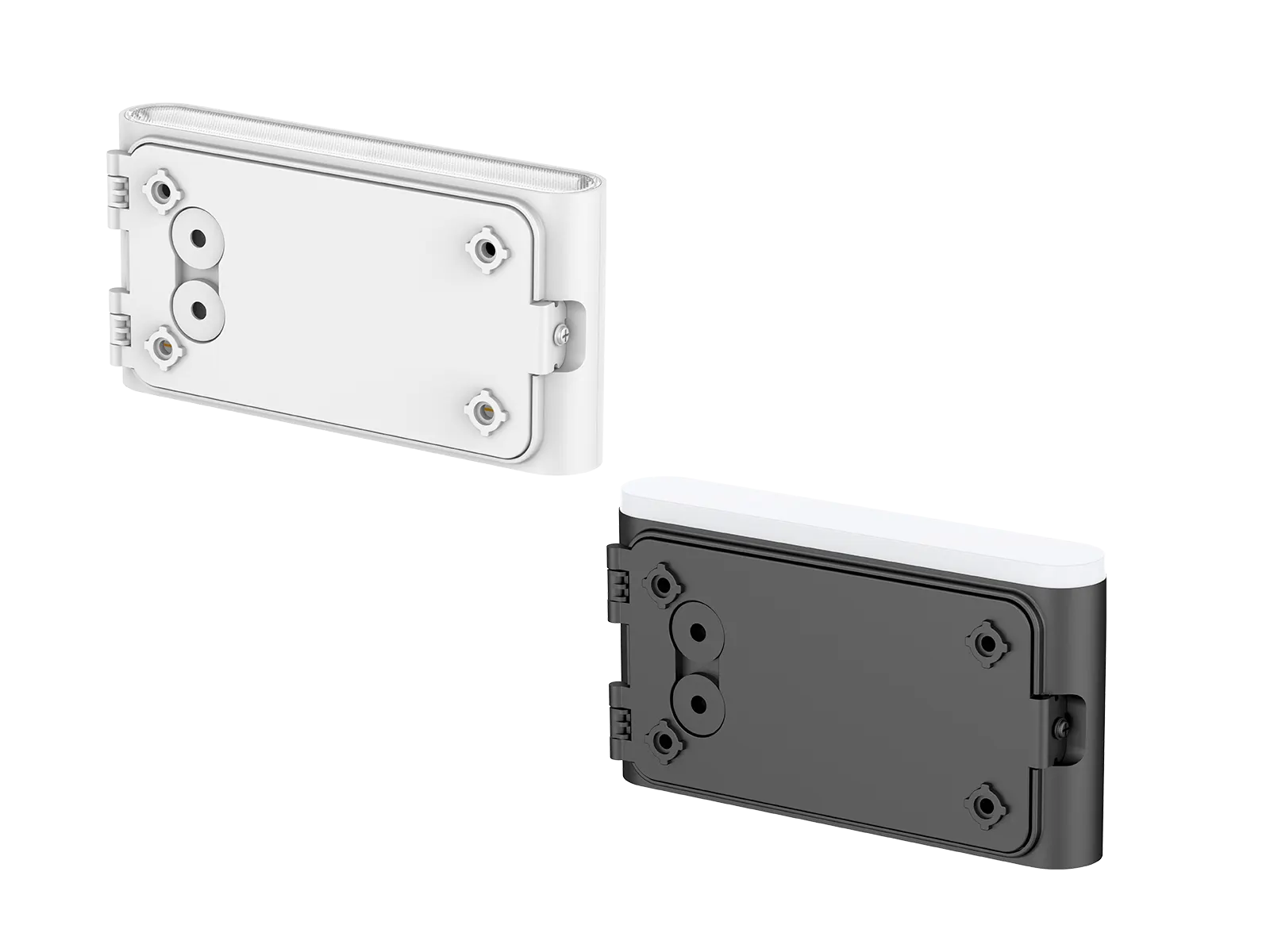

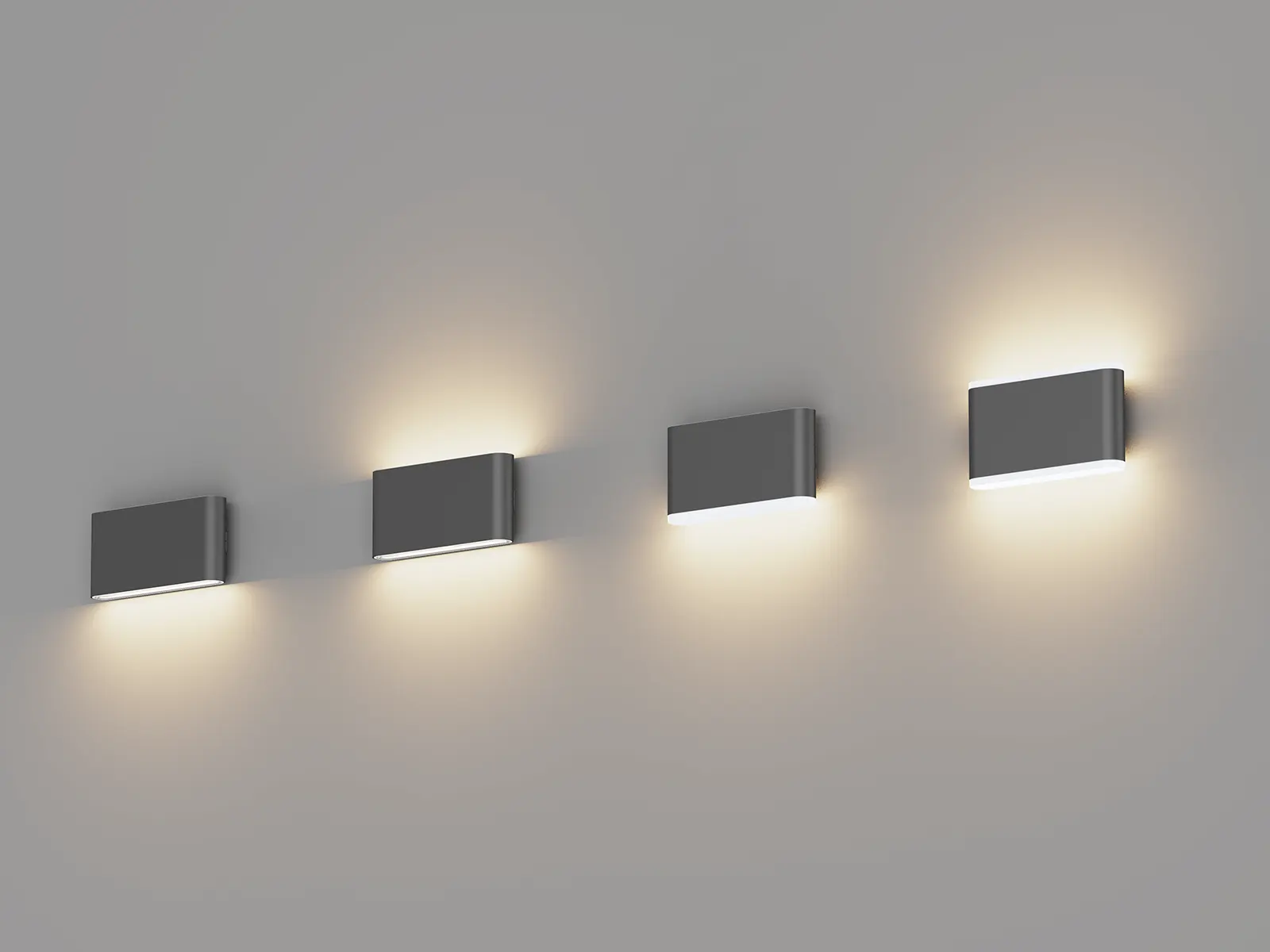

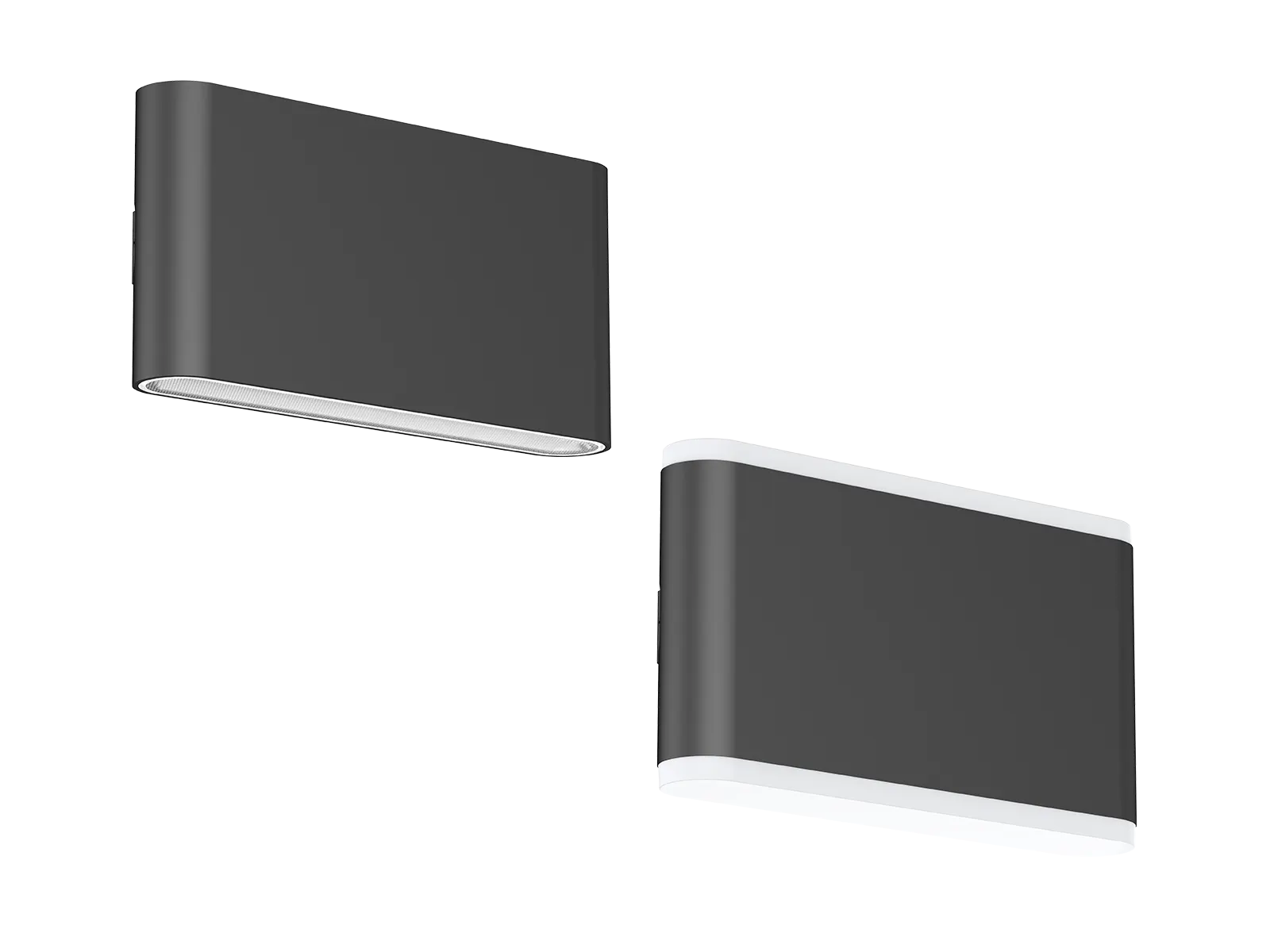

WL200 is an ultra-thin IP65 LED wall lamp, thickness is 36mm,with full PC materials body, more suitable for coastal region, with two optics: WL200A with PC lens and WL200B with PC diffuser, WL200A with PC lens: 8-degree polarized wall washing optical effect, high light concentration, enabling higher and longer-distance lighting coverage. WL200B with PC diffuser: diffused optical effect, evenly spread light, wide illumination range, suitable for general basic lighting scenarios. Besides, it has up and down lighting or 100% up or down lighting
Applications: It's widely used in indoor and outdoor scene lighting area, such as hotel, yard, green landscape, Garden, corridor, exterior wall,business street, garden, park etc.
| Code | WL200A-5W-D | WL200A-8W-D | WL200B-5W-D | WL200B-8W-D | ||
|---|---|---|---|---|---|---|
| Dimension(mm) | 175*90*36 | 175*90*36 | 175*97*36 | 175*104*36 | ||
| Cutout(mm) | - | |||||
| Watt(W) | 5W | 8W | 5W | 8W | ||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198-264V | |||||
| LED Module Input | - | |||||
| Light Source | SMD | |||||
| SDCM | SDCM<6 | |||||
| CCT(K) | 1CCT: 3000K/4000K/5700K || 3CCT: 3000K+4000K+5700K | |||||
| CCT Selection | By DIP Switch | |||||
| Luminous Flux (lm) ±5% | 1-CCT | DIM | 540-590 | 890-950 | 510-530 | 780-820 |
| CRI80 | 3-CCT | DIM | 540-590 | 890-950 | 510-530 | 780-820 |
| CRI | CRI80 | |||||
| Beam Angle(°) | 29°*77°*8° | 120° | ||||
| UGR | - | |||||
| LED Driver | Built-in, Flicker Free | |||||
| Dimming Option | Triac | |||||
| Sensor | NO | |||||
| Emergency Kits | NO | |||||
| Electrical Class | Class I I | |||||
| Ingress Protection(IP Rating) | IP65 | |||||
| Impact Resistance(IK Rating) | IK08 | |||||
| Product Finishing | Black RAL9005, White RAL9016 | |||||
| Optics Material | PC | |||||
| Housing Material | PC | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 750°C | |||||
| Operating Temp.(°C) | -20°C~45°C | |||||
| Storage Temp.(°C) | -20°C~65°C | |||||
| Installation | Wall Mount | |||||
