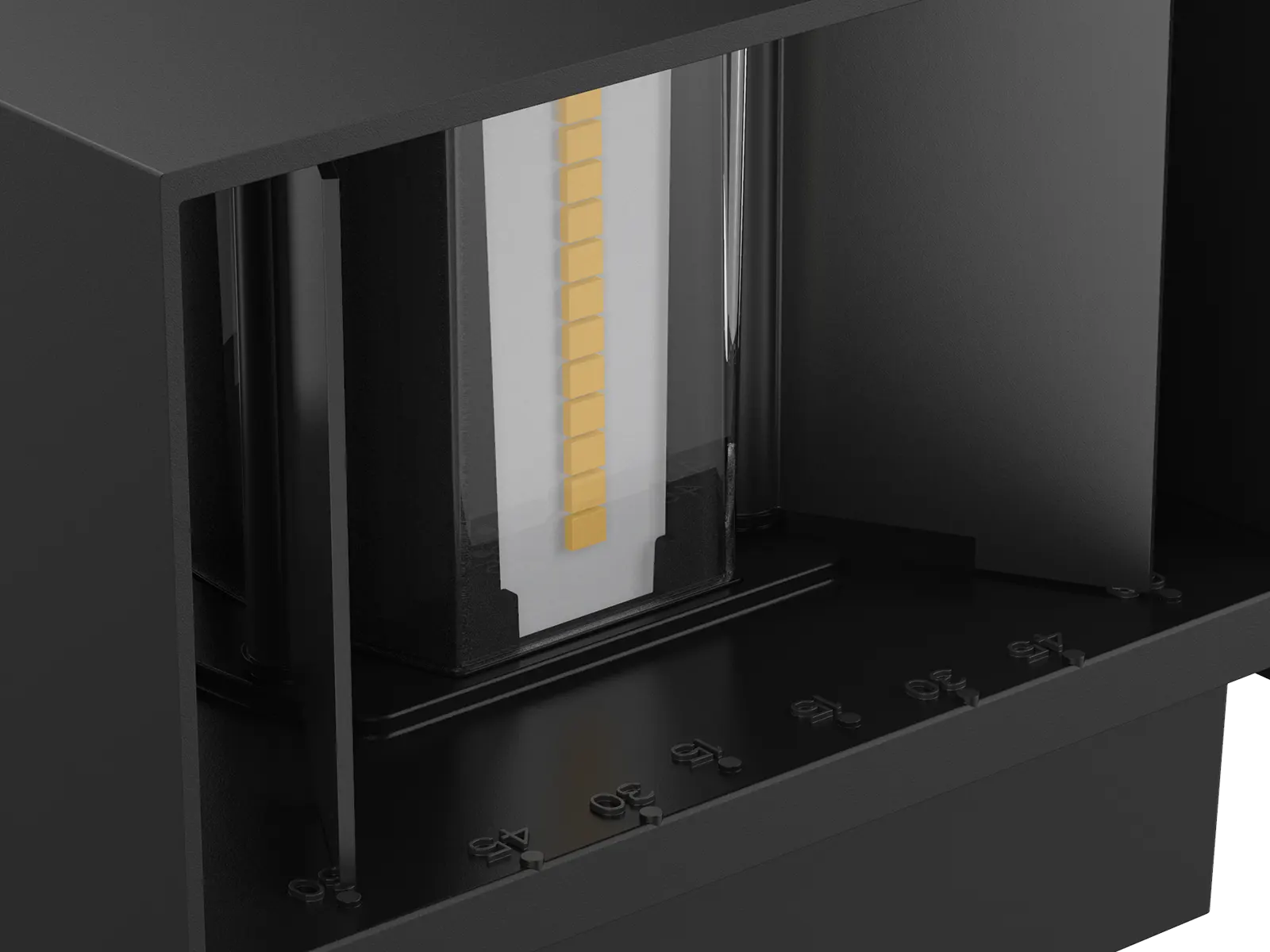

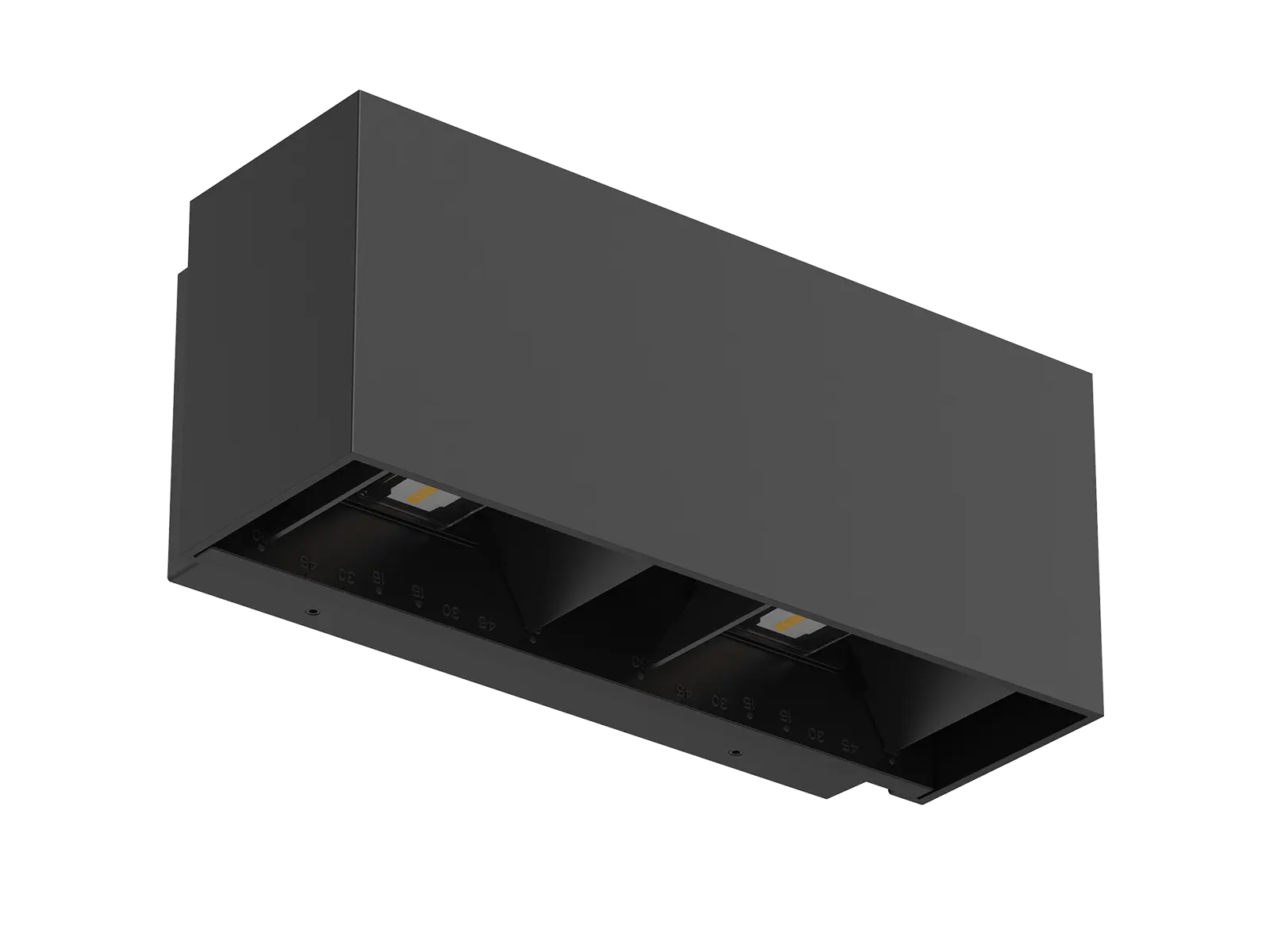

WL20 IP65 LED wall lamp adopts ADC12 aluminum housing which can provide excellent thermal management; Using high-brightness LED chips, the luminous efficiency can reach 105 lm/W. It also with unique up and down light functional design ; the beam angle can be adjusted by the flexible aluminum plate from 15°-120°, Customers can use multiple arrays according to their needs and combine them into different light spot patterns.
Applications: It is designed for indoor and outdoor lighting applications hotel, park, and corridors etc.
| Code | WL20-10W | WL20B-10W | WL20-18W | WL20B-18W | ||
|---|---|---|---|---|---|---|
| Dimension(mm) | 120*96.8*100 | 242*97.7*100 | ||||
| Watt(W) | 10W | 18W | ||||
| Rated Input Voltage | AC100-240V | |||||
| Input Voltage | AC90-264V | |||||
| Light Source | SMD | |||||
| SDCM | <6 | |||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K | |||||
| Luminous Flux | 1-CCT | Non-DIM | 980-1050 | 1800-1880 | ||
| (lm) ±5% CRI80 | ||||||
| CRI | CRI80 | |||||

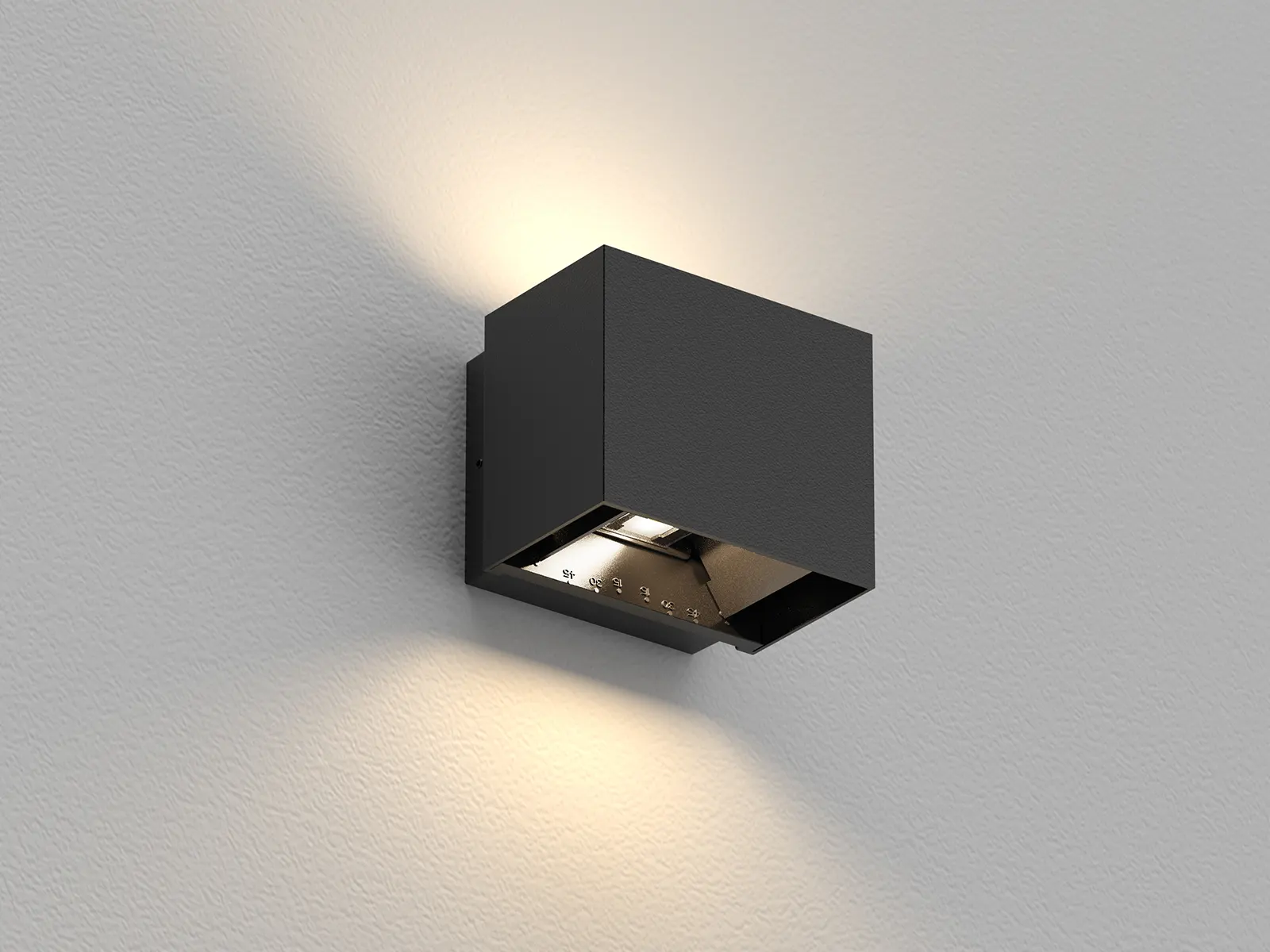

| Beam Angle(°) | Adjustable 15°-120° | |||||
| LED Driver | Built-in, Flicker Free | |||||
| Electrical Class | Class I | |||||
| Ingress Protection(IP Rating) | IP65 | |||||
| Impact Resistance(IK Rating) | IK06 | |||||
| Product Finishing | Black RAL9005/White RAL9016 | |||||
| Optics Material | PC | |||||
| Housing Material | Die-Casting Aluminium | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 750°C | |||||
| Operating Temp.(°C) | -20°C~45°C | |||||
| Storage Temp.(°C) | -20°C~60°C | |||||
| Installation | Wall mount | |||||
