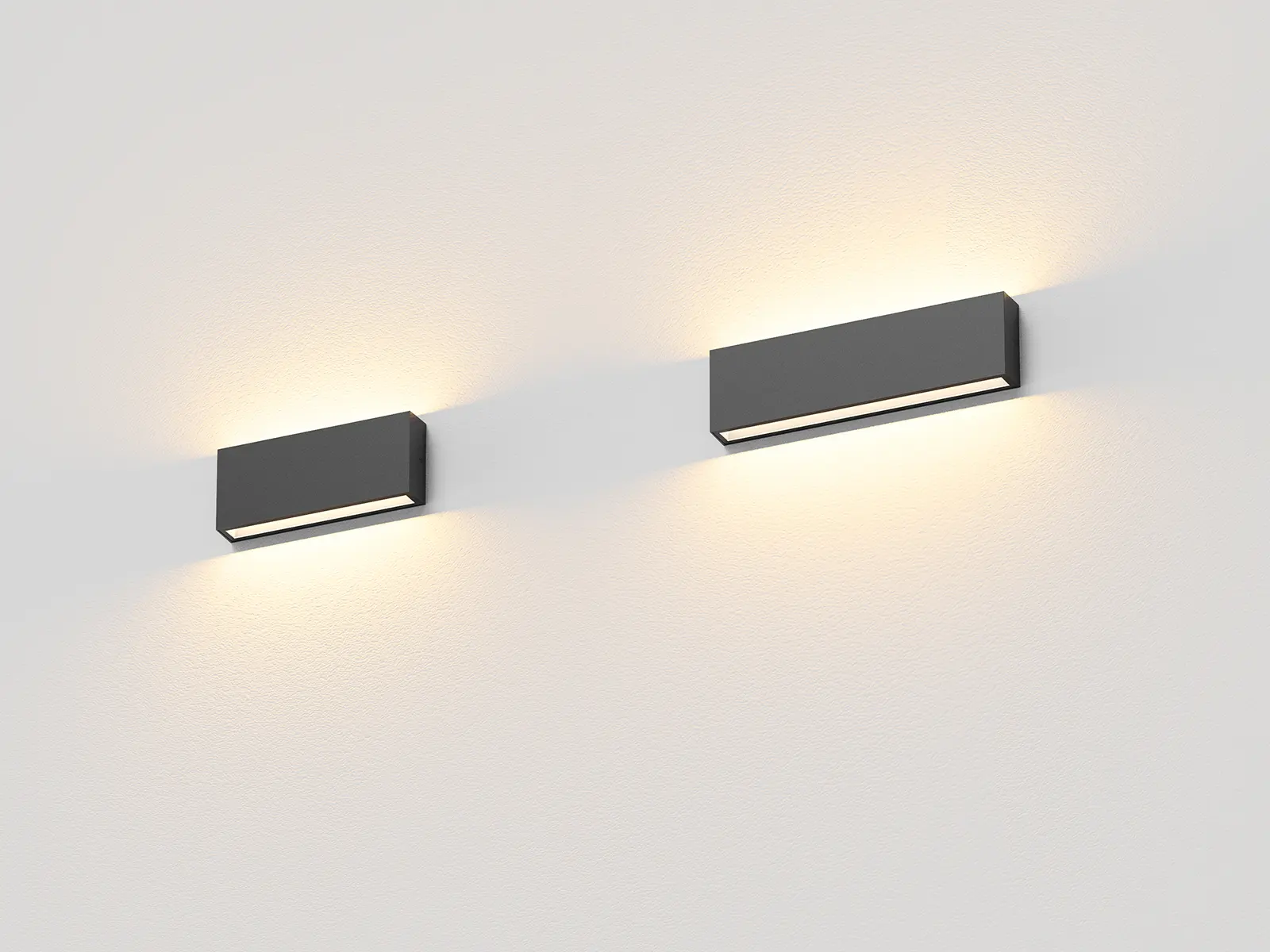

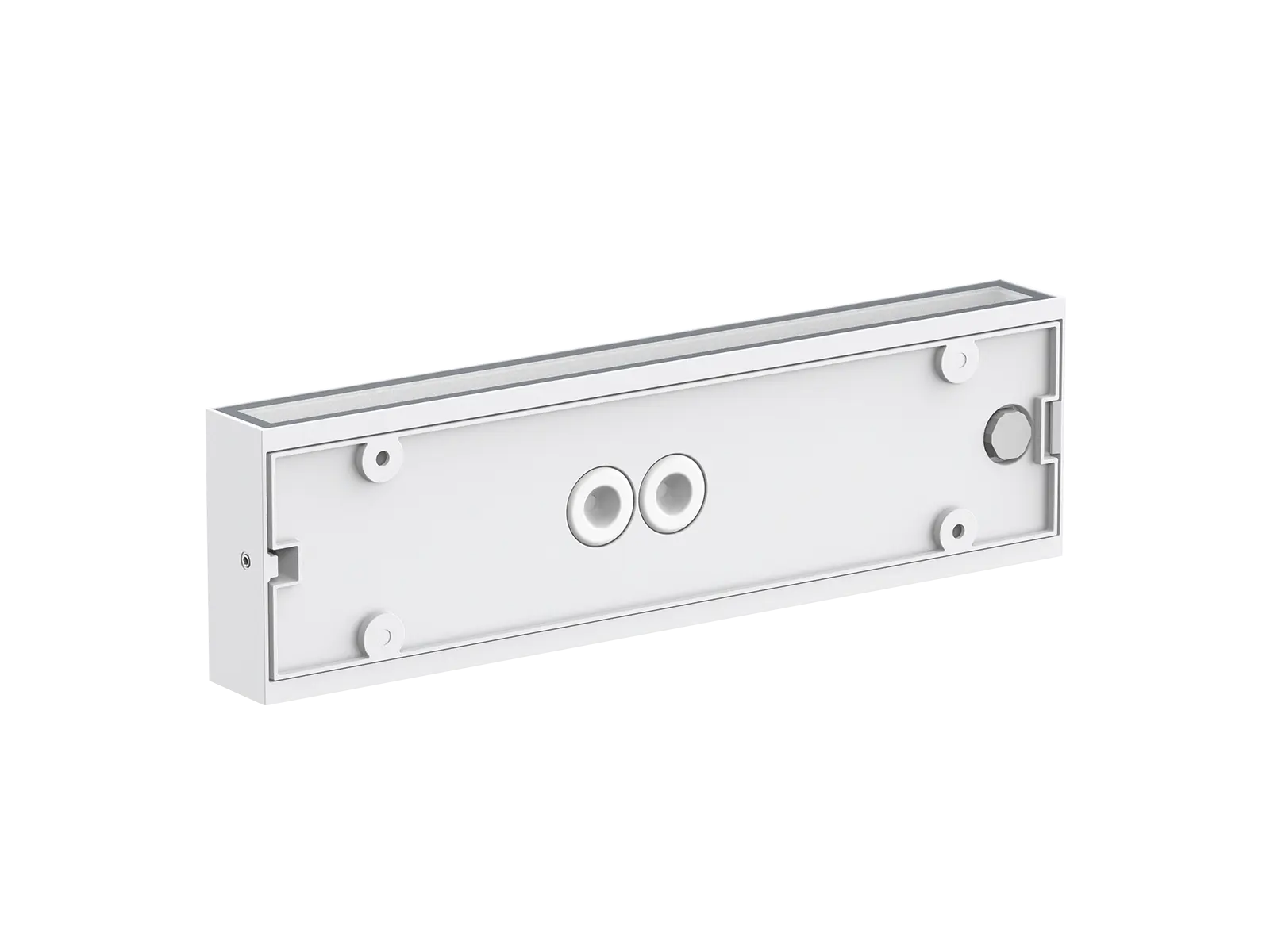

It's a super slim and compact design IP65 outdoor LED wall lamp, the die-casting aluminum material provides excellent heat dissipation, CCT and lighting direction both can be selected by slide switch.
Application Areas: It's widely used in indoor and outdoor scene lighting area, such as hotel,Park,yard, corridors, exterior walls,courtyards etc.
| Code | WL193-10W | WL193-15W | ||||
|---|---|---|---|---|---|---|
| Dimension(mm) | 220*90*36 | 320*90*36 | ||||
| Watt(W) | 10W (UP or Down) | 2*5W (UP & Down) | 15W (UP or Down) | 2*7.5W (UP & Down) | ||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198-264V | |||||
| Light Source | SMD2835 | |||||
| SDCM | SDCM<6 | |||||
| CCT(K) | 2-CCT: 3000K+4000K | |||||
| CCT Selection DIP Switch | YES | |||||
| Luminous Flux (lm) ±5% CRI80 | 2-CCT | Non-DIM | 1010-1035 | 1070-1120 | 1534-1590 | 1650-1713 |
| DIM | 932-953 | 983-1030 | 1493-1548 | 1604-1666 | ||
| DALI | 973-995 | 1025-1076 | 1578-1637 | 1696-1761 | ||
| CRI | CRI80 | |||||
| Beam Angle(°) | 70*90° | |||||
| UGR | - | |||||
| LED Driver | Built-in , Flicker Free | |||||
| Dimming Option | Triac/ DALI | |||||
| Sensor | NO | |||||
| Emergency Kits | NO | |||||
| Electrical Class | Class I | |||||
| Ingress Protection(IP Rating) | IP65 | |||||
| Impact Resistance(IK Rating) | IK06 | |||||
| Product Finishing | White RAL9016, Black RAL9005, Grey RAL7015 | |||||
| Optics Material | Tempered glass+Reflective sheet | |||||
| Housing Material | Die-Casting Aluminium | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 750°C | |||||
| Operating Temp.(°C) | -20°C~45°C | |||||
| Storage Temp.(°C) | -20°C~65°C | |||||
| Installation | Wall mount | |||||
