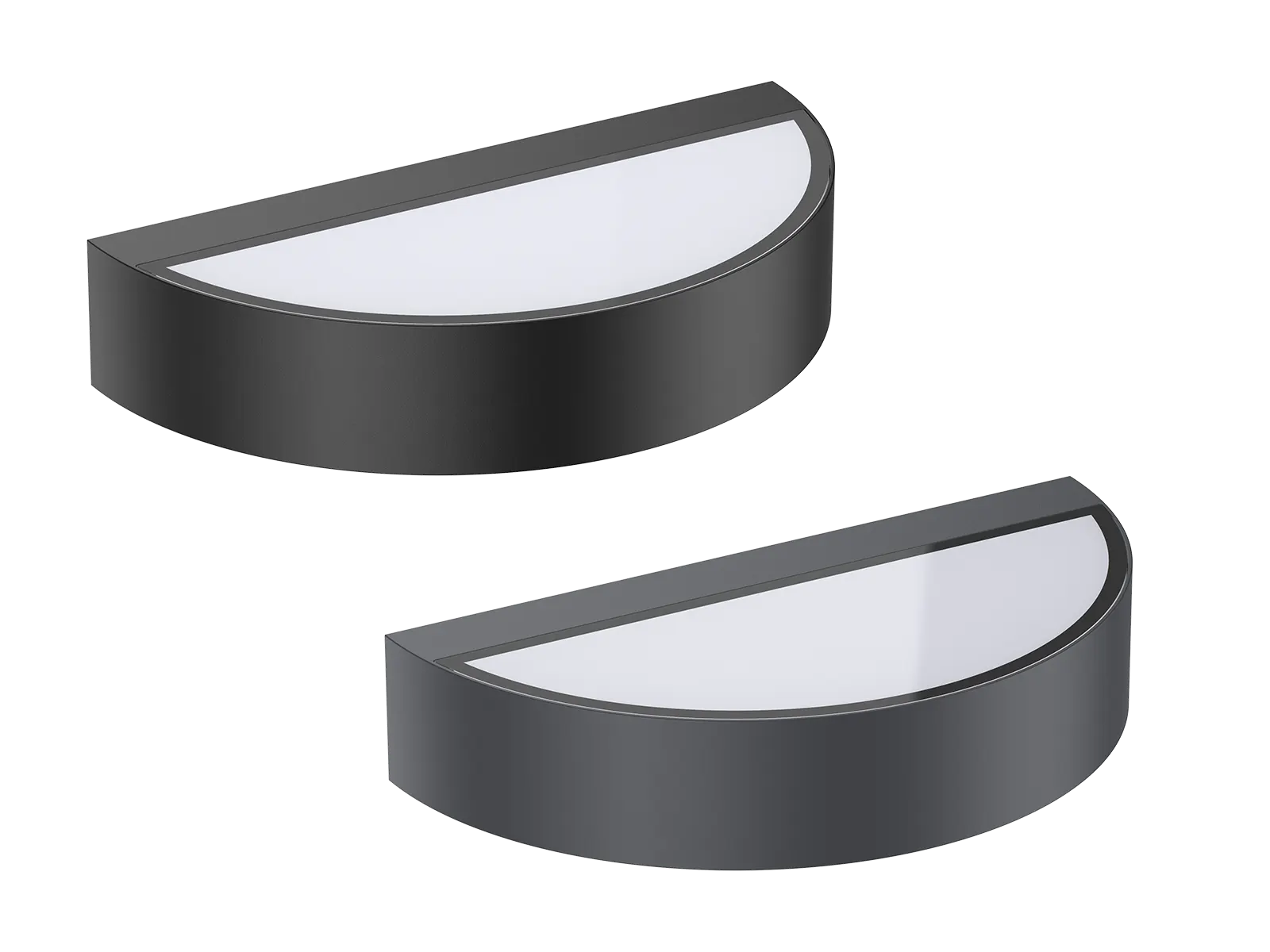

WL192 is a semi-circular design LED wall lamp, easier to blend in with the building without being conspicuous, For optic part, it adopts 2835 SMD light source and tempered glass diffuser. For structure, it adopts die-casting Aluminum housing, which ensures a great thermal management. the whole lamp is IP65 waterproof to meet more application areas demand, can do on/off and Triac dimmable and DALI dimmmable.

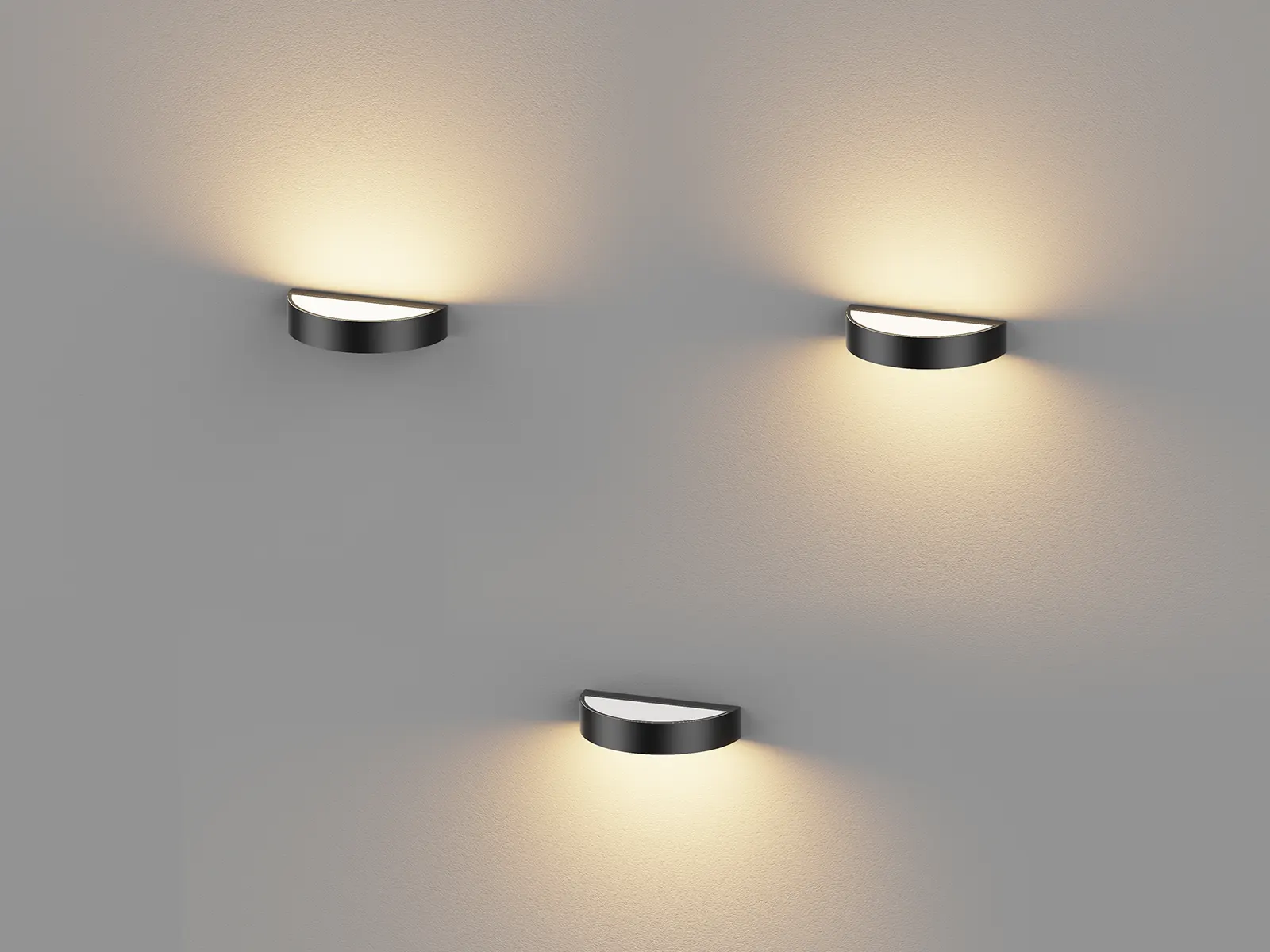

Applications: It's widely used in indoor and outdoor scene lighting area, such as hotel,Park,yard, corridors, exterior walls,courtyards etc.
| Code | WL192-200-8W | WL192-200-10W | WL192-300-12W | WL192-300-15W | ||
|---|---|---|---|---|---|---|
| Dimension(mm) | 200*100*60 | 300*150*60 | ||||
| Watt(W) | 8W | 10W | 12W | 15W | ||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198-264V | |||||
| Light Source | SMD | |||||
| SDCM | SDCM<6 | |||||
| CCT(K) | 1-CCT: 3000K/4000K||2-CCT: 3000K+ 4000K | |||||
| CCT Selection DIP Switch | YES | |||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 800-900 | 950-1050 | 1350-1500 | 1650-1800 |
| DIM | 750-850 | 900-1000 | 1350-1500 | 1650-1800 | ||
| 2-CCT | Non-DIM | 800-900 | 950-1050 | 1350-1500 | 1650-1800 | |
| DIM | 750-850 | 900-1000 | 1350-1500 | 1650-1800 | ||
| CRI | CRI80 | |||||
| Beam Angle(°) | 100° | |||||
| LED Driver | Built-in, Flicker Free | |||||
| Dimming Option | Triac / DALI | |||||
| Sensor | NO | |||||
| Emergency Kits | No | |||||
| Electrical Class | Class I | |||||
| Ingress Protection(IP Rating) | IP65 | |||||
| Impact Resistance(IK Rating) | IK06 | |||||

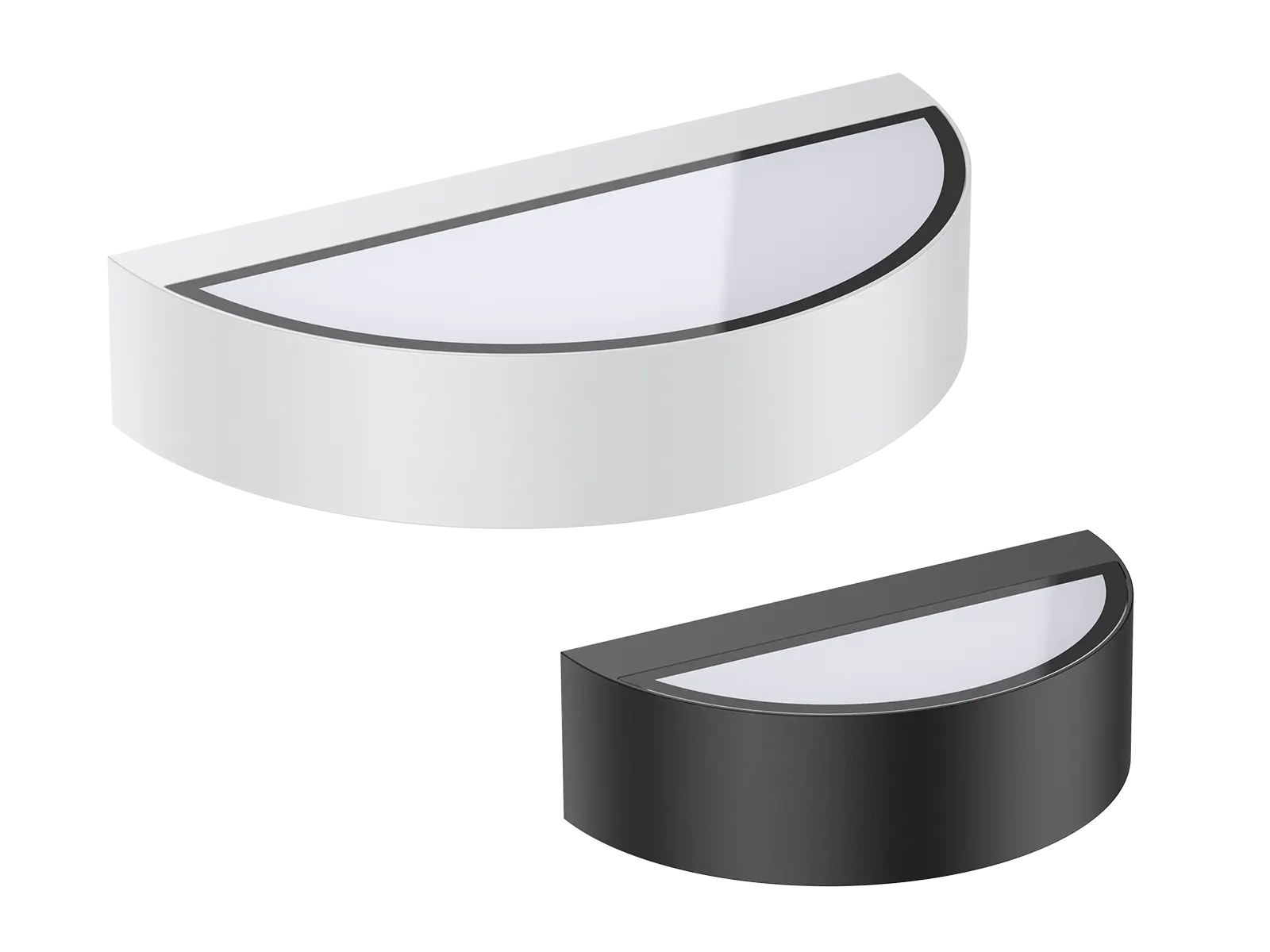

| Product Finishing | Black RAL9005, White RAL9016, Grey RAL7015 | |||||
| Optics Material | Tempered glass | |||||

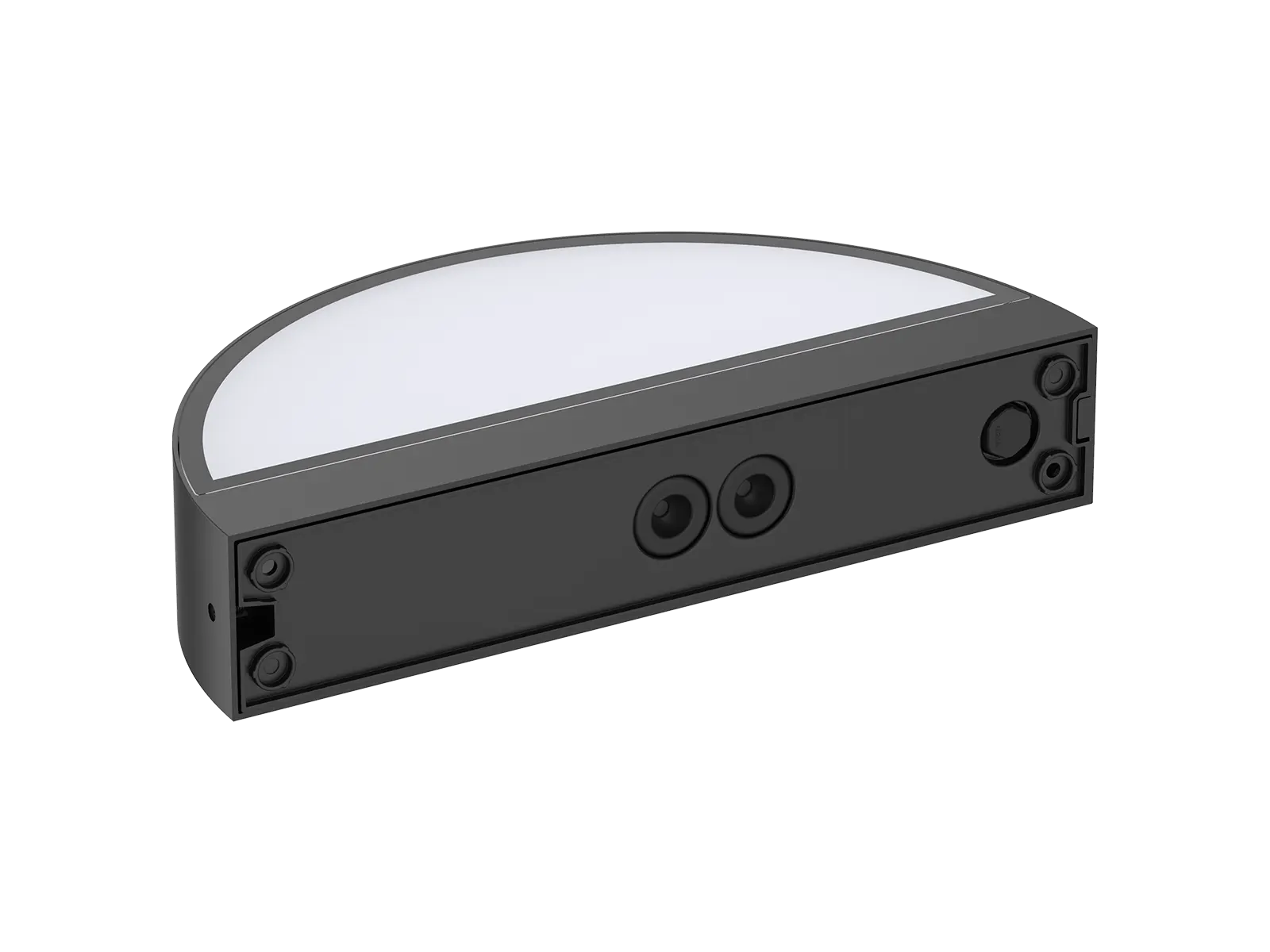

| Housing Material | Die-Casting Aluminium | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 750°C | |||||
| Operating Temp.(°C) | -20°C~45°C | |||||
| Storage Temp.(°C) | -20°C~65°C | |||||
| Installation | Wall mount | |||||
