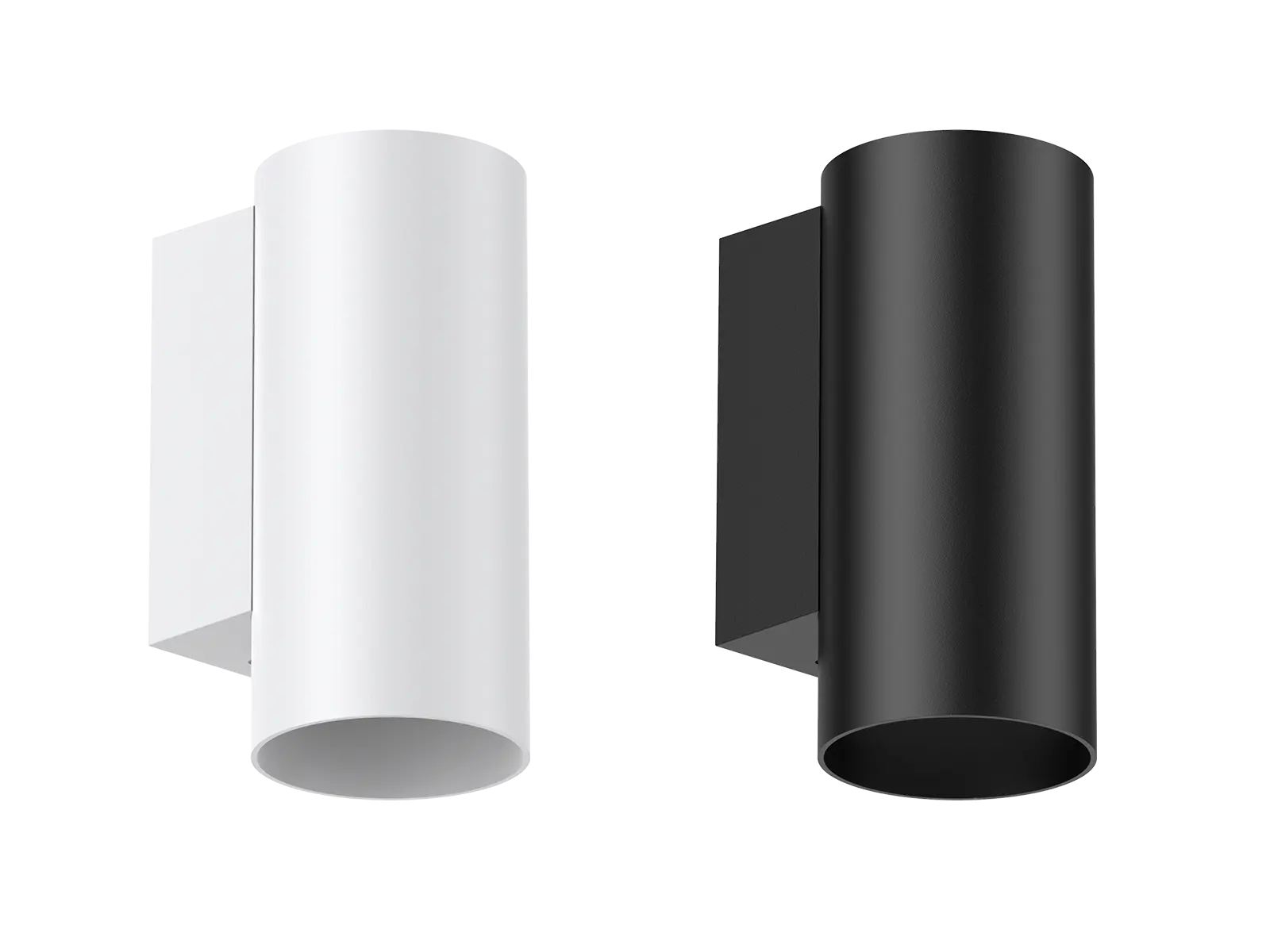

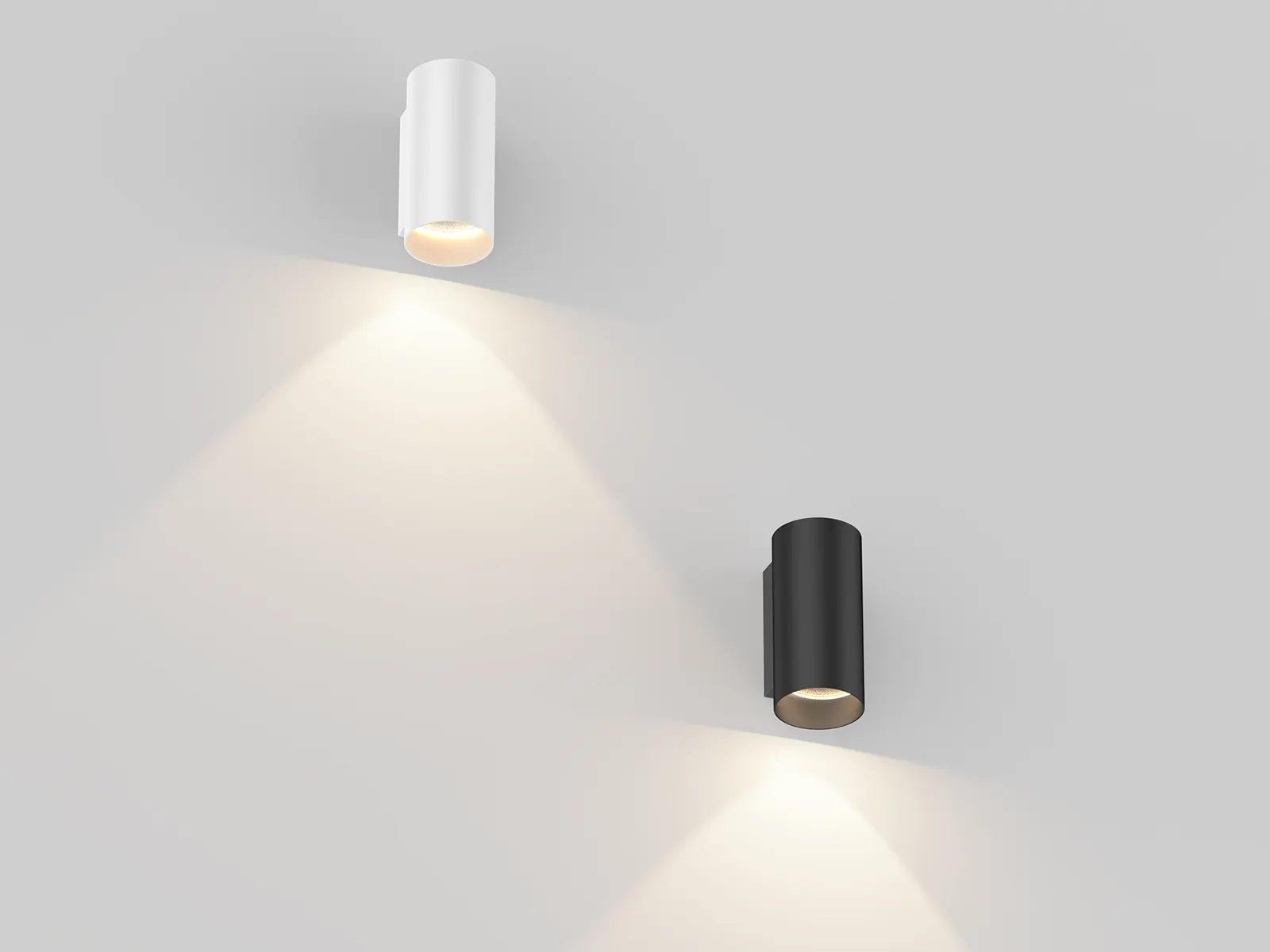

This is an IP65 wall lamp for outdoor applications, it features a sleek design with clean lines that align with modern home aesthetics, making it suitable for various decor styles. It is available in black and white, 100% down lighting. To meet more applications, it support no dim, triac dim, DALI dim way.
Applications: It is designed for indoor and outdoor lighting applications hotel, park, and corridors etc.
| Code | WL189-8W | WL189-15W | WL189-20W | ||
|---|---|---|---|---|---|
| Dimension(mm) | 150*60*87 | 178*80*107 | 213*100*127 | ||
| Watt(W) | 8W | 15W | 20W | ||
| Rated Input Voltage | AC220-240V | ||||
| Input Voltage | AC198-264V | ||||
| Light Source | COB | ||||
| SDCM | <6 | ||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K/5000K || 2-CCT:3000K+ 4000K | ||||
| CCT Selection DIP Switch | YES | ||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 680-730 | 1030-1230 | 1550-1600 |
| DIM | 660-690 | 990-1190 | 1530-1580 | ||
| DALI | 660-690 | 1000-1210 | 1530-1580 | ||
| Luminous Flux (lm) ±5% CRI90 | 2-CCT | Non-DIM | 550-640 | 920-1110 | 1300-1420 |
| DIM | 520-600 | 890-1050 | 1280-1400 | ||
| DALI | 540-620 | 910-1180 | 1280-1400 | ||
| CRI | 1-CCT: CRI80, 2-CCT: CRI90 | ||||
| Beam Angle(°) | 70° | ||||
| LED Driver | Driver built-in | ||||
| Dimming Option | Triac/ DALI | ||||
| Sensor | NO | ||||
| Emergency Kits | NO | ||||
| Electrical Class | Class I | ||||
| Ingress Protection(IP Rating) | IP65 | ||||
| Impact Resistance(IK Rating) | IK06 | ||||
| Product Finishing | White RAL9016/Black RAL9005 | ||||
| Optics Material | PC | ||||
| Housing Material | Aluminium +Die-Casting Aluminium | ||||
| Lifetime(hr) | 50,000h | ||||
| Glow wire test(°C) | 750°C | ||||
| Operating Temp.(°C) | -20°C~40°C | ||||
| Storage Temp.(°C) | -20°C~65°C | ||||

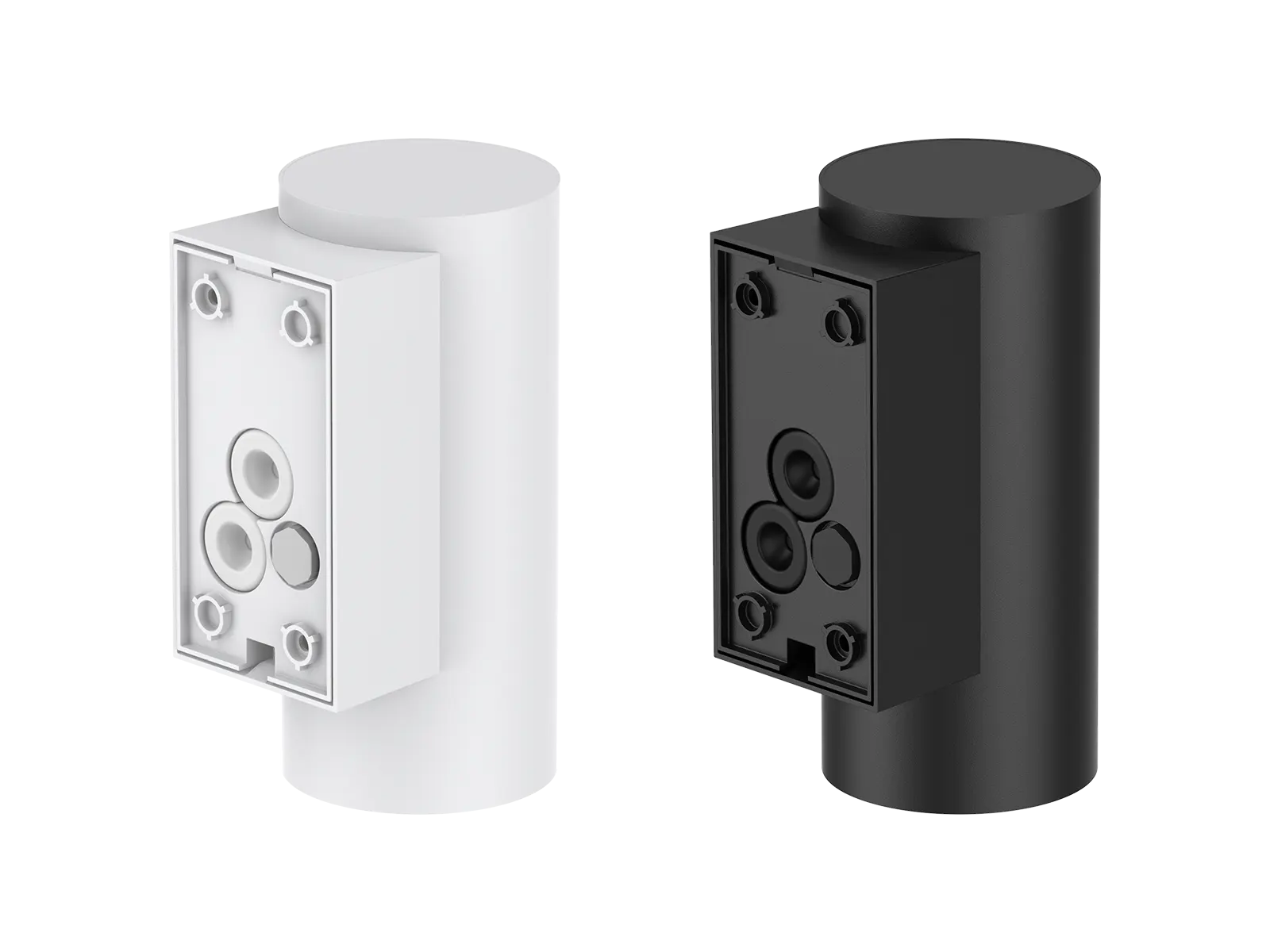

| Installation | Wall mount | ||||
