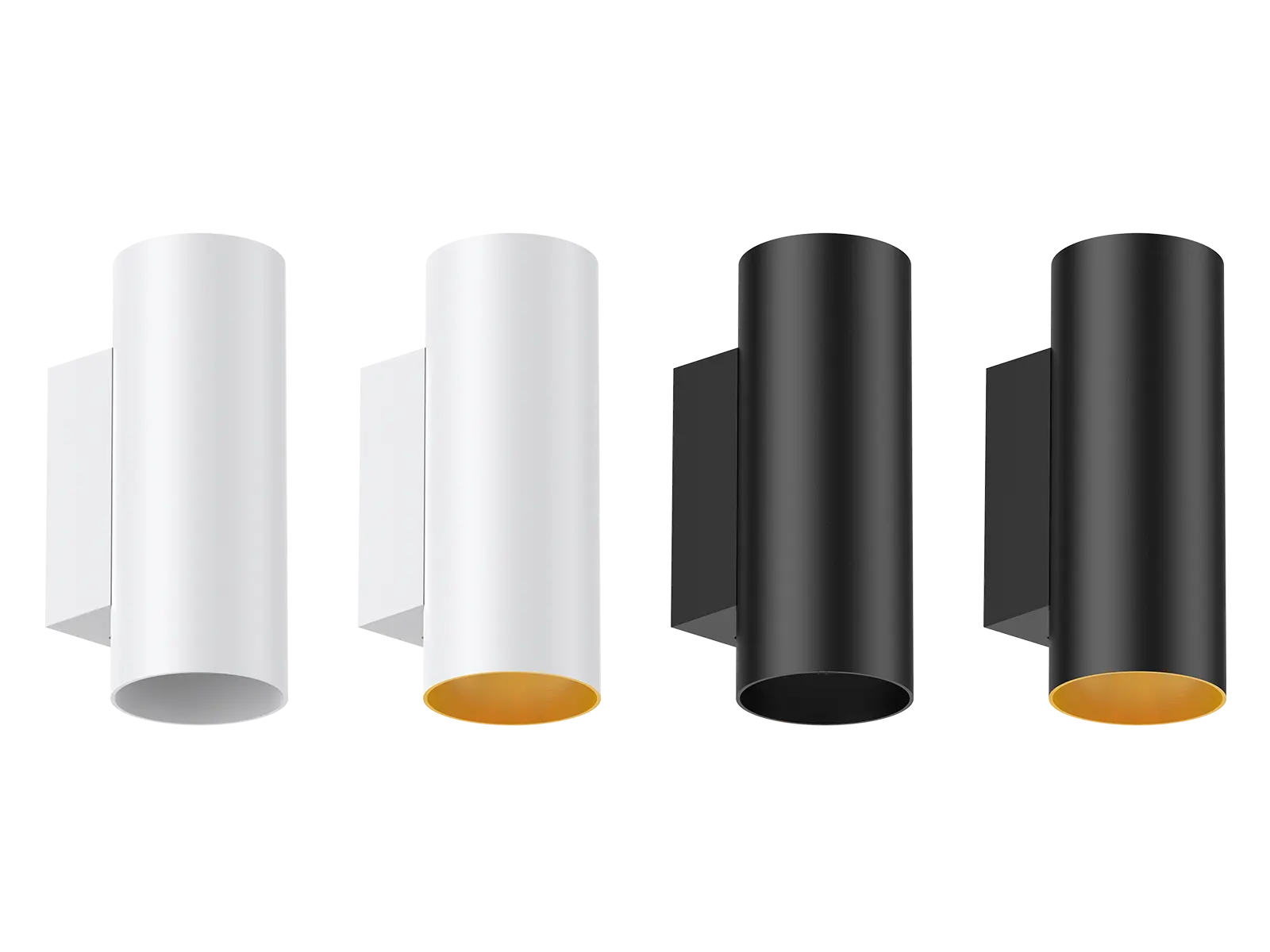

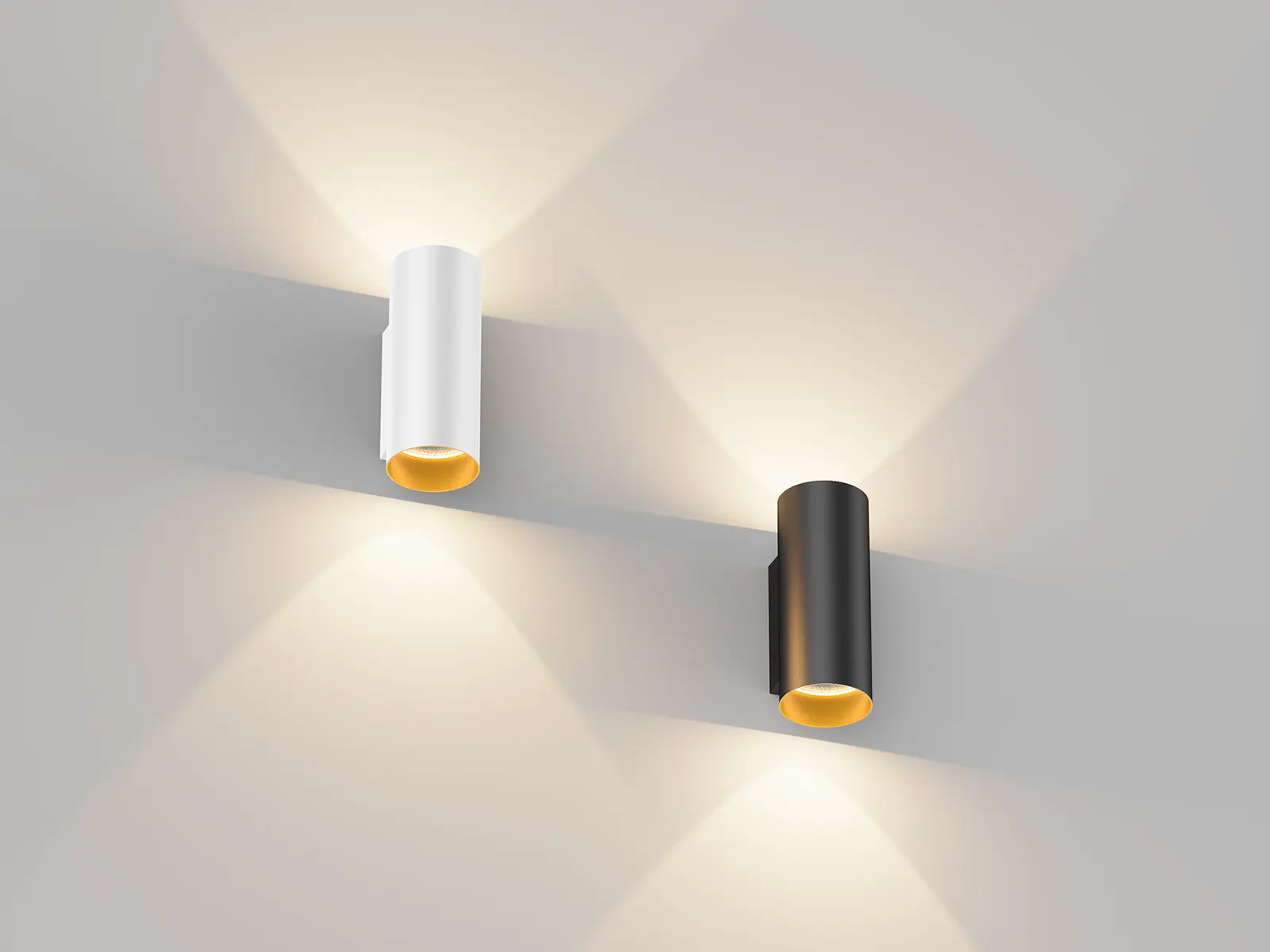

This is a modern wall lamp with direct & indirect lighting for interior applications, it features a sleek design with clean lines that align with modern home aesthetics, making it suitable for various decor styles. It is available in black and white, interior frame with golden brushing process which provides more texture of the lamp. To meet more applications, it support no dim, triac dim, DALI dim way.
Applications: It is designed for indoor lighting applications, such as hotel, bedroom and indoor corridors etc.
| Code | WL188-10W | WL188-20W | WL188-27W | ||
|---|---|---|---|---|---|
| Dimension(mm) | Ø60*H170 | Ø80*H210 | Ø100*H250 | ||
| Watt(W) | 2*5W | 2*10W | 2*13.5W | ||
| Rated Input Voltage | AC220-240V | ||||
| Input Voltage | AC198-264V | ||||
| Light Source | COB | ||||
| SDCM | <6 | ||||
| CCT(K) | 1-CCT: 2700K/3000K/4000K/5000K || 2-CCT:3000K+4000K | ||||
| CCT Selection DIP Switch | YES | ||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 920-1000 | 1600-1720 | 2390-2500 |
| DIM | 880-940 | 1560-1640 | 2300-2420 | ||
| DALI | 880-940 | 1560-1640 | 2310-2460 | ||
| Luminous Flux (lm) ±5% CRI90 | 2-CCT | Non-DIM | 720-820 | 1440-1620 | 1900-2190 |
| DIM | 690-790 | 1390-1480 | 1810-2050 | ||
| DALI | 700-810 | 1430-1620 | 1820-2060 | ||
| CRI | 1-CCT: CRI80, 2-CCT: CRI90 | ||||
| Beam Angle(°) | 70° | ||||
| LED Driver | Driver built-in | ||||
| Dimming Option | Triac/ DALI | ||||
| Sensor | NO | ||||
| Emergency Kits | NO | ||||
| Electrical Class | Class I | ||||
| Ingress Protection(IP Rating) | IP40 | ||||
| Impact Resistance(IK Rating) | IK06 | ||||
| Product Finishing | White RAL9016/Black RAL9005 | ||||
| Optics Material | PC | ||||
| Housing Material | Aluminium +Die-Casting Aluminium | ||||
| Lifetime(hr) | 50,000h | ||||
| Glow wire test(°C) | 750°C | ||||
| Operating Temp.(°C) | -20°C~40°C | ||||
| Storage Temp.(°C) | -20°C~65°C | ||||
| Installation | Wall mount | ||||
