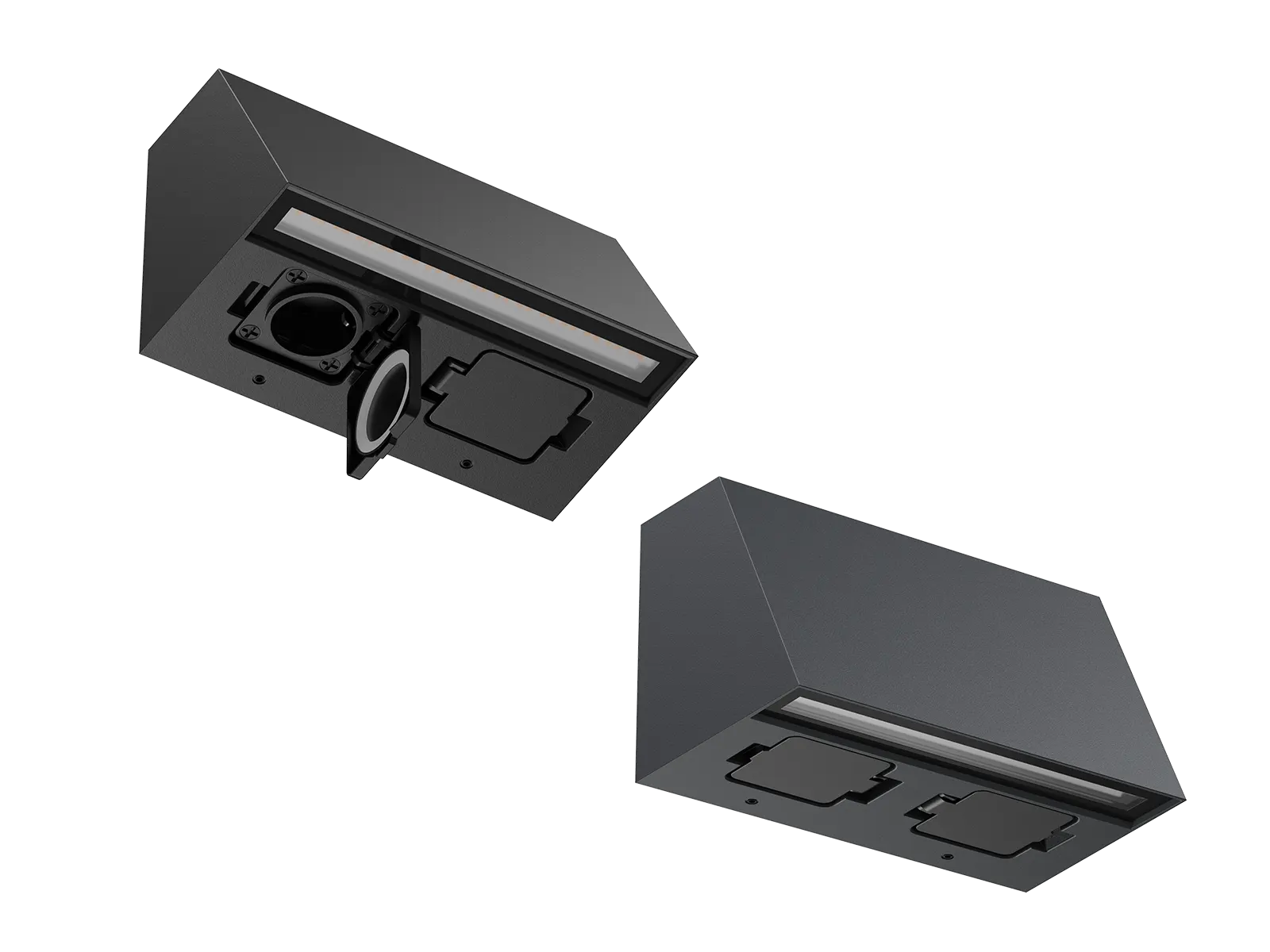

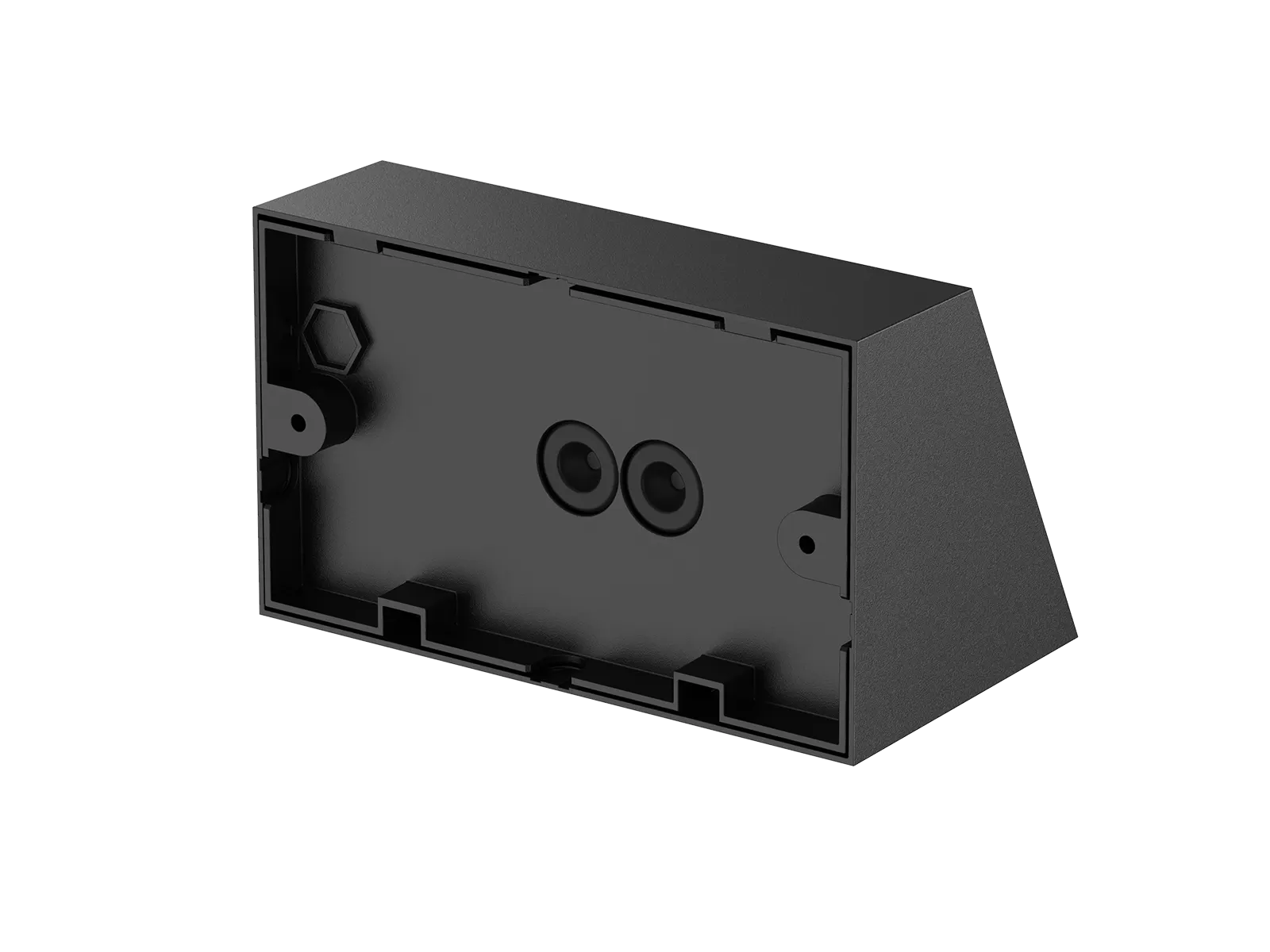

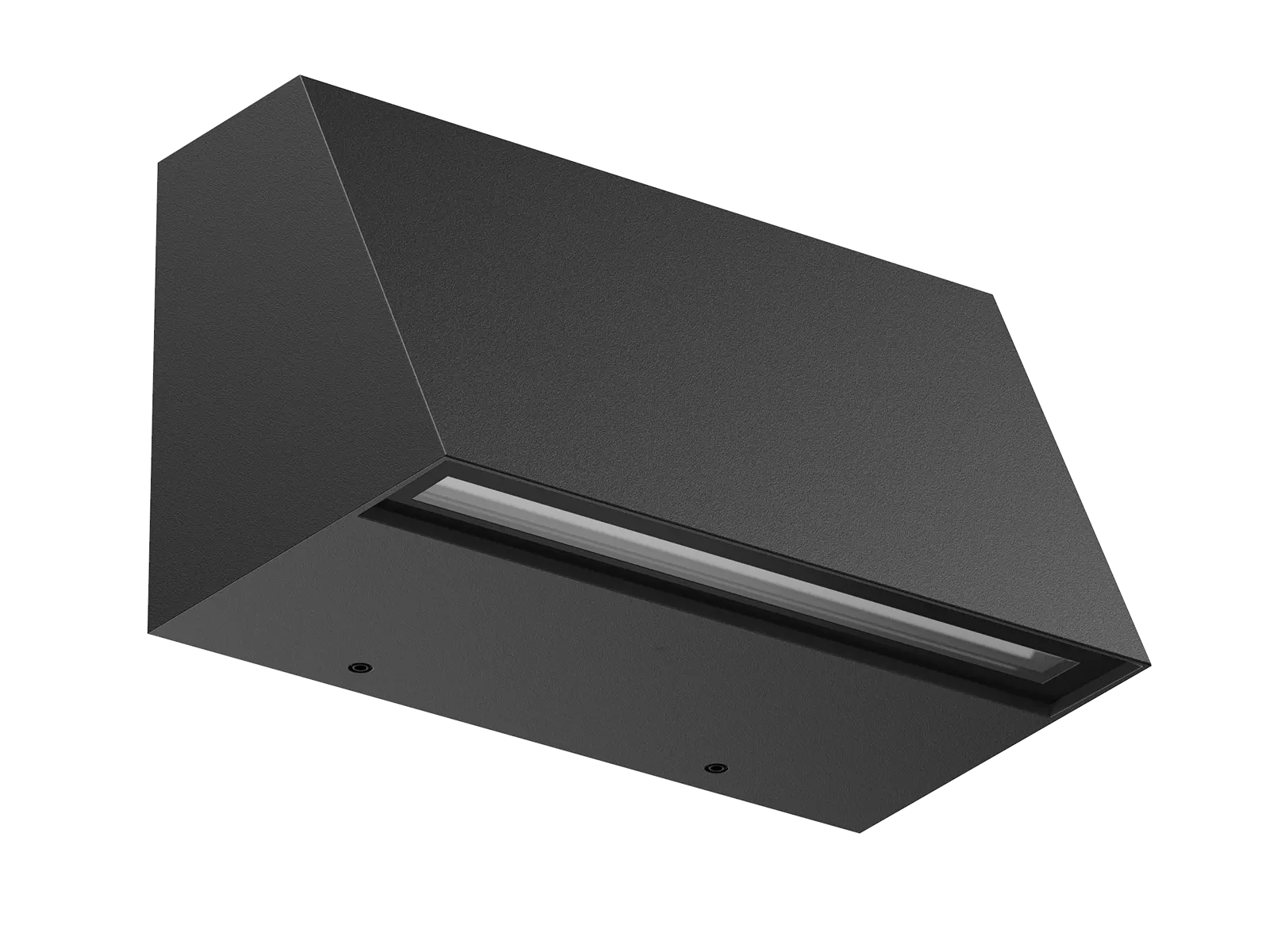

This is a modern square wall lamp with 2 specifications: WL186A with socket(IP54), WL186B without socket(IP65). Both versions have 2 optical options: lens with polarized beam angle 10 degree for wall washing, frosted glass with 90degree. For quick install, it has cable entry hold on both rear and side. It has triac dim and DALI dim option, which offers more possibility for application use.
Applications: Type A is designed for indoor and semi-outdoor applications such as balconies, terraces, verandas etc., available to feed power for hair dryer, charger, projector, mower, electric saw, sprinkler, sound etc. Type B version is available for outdoor scene lighting area, such as yard, green landscape, business street, garden, park and other leisure areas.
| Code | WL186A-10W-D3C2 | WL186A-10W-DA | WL186B-10W-D3C2 | WL186B-10W-DA | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | L200*W116*H120mm | |||||||||
| Watt(W) | 10W Max.(8W/6W optional) | 10W | 10W Max.(8W/6W optional) | 10W | ||||||
| Rated Input Voltage | AC220-240V | |||||||||
| Input Voltage | AC198-264V | |||||||||
| Light Source | SMD | |||||||||
| SDCM | <6 | |||||||||
| CCT(K) | 2-CCT: 3000K +4000K | 1-CCT: 3000K / 4000K 2-CCT: 3000K +4000K | 2-CCT: 3000K +4000K | 1-CCT: 3000K / 4000K 2-CCT: 3000K +4000K | ||||||
| CCT Selection DIP Switch | YES | |||||||||
| Luminous Flux (lm) ±5% CRI80 | lens | Frosted glass | lens | Frosted glass | lens | Frosted glass | lens | Frosted glass | ||
| 1-CCT | Triac DIM | - | ||||||||
| DALI | - | 10W: 890-980 | 10W: 780-860 | - | 10W: 890-980 | 10W: 780-860 | ||||
| 2-CCT | Triac DIM | 10W: 850-940 8W: 740-820 6W: 540-580 | 10W: 740-820 8W: 640-710 6W: 450-500 | - | 10W:850-940 8W:740-820 6W:540-580 | 10W:740-820 8W:640-710 6W:450-500 | - | |||
| DALI | - | 10W: 890-980 | 10W: 780-860 | - | 10W: 890-980 | 10W: 780-860 | ||||
| CRI | CRI 80 | |||||||||
| Beam Angle(°) | lens: 40*90° Polarization 10° / Frosted glass: 90° | |||||||||
| LED Driver | Built-in | |||||||||
| Dimming Option | Triac | DALI | Triac | DALI | ||||||
| Sensor | NO | |||||||||
| Emergency Kits | NO | |||||||||
| Electrical Class | Class I | |||||||||
| Ingress Protection(IP Rating) | IP54 | IP65 | ||||||||
| Impact Resistance(IK Rating) | lens: IK06 / Frosted glass: IK04 | |||||||||
| Product Finishing | Black RAL9005/ Gray RAL7015 | |||||||||
| Optics Material | Glass / PC | |||||||||
| Housing Material | Die-Casting Aluminium | |||||||||
| Lifetime(hr) | 50,000h | |||||||||
| Glow wire test(°C) | 750°C | |||||||||
| Operating Temp.(°C) | -20°C~45°C | |||||||||
| Storage Temp.(°C) | -20°C~65°C | |||||||||
| Installation | Wall mount | |||||||||
