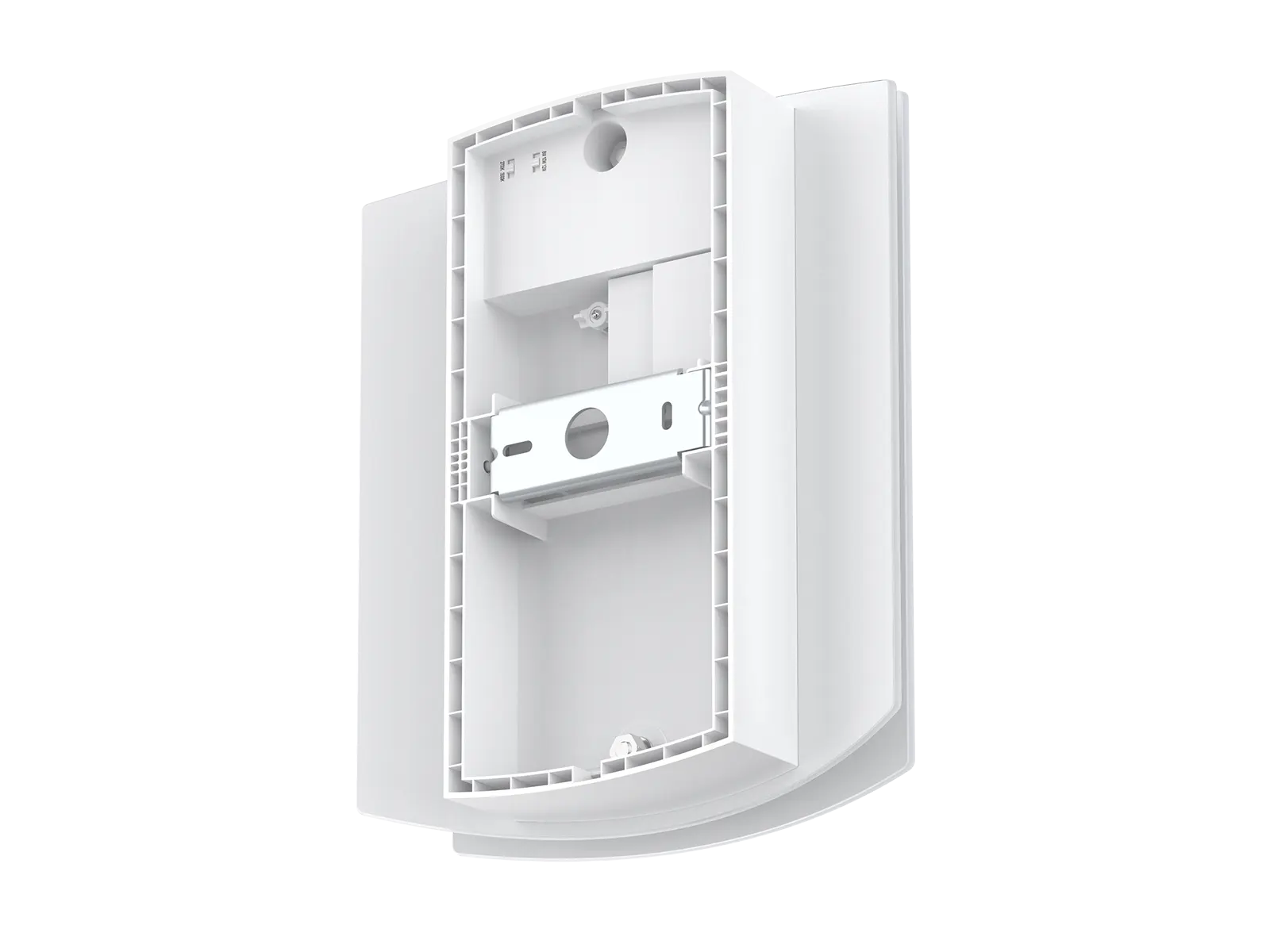

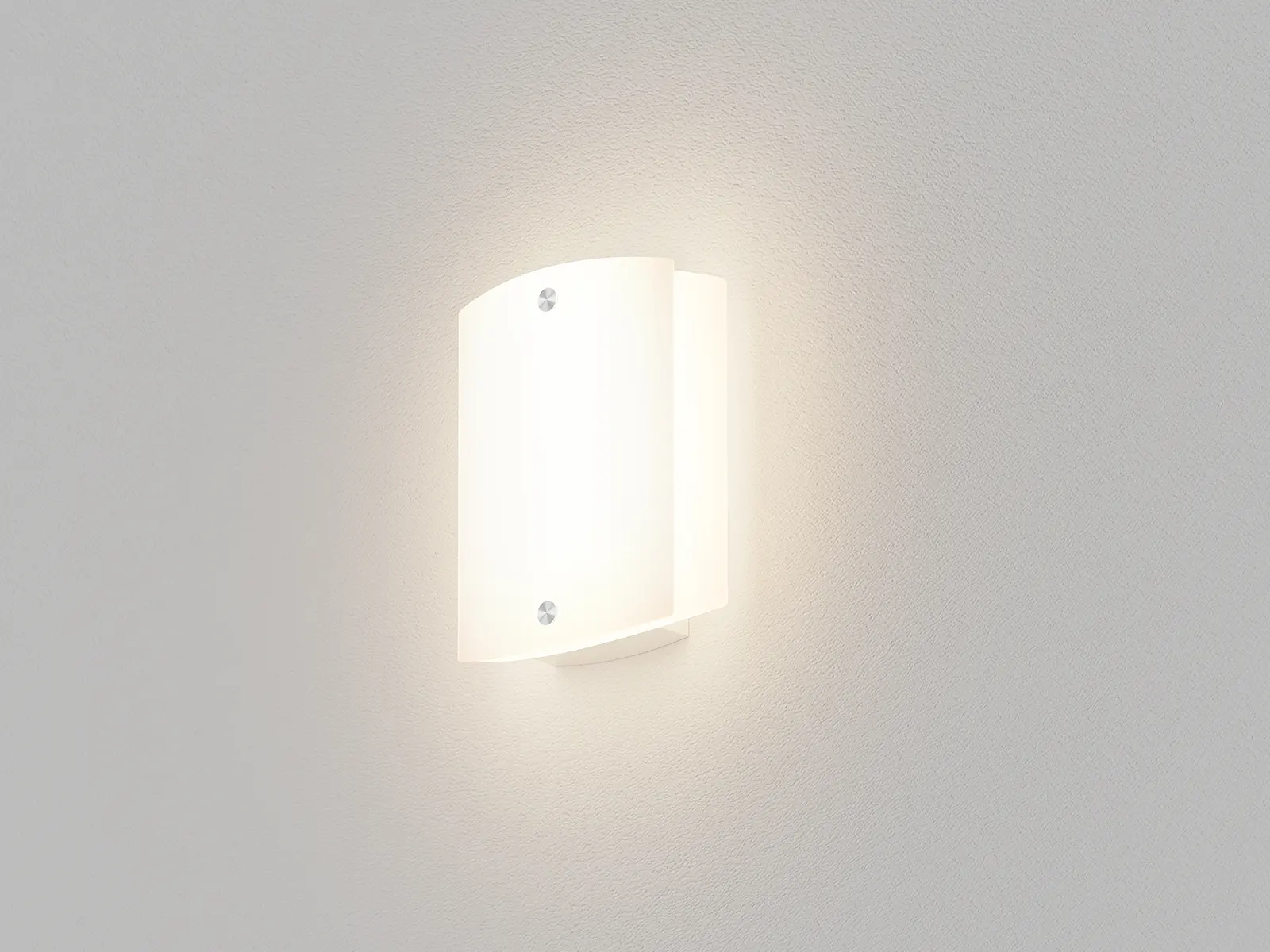

WL183 is a decorative LED wall lamp, Featuring a double-layer glass design, it serves a decorative purpose. With dual dial switch: power adjustable DIP switch and color temperature adjustment DIP switch. Functions have on/ff, triac dimmable, DALI dimmable; built-in flicker free LED driver, easy installation.
Applications: It is designed for indoor lighting applications, such as Shopping malls, office building lobbies, halls, corridors, public areas, etc.
| Code | WL183-12W | ||
|---|---|---|---|
| Dimension(mm) | 314*271*88 | ||
| Watt(W) | 12W Max.(10W/8W optional) | ||
| Rated Input Voltage | AC220-240V | ||
| Input Voltage | AC198-264V | ||
| Light Source | SMD2835 | ||
| SDCM | LED Chip SDCM<6 | ||
| CCT(K) | 2-CCT: 2700K+3000K | ||
| CCT Selection | By DIP Switch | ||
| Non-DIM | 12W: 800-950 | ||
| 10W: 650-780 | |||
| Luminous Flux (lm) ±10% | 2-CCT | 8W: 500-600 | |
| CRI80 | DIM | 12W: 750-900 | |
| 10W: 620-810 | |||
| 8W: 520-620 | |||
| DALI | 12W: 750-900 | ||
| 10W: 630-820 | |||
| 8W: 520-620 | |||
| CRI | LED Chip CRI80 | ||
| Beam Angle(°) | 120°-180° | ||
| LED Driver | Built-in, Flicker Free | ||
| Dimming Option | Triac / DALI | ||
| Sensor | NO | ||
| Emergency Kits | NO | ||
| Electrical Class | Class II | ||
| Ingress Protection(IP Rating) | IP20 | ||
| Impact Resistance(IK Rating) | IK03 | ||
| Product Finishing | White RAL9016 | ||
| Optics Material | Glass | ||
| Housing Material | PC+Glass | ||
| Lifetime(hr) | 50,000h | ||
| Glow wire test(°C) | 750°C | ||
| Operating Temp.(°C) | -20°C~45°C | ||
| Storage Temp.(°C) | -20°C~65°C | ||
| Installation | Wall mount | ||
