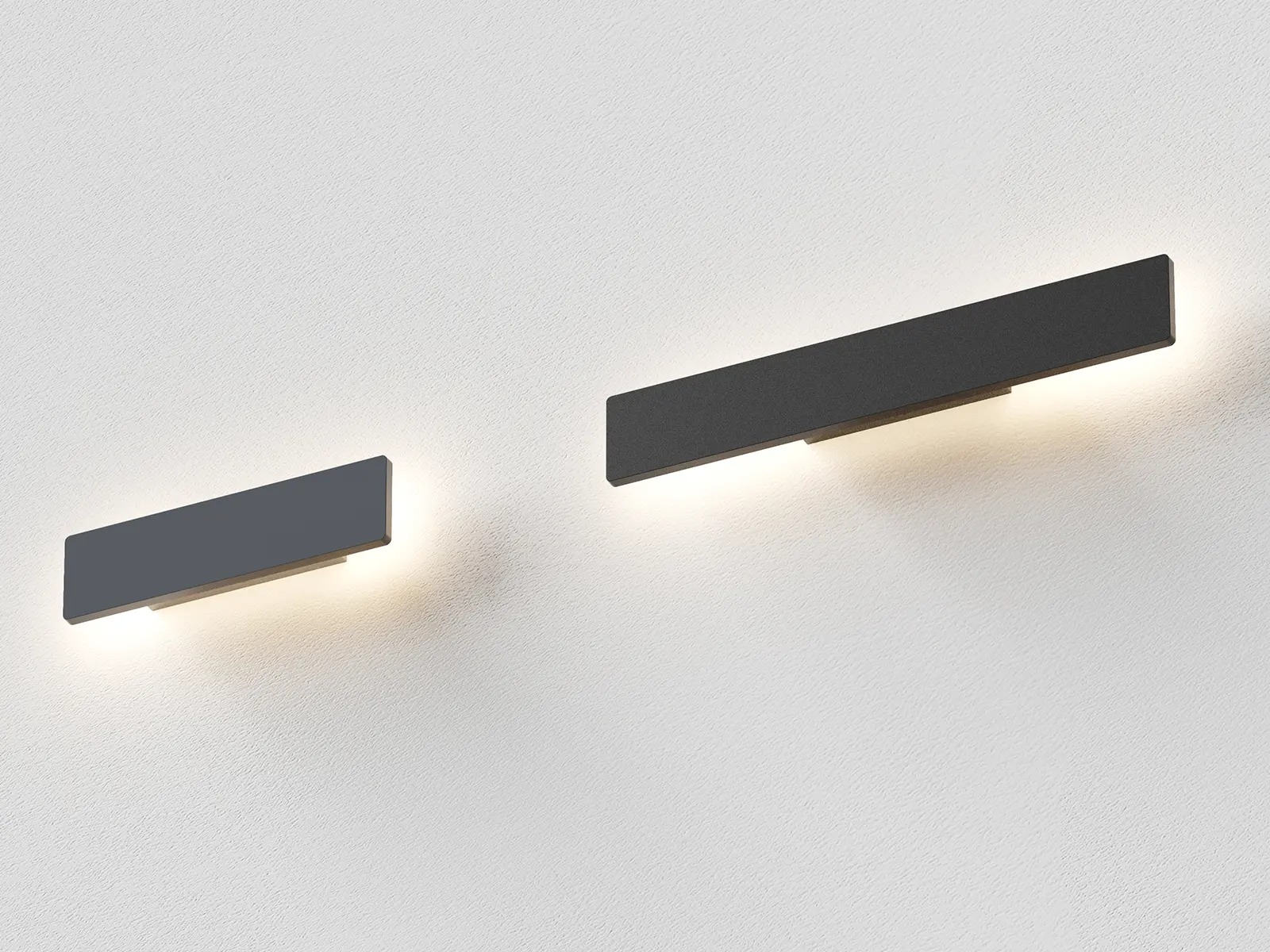

This wall lamp is a scene lighting design with backward atmosphere light. For optic part, it adopts 2835 SMD light source and PC diffuser, based on the backward lighting design, it has a soft and uniform light output. For structure, it adopts ADC12 Aluminum housing, which ensures a great thermal management. To meet more application areas demand, the whole lamp is IP65 waterproof, and can do changeable CCT and DALI dim.
Applications: It's widely used in indoor and outdoor scene lighting area, such as yard, green landscape, business street, garden, park etc.
| Code | WL182-300-12W-C2 | WL182-300-10W-DAC2 | WL182-500-18W-C2 | WL182-500-10W-DAC2 | ||
|---|---|---|---|---|---|---|

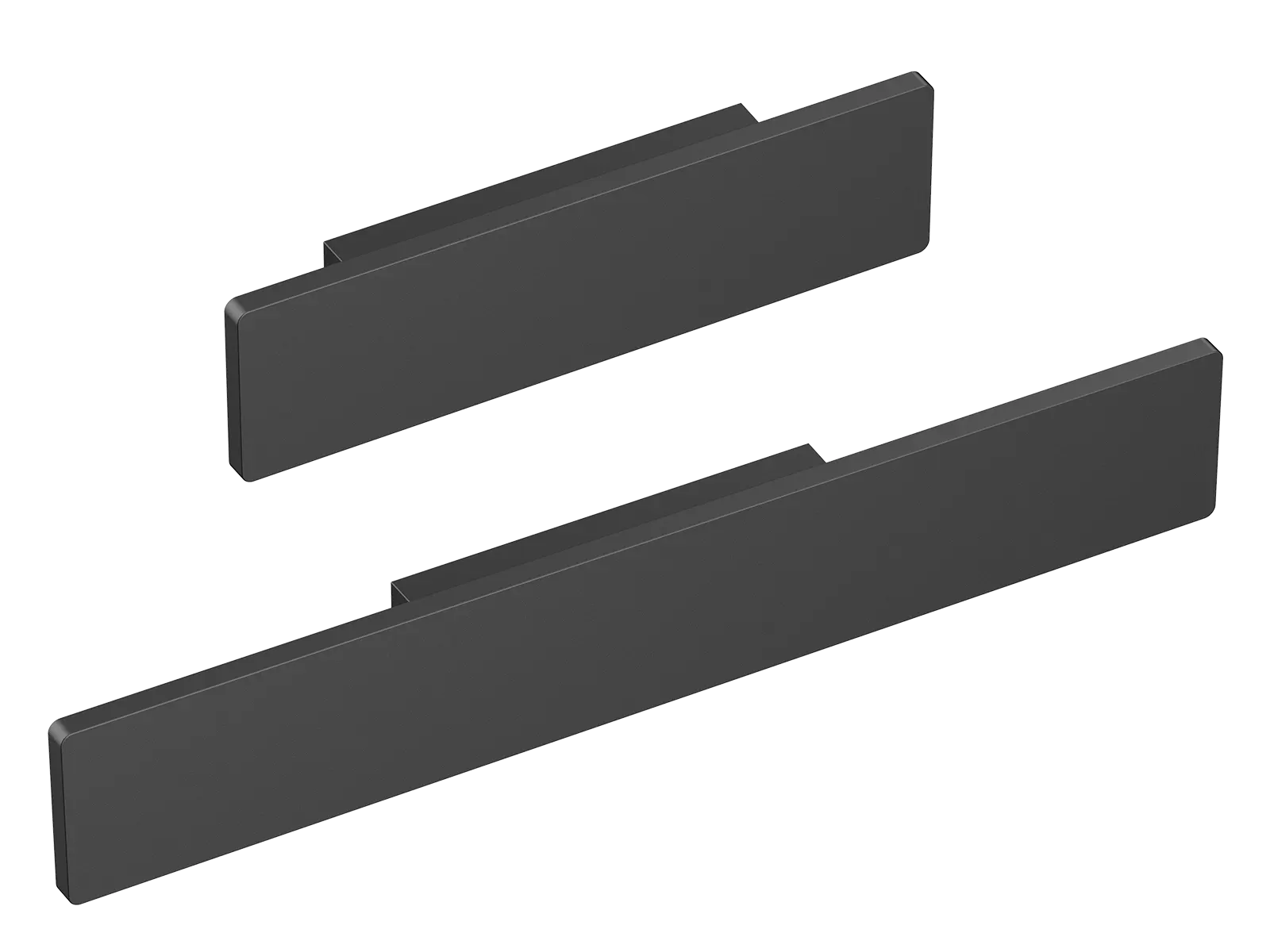

| Dimension(mm) | L300*W80*H45 | L500*W80*H45 | ||||
| Watt(W) | 12W | 10W | 18W | 10W | ||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198-264V | |||||
| Light Source | SMD | |||||
| SDCM | SDCM<6 | |||||
| CCT(K) | 2-CCT:3000K+ 4000K | |||||
| CCT Selection DIP Switch | YES | |||||
| Luminous Flux (lm) ±5% CRI80 | 2-CCT | Non-DIM | 850-950 | - | 1500-1600 | - |
| DALI | - | 650-700 | - | 800-850 | ||
| CRI | 80 | |||||
| Beam Angle(°) | 100° | |||||
| LED Driver | Built-in | |||||
| Dimming Option | - | DALI | - | DALI | ||
| Emergency Kits | No | |||||
| Electrical Class | Class I | |||||
| Ingress Protection(IP Rating) | IP65 | |||||
| Impact Resistance(IK Rating) | IK03 | |||||

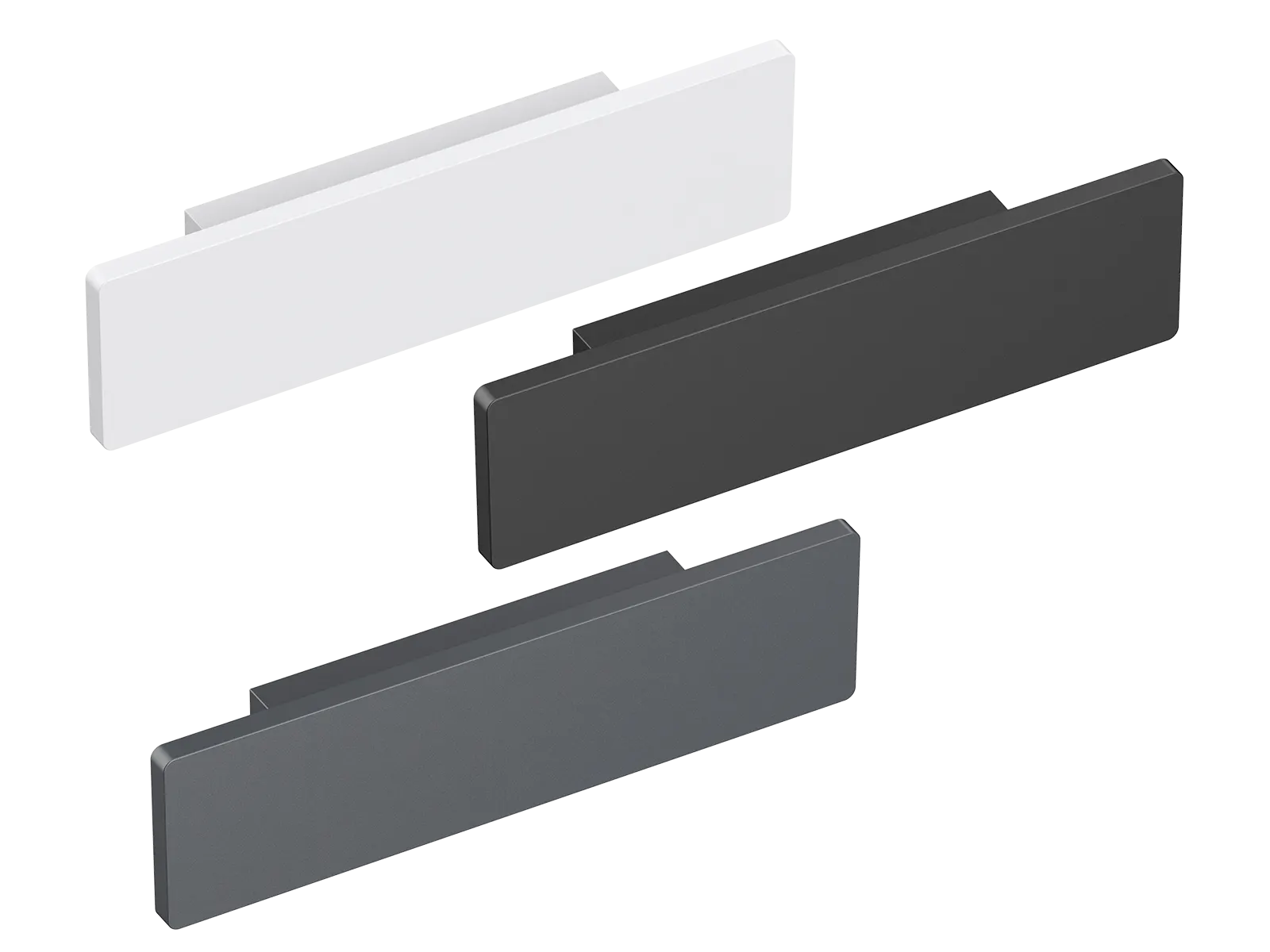

| Product Finishing | Black RAL9005, White RAL9016, Grey RAL7015 | |||||
| Optics Material | PC | |||||
| Housing Material | Die-Casting Aluminium | |||||
| Lifetime(hr) | 50,000h | |||||
| Glow wire test(°C) | 750°C | |||||
| Operating Temp.(°C) | -20°C~45°C | |||||
| Storage Temp.(°C) | -20C~65°C | |||||
| Installation | Wall mount | |||||
