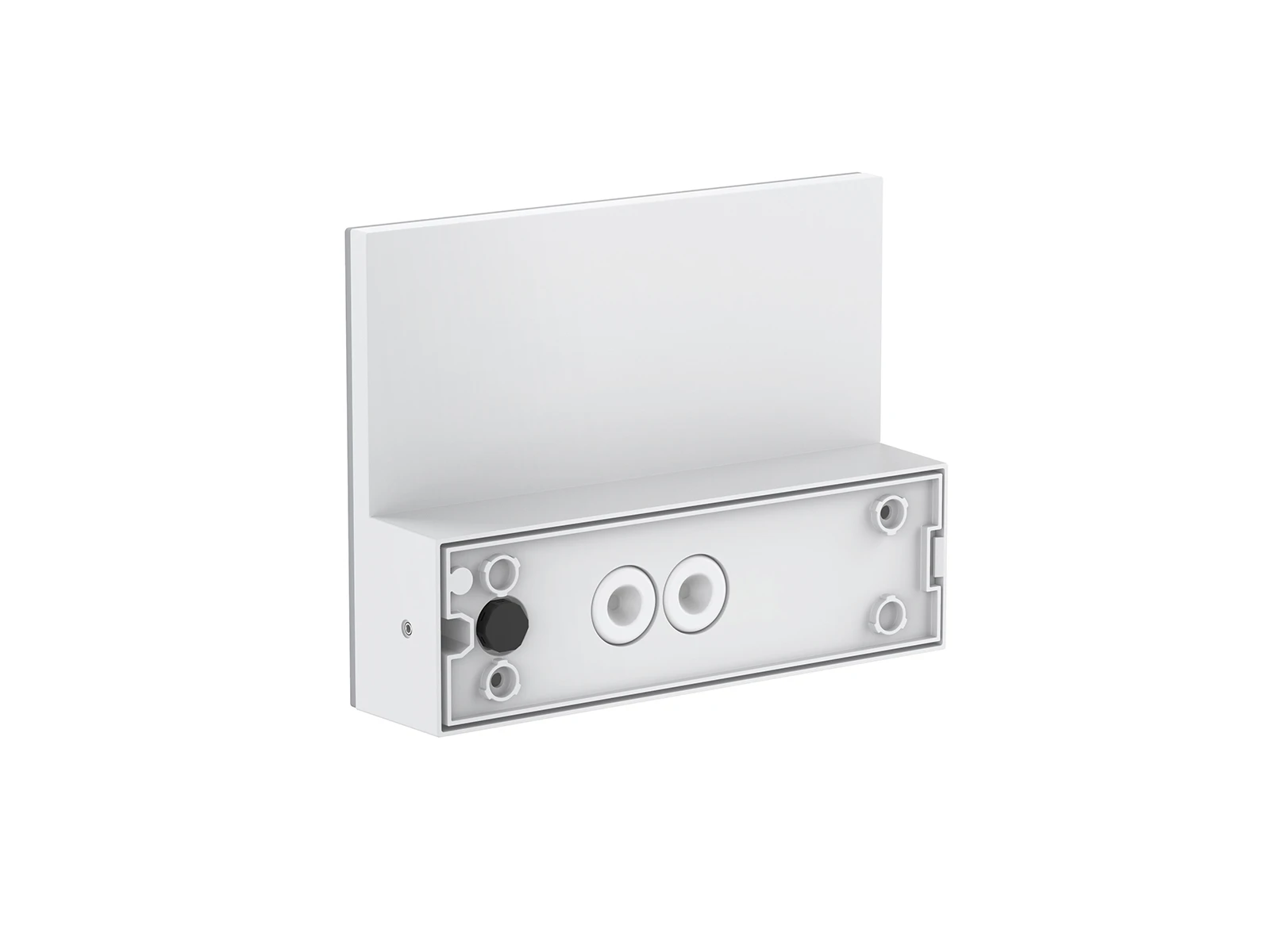

This is an IP65 wall lamp which can be used as door number light. It adopts a side light solution with PC diffuser, PMMA LGP and glass seal to ensure even and soft light output. To meet more application demands, it has triac dimmable and DALI dimmable option, CCT adjustable to save SKU.
Application Areas: It’s widely used in entry door, courtyard, balcony, lobby, aisle etc.
| Code | WL181-8W-D3C2 | WL181-8W-DAC2 | ||
|---|---|---|---|---|
| Dimension(mm) | 212*162*52 | |||
| Watt(W) | 8W Max.(6W/4W optional) | 8W | ||
| Rated Input Voltage | AC 220-240V | |||
| Input Voltage | AC198-264V | |||
| Light Source | SMD2835 | |||
| SDCM | SDCM<6 | |||
| CCT(K) | 2-CCT: 3000K+4000K | |||
| CCT Selection DIP Switch | YES | |||
| "Luminous Flux (lm) ±5% CRI80" | 2-CCT | DIM | 4W: 205-220 6W: 440-455 8W: 600-620 | 600-620 |
| CRI | CRI80 | |||
| Beam Angle(°) | 110 | |||
| LED Driver | Built-in | |||

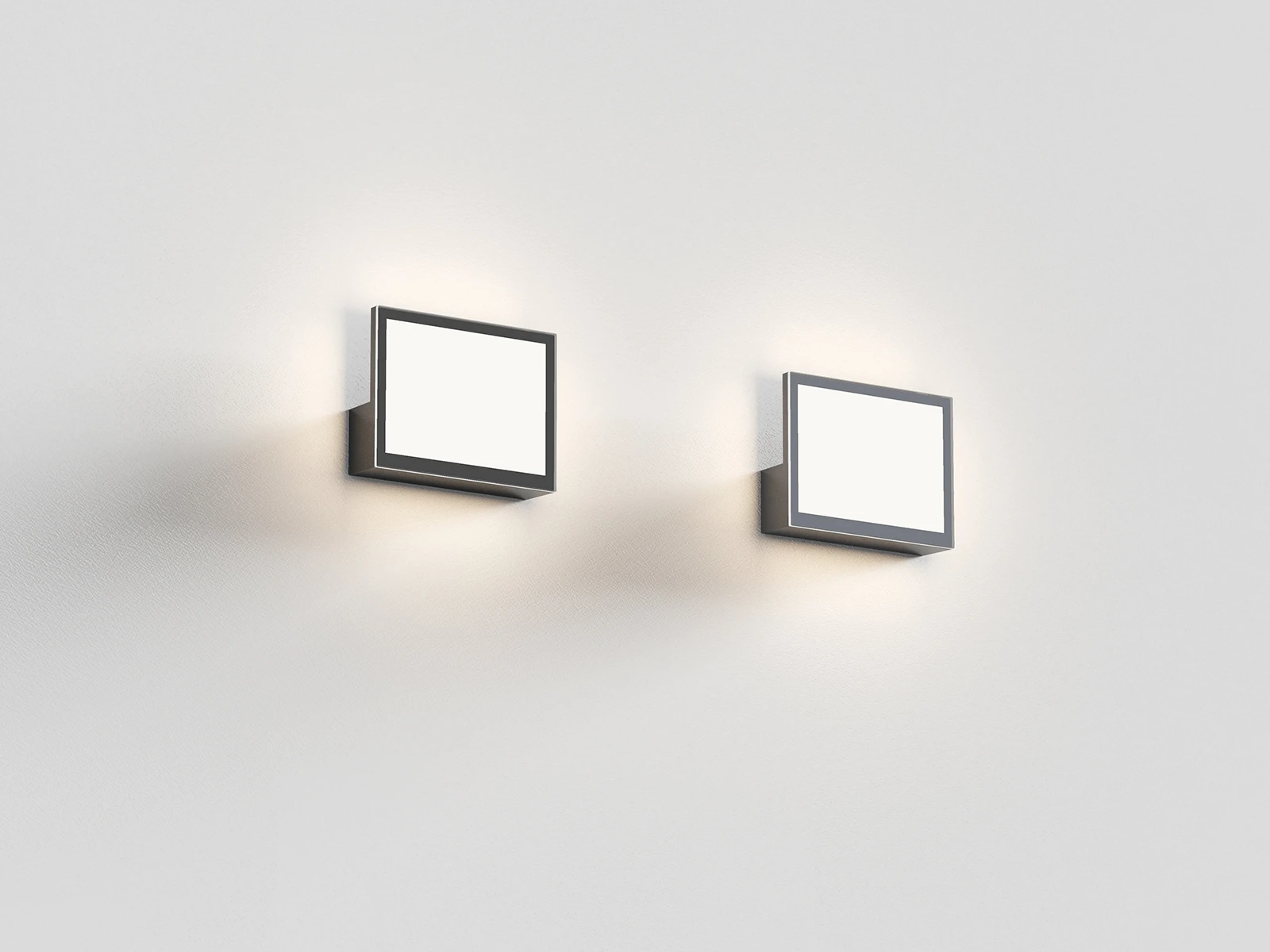

| Dimming Option | Triac | DALI | ||
| Sensor | NO | |||
| Emergency Kits | NO | |||
| Electrical Class | Class I | |||
| Ingress Protection(IP Rating) | IP65 | |||
| Impact Resistance(IK Rating) | IK08 | |||

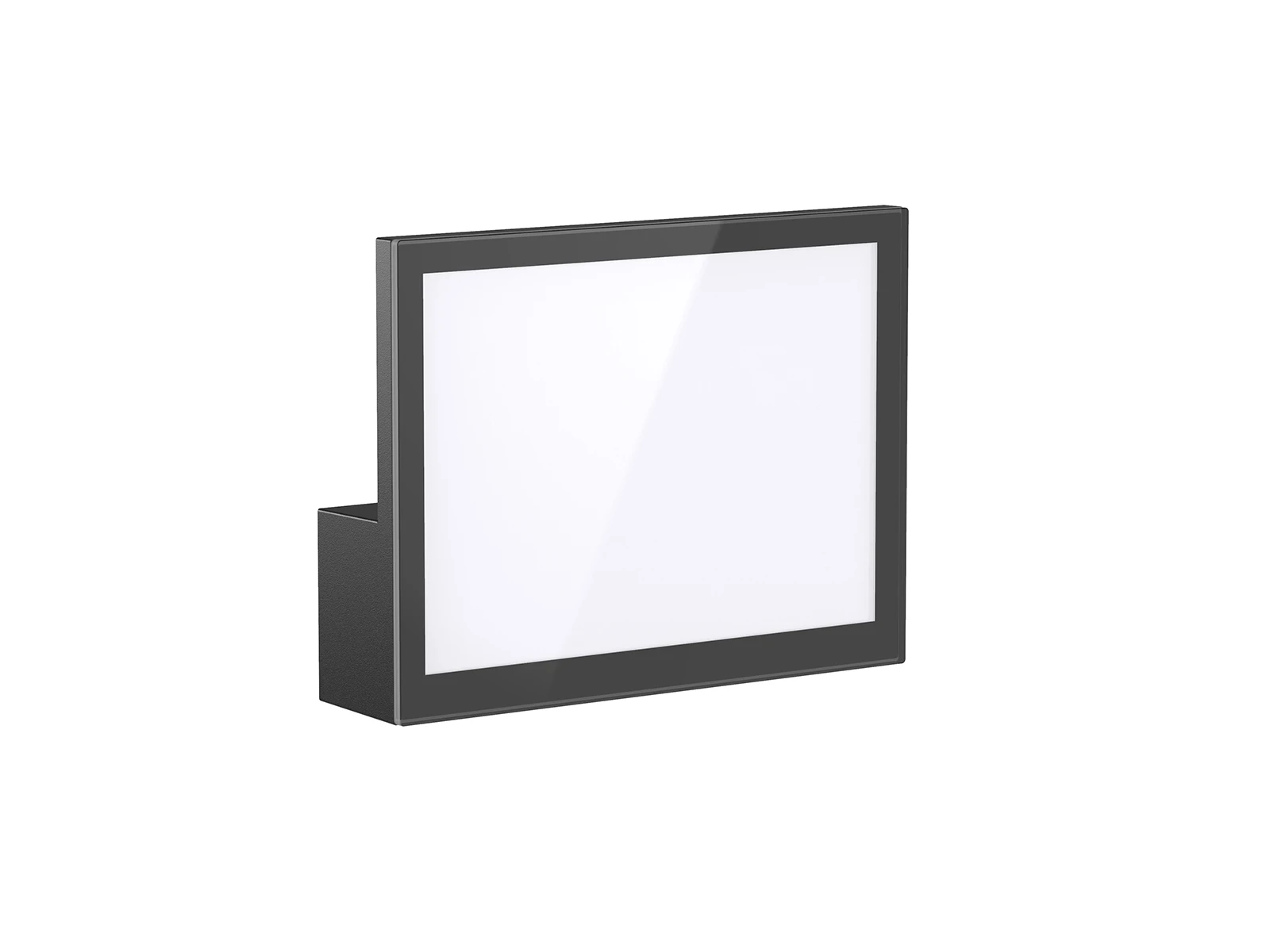

| Product Finishing | Black RAL9005, White RAL9016, Gray RAL7015 | |||
| Optics Material | PC+PMMA | |||
| Housing Material | Die-Casting Aluminium | |||
| Lifetime(hr) | 50,000h | |||
| Glow wire test(°C) | 650°C | |||
| Operating Temp.(°C) | -20°C-40°C | |||
| Storage Temp.(°C) | -20°C-60°C | |||
| Installation | Wall mount | |||
