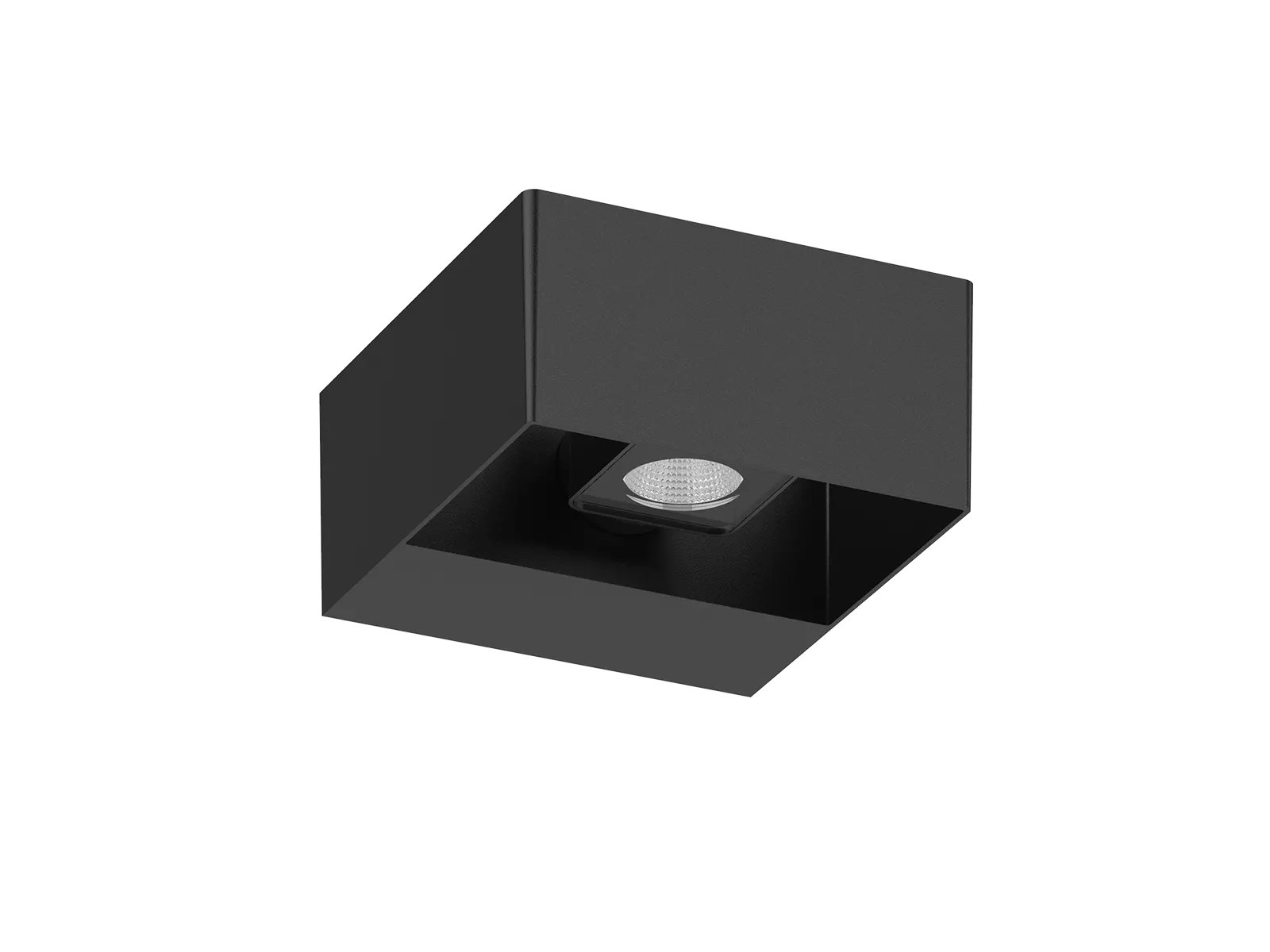

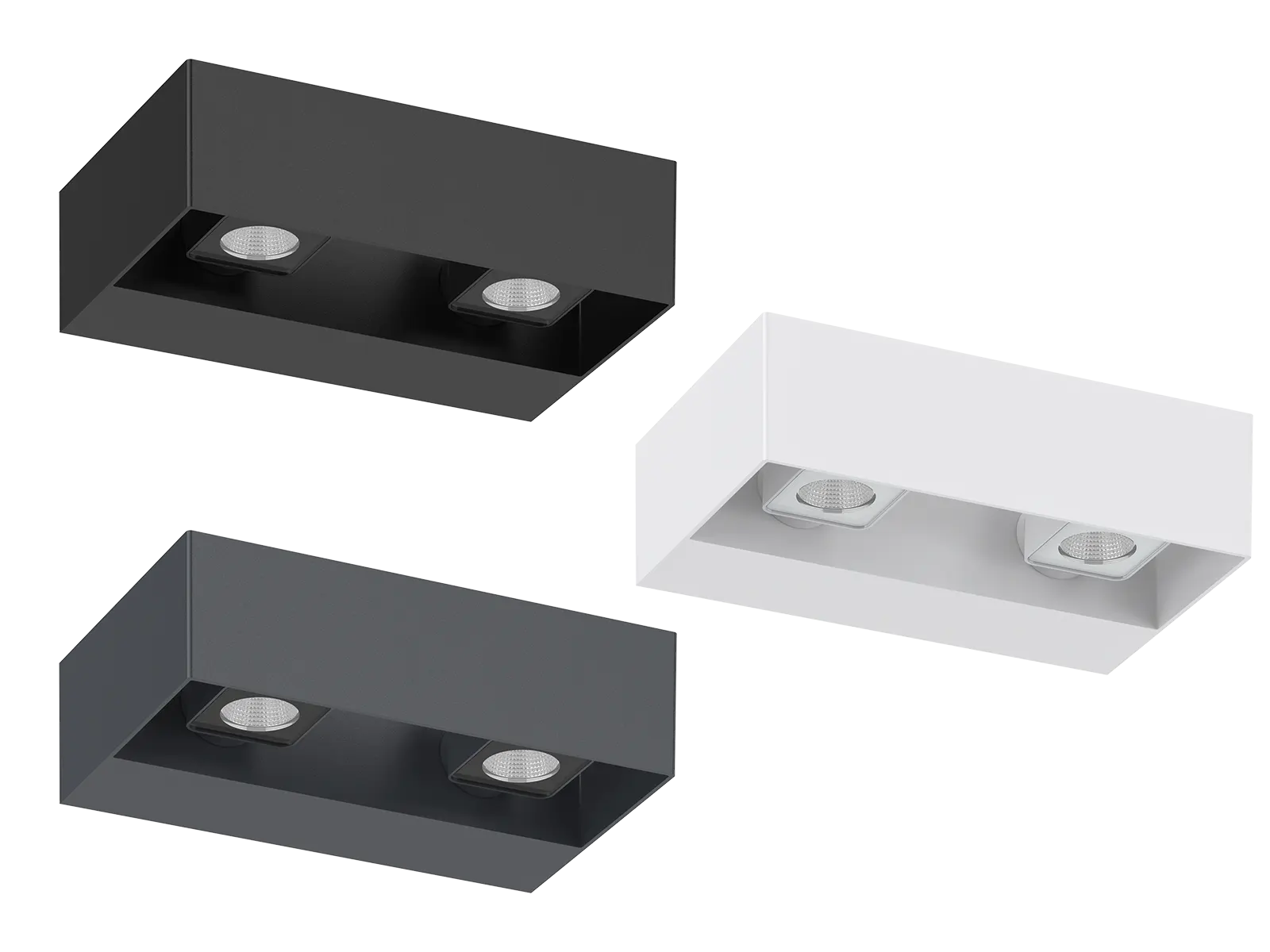

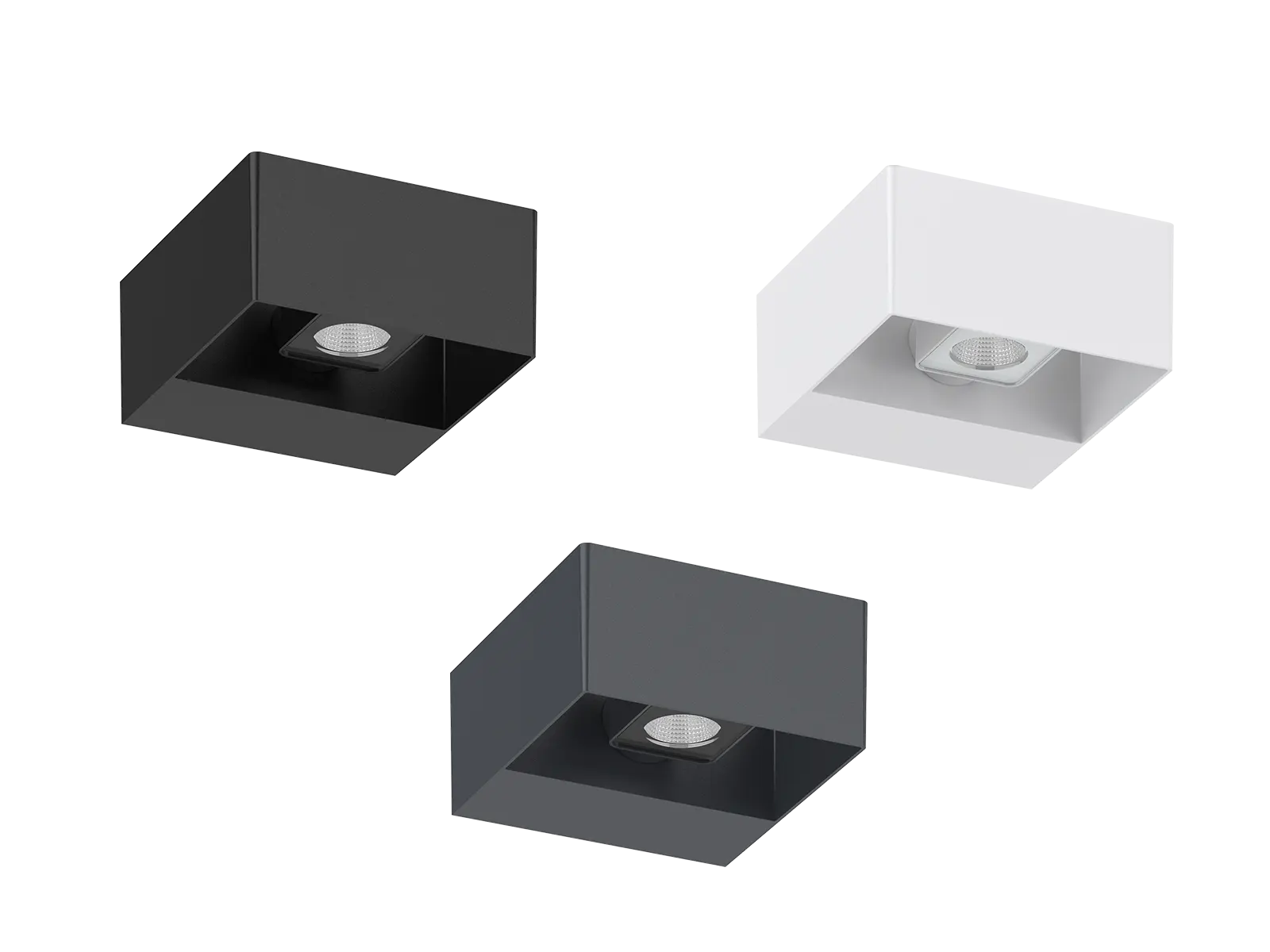

This is a cube wall lamp which can adjust lighting direction with 350degree rotation. It adopted ADC12 aluminium housing with UV resistant surface treatment to keep a good heat dissipation and corrosion resistance. There has a knock down hole to input AC line in side, which is convenient for installation on the unembedded wall. Two size for option: one head and two heads.
Applications: It is designed for indoor and semi-outdoor lighting applications such as residential, hotel, yards, porches, stairways etc.
| CODE | WL179-5W-D | WL179-8W-D | ||
|---|---|---|---|---|
| Dimension(mm) | L125*W125*H60 | L205*W125*H60 | ||
| Watt(W) | 1X5W | 2X4W | ||
| Input Voltage | AC220-240V | |||
| LED Module Input | DC33-38V | |||
| Light Source | COB | |||
| CCT(K) | 1-CCT: 3000K / 4000K || 2-CCT: 3000K + 4000K | |||
| CCT Selection DIP Switch | YES | |||
| 1-CCT | Non-DIM | - | ||
| Luminous Flux (lm) ±5% | DIM | 510-550 | 800-890 | |
| CRI80 | 2-CCT | Non-DIM | - | |
| DIM | 496-540 | 756-870 | ||
| Beam Angle(°) | 45° | |||
| Dimming Option | Triac | |||
| Sensor | NO | |||
| Emergency | NO | |||
| Product weight(Kg) | N.W/PC | 0.58 | 0.96 | |
| G.W/PC | 0.63 | 1.02 | ||
| Package weight(Kg) | N.W/CTN | 10.44 | 11.52 | |
| G.W/CTN | 8.15 | 12.85 | ||
| Qty/CTN(PCS) | 18 | 12 | ||
| Carton Size(cm) | 44.*30.5*26.5 | 46.5*30.5*26.5 | ||
| 20GP(pcs) | 13824 | 8064 | ||
| 40HQ(pcs) | 31266 | 18576 | ||
