COI (Cyanosis Observation Index) refers to the appearance of blue or purple color in the skin or mucous membranes. It measures color appearance changes by calculating the difference between fully oxygenated blood (100% oxygen saturation) and deoxygenated blood (bluish-purple blood at 50% oxygen saturation). The specific calculation method involves providing spectral reflectance data for both oxygenated and cyanotic blood, comparing it with a 4000K reference light source, and ultimately calculating the color difference in the CIE Lab* color space to determine the COI value.

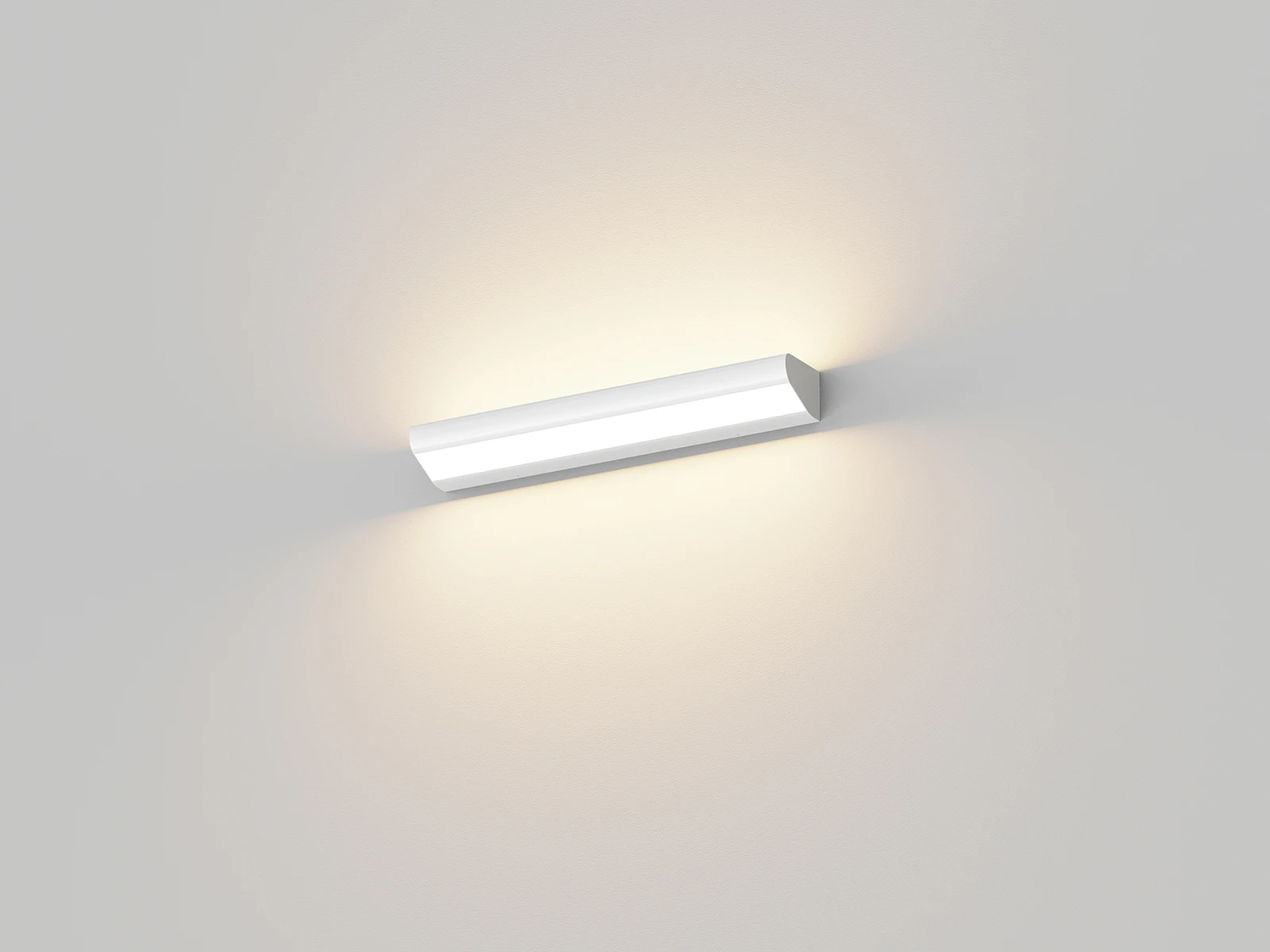

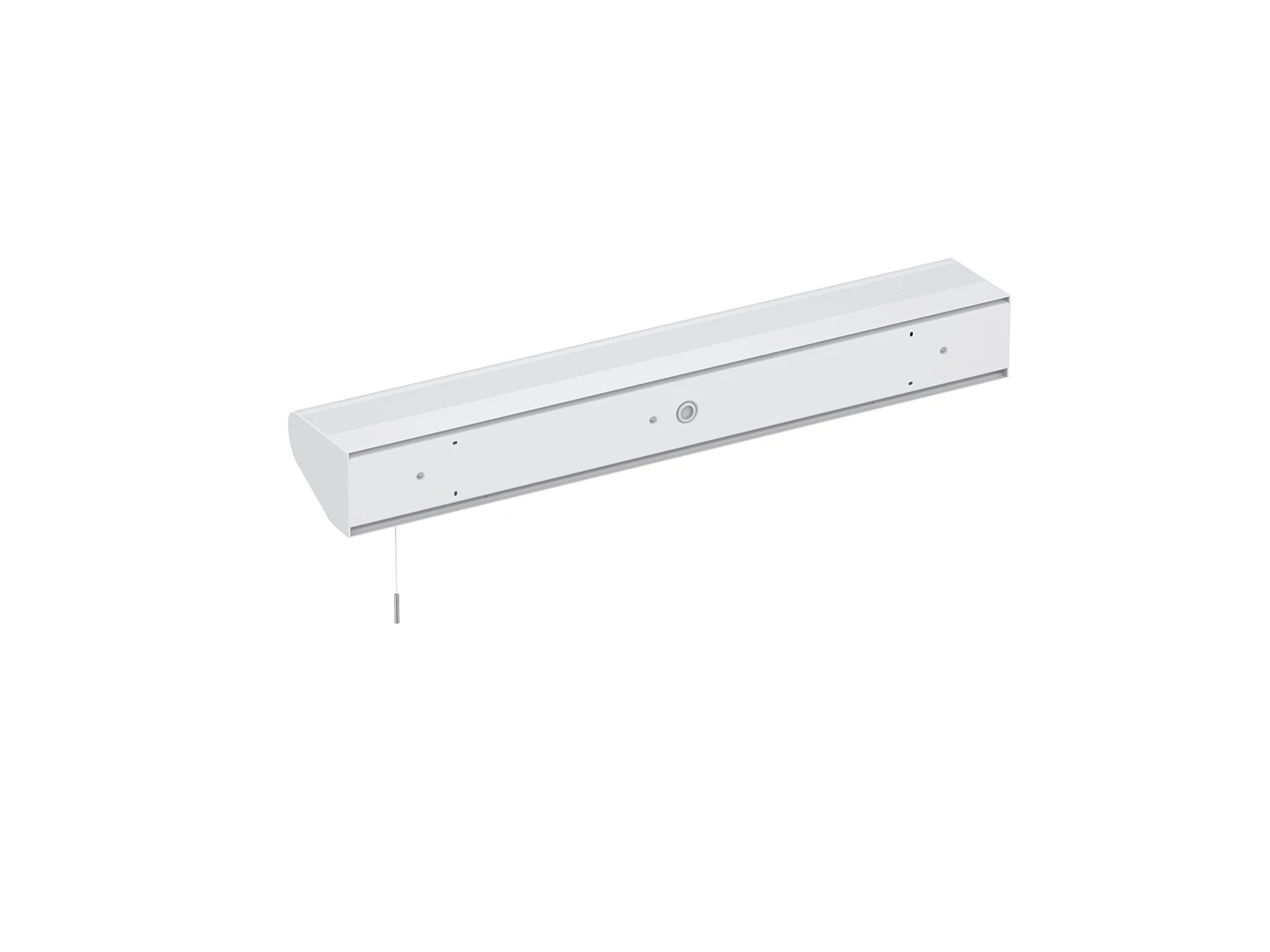

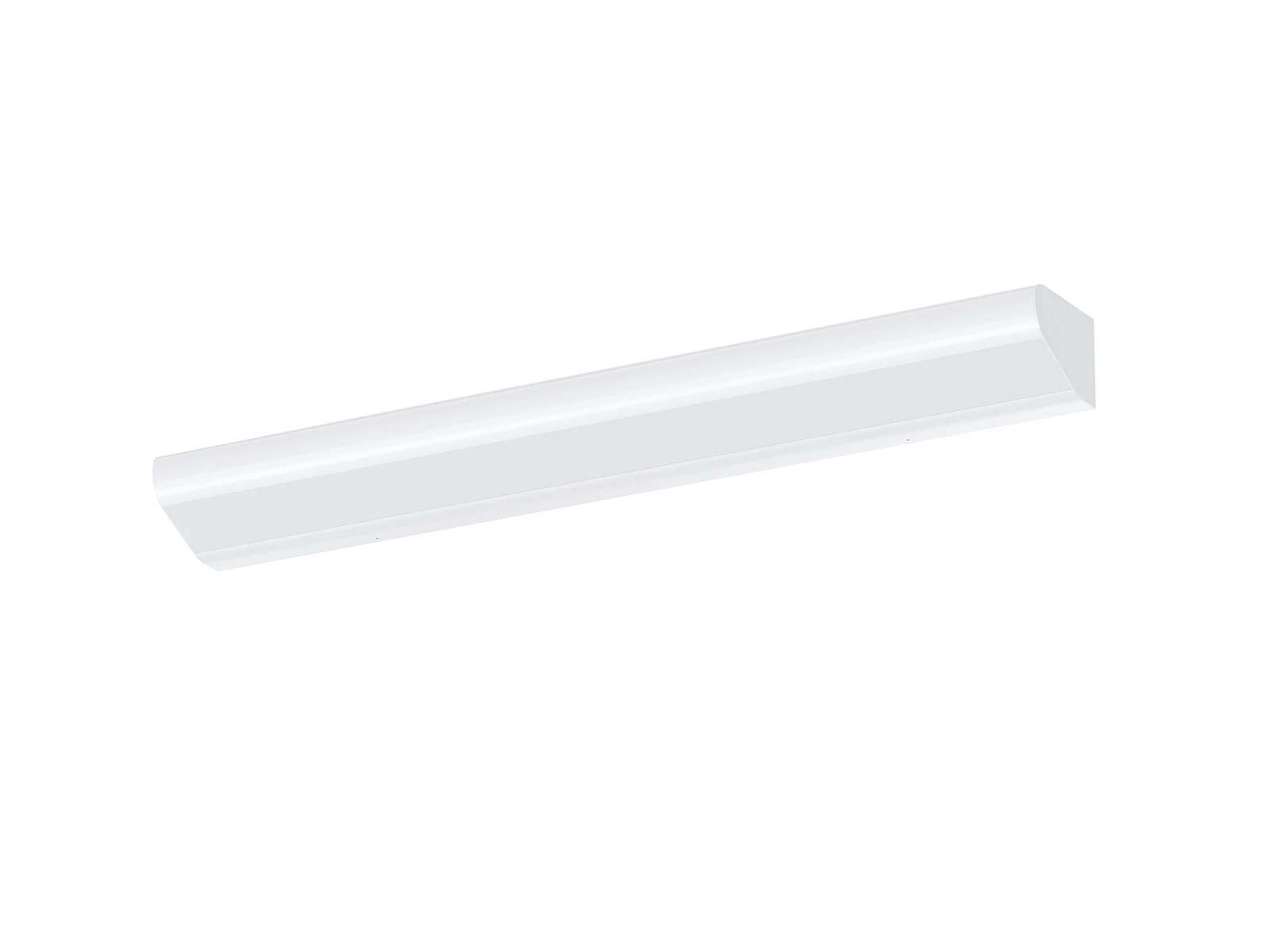

This is a lighting fixture specifically designed for hospitals, featuring a unique optical configuration of COI<3.3, R9>50, CRI90, and SDCM<3, which enhances color rendering accuracy. The fixture offers four lighting modes: indirect lighting, direct lighting, indirect+direct lighting, and night light, all controllable via a pull switch. It has a scene memory function to meet various situational requirements. The body is made of AL6063 aluminum alloy, with a PC lampshade and high-efficiency 2835 LED chip. The surface adopts a high-gloss white paint, making it easy to clean and resistant to cleaning agents, suitable for use in hospitals, age care facilities such similar environments.
Application Areas: It’s widely used in hospital wards, age care facilities, dermatology etc.
| Code | WL175A-680-38W | WL175A-680-52W | WL175 A-980-52W | WL175A-980-56W | WL175A-1280-52W | WL175A-1280-56W | |
|---|---|---|---|---|---|---|---|
| Dimension(mm) | 680*160*110 | 980*160*110 | 1280*160*110 | ||||
| Watt(W) | 19W+19W | 26W+26W | 26W+26W | 28W+28W | 26W+26W | 28W+28W | |
| Rated Input VoItage | AC220-240V | ||||||
| Input VoItage | AC198V-264V | ||||||
| Light Source | SMD | ||||||
| SDCM | 6 | ||||||
| CCT(K) | 3000K/4000K || 2700K/3000K(Night Iight) | ||||||
| CCT SeIection DIP Switch | NO | ||||||
| Luminous FIux (Im) ±5% CRI90 | Indirect | 2280-2730 | 3150-3770 | 3150-3770 | 3420-3770 | 3150-3770 | 3420-3770 |
| Direct & indirect | 4750-5580 | 6600-7700 | 6600-7700 | 7100-8500 | 6600-7700 | 7100-8500 | |
| Direct | 2280-2730 | 3150-3770 | 3150-3770 | 3420-4150 | 3150-3770 | 3420-4150 | |
| Night Iight | 400-450(4.5W) | ||||||
| CRI | CRI90 | ||||||
| Beam AngIe(°) | UP: 100°, DOWN: 100° | ||||||
| LED Driver | BuiIt-in, FIicker Free | ||||||
| EIectricaI CIass | CIass I | ||||||
| Ingress Protection(IP Rating) | IP54 | ||||||
| Impact Resistance(IK Rating) | IK06 | ||||||
| Product Finishing | White RAL9016 | ||||||
| Optics MateriaI | PC | ||||||
| Housing MateriaI | AIuminium | ||||||
| Lifetime(hr) | L90>80,000hrs / L80>100,000hrs | ||||||
| GIow wire test(°C) | 750°C | ||||||
| Operating Temp.(°C) | -20°C~45°C | ||||||
| Storage Temp.(°C) | -20°C~65°C | ||||||
| InstaIIation | WaII mount | ||||||
| Code | WL175B-680-38W | WL175B-680-52W | WL175B-980-52W | WL175B-980-56W | WL175B-1280-52W | WL175B-1280-56W | ||
|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | 680*160*118 | 980*160*118 | 1280*160*118 | |||||
| Watt(W) | 2*19W | 2*26W | 2*26W | 2*28W | 2*26W | 2*28W | ||
| Rated Input Voltage | AC220-240V | |||||||
| Input Voltage | AC198V-264V | |||||||
| Light Source | SMD | |||||||
| SDCM | 6 | |||||||
| CCT(K) | 3000K/4000K || 2700K/3000K(Night light) | |||||||
| CCT Selection DIP Switch | NO | |||||||
| Luminous Flux (lm) ±5% CRI90 | Non-DIM | Indirect | 2280-2730 | 3150-3770 | 3150-3770 | 3420-3770 | 3150-3770 | 3420-3770 |
| Direct & indirect | 4750-5580 | 6600-7700 | 6600-7700 | 7100-8500 | 6600-7700 | 7100-8500 | ||
| Direct | 2280-2730 | 3150-3770 | 3150-3770 | 3420-4150 | 3150-3770 | 3420-4150 | ||
| DALI | Indirect | 2180-2630 | 2990-3580 | 2990-3580 | 3250-3900 | 2990-3580 | 3250-3900 | |
| Direct & indirect | 4570-5380 | 6270-7320 | 6270-7320 | 6800-8090 | 6270-7320 | 6800-8090 | ||
| Direct | 2180-2630 | 2990-3580 | 2990-3580 | 3250-3900 | 2990-3580 | 3250-3900 | ||
| Night light | 400-450 (4.5W) | |||||||
| CRI | CRI90 | |||||||
| Beam Angle (°) | UP: 100°, DOWN: 100° | |||||||
| LED Driver | Built-in, Flicker Free | |||||||
| Electrical Class | Class I | |||||||
| Ingress Protection(IP Rating) | IP54 | |||||||
| Impact Resistance(IK Rating) | IK06 | |||||||
| Product Finishing | White RAL9016 | |||||||
| Optics Material | PC | |||||||
| Housing Material | Aluminium | |||||||
| Lifetime (hr) | L90>80,000hrs / L80>100,000hrs | |||||||
| Glow wire test (°C) | 750°C | |||||||
| Operating Temp.(°C) | -20°C~45°C | |||||||
| Storage Temp.(°C) | -20°C~65°C | |||||||
| Installation | Wall mount | |||||||
