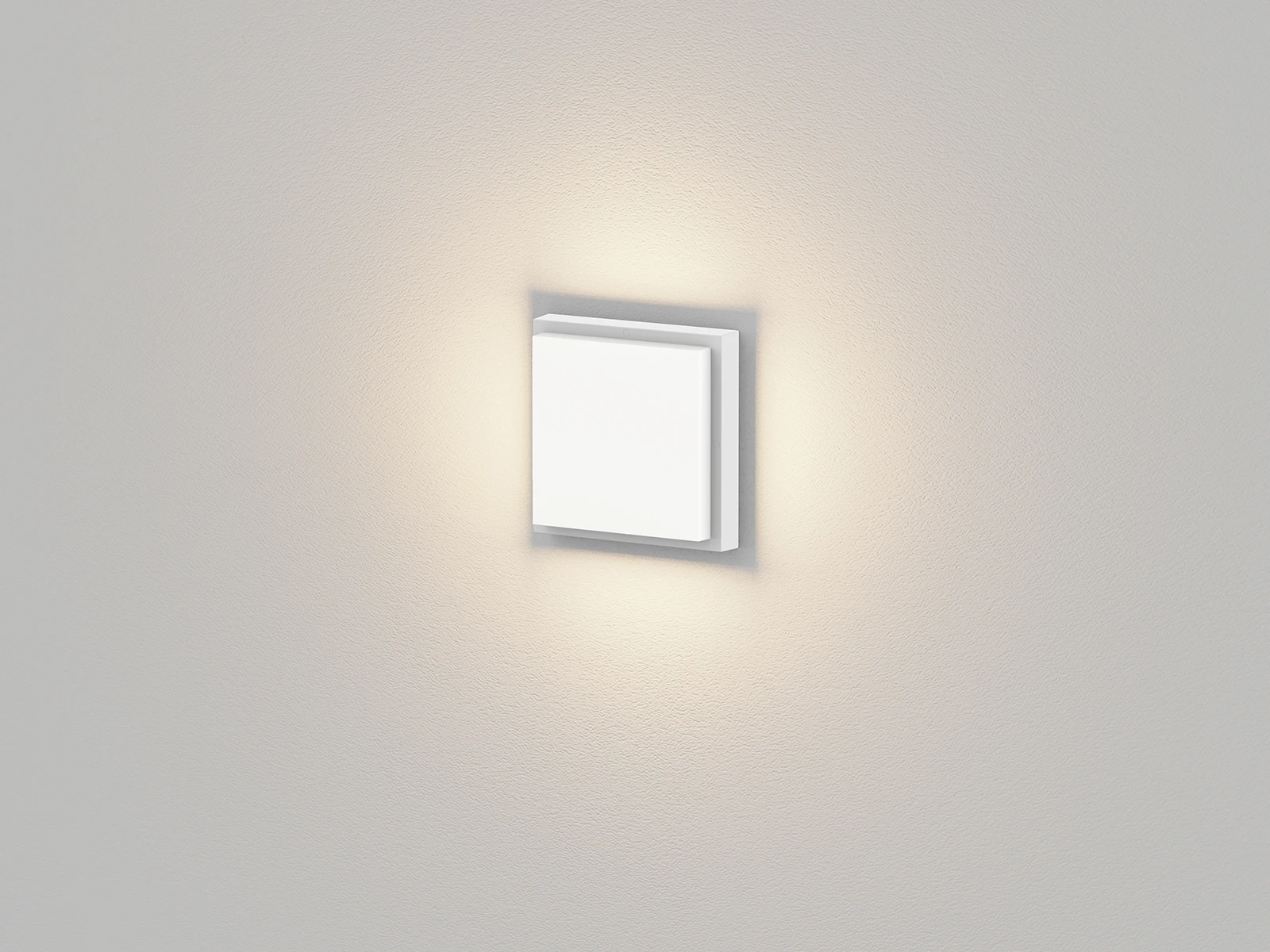

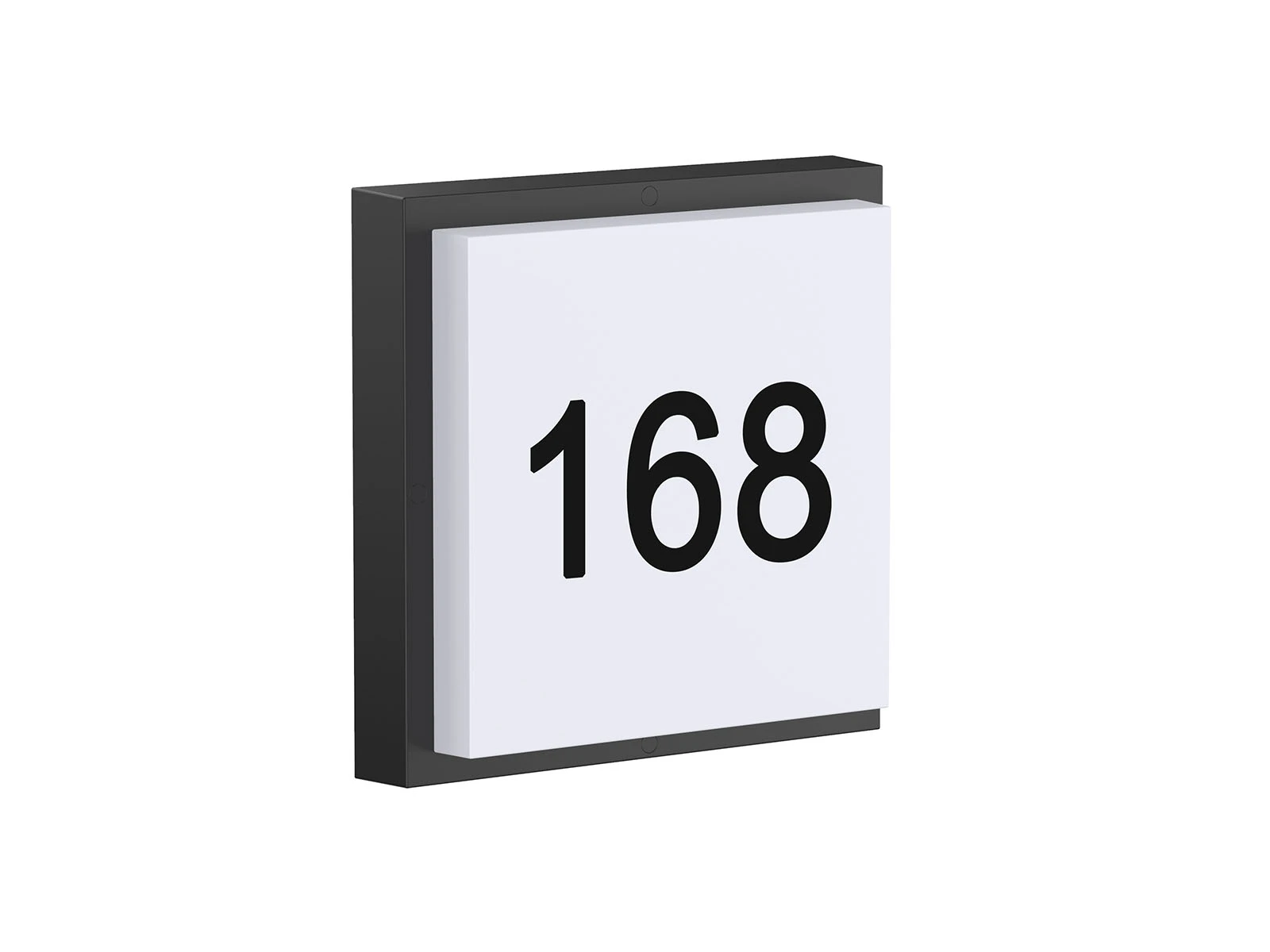

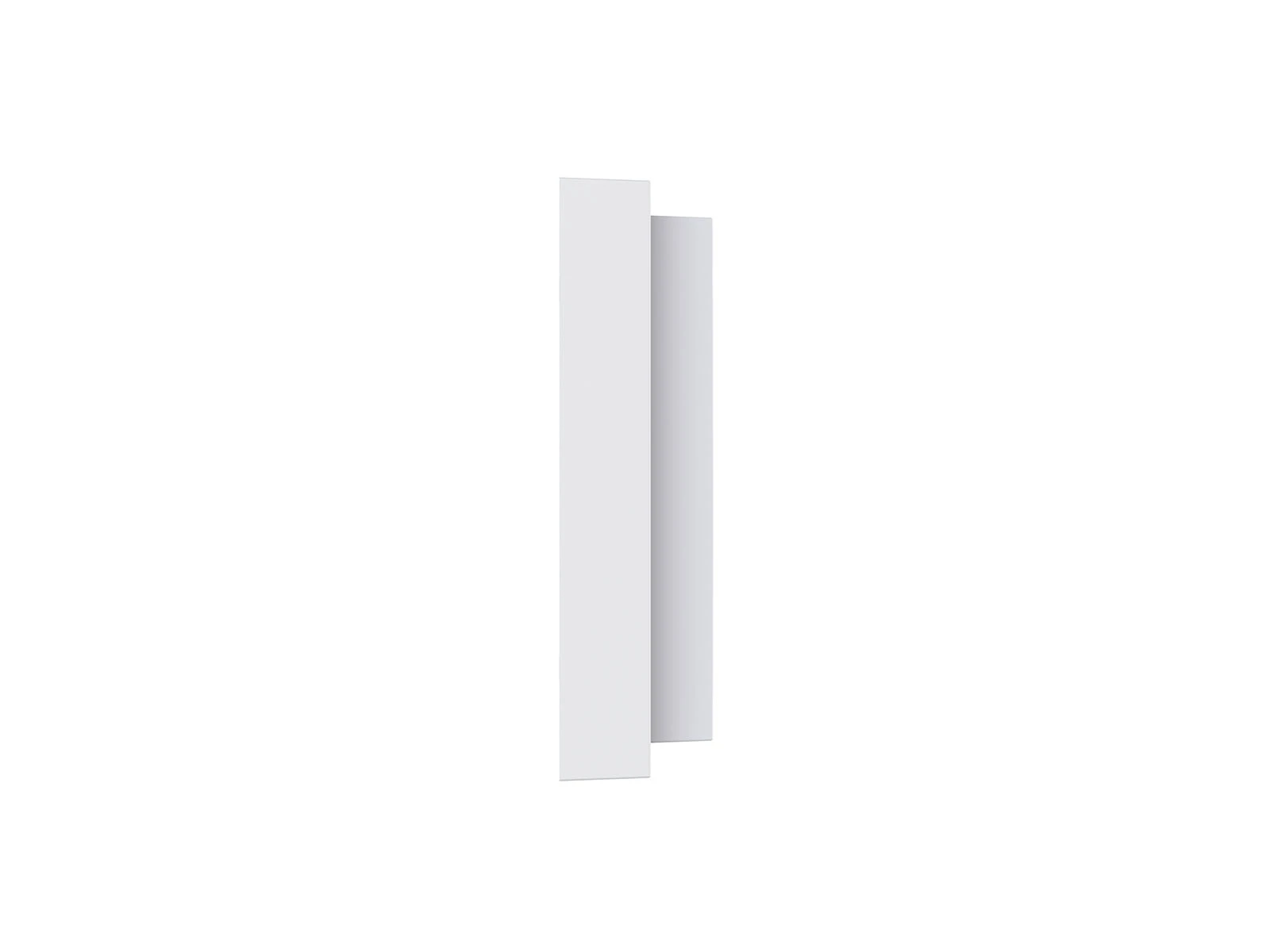

This is an IP65 outdoor wall lamp with daylight sensor design, it can be used as door number light. The lamp cover and base are made of PC material, with high efficiency 110lm/W. For structure. The side lighting area occupies nearly half of the total thickness of the lamp, increasing the ambient light around it. For daylight sensor, daylight sensor threshold can be adjusted according to actual needs, the light sensor can distinguish between lamp light and natural light to reduce false triggering. For installation, it support both side cable entry and backward cable entry.
APPLICATIONS: It’s widely used in entry door, courtyard, balcony, townhouse, hotel, garden, pathway, etc.
| Code | WL168-6W | WL168-10W | ||
|---|---|---|---|---|
| Dimension(mm) | 250*250*65 | |||
| Watt(W) | 6W | |||
| Input Voltage | AC220-240V | |||
| Light Source | SMD | |||
| CCT(K) | 1-CCT: 3000K/4000K||2-CCT:3000K+ 4000K | |||
| CCT Selection DIP Switch | YES | |||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 700-800 | 1100-1200 |
| DIM | - | |||
| 2-CCT | Non-DIM | 700-800 | 1100-1200 | |
| DIM | - | |||
| White version will have 10% lumen increase than black version | ||||
| Beam Angle(°) | 120° | |||
| Sensor | Daylight sensor | |||
| Product weight(Kg) | N.W/PC | 0.92 | ||
| G.W/PC | 1.1 | |||
| Package weight(Kg) | N.W/CTN | 11.04 | ||
| G.W/CTN | 14.5 | |||
| Qty/CTN (PCS) | 12 | |||
| Carton Size(cm) | 55.5*53*29.5 | |||
| 20GP(pcs) | 3360 | |||
| 40HQ(pcs) | 8064 | |||
