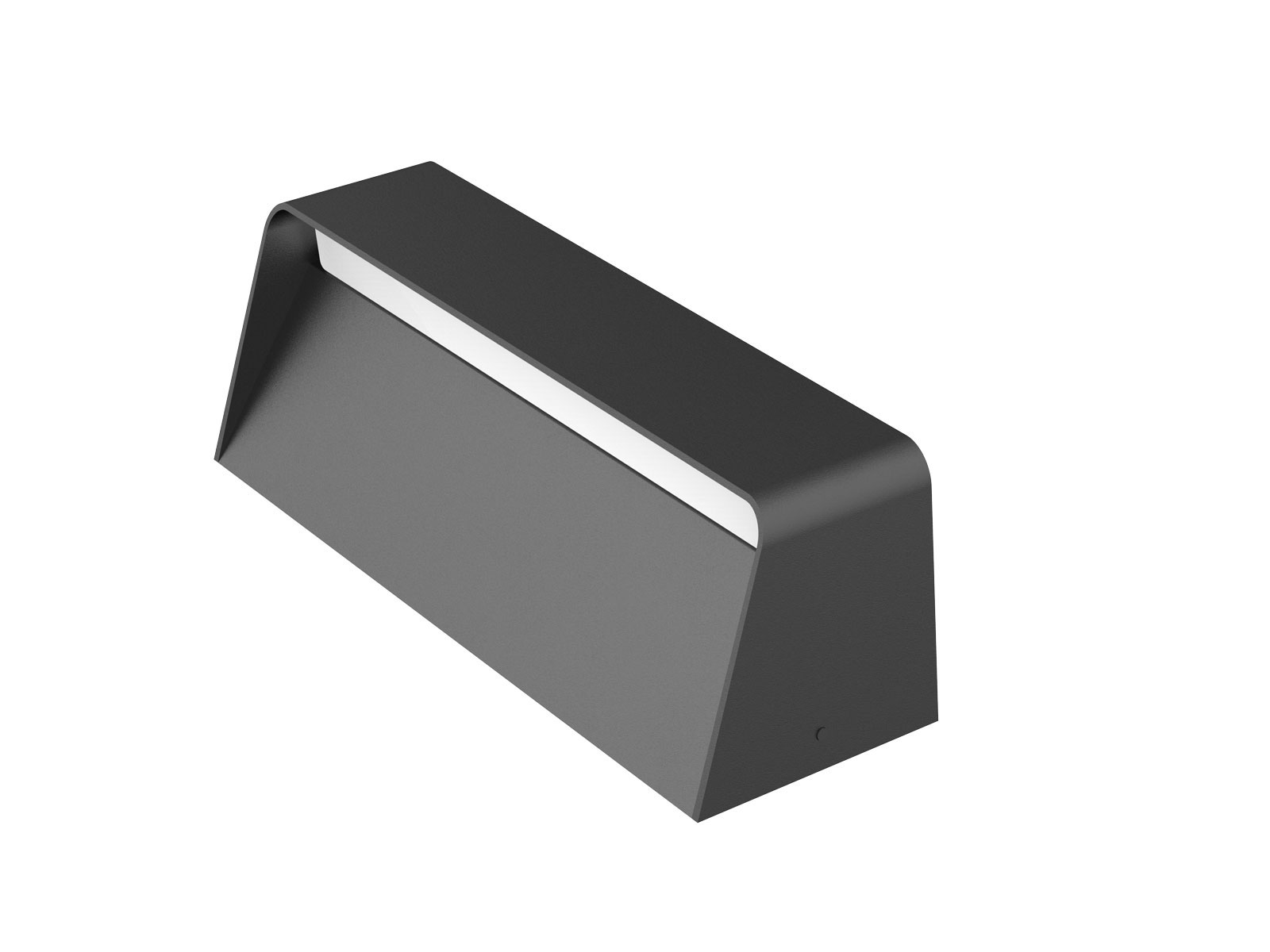

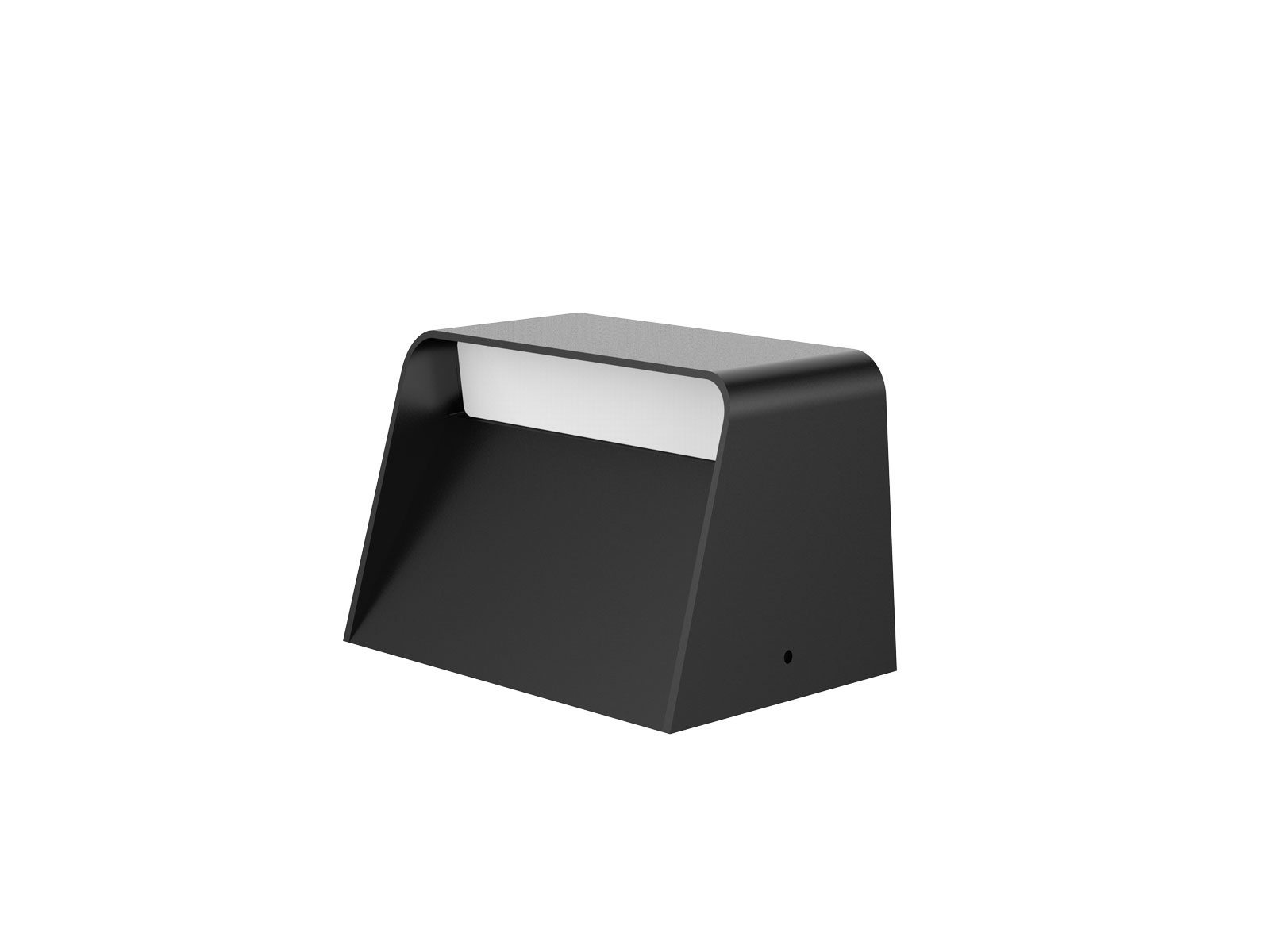

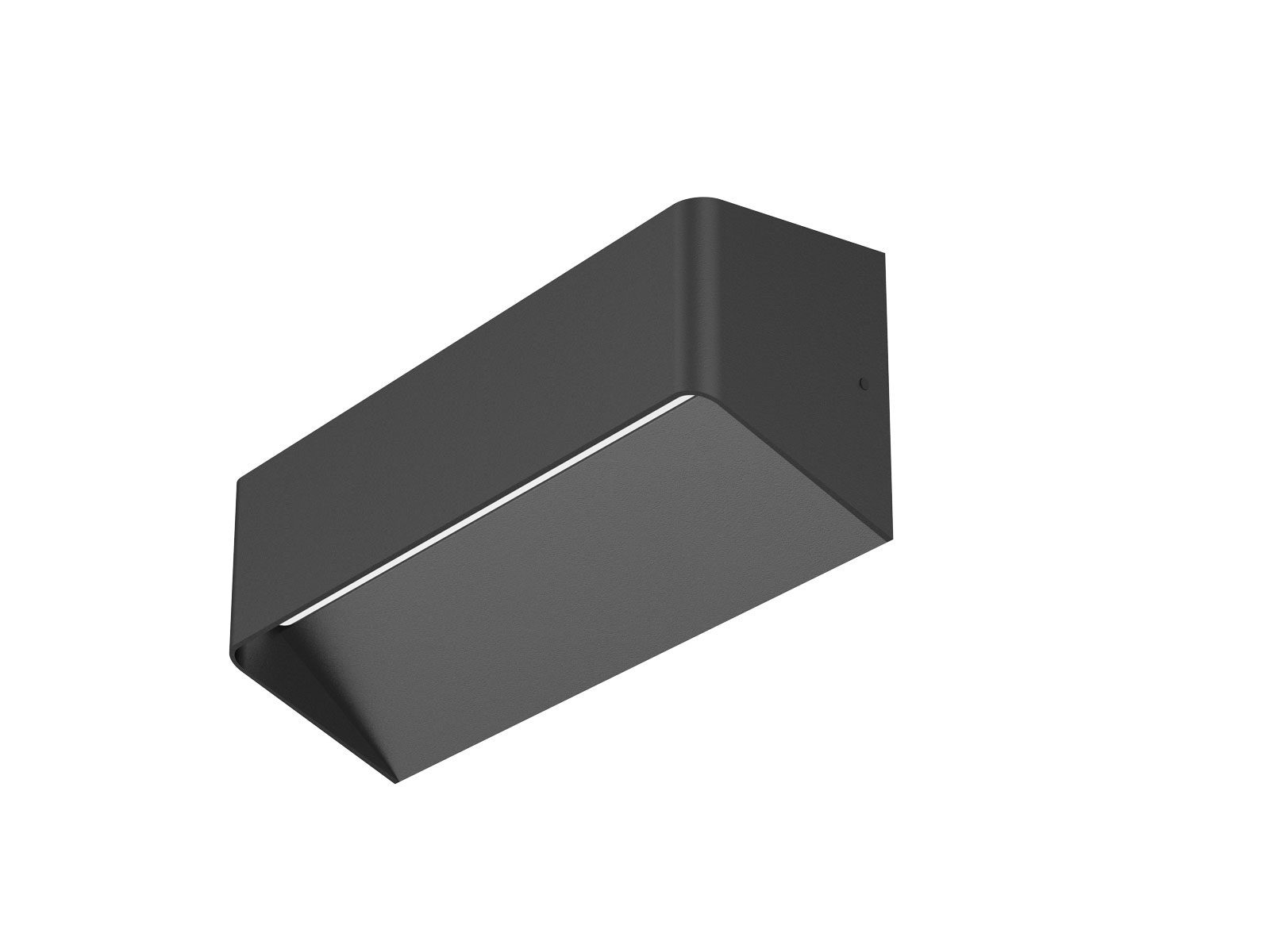

IP54 WL16 LED wall lamp adopts traditional classical design to meet the public aesthetic view, the whole range can do up&down lighting and can do CCT changeable, ADC12 housing material provides excellent thermal management and 94-V0 fire rated PC make sure softly lighting to creating comfortable atmosphere.
Application Areas: It is designed for indoor and semi-outdoor lighting applications hotel, park, and corridors etc.
| Code Dimension(mm) | WL16-1510-10W 150*100*92 | WL16-3010-18W 300*100*92 | ||
|---|---|---|---|---|
| Watt(W) | 2X5W | 2X9W | ||
| Rated Input Voltage | AC230V | |||
| Input Voltage | AC220V-240V | |||
| Light Source | SMD | |||
| SDCM | SDCM<6 | |||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 2-CCT:3000K+4000K | |||
| CCT Selection | By DIP Switch | |||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | Black: 720-790 White: 1000-1080 | Black: 1550-1740 White: 2000-2190 |
| DIM | - | Black: 1350-1520 White: 1750-1910 | ||
| 2-CCT | Non-DIM | Black: 670-710 White: 930-970 | Black: 1430-1500 White: 1870-1960 | |
| DIM | - | Black: 1250-1310 White: 1630-1710 | ||
| CRI | CRI80 | |||
| Beam Angle(°) | 100° | |||
| LED Driver | Built-in,Flicker Free | |||
| Dimming Option | - | Triac | ||
| Electrical Class | Class I | |||
| Ingress Protection(IP Rating) | Wall Mount IP54 | |||
| Impact Resistance(IK Rating) | IK07 | |||
| Product Finishing | Black RAL9005, White RAL9016 | |||
| Optics Material | PC | |||
| Housing Material | Die-Casting Aluminium | |||
| Lifetime(hr) | 50,000h | |||
| Glow wire test(°C) | 750°C | |||
| Operating Temp.(°C) | -20°C~45°C | |||
| Storage Temp.(°C) | 20°C~65°C | |||
| Installation | Wall mount | |||
