WL156 LED Wall Light
WL156 LED Wall Light Three Colors

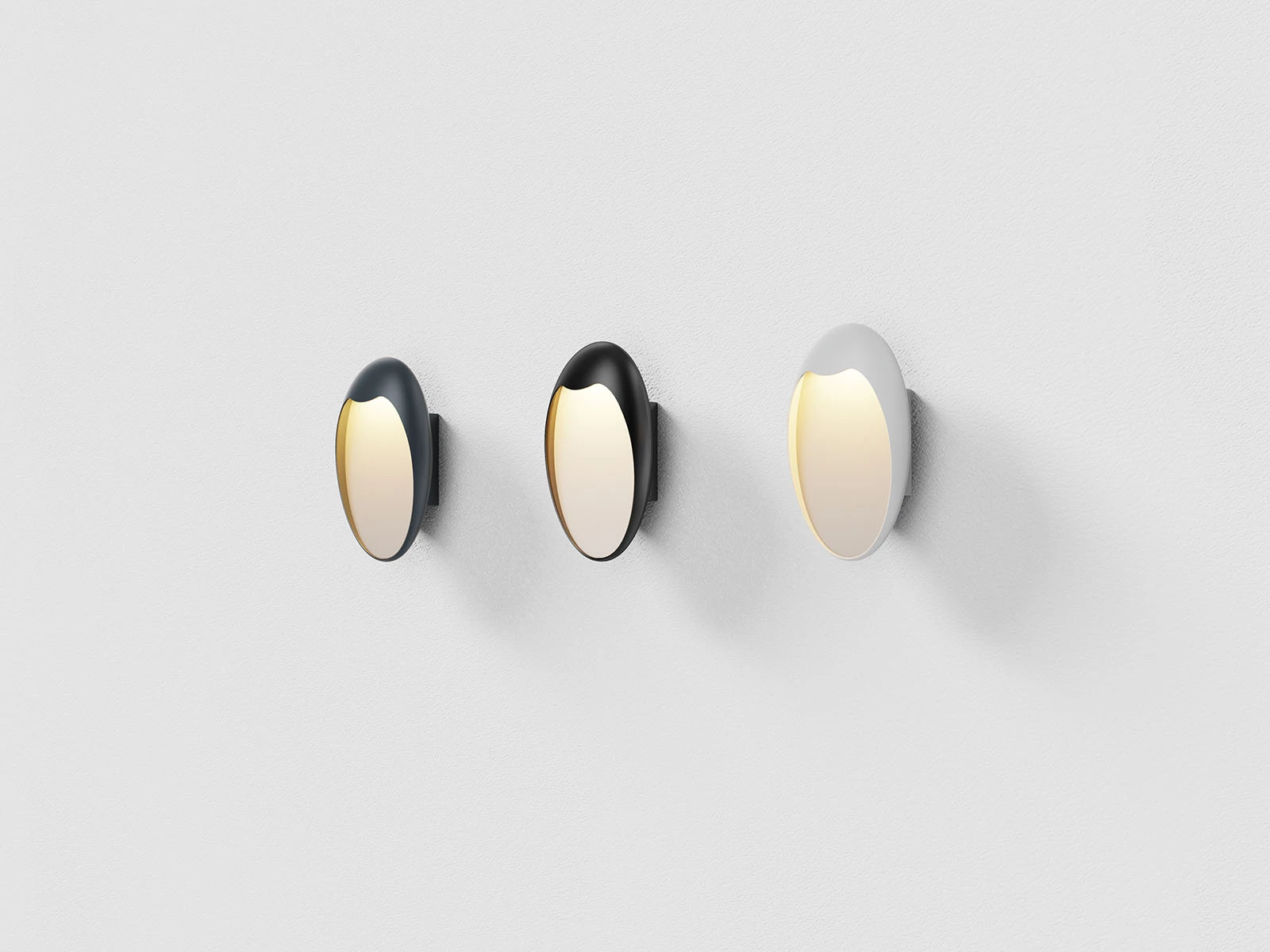

WL156 LED Wall Light Three Colors Lighting Up

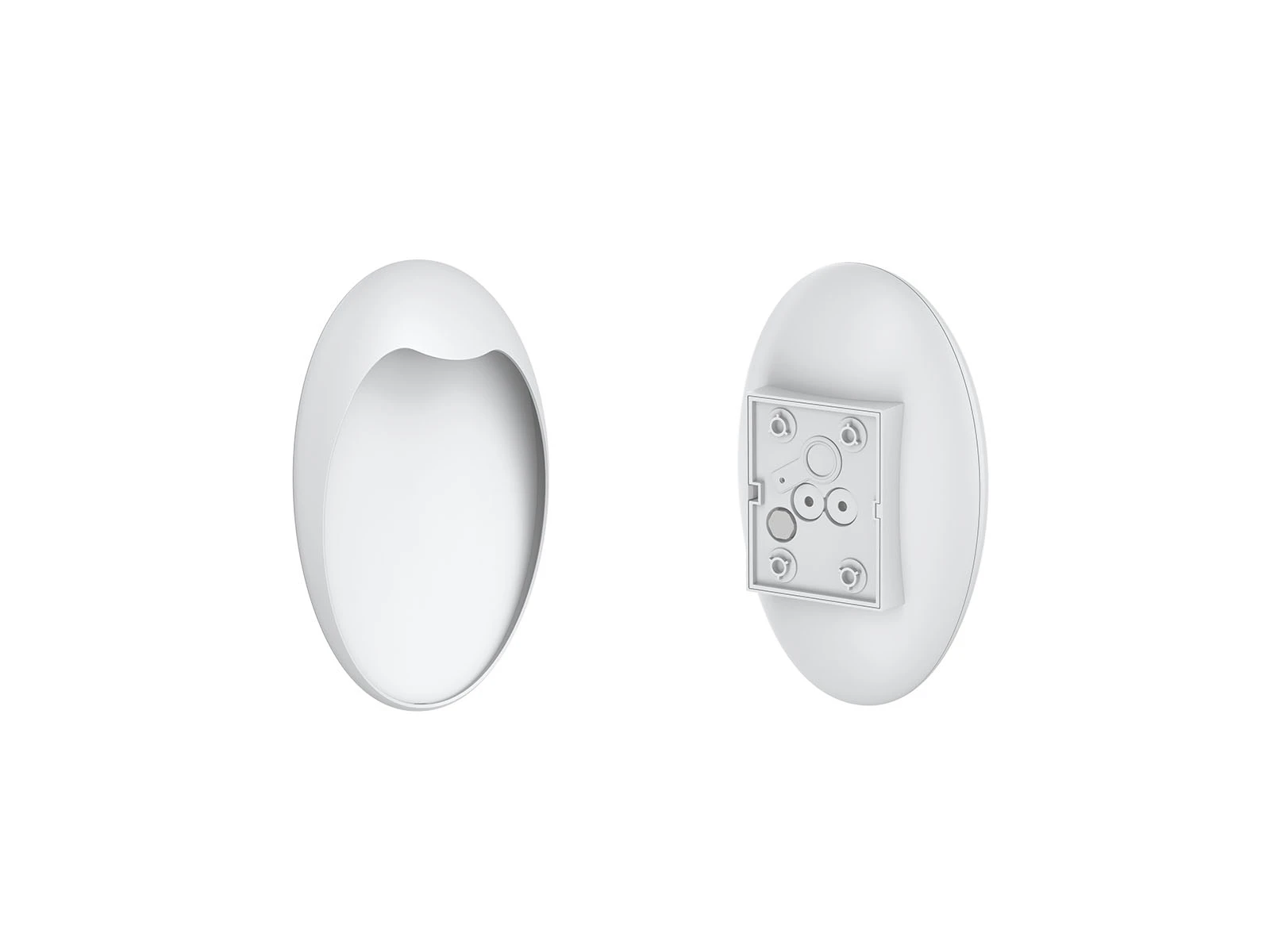

WL156 LED Wall Light Front and Back
WL156 LED Wall Light
WL156 LED Wall Light Three Colors
WL156 LED Wall Light Three Colors Lighting Up
WL156 LED Wall Light Front and Back

WL156 LED Wall Light

This tiltable downlight features a simple design with a reflector and a high-lumen COB LED chip. The hightransmittance PC cover ensures uniform and superior lighting output. The ADC12 aluminum profile provides excellent thermal dissipation. The flexible rotary head, adjustable up to 25 degrees, simplifies installation and enhances performance.
  • High transmittance PC cover makes better lighting distribution.
  • 25 degree flexible rotary head makes installation easier and better.
  • Interchangeable CCT(3000K+4000K+5000K)with slide switch
  • External flicker free driver.
  • Dimming ways: Triac , DALI, 0-10V
Application Areas: It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.
Specification Files IES & LDT Files
Specifications
CODE
 PD42A-6W-D PD42A-10W-D PD42B-6W-D PD42B-10W-D
Dimension(mm) Ø90*H165 Ø120*H195 Ø90*H1145 Ø120*H1175
Watt(W) 6W 10W 6W 10W
Input Voltage AC220-240V
Light Source SMD
CCT(K) 1-CCT: 3000K/4000K/5000K/5700K 2-CCT: 3000K+4000K
CCT Selection DIP Switch YES
Luminous Flux (lm) ±5% CRI80 1-CCT Non-DIM -
DIM 500-550lm 890-900 500-550 890-900
2-CCT Non-DIM -
DIM 500-550lm 890-900 500-550 890-900
Beam Angle(°) 160 °
Dimming Option Triac
Sensor NO
Emergency NO
Product weight(Kg) N.W/PC 0.33 0.56 0.37 0.61
G.W/PC 0.41 0.67 0.46 0.75
Package weight(Kg) N.W/CTN 3.96 6.72 4.44 7.32
G.W/CTN 5.68 9.29 6.14 9.79
Qty/CTN (PCS) 12 12 12 12
Carton Size(mm) 400*335*210 520*425*240 335*230*355 425*290*415
20GP(pcs) 11520 6156 11808 6120
40HQ(pcs) 27648 13800 27888 15120

CODE

TL42A-6W

TL42A-10W

TL42B-6W

TL42B-10W
Dimension(mm) Ø90*H154 Ø120*H184 Ø90*H1146 Ø120*H1176
Watt(W) 6W 10W 6W 10W
Input Voltage AC220-240V
Light Source SMD
CCT(K) 1-CCT: 3000K/4000K/5000K/5700K
CCT Selection DIP Switch NO
Luminous Flux (lm) ±5% CRI80 1-CCT Non-DIM 570-650 950-1000 570-600 950-1000
DIM - 850-900 - 850-950
Beam Angle(°) 160 °
Dimming Option Triac
Sensor NO
Emergency NO
Product weight(Kg) N.W/PC 0.25 0.41 0.28 0.44
G.W/PC 0.34 0.56 0.36 0.59
Package weight(Kg) N.W/CTN 3.00 4.92 3.36 5.28
G.W/CTN 4.84 7.79 5.19 8.26
Qty/CTN (PCS) 12 12 12 12
Carton Size(mm) 330*320*355 415*410*415 335*320*305 425*375*445
20GP(pcs) 8568 4200 9996 4680
40HQ(pcs) 20244 10080 23040 9720
