ACC-WL154-GU10 Series LED Wall Light

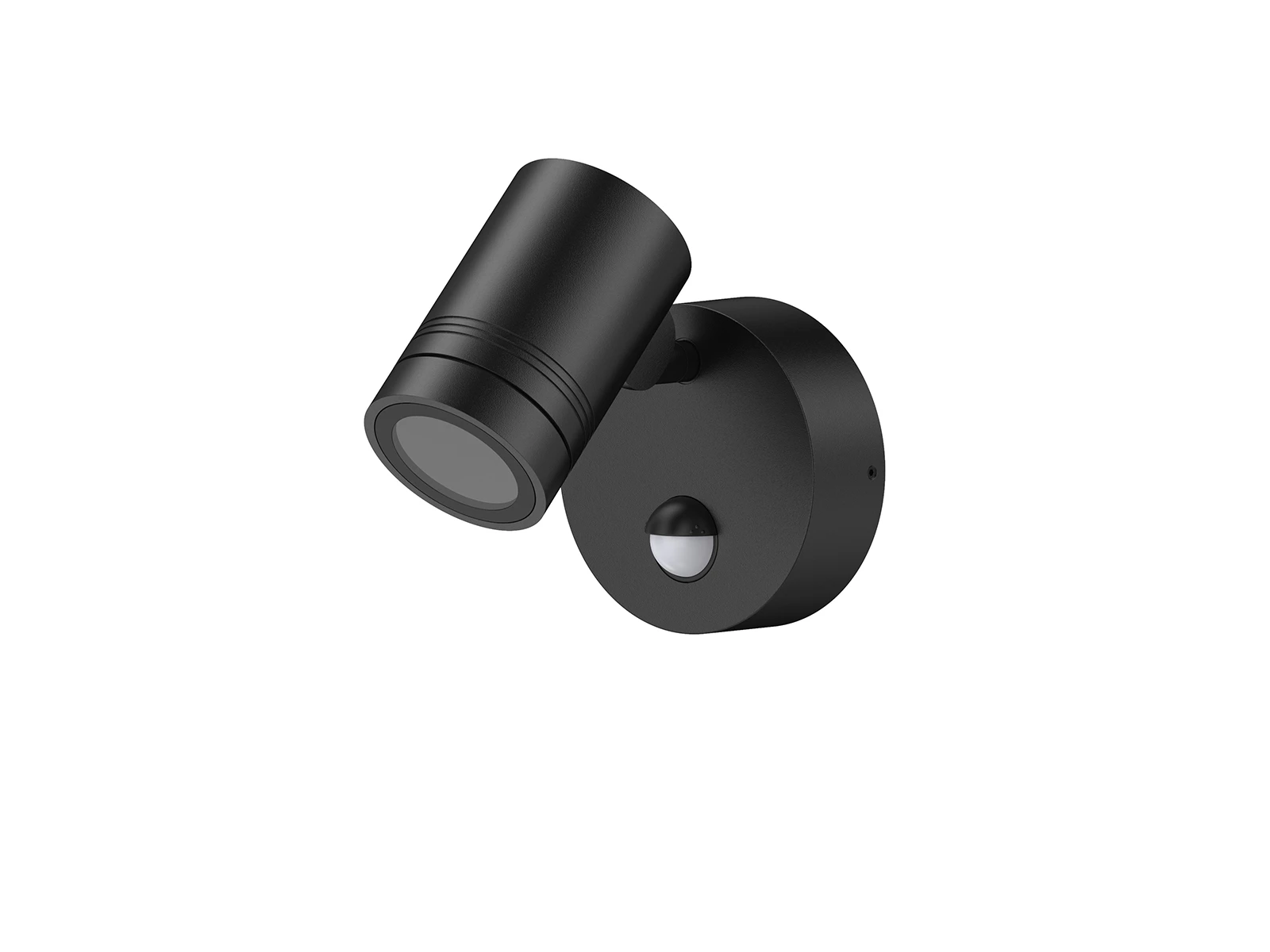

ACC WL154 GU10 Series IP65 IK06 LED Wall Light

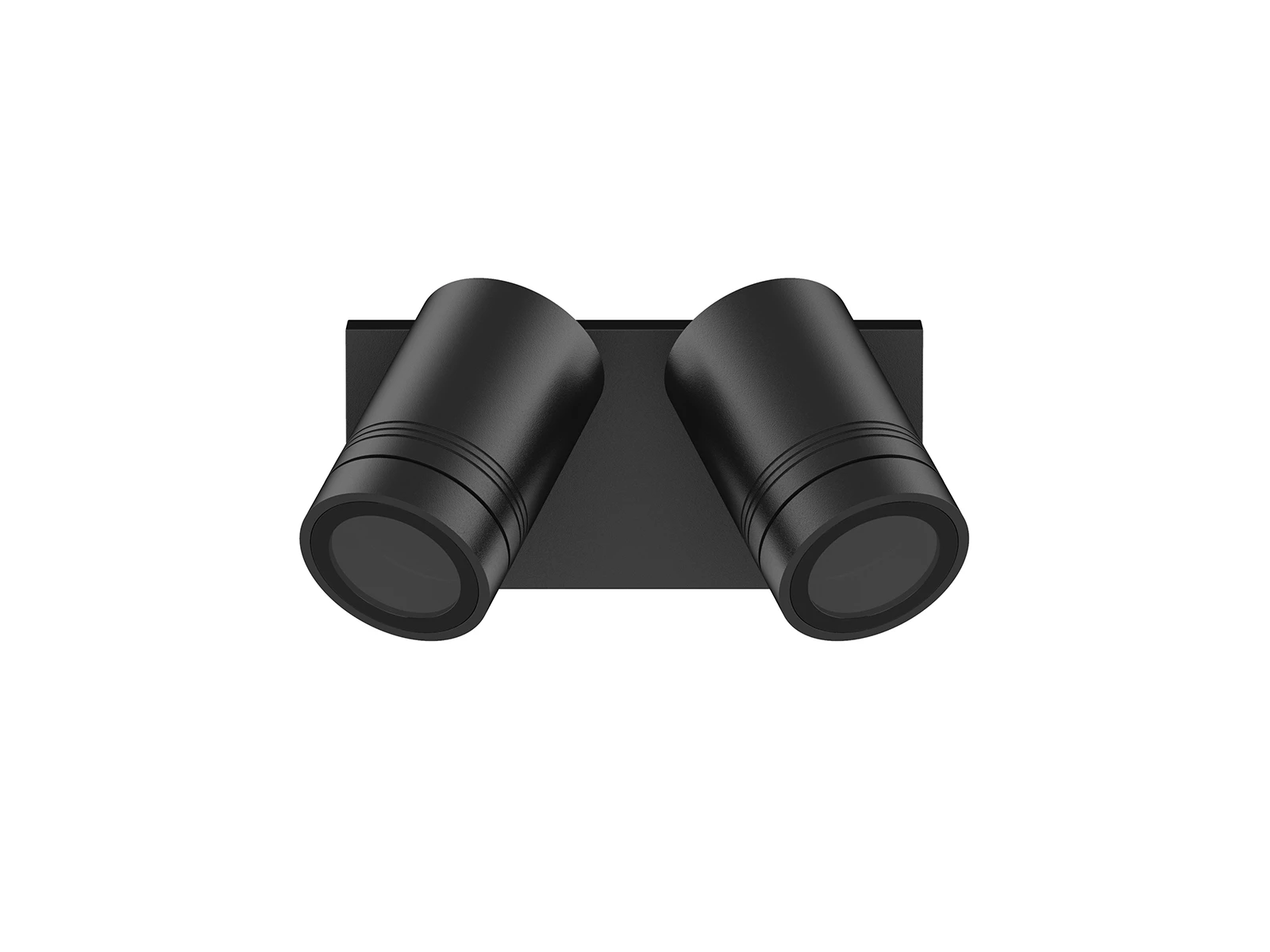

ACC WL154 GU10 Series ADC12 Aluminium Housing LED Wall Light

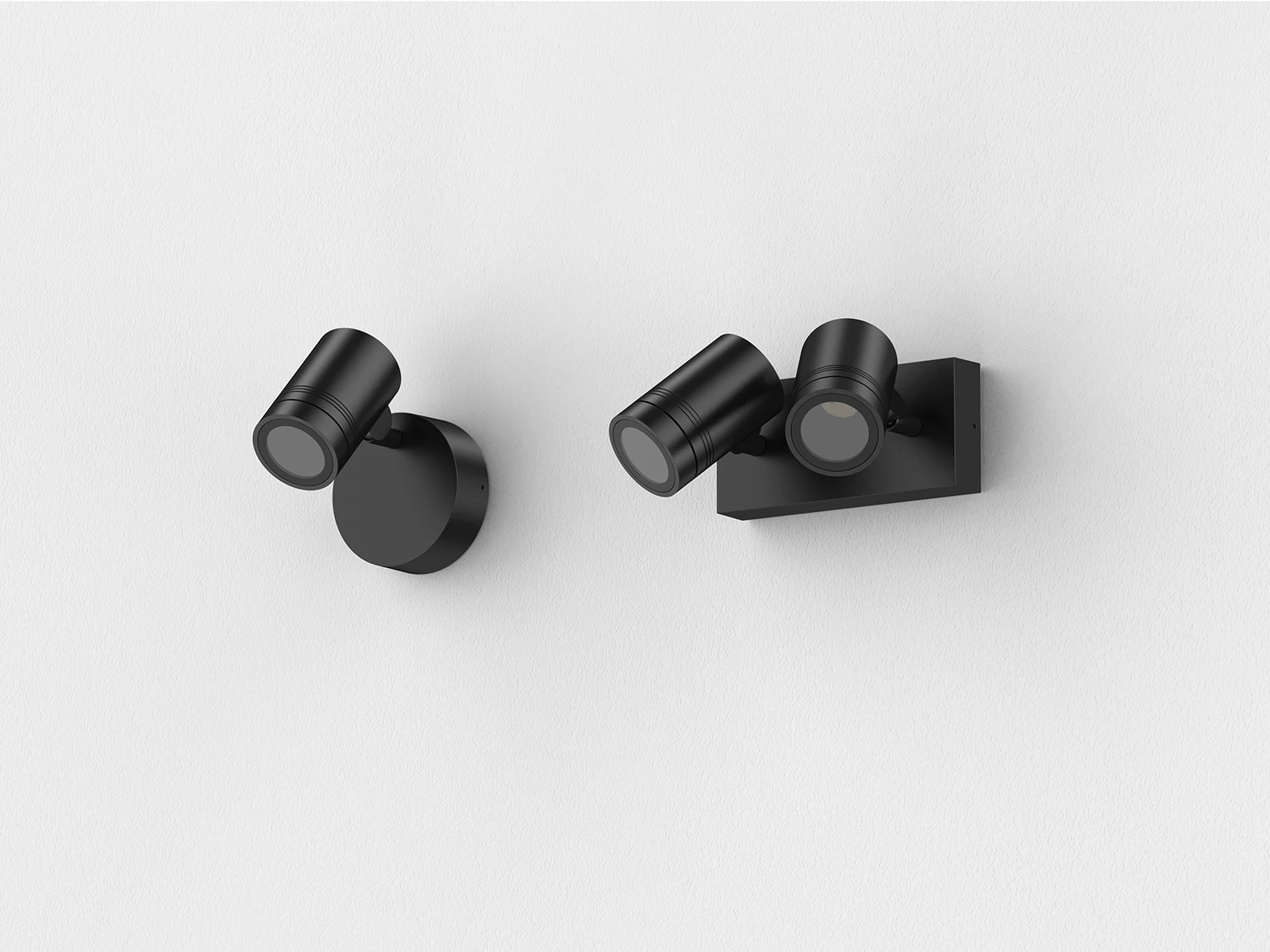

ACC WL154 GU10 Series PIR Sensor Available LED Wall Light
ACC-WL154-GU10 Series LED Wall Light
ACC WL154 GU10 Series IP65 IK06 LED Wall Light
ACC WL154 GU10 Series ADC12 Aluminium Housing LED Wall Light
ACC WL154 GU10 Series PIR Sensor Available LED Wall Light

ACC-WL154-GU10 Series LED Wall Light

This is a GU10 housing with IP65 structure, it has standard version and PIR sensor version options. The lamp head can be rotated 350 degrees horizontally and 90 degrees vertically, so it can do a flexible lighting direction adjustment. ADC12 aluminium housing provides great thermal management which can ensure a long lifespan for the lamp.

  • GU10 design for better mairtenance
  • Compact design with one head and two heads option
  • ADC12 aluminium housing
  • Loop in/loop out hole for wiring convenience
  • Can be rotated 350 degrees horizontally and 90 degrees vertically
  • IP65 IK06 protection level
  • PIR sensor available

APPLICATIONS: It is designed for both indoor and outdoor lighting applications. It is also widely used for public areas, such as garden, corridors, yard etc.

CODE ACC-WL154R-GU10 ACC-WL154S-GU10
Dimension(mm) 105*62*97mm 184*62*97mm
Max Input Current(A) 1A 2A
Max Dimension(mm)GU10 Ø50*H60
Lamp holder GU10
Lamp holder material Ceramics
Sensor PIR sensor
Product weight(Kg) N.W/PC 0.495 0.96
G.W/PC 0.565 1.04
Package weight(Kg) N.W/CTN 11.88 11.52
G.W/CTN 14.36 13.3
Qty/CTN (PCS) 24 12
Carton Size(cm) 52*42.5*33.5 55*48*24
20GP(pcs) 80208 5184
40HQ(pcs) 19320 11520
