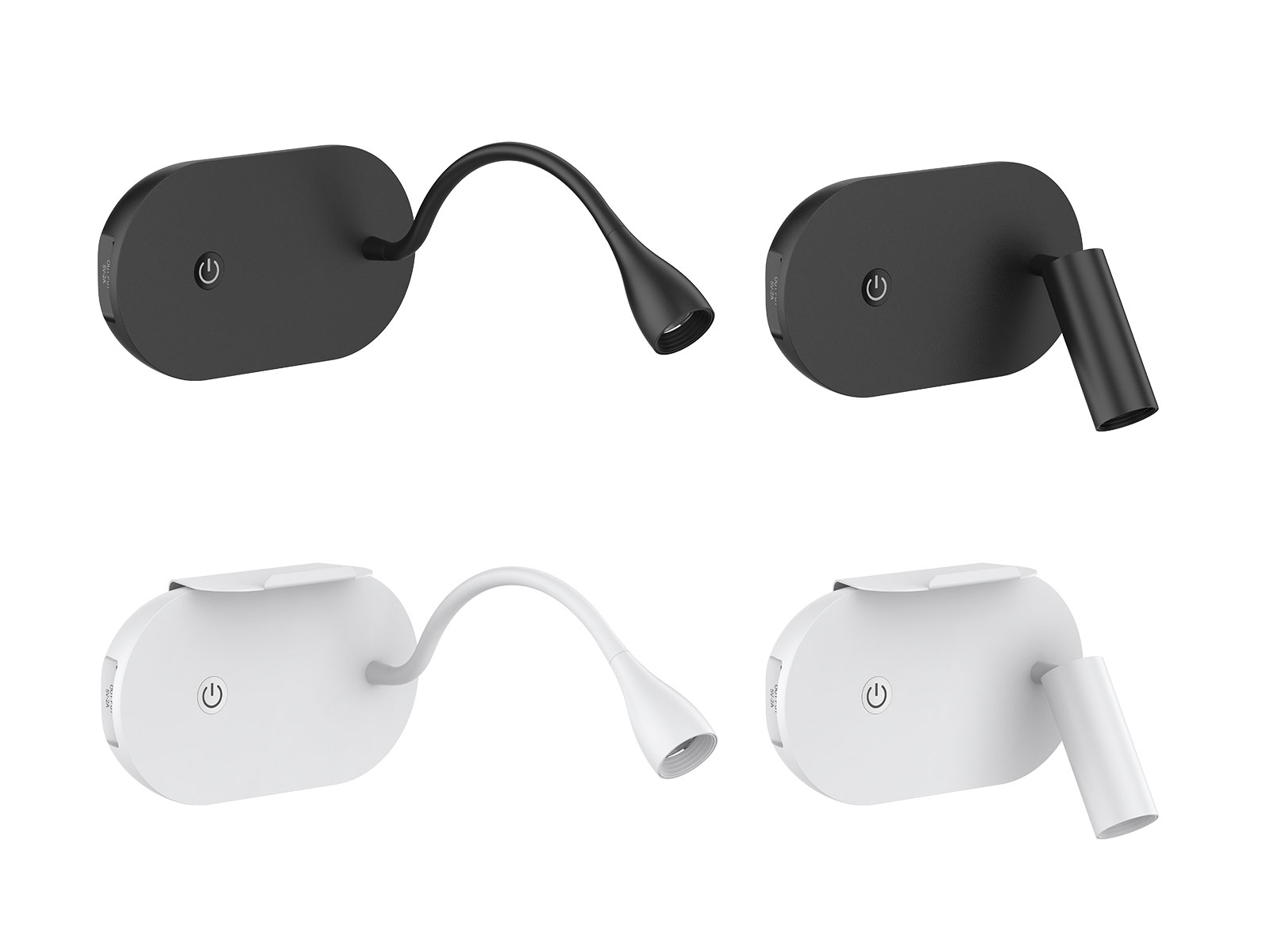

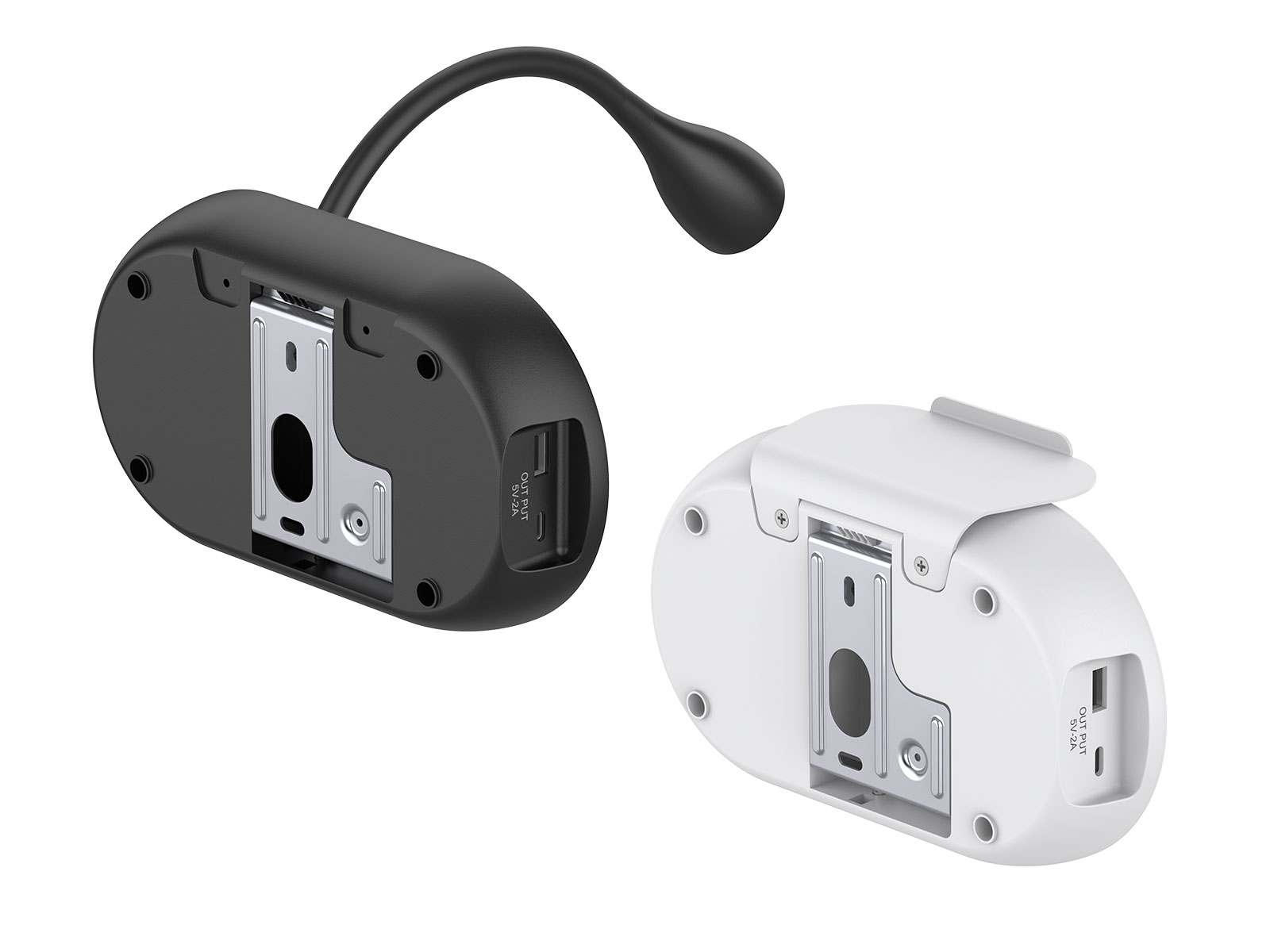

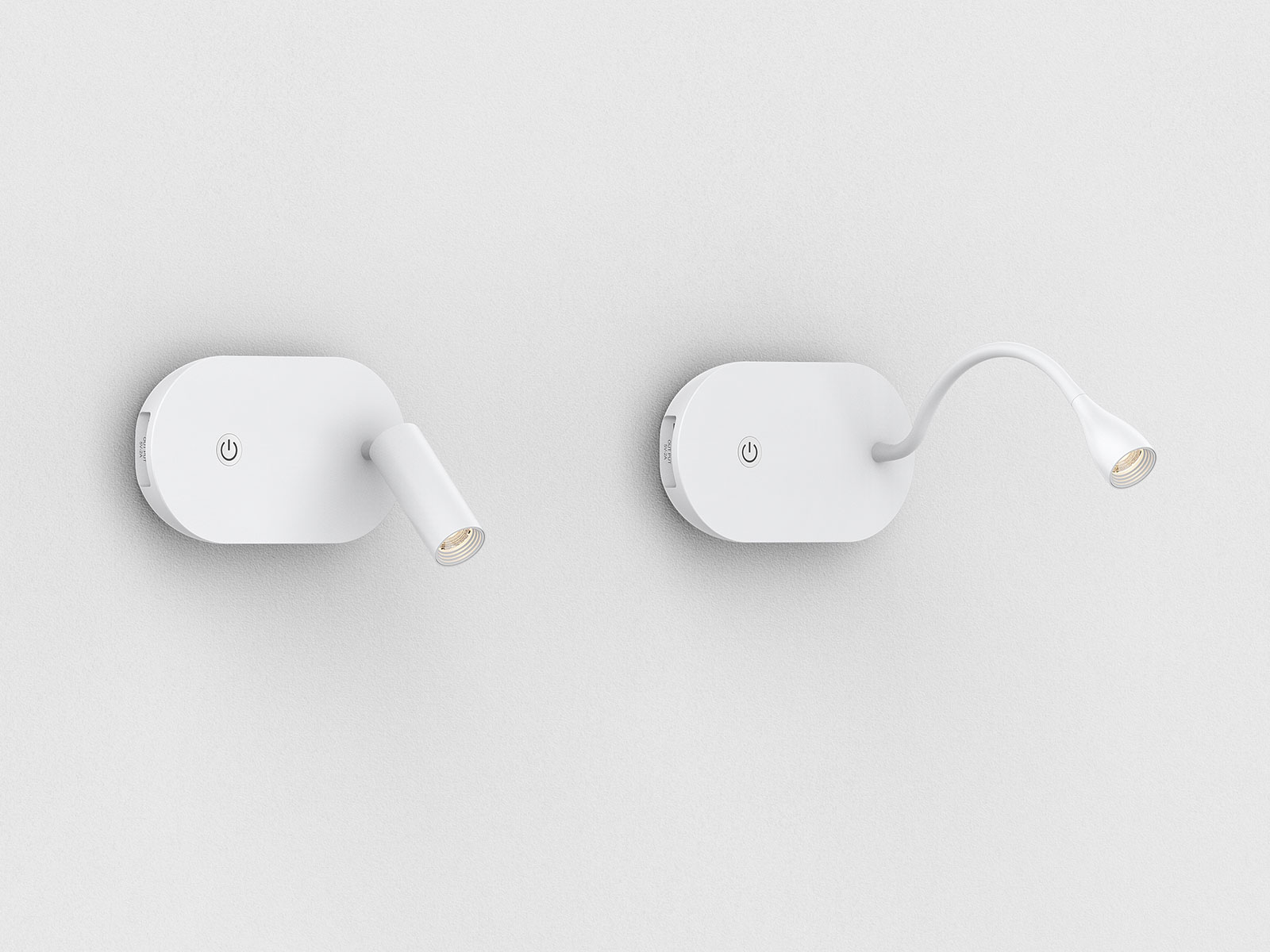

This is a bedside lamp with short gyro neck or goose neck design. It adopts SMD led chip with special lens which makes a comfortable visual experience. USB and Type-C chargers offer great convenience for end users, long press on touch switch for brightness adjustment also makes it easy control. What’s more, it can add phone shelf as an DIY accessory, which maximized lamp’s flexibility. AL6063 aluminium housing offers great thermal management so it can keep a long lifespan.
Applications: It's widely used for indoor applications, such as bedroom, hotel, restaurant, living room etc.
| Code | WL135A-3W-T | WL135B-3W-T | ||||
|---|---|---|---|---|---|---|
| Dimension(mm) | 200*138*79 | 200*115*304 | ||||
| Watt(W) | 17W  | Focus light 3W USB 10W | ||||
| Rated Input Voltage | AC220-240V | |||||
| Input Voltage | AC198-264V | |||||
| LED Module Input | 9V | |||||
| Light Source | SMD | |||||
| SDCM | <6 | |||||
| CCT(K) | 1-CCT:2700K/3000K/4000K/5000K | |||||
| CCT Selection DIP Switch | NO | |||||
| Luminous Flux (lm) ±5% CRI80 | 1-CCT | Non-DIM | 200-280 | |||
| DIM | - | |||||
| 3-CCT | Non-DIM | - | ||||
| DIM | - | |||||
| CRI | Focus light 80 | |||||
| Beam Angle (°) | 50° | |||||
| LED Driver | Built-in | |||||
| Dimming Option | 0-100% Manual adjustable | |||||
| Sensor | No | |||||
| Emergency Kits | No | |||||
| Electrical Class | Class I | |||||
| Ingress Protection(IP Rating) | IP20 | |||||
| Impact Resistance(IK Rating) | IK06 | |||||
| Product Finishing | White RAL 9016 | |||||
| Optics Material | PC | |||||
| Housing Material | ADC12+PC | |||||
| Lifetime (hr) | 50,000hr | |||||
| Glow wire test (°C) | 750°C | |||||
| Operating Temp.(°C) | -20°C~45°C | |||||
| Storage Temp.(°C) | -20°C~65°C | |||||
| Installation | wall mount | |||||
| USB Output | 2 Groups USB 5V2000mA | |||||
