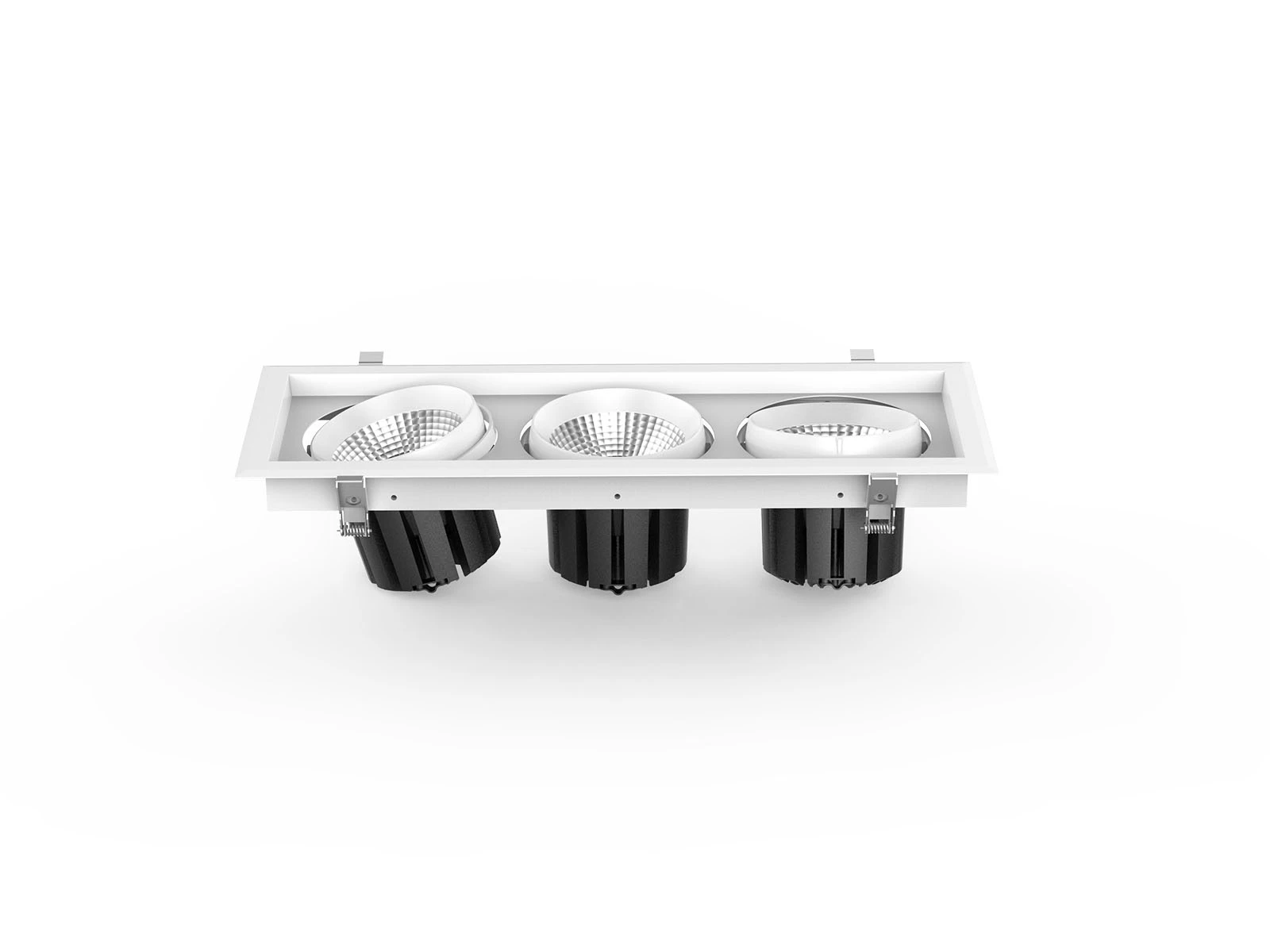

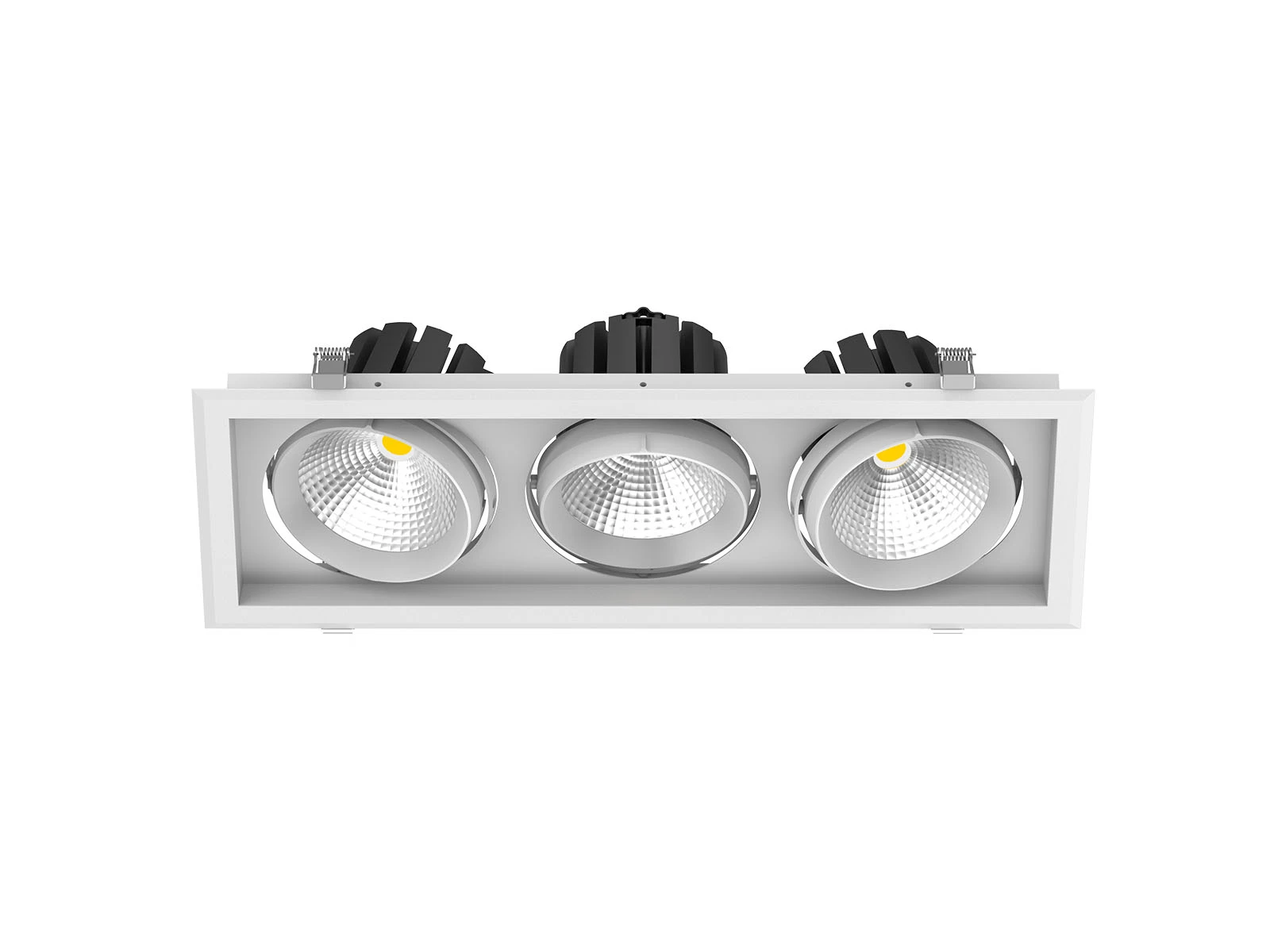

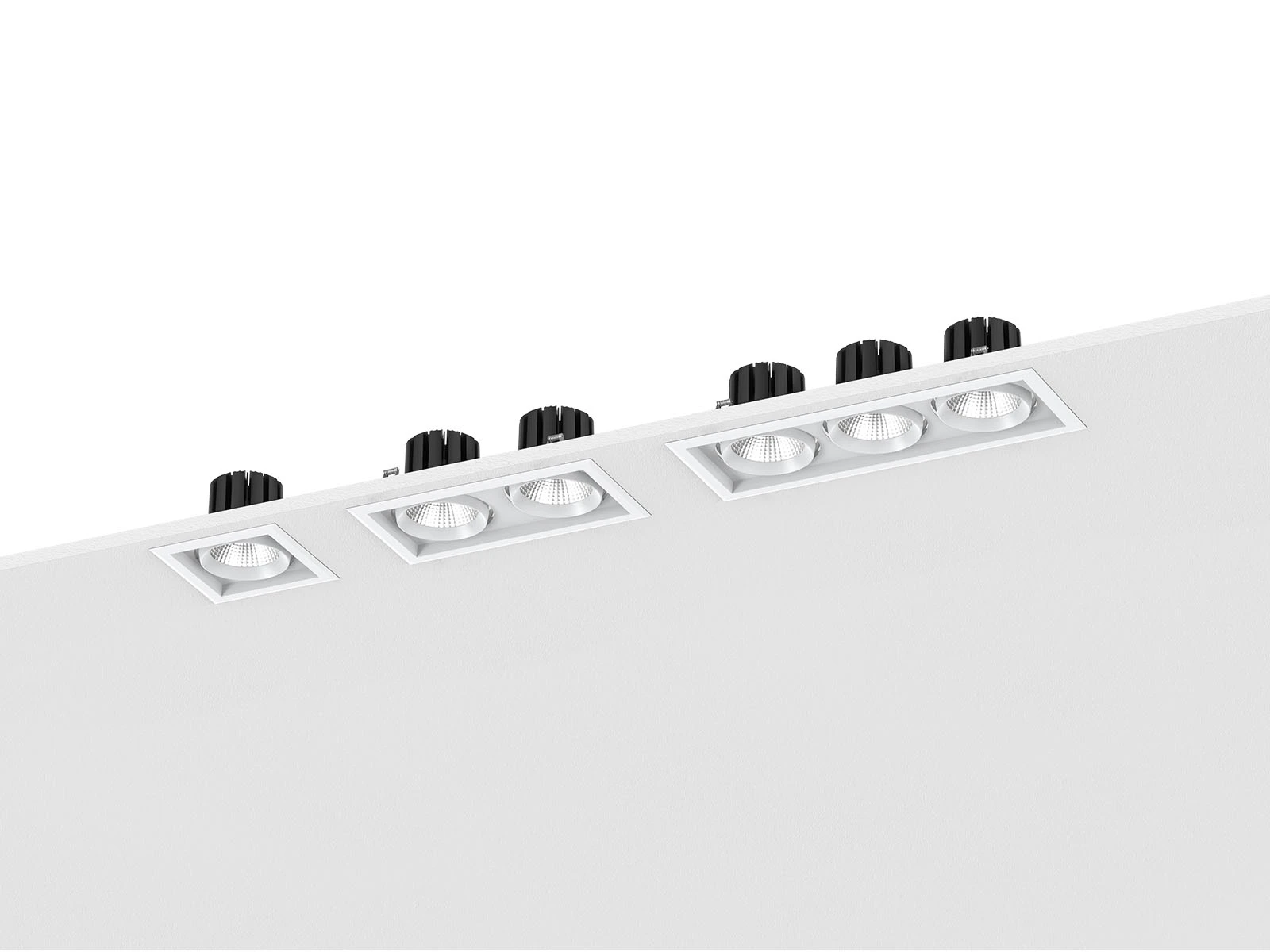

High power multiple recessed downlight is becoming a star product in the commercial lighting by virtue of focusing on local lighting. Up-shine new model CL99 not only retains characteristics of traditional lamp, but also improves the performance and function greatly, therefore, it can meet the various and increasing demands.
The unique replaceable module design makes the lamp more easily to install and maintain, customers can change the color temperature and beam angle according to the actual usage areas, to gain the most comfortable lighting experience. 340° wide range rotational angle brings the lamp the maximum and impressive impact on accent lighting and decoration. Perfect combination of COB integrated chip and reflector, not only offers even lighting but also highlights in the center, makes the lamp becoming popular in commercial lighting. Clear and simple heat sink design with multiple layers of cooling fin connected with each other, increased the interface between heat sink and air, accelerated the air circulation and improved the heat dissipation for lamp.
Application Areas: It is designed for general lighting applications in office, supermarket, shop, school, hotel, etc. It is also widely used for public areas, such as stairway, lobby, reception, corridors etc.
Model | Voltage | Power | Power Factor | Lumen (±5%) | Beam angle | CCT | Lifespan | CRI | Dimmable | Dimension |
---|---|---|---|---|---|---|---|---|---|---|
UP-CL99-90W | AC230V | 90W | ≥0.9 | 8730 | 15°/24°/36° | 2700K | 40000h | ≥80 | No | 475*175*110mm cutout 455*160mm |
UP-CL99-90W | AC230V | 90W | ≥0.9 | 9200 | 15°/24°/36° | 3000K | 40000h | ≥80 | No | 475*175*110mm cutout 455*160mm |
UP-CL99-90W | AC230V | 90W | ≥0.9 | 9870 | 15°/24°/36° | 4000K | 40000h | ≥80 | No | 475*175*110mm cutout 455*160mm |
UP-CL99-90W | AC230V | 90W | ≥0.9 | 9600 | 15°/24°/36° | 5000K | 40000h | ≥80 | No | 475*175*110mm cutout 455*160mm |
UP-CL99-90W-D | AC230V | 90W | ≥0.9 | 8440 | 15°/24°/36° | 2700K | 40000h | ≥80 | Yes | 475*175*110mm cutout 455*160mm |
UP-CL99-90W-D | AC230V | 90W | ≥0.9 | 8890 | 15°/24°/36° | 3000K | 40000h | ≥80 | Yes | 475*175*110mm cutout 455*160mm |
UP-CL99-90W-D | AC230V | 90W | ≥0.9 | 9500 | 15°/24°/36° | 4000K | 40000h | ≥80 | Yes | 475*175*110mm cutout 455*160mm |
UP-CL99-90W-D | AC230V | 90W | ≥0.9 | 9215 | 15°/24°/36° | 5000K | 40000h | ≥80 | Yes | 475*175*110mm cutout 455*160mm |
