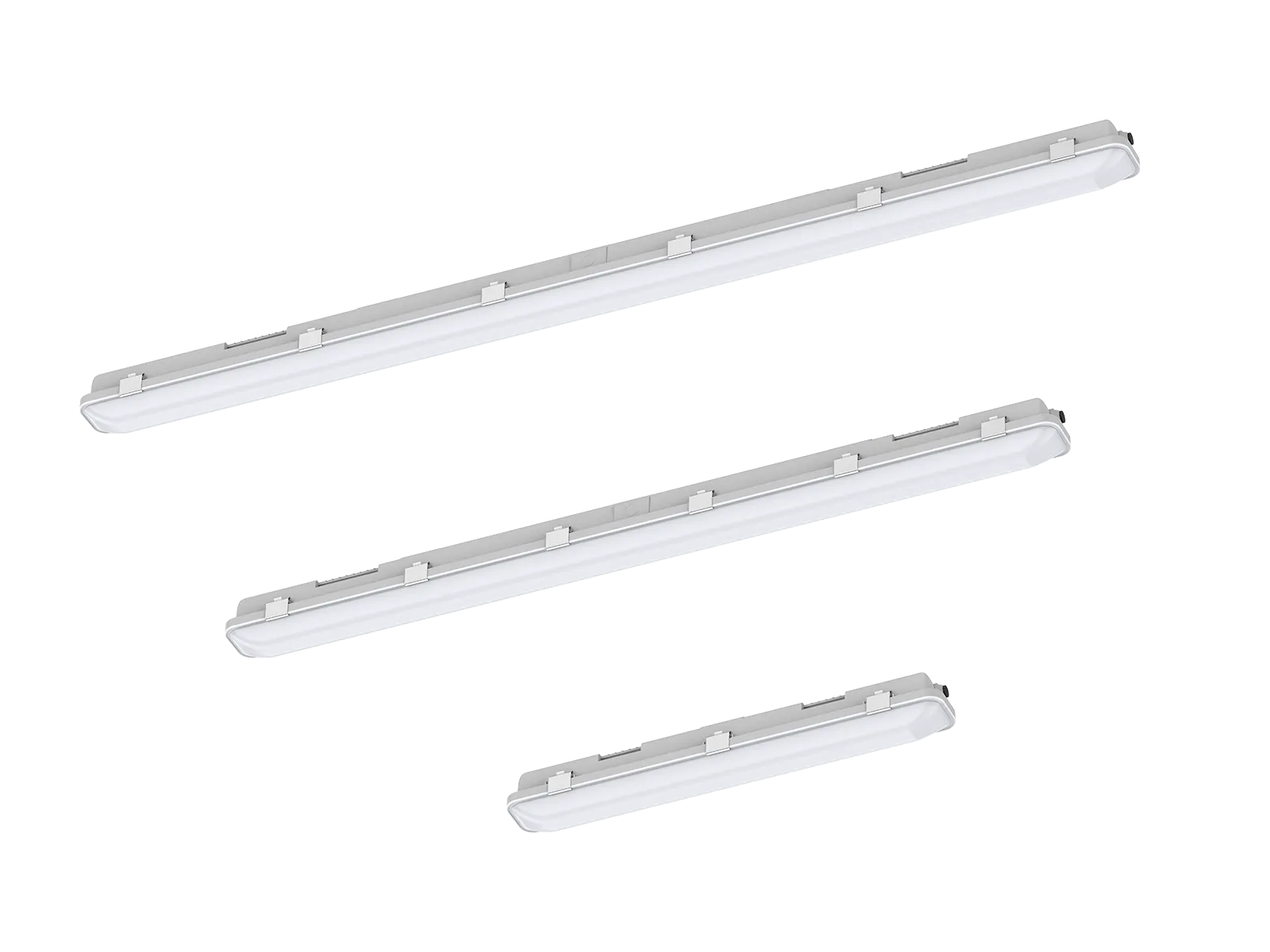

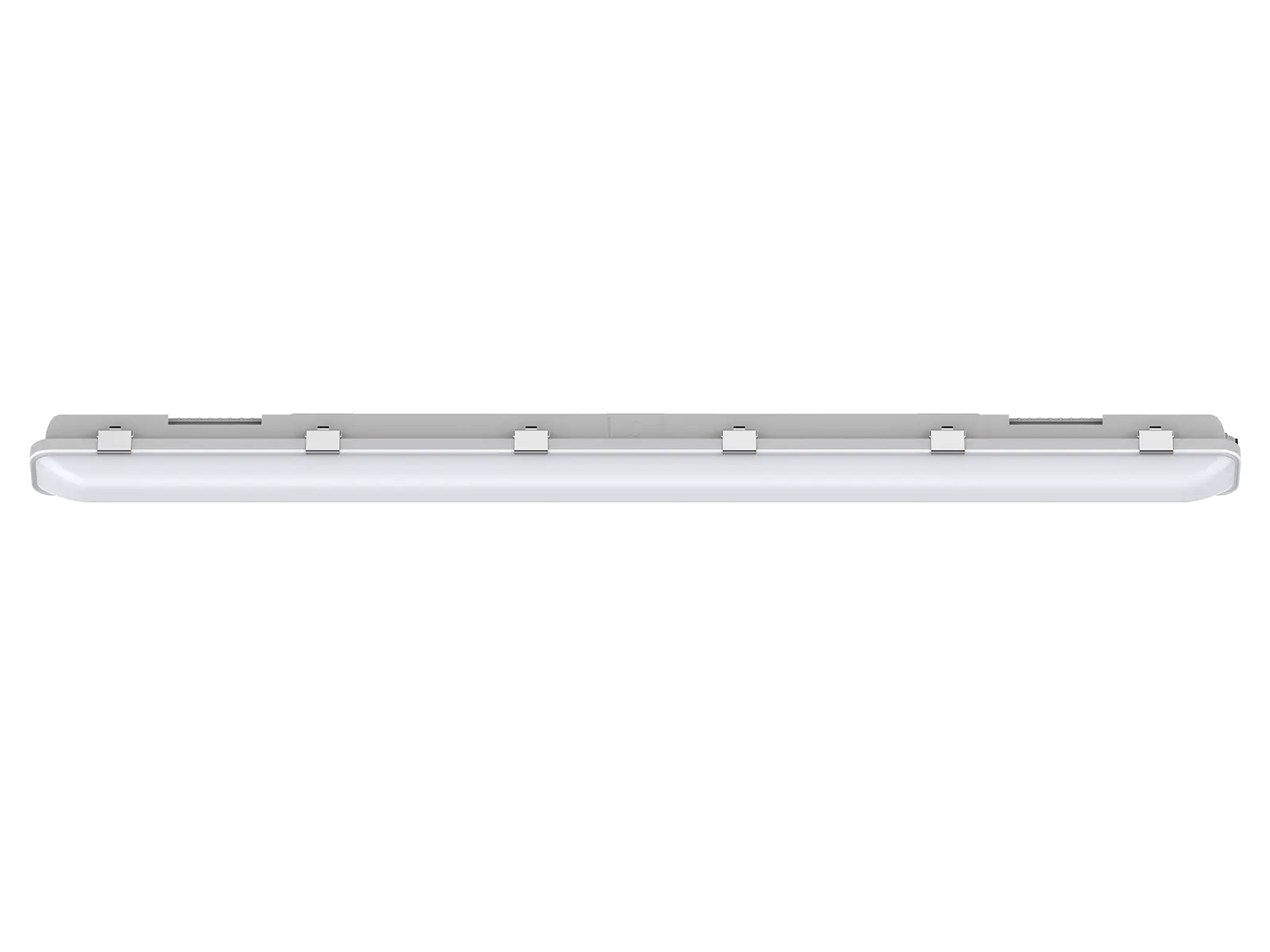

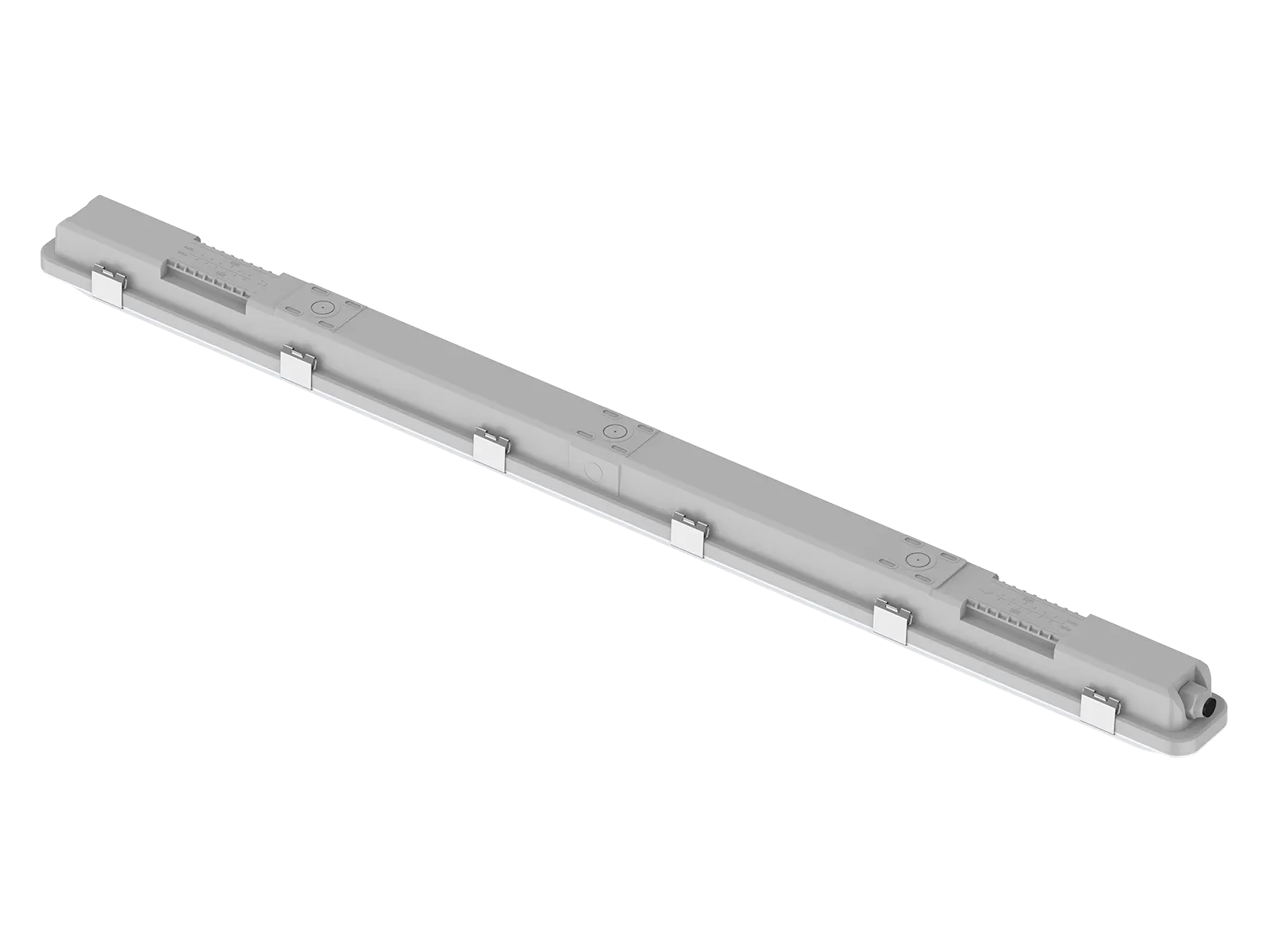

This tri-proof light is an ideal alternative to fluorescent lamps and it also a sustainable design with multiple plug in modules. It adopts high lumen SMD LED chip, high transmittance lamp shade and 120 degree wide beam angle provide an uniform light output. It is a splicing design with waterproof connector. Three sizes option: 600mm/1200mm/1500mm. Surface mount and pendant installation available. LED driver can be easily replaced, installer can also install microwave sensor module and emergency pack easily based on plug in design.
Applications: It's widely used in factory, warehouse, workshop, ship, parking lot and other lighting area with high humidity and dusty places.
| Code No. | TRP14-600-20W-A4 | TRP14-1200-40W-A4 | TRP14-1500-50W-A4 | ||
|---|---|---|---|---|---|
| Dimension(mm) | 610*75*80mm | 1165*75*80mm | 1465*75*80mm | ||
| Watt(W) | 20W@max (optional:18W / 15W / 12W) | 40W@max (optional:35W / 30W / 25W) | 50W@max (optional:42W / 35W / 28W) | ||
| Rated Input Voltage(V) | AC220-240V | ||||
| Input Voltage(V) | AC198-264V | ||||
| Light Source | SMD2835 | ||||
| SDCM | <6 | ||||
| CCT(K) | 1-CCT: 3000K/4000K/5000K/5700K || 3-CCT: 3000K + 4000K + 5700K | ||||
| CCT Selection DIP Switch | Yes | ||||
| Luminous Flux (lm) ±5% | Non-DIM | 1-CCT | 20W@2320-2450 18W@2140-2260 15W@1780-1900 12W@1440-1530 | 40W@4720-4900 35W@4020-4400 30W@3570-3900 25W@3020-3250 | 50W@6050-6550 42W@5500-5650 35W@4750-4950 28W@3950-4150 |
| DIM | – | ||||
| Non-DIM | 3-CCT | 20W@2300-2400 18W@2100-2200 15W@1750-1820 12W@1400-1500 | 40W@4650-4850 35W@3950-4300 30W@3500-3850 25W@3000-3200 | 50W@6000-6500 42W@5420-5600 35W@4700-4900 28W@3900-4080 | |
| DIM | – | ||||
| CRI | ≥80 | ||||
| Beam Angle (°) | 120° | ||||
| LED Driver | Driver built-in | ||||
| Dimming Option | 0-10V | ||||
| Sensor | Microwave sensor & Daylight sensor | ||||
| Emergency Kits | NO | YES | |||
| Electrical Class | Class Ⅰ | ||||
| Ingress Protection (IP Rating) | IP65 | ||||
| Impact Resistance (IK Rating) | IK08 | ||||
| Product Finishing(Base) | Grey | ||||
| Materials of Optics | PC | ||||
| Materials of Housing | PC | ||||
| Lifetime (hr) | 50,000h | ||||
| Glow wire test (℃ ) | 750℃ | ||||
| Operating Temp. (℃ ) | -20℃~45℃ | ||||
| Storage Temp. (℃ ) | -20℃~65℃ | ||||
| Installation | Surface mount / Pendant | ||||
