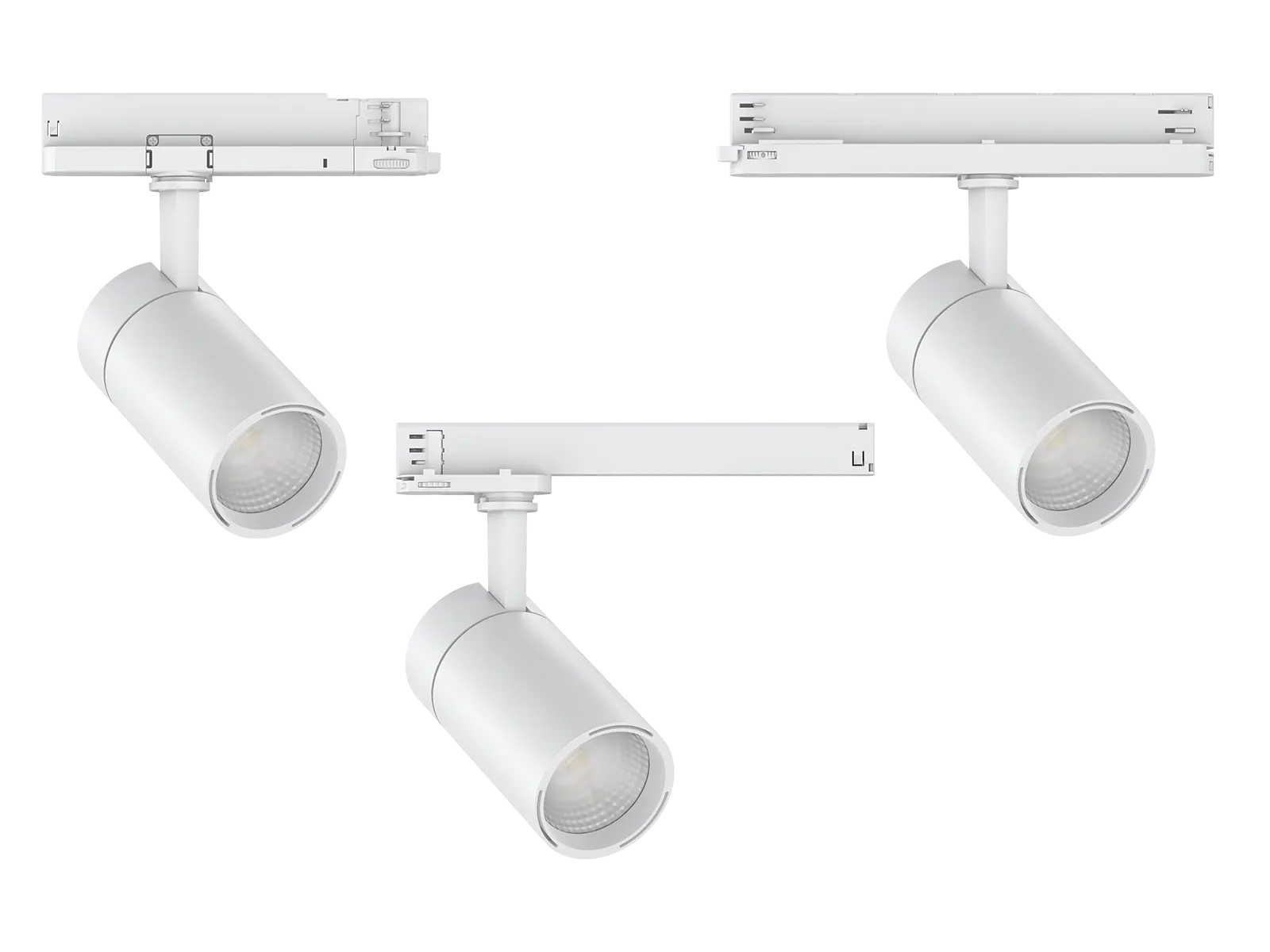

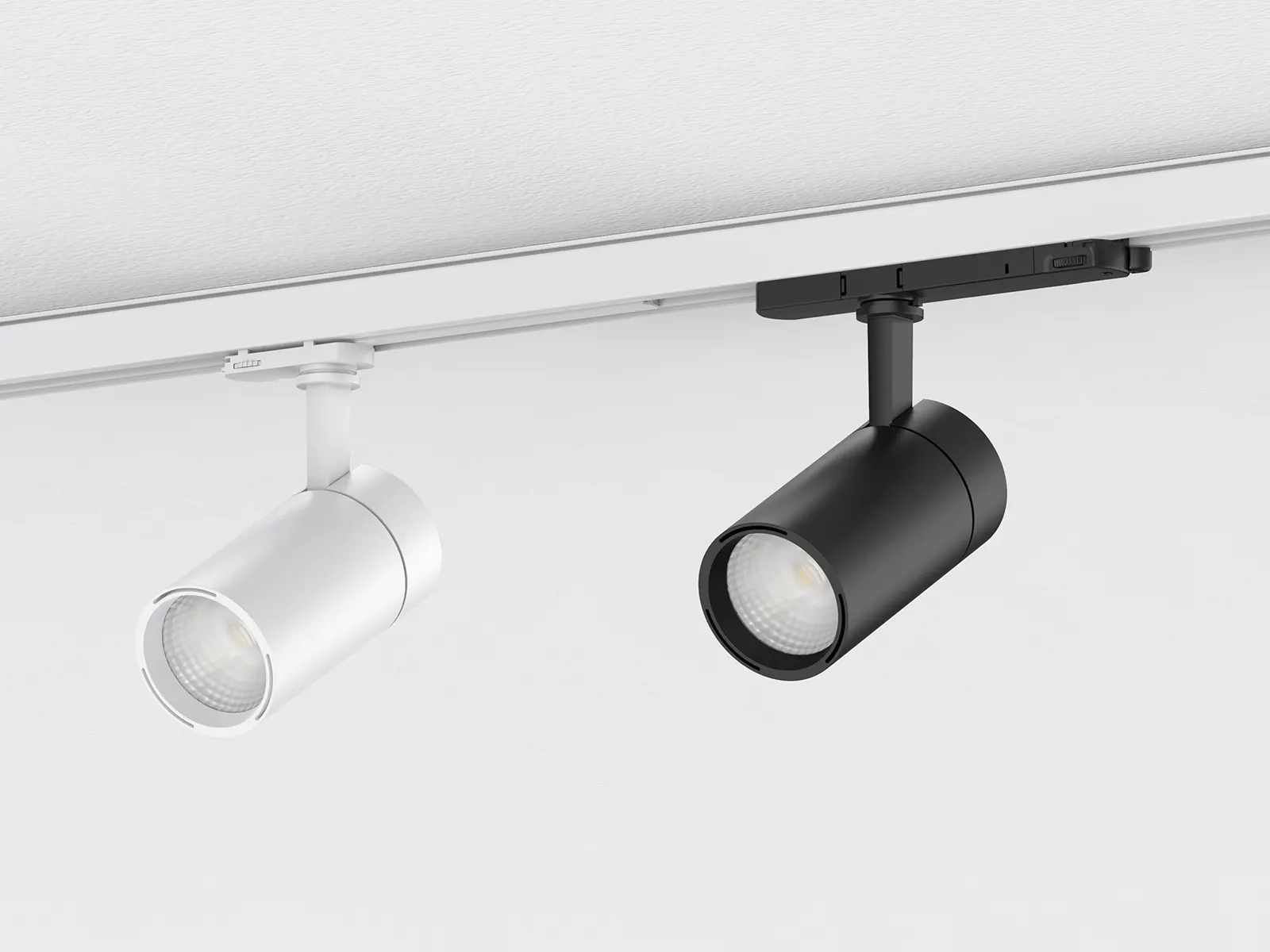

The CCT interchangeable track light TL57A housing is made of high-quality die-cast aluminum in Integrated molding, and adopts heat convection design at the front and back. With built out led driver as well integrated adaptor, its heat dissipation performance well. The lamp body can be rotated 350° horizontally and 90° vertically.
Applications: It is suitable for supermarket, specialty store, show window, exhibition hall, focus lighting, decorative and background lighting, where attention is focused on subjects to emphasize special visual points.
| Code | TL57A-15W- C2 | TL57A-15W- DC2 | TL57A-15W- DAC2 | TL57A-25W- C2 | TL57A-25W- DC2 | TL57A-25W- DAC2 | TL57A- 35W-C2 | TL57A-35W- DC2 | TL57A-35W- DAC2 | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimension(mm) | Ø65*212 | Ø65*208 | Ø65*212 | Ø80*243 | Ø80*239 | Ø80*241 | Ø100*248 | Ø100*243 | Ø100*246 | ||
| Watt(W) | 15W | 25W | 35W | ||||||||
| Rated Input Voltage | AC220-240V | ||||||||||
| Input Voltage | AC198-264V | ||||||||||
| LED Module Input | DC33-38V | ||||||||||
| Light Source | COB | ||||||||||
| SDCM | <5 | ||||||||||
| CCT(K) | 2CCT: 3000K+4000K | ||||||||||
| CCT Selection DIP Switch | YES | ||||||||||
| Luminous Flux (lm) ±5% CRI90 | 2-CCT | Non-DIM | 1100-1150 | - | - | 2100-2200 | - | - | 2750-2900 | - | - |
| DIM | - | 1150-1200 | - | - | 1950-2050 | - | - | 2700-2800 | - | ||
| DALI | - | - | 1150-1200 | - | - | 2100-2200 | - | - | 2750-2900 | ||
| CRI | CRI90 | ||||||||||
| Beam Angle(°) | 24°/36° | ||||||||||
| UGR | UGR<22@24° | <22 | |||||||||
| LED Driver | Driver built-out | ||||||||||
| Dimming Option | NO | Triac | DALI | NO | Triac | DALI | NO | Triac | DALI | ||
| Electrical Class | Class II | ||||||||||
| Ingress Protection(IP Rating) | IP20 | ||||||||||
| Impact Resistance(IK Rating) | IK03 | ||||||||||
| Product Finishing | White RAL9016/BlackRAL9005 | ||||||||||
| Optics Material | PC | ||||||||||
| Housing Material | Die-Casting Aluminium | ||||||||||
| Lifetime(hr) | 50,000h | ||||||||||
| Glow wire test(°C) | 750°C | ||||||||||
| Operating Temp.(°C) | -20°C~35°C | ||||||||||
| Storage Temp.(°C) | -20°C~65°C | ||||||||||
| Installation | Track | ||||||||||
